购物车数字隔离器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 技术 | 类型 | 隔离电源 | 通道数 | 输入 - 侧 1/侧 2 | 通道类型 | 电压 - 隔离 | 共模瞬态抗扰度（最小值） | 数据速率 | 传播延迟 tpLH / tpHL（最大值） | 脉宽失真（最大值） | 上升/下降时间（典型值） | 电压 - 电源 | 等级 | 认证 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LTM2883CY-3S#PBFDGTL ISOL 2500VRMS 6CH SPI 32BGA |
113 |
|
规格书 |
µModule® | 32-BBGA Module | Tray | Active | Magnetic Coupling | SPI | Yes | 6 | 3/3 | Unidirectional | 2500Vrms | 30kV/µs | 4MHz, 8MHz | 100ns, 100ns | - | 3ns, 3ns | 3V ~ 3.6V | - | - | 0°C ~ 70°C | Surface Mount | 32-BGA (15x11.25) |
|

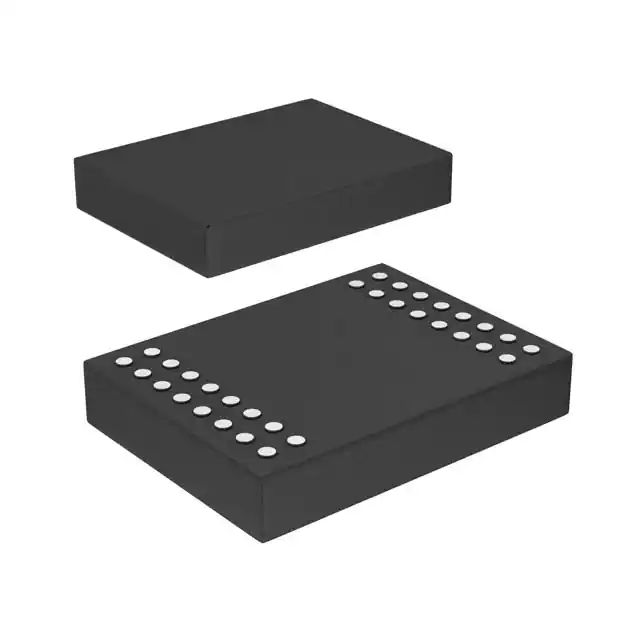

LTM2881HV-5#PBFDGTL ISO 2.5KV RS422/RS485 32LGA |
107 |
|
规格书 |
µModule® | 32-BLGA | Tray | Active | Magnetic Coupling | RS422, RS485 | Yes | 2 | 1/1 | Unidirectional | 2500Vrms | 30kV/µs | 20Mbps | - | - | - | 4.5V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 32-LGA (15x11.25) |
|
LTM2894CY#PBFDGTL ISOL 7500VRMS 2CH USB 24BGA |
103 |
|
规格书 |
- | 24-BGA | Tray | Active | Magnetic Coupling | USB | No | 1 | 1/1 | Bidirectional | 7500Vrms | 50kV/µs | 12Mbps | 115ns, 115ns | - | 20ns, 20ns (Max) | 4.4V ~ 36V | - | - | 0°C ~ 70°C | Surface Mount | 24-BGA (22x6.25) |
|
|
LTM2894IY#PBFDGTL ISOL 7500VRMS 2CH USB 24BGA |
343 |
|
规格书 |
- | 24-BGA | Tray | Active | Magnetic Coupling | USB | No | 1 | 1/1 | Bidirectional | 7500Vrms | 50kV/µs | 12Mbps | 115ns, 115ns | - | 20ns, 20ns (Max) | 4.4V ~ 36V | - | - | -40°C ~ 85°C | Surface Mount | 24-BGA (22x6.25) |
|
LTM2886IY-3S#PBFDGTL ISOL 2500VRMS 6CH SPI 32BGA |
119 |
|
规格书 |
- | 32-BBGA Module | Tray | Active | Capacitive Coupling | SPI | Yes | 6 | 3/3 | Unidirectional | 2500Vrms | 30kV/µs | 4MHz, 8MHz | 100ns, 100ns | - | 3ns, 3ns | 3V ~ 3.6V | - | - | -40°C ~ 85°C | Surface Mount | 32-BGA (15x11.25) |
|
|
ADN4622BCPZQUAD 2.5BPS 2+2 LVDS ISOLATOR |
3,151 |
|
规格书 |
iCoupler® | 32-WFQFN Exposed Pad, CSP | Tray | Active | Magnetic Coupling | LVDS | Yes | 4 | 2/2 | Unidirectional | 5700Vrms | 40kV/µs | 2.5Gbps | 2.8ns, 2.8ns | - | 180ps, 180ps (Max) | 1.7V ~ 1.9V, 3V ~ 3.6V | - | - | -40°C ~ 125°C | Surface Mount | 32-LFCSP (5x5) |
|
LTM2885IY#PBFDGTL ISO 6.5KV RS422/RS485 42BGA |
4,009 |
|
规格书 |
µModule® | 42-BBGA | Tray | Active | Magnetic Coupling | RS422, RS485 | Yes | 2 | 1/1 | Unidirectional | 6500Vrms | 50kV/µs | 20Mbps | - | - | 4ns, 4ns | 4.5V ~ 5.5V | - | - | -40°C ~ 85°C | Surface Mount | 42-BGA (22x9) |
|
|
LTM2894HY#PBFDGTL ISOL 7500VRMS 2CH USB 24BGA |
122 |
|
规格书 |
- | 24-BGA | Tray | Active | Magnetic Coupling | USB | No | 1 | 1/1 | Bidirectional | 7500Vrms | 50kV/µs | 12Mbps | 115ns, 115ns | - | 20ns, 20ns (Max) | 4.4V ~ 36V | - | - | -40°C ~ 125°C | Surface Mount | 24-BGA (22x6.25) |
|
HCPL-0931DGTL ISO 2500VRMS 2CH GP 8SOIC |
1,436 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | GMR (Giant Magnetoresistive) | General Purpose | No | 2 | 1/1 | Unidirectional | 2500Vrms | 15kV/µs | 110MBd | 15ns, 15ns | 3ns | 1ns, 1ns | 3V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 8-SO |
|
|
ISO7721BDWRDGT ISOL 5000VRMS 2CH CAN 16SOIC |
5,160 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | CAN, RS232, RS485 | No | 2 | 1/1 | Unidirectional | 5000Vrms | 85kV/µs | 100Mbps | 16ns, 16ns | 4.9ns | 1.8ns, 1.9ns | 2.25V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ADUM3201WARZDGTL ISO 2500VRMS 2CH GP 8SOIC |
3,569 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 2500Vrms | 25kV/µs | 1Mbps | 150ns, 150ns | 40ns | 10ns, 10ns | 3V ~ 5.5V | Automotive | - | -40°C ~ 125°C | Surface Mount | 8-SOIC |
|
ADUM241D0BRIZDGTL ISO 5000VRMS 4CH GP 16SOIC |
4,818 |
|
规格书 |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 5000Vrms | 75kV/µs | 150Mbps | 13ns, 13ns | 3ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
SI8712CC-B-ISDGTL ISO 3750VRMS 1CH GP 8SOIC |
192 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | General Purpose | No | 1 | 1/0 | Unidirectional | 3750Vrms | 20kV/µs | 1Mbps | 60ns, 60ns | 20ns | 15ns, 5ns | 3V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC |
|
|
ISO7310CDDGTL ISO 3000VRMS 1CH GP 8SOIC |
1,464 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | General Purpose | No | 1 | 1/0 | Unidirectional | 3000Vrms | 25kV/µs | 25Mbps | 58ns, 58ns | 4ns | 2.5ns, 2ns | 3V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC |
|
ISO7310CQDRQ1DGTL ISO 3000VRMS 1CH 8SOIC |
2,410 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 1 | 1/0 | Unidirectional | 3000Vrms | 25kV/µs | 25Mbps | 58ns, 58ns | 4ns | 2.5ns, 2ns | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC |
|
|
ADUM110N1BRZ-RL7DGTL ISO 3000VRMS 1CH GP 8SOIC |
1,303 |
|
规格书 |
iCoupler® | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 1 | 1/0 | Unidirectional | 3000Vrms | 75kV/µs | 150Mbps | 13ns, 13ns | 3ns | 2.5ns, 2.5ns | 1.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC |
|
ADUM2200BRIZDGTL ISO 5000VRMS 2CH GP 16SOIC |
4,385 |
|
规格书 |
iCoupler® | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Magnetic Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 5000Vrms | 25kV/µs | 10Mbps | 50ns, 50ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 16-SOIC-IC |
|
|
SI8736BC-ISRDGTL ISO 2500VRMS 1CH GP 8SOIC |
2,500 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 1 | 1/0 | Unidirectional | 2500Vrms | 25kV/µs (Typ) | 15Mbps | 50ns, 50ns | 25ns | 2.5ns, 2.5ns | 2.5V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 8-SOIC |
|
SI8630BB-B-ISDGTL ISO 2500VRMS 3CH GP 16SOIC |
136 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | No | 3 | 3/0 | Unidirectional | 2500Vrms | 35kV/µs | 150Mbps | 13ns, 13ns | 4.5ns | 2.5ns, 2.5ns | 2.5V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ISO7321FCQDRQ1DGTL ISO 3000VRMS 2CH 8SOIC |
6,698 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 3000Vrms | 25kV/µs | 25Mbps | 57ns, 57ns | 4ns | 2.4ns, 2.1ns | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC |
