| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 技术 | 类型 | 隔离电源 | 通道数 | 输入 - 侧 1/侧 2 | 通道类型 | 电压 - 隔离 | 共模瞬态抗扰度（最小值） | 数据速率 | 传播延迟 tpLH / tpHL（最大值） | 脉宽失真（最大值） | 上升/下降时间（典型值） | 电压 - 电源 | 等级 | 认证 | 工作温度 | 安装类型 | 供应商设备封装 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADUM5212CRSZ-RL7DGTL ISO 2500VRMS 2CH GP 20SSOP |
3,294 |
|
规格书 |
IsoPower®, iCoupler® | 20-SSOP (0.209", 5.30mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | Yes | 2 | 0/2 | Unidirectional | 2500Vrms | 25kV/µs | 100Mbps | 24ns, 24ns | 2ns | 2.5ns, 2.5ns | 2.7V ~ 5.5V | - | - | -40°C ~ 105°C | Surface Mount | 20-SSOP |
|
ADUM1280WCRZ-RL7DGTL ISO 3000VRMS 2CH GP 8SOIC |
2,420 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 3000Vrms | 25kV/µs | 100Mbps | 24ns, 24ns | 2ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | - | -40°C ~ 125°C | Surface Mount | 8-SOIC |
|
|
ADUM1285WCRZ-RL7DGTL ISO 3000VRMS 2CH GP 8SOIC |
1,216 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 2 | 2/0 | Unidirectional | 3000Vrms | 25kV/µs | 100Mbps | 24ns, 24ns | 2ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | - | -40°C ~ 125°C | Surface Mount | 8-SOIC |
|
|
ADUM1286WCRZ-RL7DGTL ISO 3000VRMS 2CH GP 8SOIC |
1,823 |
|
规格书 |
- | 8-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | General Purpose | No | 2 | 1/1 | Unidirectional | 3000Vrms | 25kV/µs | 100Mbps | 24ns, 24ns | 2ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | - | -40°C ~ 125°C | Surface Mount | 8-SOIC |
|
|
SI86S602AC-AS3.75 KVRMS, I2C ISOLATOR, 1 BI- |
4,468 |
|
规格书 |
Si86S60x | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | General Purpose | Yes | 2 | 2/1 | Bidirectional, Unidirectional | 3750Vrms | 100kV/µs | 150Mbps | 15ns, 15ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC |
|
|
ISO7240MDWG4DGTL ISO 2500VRMS 4CH GP 16SOIC |
3,871 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Obsolete | Capacitive Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs | 150Mbps | 23ns, 23ns | 2ns | 2ns, 2ns | 3.15V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|

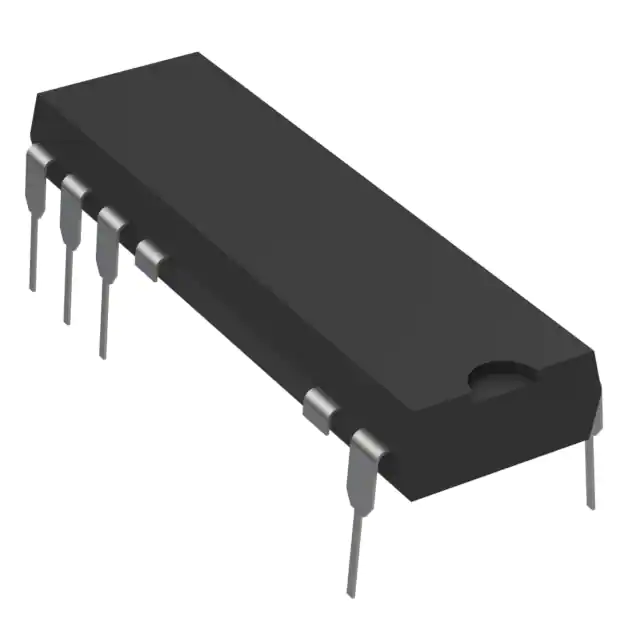

LTC1145ACNDGTL ISO 2.5KV OR 3KV 1CH 18DIP |
4,950 |
|
规格书 |
LTC | 18-DIP (0.300", 7.62mm), 12 Leads | Bulk | Obsolete | - | - | - | 1 | 1/0 | - | 3000Vrms | - | 200kHz | - | - | - | 4.5V ~ 5.5V | - | - | 0°C ~ 70°C | Through Hole | 18-PDIP |
|
|
SI86S606AB-AURDGTL ISOLTR 2.5KV 4CH 16QSOP |
4,137 |
|
规格书 |
Si86S60x | 16-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | General Purpose | Yes | 4 | 4/2 | Bidirectional, Unidirectional | 2500Vrms | 100kV/µs | 150Mbps | 15ns, 15ns | 3ns | 2.5ns, 2.5ns | 3V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-QSOP |
|
|
ISO7760FDWDGTL ISO 5000VRMS 6CH GP 16SOIC |
4,767 |
|
规格书 |
ISO776x | 16-SOIC (0.295", 7.50mm Width) | Tube | Last Time Buy | Capacitive Coupling | General Purpose | No | 6 | 6/0 | Unidirectional | 5000Vrms | 85kV/µs | 100Mbps | 16ns, 16ns | 4.9ns | 1.1ns, 1.4ns | 2.25V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI86SQ44EB-AU2.5 KVRMS QSPI COMPATIBLE ISOLAT |
4,837 |
|
规格书 |
- | 16-SSOP (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | SPI | Yes | 4 | 4/0 | Unidirectional | 2500Vrms | 150kV/µs | 150Mbps | 42ns, 42ns | 2ns | 2.5ns, 2.5ns | 2.25V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-QSOP |
|
|
SI86SQ44BB-AU2.5 KVRMS QSPI COMPATIBLE ISOLAT |
2,775 |
|
规格书 |
- | 16-SSOP (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | SPI | Yes | 4 | 4/0 | Unidirectional | 2500Vrms | 150kV/µs | 150Mbps | 42ns, 42ns | 2ns | 2.5ns, 2.5ns | 2.25V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-QSOP |
|
|
ISO7830FDWDGTL ISO 5700VRMS 3CH GP 16SOIC |
2,366 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | No | 3 | 2/1 | Unidirectional | 5700Vrms | 70kV/µs | 100Mbps | 16ns, 16ns | 4.1ns | 1.7ns, 1.9ns | 2.25V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
ISO7831DWDGTL ISO 5700VRMS 3CH GP 16SOIC |
2,504 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | No | 3 | 2/1 | Unidirectional | 5700Vrms | 70kV/µs | 100Mbps | 16ns, 16ns | 4.1ns | 1.7ns, 1.9ns | 2.25V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
ISO7830DWDGTL ISO 5700VRMS 3CH GP 16SOIC |
4,421 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | General Purpose | No | 3 | 2/1 | Unidirectional | 5700Vrms | 70kV/µs | 100Mbps | 16ns, 16ns | 4.1ns | 1.7ns, 1.9ns | 2.25V ~ 5.5V | - | - | -55°C ~ 125°C | Surface Mount | 16-SOIC |
|
MAX14430EAEE+TDIGITAL ISOLATOR 4CH LO PWR 5KV |
1,594 |
|
规格书 |
- | 16-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | CAN, RS422, RS485, SPI | No | 4 | 4/0 | Unidirectional | 3000Vrms | 50kV/µs (Typ) | 25Mbps | 32.5ns, 33.6ns | 4ns | 1.6ns, 1.4ns (Max) | 1.71V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-QSOP |
|
SI8440BB-C-ISDIGITAL ISOLATOR 4CH 16SOIC |
1,709 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Not For New Designs | Capacitive Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs (Typ) | 150Mbps | 9.5ns, 9.5ns | 2.5ns | 3.8ns, 2.8ns | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI8441BB-C-ISDGTL ISO 2500VRMS 4CH GP 16SOIC |
2,764 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Not For New Designs | Capacitive Coupling | General Purpose | No | 4 | 3/1 | Unidirectional | 2500Vrms | 25kV/µs (Typ) | 150Mbps | 9.5ns, 9.5ns | 2.5ns | 3.8ns, 2.8ns | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI8442BB-C-ISDGTL ISO 2500VRMS 4CH GP 16SOIC |
3,693 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Not For New Designs | Capacitive Coupling | General Purpose | No | 4 | 2/2 | Unidirectional | 2500Vrms | 25kV/µs (Typ) | 150Mbps | 9.5ns, 9.5ns | 2.5ns | 3.8ns, 2.8ns | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI8445BB-C-ISDIGITAL ISOLATOR 4CH 16SOIC |
1,174 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Not For New Designs | Capacitive Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs (Typ) | 150Mbps | 9.5ns, 9.5ns | 2.5ns | 3.8ns, 2.8ns | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
|
|
SI8445BB-D-ISDGTL ISO 2500VRMS 4CH GP 16SOIC |
1,792 |
|
规格书 |
- | 16-SOIC (0.295", 7.50mm Width) | Tube | Not For New Designs | Capacitive Coupling | General Purpose | No | 4 | 4/0 | Unidirectional | 2500Vrms | 25kV/µs (Typ) | 150Mbps | 9.5ns, 9.5ns | 2.5ns | 3.8ns, 2.8ns | 2.7V ~ 5.5V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC |
