购物车直流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电压 - 输入（最小） | 电压 - 输入（最大） | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 安装类型 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PYB30-Q24-T312-H-UDC/DC CONVERTER 3.3V +/-12V 30W |
4,978 |
|
规格书 |
PYB30-U (30W) | Tray | Obsolete | Enclosed | 9V | 36V | 3 | 3.3V | 12V | -12V | - | 3.5A, 625mA, 625mA | 30W | - | - | 85% | -40°C ~ 85°C | Chassis Mount | 2.66" L x 2.17" W x 0.90" H (67.5mm x 55.0mm x 23.0mm) | EN, IEC | - |
|
|
PYB30-Q24-T512-H-UDC/DC CONVERTER 5V +/-12V 30W |
1,310 |
|
规格书 |
PYB30-U (30W) | Tray | Obsolete | Enclosed | 9V | 36V | 3 | 5V | 12V | -12V | - | 3A, 625mA, 625mA | 30W | - | - | 87% | -40°C ~ 85°C | Chassis Mount | 2.66" L x 2.17" W x 0.90" H (67.5mm x 55.0mm x 23.0mm) | EN, IEC | - |
|
|
PYB30-Q24-T515-H-UDC/DC CONVERTER 5V +/-15V 30W |
2,615 |
|
规格书 |
PYB30-U (30W) | Tray | Obsolete | Enclosed | 9V | 36V | 3 | 5V | 15V | -15V | - | 3A, 500mA, 500mA | 30W | - | - | 88% | -40°C ~ 85°C | Chassis Mount | 2.66" L x 2.17" W x 0.90" H (67.5mm x 55.0mm x 23.0mm) | EN, IEC | - |
|
|
PYB30-Q48-T312-H-UDC/DC CONVERTER +/-12V 30W |
4,148 |
|
规格书 |
PYB30-U (30W) | Tray | Obsolete | Enclosed | 18V | 75V | 2 | 12V | -12V | - | - | 1.25A, 1.25A | 30W | - | - | 85% | -40°C ~ 85°C | Chassis Mount | 2.66" L x 2.17" W x 0.90" H (67.5mm x 55.0mm x 23.0mm) | EN, IEC | - |
|
|
PYB30-Q48-T512-H-UDC/DC CONVERTER +/-12V 30W |
3,896 |
|
规格书 |
PYB30-U (30W) | Tray | Obsolete | Enclosed | 18V | 75V | 2 | 12V | -12V | - | - | 1.25A, 1.25A | 30W | - | - | 88% | -40°C ~ 85°C | Chassis Mount | 2.66" L x 2.17" W x 0.90" H (67.5mm x 55.0mm x 23.0mm) | EN, IEC | - |
|
VE-MU4-ESDC/DC CONVERTER 300W |
2,034 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

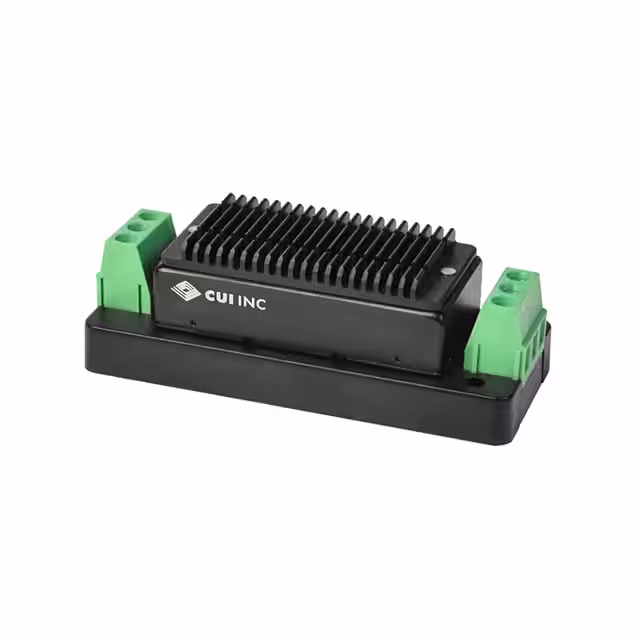

PQA30-D24-S12-THDC/DC CONVERTER 12V 30W |
1,485 |
|
规格书 |
PQA30-T (30W) | Tube | Obsolete | Enclosed | 18V | 36V | 1 | 12V | - | - | - | 2.5A | 30W | 1.5 kV | ITE (Commercial) | 86% | -40°C ~ 85°C (With Derating) | Chassis Mount | 2.99" L x 1.24" W x 0.99" H (76.0mm x 31.5mm x 25.1mm) | CE | - |
|
|
PQA30-D24-S24-THDC/DC CONVERTER 24V 30W |
4,321 |
|
规格书 |
PQA30-T (30W) | Tube | Obsolete | Enclosed | 18V | 36V | 1 | 24V | - | - | - | 1.25A | 30W | 1.5 kV | ITE (Commercial) | 87% | -40°C ~ 85°C (With Derating) | Chassis Mount | 2.99" L x 1.24" W x 0.99" H (76.0mm x 31.5mm x 25.1mm) | CE | - |
|
|
PQA30-D24-S5-THDC/DC CONVERTER 5V 30W |
4,150 |
|
规格书 |
PQA30-T (30W) | Tube | Obsolete | Enclosed | 18V | 36V | 1 | 5V | - | - | - | 6A | 30W | 1.5 kV | ITE (Commercial) | 86% | -40°C ~ 85°C (With Derating) | Chassis Mount | 2.99" L x 1.24" W x 0.99" H (76.0mm x 31.5mm x 25.1mm) | CE | - |
|
|
PQA30-D24-S9-THDC/DC CONVERTER 9V 30W |
2,789 |
|
规格书 |
PQA30-T (30W) | Tube | Obsolete | Enclosed | 18V | 36V | 1 | 9V | - | - | - | 3.33A | 30W | 1.5 kV | ITE (Commercial) | 86% | -40°C ~ 85°C (With Derating) | Chassis Mount | 2.99" L x 1.24" W x 0.99" H (76.0mm x 31.5mm x 25.1mm) | CE | - |
|
|
VE-MC13-IUDC/DC CONVERTER 24V 200W |
4,493 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
VI-LC33-EVDC/DC CONVERTER 24V 150W |
1,101 |
|
规格书 |
ComPAC™ (50 ~ 200W) | - | Obsolete | Enclosed | 42V | 60V | 1 | 24V | - | - | - | 6.25A | 150W | 4.242 kV | ITE (Commercial) | 88% | -10°C ~ 85°C | Chassis Mount | 8.63" L x 2.50" W x 0.99" H (219.2mm x 64.5mm x 25.2mm) | CE, cULus, cTUVus | - |
|
|
VI-PC10Y-MVY-H1DC/DC CONVERTER 5V 3.3V 150W |
3,028 |
|
规格书 |
ComPAC™ (100 ~ 400W) | - | Obsolete | Enclosed | 21V | 32V | 2 | 5V | 3.3V | - | - | 10A, 10A | 150W | - | ITE (Commercial) | 90% | -55°C ~ 85°C | Chassis Mount | 8.76" L x 4.96" W x 1.12" H (222.5mm x 126.0mm x 28.4mm) | CE | - |
|
D1U4CS-D-2100-52-HA3DCDC/DC CONVERTER 52.5V 2100W |
2,835 |
|
规格书 |
D1U4CS-D-2100 (2100W) | Bulk | Obsolete | Front End | -40V | -72V | 1 | 52.5V | - | - | - | 40A | 2100W | - | ITE (Commercial) | 91% | -40°C ~ 85°C | Rack Mount | 13.50" L x 4.00" W x 1.60" H (342.9mm x 101.6mm x 40.6mm) | CB, CE, TUV, UR | - |
|
|
D1U4CS-D-2100-54-HA3DCDC/DC CONVERTER 54V 2100W |
4,093 |
|
规格书 |
D1U4CS-D-2100 (2100W) | Bulk | Obsolete | Front End | -40V | -72V | 1 | 54V | - | - | - | 40A | 2100W | - | ITE (Commercial) | 91% | -40°C ~ 85°C | Rack Mount | 13.50" L x 4.00" W x 1.60" H (342.9mm x 101.6mm x 40.6mm) | CB, CE, TUV, UR | - |
|
|
VI-LC11-EYDC/DC CONVERTER 12V 120W |
2,960 |
|
- |
ComPAC™ (50 ~ 200W) | - | Obsolete | Enclosed | 21V | 32V | 1 | 12V | - | - | - | 12.5A | 120W | 4.242 kV | ITE (Commercial) | 88% | -10°C ~ 85°C | Chassis Mount | 8.63" L x 2.50" W x 0.99" H (219.2mm x 64.5mm x 25.2mm) | CE, cULus, cTUVus | - |
|
|
VI-PC601-EWWDC/DC CONVERTER DUAL 5V 12V |
1,521 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CPCI325D-101CDC/DC CNVRTR 5V 3.3V +/-12V 325W |
1,724 |
|
规格书 |
cPCI325D (325W) | Bulk | Obsolete | Enclosed | 36V | 75V | 4 | 5V | 3.3V | 12V | -12V | 30A, 40A, 5A, 1A | 325W | - | ITE (Commercial) | 80% | 0°C ~ 70°C (With Derating) | Compact PCI® | 6.68" L x 1.59" W x 5.06" H (169.6mm x 40.3mm x 128.6mm) | CE, cURus, VDE | - |
|

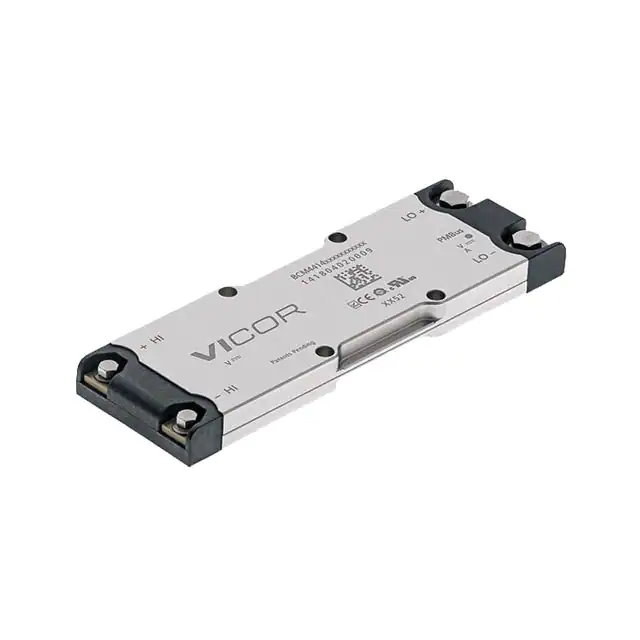

BCM3814V60E10A5C02DC/DC CONVERTER 9V 1350W |
3,059 |
|
规格书 |
VI Chip® BCM® (1500W) | Tray | Obsolete | Enclosed | 36V | 60V | 1 | 9V | - | - | - | 150A | 1350W | - | ITE (Commercial) | 97% | -20°C ~ 100°C | Chassis Mount | 3.76" L x 1.40" W x 0.37" H (95.6mm x 35.5mm x 9.4mm) | CE | - |
|

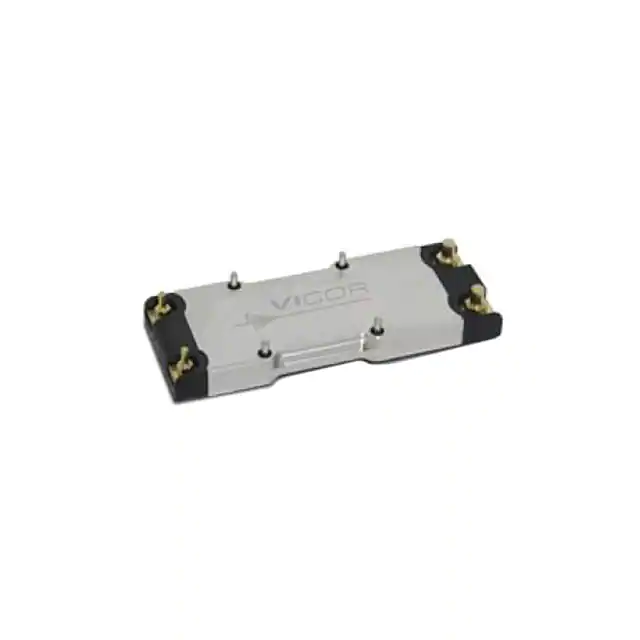

NBM3814V46C15A6C00DC/DC CONVERTER 14V 2240W |
1,121 |
|
规格书 |
VI Chip® NBM™ | Tray | Obsolete | Enclosed | 36V | 46V | 1 | 14V | - | - | - | 160A | 2240W | - | ITE (Commercial) | 97.6% | -20°C ~ 100°C | Chassis Mount | 3.76" L x 1.40" W x 0.37" H (95.6mm x 35.5mm x 9.4mm) | CE | - |
