购物车直流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电压 - 输入（最小） | 电压 - 输入（最大） | 输出数量 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 安装类型 | 尺寸 / 尺寸 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RSD-200D-48DC/DC CONVERTER 48V 202W |
1,967 |
|
规格书 |
RSD-200 (200W) | Box | Active | Enclosed | 67.2V | 143V | 1 | 48V | - | - | - | 4.2A | 202W | 4 kV | ITE (Commercial), Railway | 91% | -40°C ~ 70°C (With Derating) | Chassis Mount | 7.52" L x 3.39" W x 1.57" H (191.0mm x 86.0mm x 40.0mm) | CE | - |
|
CHB100W-48S12-CMDC/DC CONVERTER 12V 100W |
3,139 |
|
规格书 |
CHB100W (100W) | Bulk | Active | Enclosed | 18V | 75V | 1 | 12V | - | - | - | 8.3A | 100W | 1.5 kV | ITE (Commercial) | 87.5% | -40°C ~ 100°C (With Derating) | Chassis Mount | 3.98" L x 2.54" W x 1.03" H (101.2mm x 64.6mm x 26.2mm) | CE, cURus | - |
|
CQB75-300S12-CMFCDC/DC CONVERTER 12V 75W |
4,798 |
|
规格书 |
CQB75-300S-CMFC(D) (75W) | Box | Active | Open Frame | 180V | 450V | 1 | 12V | - | - | - | 6.25A | 75W | 3 kV | ITE (Commercial) | 88% | -40°C ~ 105°C (With Derating) | Chassis Mount | 4.60" L x 2.40" W x 1.24" H (116.8mm x 61.0mm x 31.4mm) | CE | 62368-1 |
|
CQB75-300S48-CMFDDC/DC CONVERTER 48V 75W |
1,571 |
|
规格书 |
CQB75-300S-CMFC(D) (75W) | Box | Active | Enclosed | 180V | 450V | 1 | 48V | - | - | - | 1.56A | 75W | 3 kV | ITE (Commercial) | 89% | -40°C ~ 105°C (With Derating) | Chassis Mount | 4.60" L x 2.49" W x 1.35" H (116.8mm x 63.4mm x 34.2mm) | CE | 62368-1 |
|
B62SR12424ACDC/DC CONVERTER 12.4V 298W |
4,460 |
|
规格书 |
B62SR (240W) | Bag | Active | Enclosed | 18V | 106V | 1 | 12.4V | - | - | - | 24A | 298W | 2.25 kV | ITE (Commercial) | 89% | -40°C ~ 75°C | Chassis Mount | 7.48" L x 2.99" W x 1.73" H (190.0mm x 75.9mm x 43.9mm) | CE | - |
|
CQB100W-110S48-CMFCDC/DC CONVERTER 48V 101W |
4,590 |
|
规格书 |
CQB100W-110S (100W) | Box | Active | Open Frame | 43V | 160V | 1 | 48V | - | - | - | 2.1A | 101W | 3 kV | ITE (Commercial), Railway | 89.5% | -40°C ~ 100°C | Chassis Mount | 4.60" L x 2.40" W x 1.26" H (116.8mm x 61.0mm x 32.0mm) | CE | 50155; 60950-1; 62368-1 |
|
|
CQB100W-110S28-CMFCDC/DC CONVERTER 28V 101W |
4,570 |
|
规格书 |
CQB100W-110S (100W) | Box | Active | Open Frame | 43V | 160V | 1 | 28V | - | - | - | 3.6A | 101W | 3 kV | ITE (Commercial), Railway | 88% | -40°C ~ 100°C | Chassis Mount | 4.60" L x 2.40" W x 1.26" H (116.8mm x 61.0mm x 32.0mm) | CE | 50155; 60950-1; 62368-1 |
|
12RCM60-24KDC-DC, 8-36V INPUT, 24V/2.5A OUT |
4,079 |
|
规格书 |
RCM60 (60W) | Box | Active | Enclosed, Conformal Coated | 8V | 36V | 1 | 24V | - | - | - | 2.5A | 60W | 4.2 kV | ITE (Commercial) | 88% | -40°C ~ 70°C (With Derating) | Chassis Mount | 6.77" L x 1.97" W x 1.26" H (172.0mm x 50.0mm x 32.0mm) | cCSAus, CE | 62368-1 |
|

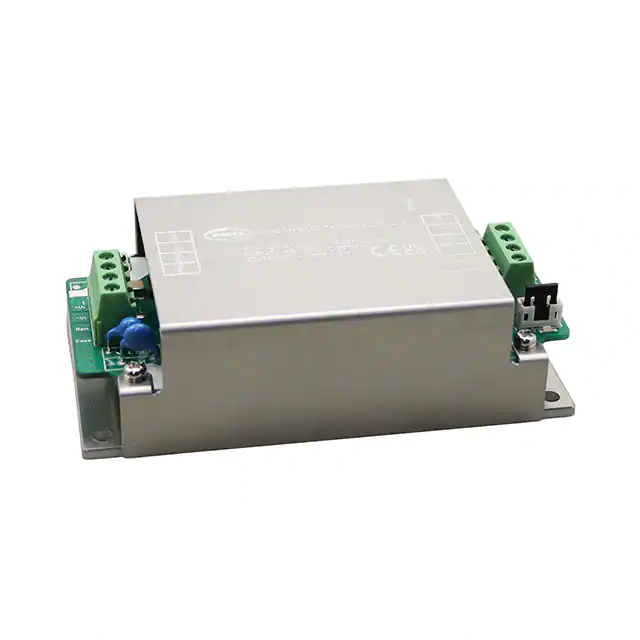

CQB100W-110S24N-CMFDDC/DC CONVERTER 24V 101W |
1,688 |
|
规格书 |
CQB100W-110S (100W) | Box | Active | Enclosed | 43V | 160V | 1 | 24V | - | - | - | 4.2A | 101W | 3 kV | ITE (Commercial), Railway | 88% | -40°C ~ 100°C | Chassis Mount | 4.60" L x 2.49" W x 1.35" H (116.8mm x 63.4mm x 34.2mm) | CE | 50155; 60950-1; 62368-1 |
|
|
CQB100W-110S12N-CMFCDC/DC CONVERTER 12V 101W |
3,204 |
|
规格书 |
CQB100W-110S (100W) | Box | Active | Open Frame | 43V | 160V | 1 | 12V | - | - | - | 8.4A | 101W | 3 kV | ITE (Commercial), Railway | 91% | -40°C ~ 100°C | Chassis Mount | 4.60" L x 2.40" W x 1.26" H (116.8mm x 61.0mm x 32.0mm) | CE | 50155; 60950-1; 62368-1 |
|
|
CQB100W-110S05N-CMFCDC/DC CONVERTER 5V 100W |
1,953 |
|
规格书 |
CQB100W-110S (100W) | Box | Active | Open Frame | 43V | 160V | 1 | 5V | - | - | - | 20A | 100W | 3 kV | ITE (Commercial), Railway | 89% | -40°C ~ 100°C | Chassis Mount | 4.60" L x 2.40" W x 1.26" H (116.8mm x 61.0mm x 32.0mm) | CE | 50155; 60950-1; 62368-1 |
|
|
24RCM150-12DMQDC/DC CONVERTER 12V 150W |
4,509 |
|
规格书 |
Melcher RCM (150W) | Bulk | Active | Enclosed, Conformal Coated | 16.8V | 45V | 1 | 12V | - | - | - | 12.5A | 150W | 4.2 kV | ITE (Commercial), Railway | 90% | -40°C ~ 70°C | Chassis Mount | 6.48" L x 3.78" W x 1.42" H (164.5mm x 96.0mm x 36.1mm) | cCSAus, CE | 62368-1 |
|
VHK50W-Q24-S15DC/DC CONVERTER 15V 50W |
3,156 |
|
规格书 |
VHK50W (50W) | Box | Active | Enclosed | 9V | 36V | 1 | 15V | - | - | - | 3.33A | 50W | - | - | 82% | -40°C ~ 85°C | Chassis Mount | 4.23" L x 4.01" W x 1.50" H (107.5mm x 101.8mm x 38.0mm) | - | - |
|

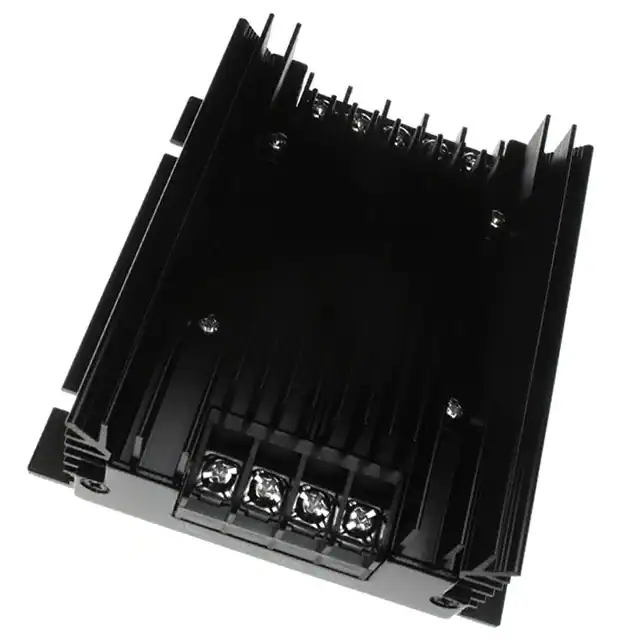

VHK100W-Q48-S48DC/DC CONVERTER 48V 100W |
4,796 |
|
规格书 |
VHK100W (100W) | Box | Active | Enclosed | 18V | 75V | 1 | 48V | - | - | - | 2.08A | 100W | - | - | 85% | -40°C ~ 85°C | Chassis Mount | 4.23" L x 4.01" W x 1.50" H (107.5mm x 101.8mm x 38.0mm) | - | - |
|
XRCM60-15DC/DC CONVERTER 15V 60W |
4,922 |
|
规格书 |
Melcher RCM (60W) | Bag | Active | Enclosed, Conformal Coated | 16.8V | 137.5V | 1 | 15V | - | - | - | 4A | 60W | 4.2 kV | ITE (Commercial) | 88% | -40°C ~ 70°C | Chassis Mount | 6.77" L x 1.97" W x 1.26" H (172.0mm x 50.0mm x 32.0mm) | cCSAus, CE | - |
|

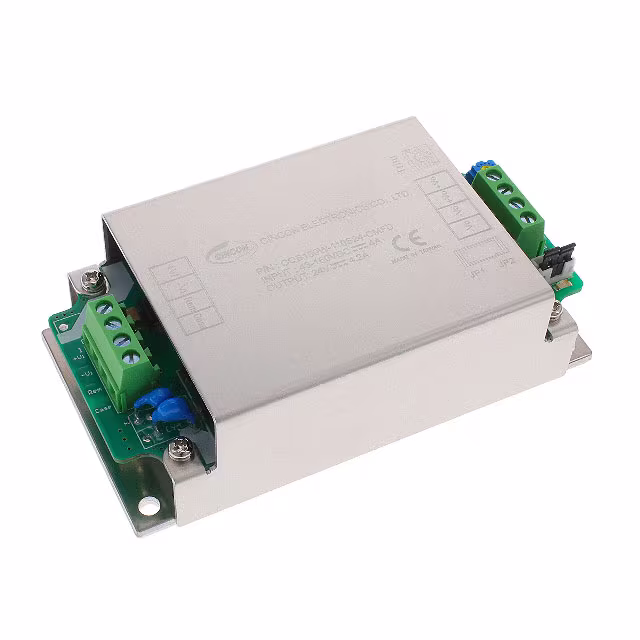

CQB100W-110S24-CMFDDC/DC CONVERTER 24V 101W |
1,454 |
|
规格书 |
CQB100W-110S (100W) | Box | Active | Enclosed | 43V | 160V | 1 | 24V | - | - | - | 4.2A | 101W | 3 kV | ITE (Commercial), Railway | 88% | -40°C ~ 100°C | Chassis Mount | 4.60" L x 2.49" W x 1.35" H (116.8mm x 63.4mm x 34.2mm) | CE | 50155; 60950-1; 62368-1 |
|
12RCM60-15DC-DC, 8-36V INPUT, 15V/4A OUTPU |
2,141 |
|
规格书 |
RCM60 (60W) | Box | Active | Enclosed, Conformal Coated | 8V | 36V | 1 | 15V | - | - | - | 4A | 60W | 4.2 kV | ITE (Commercial) | 88% | -40°C ~ 70°C (With Derating) | Chassis Mount | 6.77" L x 1.97" W x 1.26" H (172.0mm x 50.0mm x 32.0mm) | cCSAus, CE | 62368-1 |
|
|
12RCM60-24DC-DC, 8-36V INPUT, 24V/2.5A OUT |
2,942 |
|
规格书 |
RCM60 (60W) | Box | Active | Enclosed, Conformal Coated | 8V | 36V | 1 | 24V | - | - | - | 2.5A | 60W | 4.2 kV | ITE (Commercial) | 88% | -40°C ~ 70°C (With Derating) | Chassis Mount | 6.77" L x 1.97" W x 1.26" H (172.0mm x 50.0mm x 32.0mm) | cCSAus, CE | 62368-1 |
|
|
PET800-12-074NDDC/DC CONVERTER 12V 800W |
3,286 |
|
规格书 |
PET800 (800W) | Bulk | Active | Front End | -40V | -72V | 1 | 12V | - | - | - | 65A | 800W | 1.414 kV | ITE (Commercial) | 94% | 0°C ~ 50°C | Rack Mount | 7.28" L x 2.89" W x 1.54" H (185.0mm x 73.5mm x 39.0mm) | CE, NEMKO | - |
|
CFB750-300S36-CMFDDC/DC CONVERTER 36V 749W |
3,880 |
|
规格书 |
CFB750-300S-CMFD (750W) | Box | Active | Enclosed | 200V | 425V | 1 | 36V | - | - | - | 20.8A | 749W | 3 kV | ITE (Commercial) | 90% | -40°C ~ 80°C (With Derating) | Chassis Mount | 9.45" L x 4.33" W x 1.65" H (240.0mm x 110.0mm x 41.9mm) | CE | 62368-1 |
