电流感应变压器

型号	库存	价格	数量	规格书	系列	包装	产品状态	频率范围	类型	电流额定值（安培）	电感	ET（伏特-时间）	初级：次级匝比	电流比	直流电阻 (DCR)	额定值	安装类型	尺寸 / 尺寸	高度 - 安装后（最大值）	端接样式
ASM-075 CURR SENSE XFMR 5-75A T/H Amgis, LLC	3,409	-	立即询价	规格书	ASM	Bulk	Active	-	-	-	-	-	-	-	-	-	-	1.260" L x 0.807" W (32.00mm x 20.50mm)	1.378" (35.00mm)	-
CST306-1A-B CURR SENSE XFMR 35A T/H Triad Magnetics	2,175	-	立即询价	规格书	CST	Bulk	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	35 A	3.5 mH	500VµS	-	50:1	340mOhm Max	-	Through Hole	0.690" L x 0.385" W (17.53mm x 9.78mm)	0.915" (23.24mm)	PC Pin
CST306-1T-B CURR SENSE XFMR 35A T/H Triad Magnetics	3,651	-	立即询价	规格书	CST	Bulk	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	35 A	3.5 mH	500VµS	-	50CT:1	340mOhm Max	-	Through Hole	0.690" L x 0.385" W (17.53mm x 9.78mm)	0.915" (23.24mm)	PC Pin
CST306-3A-B CURR SENSE XFMR 25A T/H Triad Magnetics	2,731	-	立即询价	规格书	CST	Bulk	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	25 A	55 mH	2000VµS	-	200:1	3.75Ohm Max	-	Through Hole	0.690" L x 0.385" W (17.53mm x 9.78mm)	0.915" (23.24mm)	PC Pin
CST306-3T-B CURR SENSE XFMR 25A T/H Triad Magnetics	1,704	-	立即询价	规格书	CST	Bulk	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	25 A	55 mH	2000VµS	-	200CT:1	3.75Ohm Max	-	Through Hole	0.690" L x 0.385" W (17.53mm x 9.78mm)	0.915" (23.24mm)	PC Pin
CST306-2T-B CURR SENSE XFMR 25A T/H Triad Magnetics	3,324	-	立即询价	规格书	CST	Bulk	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	25 A	14 mH	1000VµS	-	100CT:1	1.55Ohm Max	-	Through Hole	0.690" L x 0.385" W (17.53mm x 9.78mm)	0.915" (23.24mm)	PC Pin
ASM-100 CURR SENSE XFMR 5-100A TH Amgis, LLC	2,511	-	立即询价	规格书	ASM	Bulk	Active	-	-	-	-	-	-	-	-	-	-	1.260" L x 0.807" W (32.00mm x 20.50mm)	1.378" (35.00mm)	-
PL2035NLT CURR SENSE XFMR 1:50 20A SMD iNRCORE, LLC	1,582	-	立即询价	规格书	-	Tape & Reel (TR)	Active	50kHz ~ 1MHz	Invasive	20 A	500 µH	-	1:50	-	0.75mOhm Primary Max, 1.5Ohm Secondary Max	-	Surface Mount	0.330" L x 0.284" W (8.38mm x 7.21mm)	0.217" (5.50mm)	Gull Wing
PL2035T CURR SENSE XFMR 1:50 20A SMD iNRCORE, LLC	3,376	-	立即询价	规格书	-	Tape & Reel (TR)	Active	50kHz ~ 1MHz	Invasive	20 A	500 µH	-	1:50	-	0.75mOhm Primary Max, 1.5Ohm Secondary Max	-	Surface Mount	0.330" L x 0.284" W (8.38mm x 7.21mm)	0.217" (5.50mm)	Gull Wing
ECSTA1V0504-1125-R CURR SENSE XFMR 125:1 7A SMD Eaton - Electronics Division	3,136	-	立即询价	规格书	ECSTA	Tape & Reel (TR)	Active	50kHz ~ 1MHz	Invasive	7 A	1.28 mH	-	125:1	-	3Ohm Primary, 13Ohm Secondary Max	AEC-Q200	Surface Mount	0.189" L x 0.144" W (4.80mm x 3.65mm)	0.140" (3.55mm)	J Lead
ECSTA1V0504-1060-R CURR SENSE XFMR 60:1 7A SMD Eaton - Electronics Division	4,554	-	立即询价	规格书	ECSTA	Tape & Reel (TR)	Active	50kHz ~ 1MHz	Invasive	7 A	295 µH	-	60:1	-	3Ohm Primary, 3.6Ohm Secondary Max	AEC-Q200	Surface Mount	0.189" L x 0.144" W (4.80mm x 3.65mm)	0.140" (3.55mm)	J Lead
ECSTA1V0504-1030-R CURR SENSE XFMR 30:1 7A SMD Eaton - Electronics Division	4,362	-	立即询价	规格书	ECSTA	Tape & Reel (TR)	Active	50kHz ~ 1MHz	Invasive	7 A	74 µH	-	30:1	-	3Ohm Primary, 800mOhm Secondary Max	AEC-Q200	Surface Mount	0.189" L x 0.144" W (4.80mm x 3.65mm)	0.140" (3.55mm)	J Lead
T60404E4624X151 4624X151 VACUUMSCHMELZE	3,149	-	立即询价	-	-	Box	Active	50Hz	Non-Invasive (Solid Core)	60 A	3 H	-	2500:1	2500:1	55Ohm	-	Free Hanging (In-Line)	1.295" L x 0.673" W (32.90mm x 17.10mm)	1.327" (33.70mm)	Wire Leads
GCS-050VC VERT CURRENT SENSE TRANSFORMER Gowanda Electronics	1,659	-	立即询价	规格书	GCSVC	Bulk	Active	-	Non-Invasive (Solid Core)	-	8 mH	-	-	50:1	800mOhm	-	Through Hole	0.670" L x 0.375" W (17.02mm x 9.53mm)	0.800" (20.32mm)	PC Pin

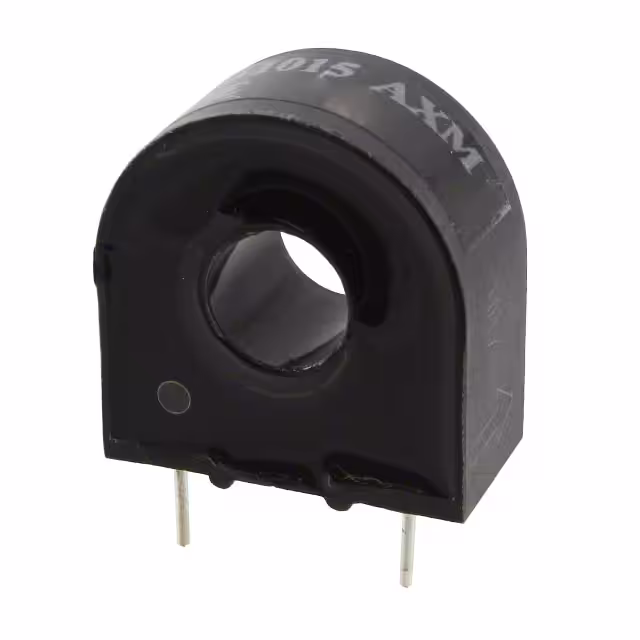

CST-1015 CURR SENSE XFMR 15A T/H Triad Magnetics	1,850	-	立即询价	规格书	CST	Bulk	Active	50/60Hz	Non-Invasive (Solid Core)	15 A	-	-	-	1000:1	40Ohm	-	Through Hole	0.925" L x 0.472" W (23.50mm x 12.00mm)	0.976" (24.80mm)	PC Pin
CST206-2T CURR SENSE XFMR 80A T/H Triad Magnetics	3,272	-	立即询价	规格书	CST	Bulk	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	80 A	56 mH	4000VµS	-	200:1	3.5Ohm Max	-	Through Hole	1.075" L x 0.400" W (27.31mm x 10.16mm)	1.225" (31.12mm)	PC Pin
ECSTA1V0504-1150-R CURR SENSE XFMR 150:1 7A SMD Eaton - Electronics Division	1,812	-	立即询价	规格书	ECSTA	Tape & Reel (TR)	Active	50kHz ~ 1MHz	Invasive	7 A	1.8 mH	-	150:1	-	3Ohm Primary, 21Ohm Secondary Max	AEC-Q200	Surface Mount	0.189" L x 0.144" W (4.80mm x 3.65mm)	0.140" (3.55mm)	J Lead
ECSTA1V0504-1020-R CURR SENSE XFMR 20:1 7A SMD Eaton - Electronics Division	2,243	-	立即询价	规格书	ECSTA	Tape & Reel (TR)	Active	50kHz ~ 1MHz	Invasive	7 A	33 µH	-	20:1	-	3Ohm Primary, 350mOhm Secondary Max	AEC-Q200	Surface Mount	0.189" L x 0.144" W (4.80mm x 3.65mm)	0.140" (3.55mm)	J Lead
ECSTA1V0504-1040-R CURR SENSE XFMR 40:1 7A SMD Eaton - Electronics Division	4,782	-	立即询价	规格书	ECSTA	Tape & Reel (TR)	Active	50kHz ~ 1MHz	Invasive	7 A	132 µH	-	40:1	-	3Ohm Primary, 1.6Ohm Secondary Max	AEC-Q200	Surface Mount	0.189" L x 0.144" W (4.80mm x 3.65mm)	0.140" (3.55mm)	J Lead
GCS-100VC VERT CURRENT SENSE TRANSFORMER Gowanda Electronics	4,179	-	立即询价	规格书	GCSVC	Bulk	Active	-	Non-Invasive (Solid Core)	-	20 mH	-	-	100:1	1.4Ohm	-	Through Hole	0.670" L x 0.375" W (17.02mm x 9.53mm)	0.800" (20.32mm)	PC Pin

共 2059 记录«上一页 1... 59 60 61 626364 65 66...103 下一页»
