电流感应变压器

型号	库存	价格	数量	规格书	系列	包装	产品状态	频率范围	类型	电流额定值（安培）	电感	ET（伏特-时间）	初级：次级匝比	电流比	直流电阻 (DCR)	额定值	安装类型	尺寸 / 尺寸	高度 - 安装后（最大值）	端接样式
53100C CURR SENSE XFMR 1:100 10A SMD Murata Power Solutions Inc.	3,949	-	立即询价	规格书	5300	Tape & Reel (TR)	Active	50kHz ~ 500kHz	Invasive	-	2 mH	-	1:100	-	7mOhm Primary, 5.6Ohm Secondary	-	Surface Mount	0.283" L x 0.327" W (7.20mm x 8.30mm)	0.213" (5.40mm)	Gull Wing
B82801B0925A200 CURR SENSE XFMR 1:200 20A SMD EPCOS - TDK Electronics	3,317	-	立即询价	规格书	B82801B	Tape & Reel (TR)	Active	50kHz ~ 1MHz	Invasive	20 A	8 mH	100VµS	1:200	-	0.6mOhm Primary, 33.24Ohm Secondary	-	Surface Mount	0.280" L x 0.320" W (7.11mm x 8.13mm)	0.200" (5.08mm)	Gull Wing
PA1005.100NLT CURR SENSE XFMR 1:100 20A SMD Pulse Electronics	9,058	-	立即询价	规格书	PA1005.XXXNL	Tape & Reel (TR)	Active	50kHz ~ 1MHz	Invasive	20 A	2 mH	-	1:100	-	0.75mOhm Primary, 5.5Ohm Secondary	-	Surface Mount	0.284" L x 0.330" W (7.21mm x 8.38mm)	0.217" (5.50mm)	Gull Wing
B82801B0205A100 CURR SENSE XFMR 1:100 SMD EPCOS - TDK Electronics	3,347	-	立即询价	规格书	B82801B	Tape & Reel (TR)	Active	50kHz ~ 1MHz	Invasive	-	2 mH	-	1:100	-	0.8mOhm Primary, 5.5Ohm Secondary	-	Surface Mount	0.280" L x 0.320" W (7.11mm x 8.13mm)	0.200" (5.08mm)	Gull Wing
ACST-261-1 CURRENT SENSE TRANSFORMER Zettler Magnetics	3,182	-	立即询价	规格书	ACST-200	Tray	Active	50Hz ~ 200Hz	Invasive	30 A	2.4 H	-	1:1000	1000:1	0.6mOhm	-	Through Hole	0.807" L x 0.690" W (20.50mm x 17.53mm)	0.650" (16.51mm)	PC Pin
ASM-010 CURR SENSE XFMR 10A T/H Talema Group LLC	21,985	-	立即询价	规格书	ASM	Tray	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	10 A	-	-	-	-	-	-	Through Hole	0.677" L x 0.375" W (17.20mm x 9.53mm)	0.803" (20.40mm)	PC Pin
P8205NLT CURR SENSE XFMR 1:50 SMD Pulse Electronics	3,151	-	立即询价	规格书	P820X	Tape & Reel (TR)	Active	50kHz ~ 1MHz	Invasive	-	500 µH	-	1:50	-	6mOhm Primary, 1.5Ohm Secondary	-	Surface Mount	0.284" L x 0.330" W (7.21mm x 8.38mm)	0.217" (5.50mm)	Gull Wing
CSE187L CURR SENSE XFMR 1:500 30A T/H Triad Magnetics	42,956	-	立即询价	规格书	CSE	Bulk	Active	50Hz ~ 400Hz	Invasive	30 A	-	-	1:500	-	3mOhm Primary, 21Ohm Secondary	-	Through Hole	0.860" L x 0.720" W (21.84mm x 18.29mm)	0.710" (18.03mm)	PC Pin
B82801C0565A100 CURR SENSE XFMR 1:100 SMD EPCOS - TDK Electronics	926	-	立即询价	规格书	B82801C	Tape & Reel (TR)	Active	50kHz ~ 500kHz	Invasive	-	5.6 mH	-	1:100	-	0.28mOhm Primary, 1Ohm Secondary	-	Surface Mount	0.560" L x 0.530" W (14.22mm x 13.46mm)	0.394" (10.00mm)	Gull Wing
PE-51688NL CURR SENSE XFMR 20A T/H Pulse Electronics	926	-	立即询价	规格书	THT	Tray	Active	20kHz ~ 200kHz	Invasive	20 A	80 mH	-	-	200:1	200Ohm Primary, 4.5Ohm Secondary	-	Through Hole	0.670" L x 0.390" W (17.01mm x 9.90mm)	0.800" (20.32mm)	PC Pin
PE-68280NLT CURR SENSE XFMR 1:1:100 SMD Pulse Electronics	7,277	-	立即询价	规格书	PE-68XXXNL	Tape & Reel (TR)	Active	50kHz ~ 500kHz	Invasive	-	14.8 mH	-	1:1:100	-	1.15mOhm Primary, 930mOhm Secondary	-	Surface Mount	0.495" L x 0.490" W (12.57mm x 12.45mm)	0.280" (7.11mm)	-
AS-100 CURR SENSE XFMR 1:50 T/H Amgis, LLC	338	-	立即询价	规格书	AS	Tray	Active	20kHz ~ 200kHz	Non-Invasive (Solid Core)	-	6 mH	175VµS	1:50	-	600mOhm Max	-	Through Hole	0.677" L x 0.375" W (17.20mm x 9.53mm)	0.803" (20.40mm)	PC Pin
P0582NL CURR SENSE XFMR 100:1:1 35A T/H Pulse Electronics	825	-	立即询价	规格书	THT	Tray	Active	50kHz ~ 500kHz	Invasive	35 A	19 mH	-	100:1:1	-	1.4Ohm Primary, 1.7mOhm Secondary	-	Through Hole	0.810" L x 0.580" W (20.57mm x 14.73mm)	0.750" (19.05mm)	PC Pin

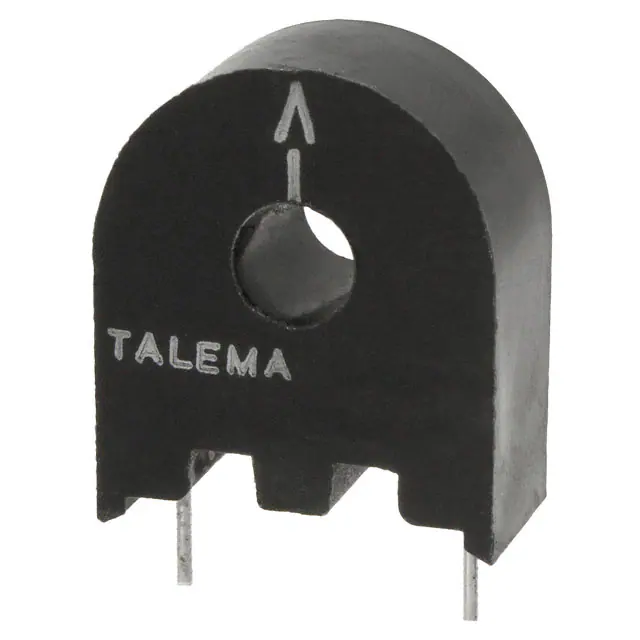

AX-0500 CURR SENSE XFMR 5A T/H Talema Group LLC	1,616	-	立即询价	规格书	AX	Tray	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	5 A	-	-	-	500:1	-	-	Through Hole	0.677" L x 0.375" W (17.20mm x 9.53mm)	0.803" (20.40mm)	PC Pin
CSE187L-P CURR SENSE XFMR 1:500 30A T/H Triad Magnetics	1,050	-	立即询价	规格书	CSE	Bulk	Active	50Hz ~ 400Hz	Invasive	30 A	-	-	1:500	-	3mOhm Primary, 21Ohm Secondary	-	Through Hole	0.875" L x 0.875" W (22.23mm x 22.23mm)	0.720" (18.29mm)	PC Pin
AC1020 CURR SENSE XFMR 20A T/H Talema Group LLC	14,610	-	立即询价	规格书	AC	Box	Active	50/60Hz	Non-Invasive (Solid Core)	20 A	-	-	-	1000:1	41.8Ohm	-	Through Hole	0.937" L x 0.438" W (23.80mm x 11.12mm)	0.937" (23.80mm)	PC Pin
T60404E4626X502 CURR SENSE XFMR 1:2500 100A TH VACUUMSCHMELZE	5,210	-	立即询价	规格书	-	Box	Active	50Hz	Non-Invasive (Solid Core)	100 A	102 H	-	1:2500	2500:1	41.7Ohm	-	Through Hole	1.339" L x 0.551" W (34.00mm x 14.00mm)	1.339" (34.00mm)	PC Pin
AC1015 CURR SENSE XFMR 15A T/H Talema Group LLC	2,752	-	立即询价	规格书	AC	Tray	Active	50/60Hz	Non-Invasive (Solid Core)	15 A	-	-	-	1000:1	41.8Ohm	-	Through Hole	0.937" L x 0.438" W (23.80mm x 11.12mm)	0.937" (23.80mm)	PC Pin
AC1005 CURR SENSE XFMR 5A T/H Talema Group LLC	373	-	立即询价	规格书	AC	Tray	Active	50/60Hz	Non-Invasive (Solid Core)	5 A	-	-	-	1000:1	41.8Ohm	-	Through Hole	0.937" L x 0.438" W (23.80mm x 11.12mm)	0.937" (23.80mm)	PC Pin
CT-1005 CURR SENSE XFMR 5A T/H Amgis, LLC	3,985	-	立即询价	规格书	CT	Tray	Active	50/60Hz	Non-Invasive (Solid Core)	5 A	-	-	-	1000:1	41.8Ohm	-	Through Hole	0.937" L x 0.438" W (23.80mm x 11.12mm)	0.937" (23.80mm)	PC Pin

共 2059 记录«上一页12 3 4...103 下一页»
