DIN 41612 标准连接器

图片	型号	库存	价格	数量	规格书	系列	包装	产品状态	连接器类型	位置数量	已加载位置数	间距	行数	样式	等级、类别	安装类型	端接方式	特性	触点表面处理	触点表面处理厚度
	8-1393644-5 CONN DIN PLUG 96POS PCB RA GOLD TE Connectivity AMP Connectors	8,617	-	立即询价	规格书	Eurocard	Bulk	Active	Plug, Male Pins	96	64	0.100" (2.54mm)	3	C	2	Through Hole, Right Angle	Solder	Board Lock	Gold or Gold-Palladium	-
	5650956-3 CONN DIN RCPT 96POS PCB GOLD TE Connectivity AMP Connectors	7,644	-	立即询价	规格书	Eurocard	Bulk	Active	Receptacle, Female Sockets	96	All	0.100" (2.54mm)	3	C	-	Through Hole	Solder	-	Gold	30.0µin (0.76µm)
	650466-5 CONN DIN RCPT 48POS PCB GOLD TE Connectivity AMP Connectors	9,015	-	立即询价	规格书	Eurocard	Bulk	Active	Receptacle, Female Sockets	48	32	0.100" (2.54mm)	3	C/2 (1/2 C)	2	Through Hole	Solder	-	Gold	-
	216202-4 CONN DIN RCPT 96POS PCB GOLD TE Connectivity AMP Connectors	8,472	-	立即询价	-	Eurocard	Tray	Obsolete	Receptacle, Female Sockets	96	64	0.100" (2.54mm)	3	C	2	Through Hole	Solder	-	Gold	31.5µin (0.80µm)
	1-1393645-7 CONN DIN PLUG 80POS PCB RA GOLD TE Connectivity AMP Connectors	9,323	-	立即询价	-	Eurocard	Bulk	Active	Plug, Male Pins	80 (78 + 2 Power)	All	0.100" (2.54mm)	3	M	2	Through Hole, Right Angle	Solder	-	Gold or Gold-Palladium	-
	1393644-9 CONN DIN PLUG 48POS PCB RA GOLD TE Connectivity AMP Connectors	9,772	-	立即询价	规格书	Eurocard	Bulk	Active	Plug, Male Pins	48	All	0.100" (2.54mm)	3	C/2 (1/2 C)	1	Through Hole, Right Angle	Solder	-	Gold or Gold-Palladium	-
	2-1393641-6 CONN DIN RCPT 48POS PCB GOLD TE Connectivity AMP Connectors	7,687	-	立即询价	规格书	Eurocard	Bulk	Active	Receptacle, Female Sockets	48	32	0.100" (2.54mm)	3	C/2 (1/2 C)	2	Through Hole	Solder	-	Gold or Gold-Palladium	-

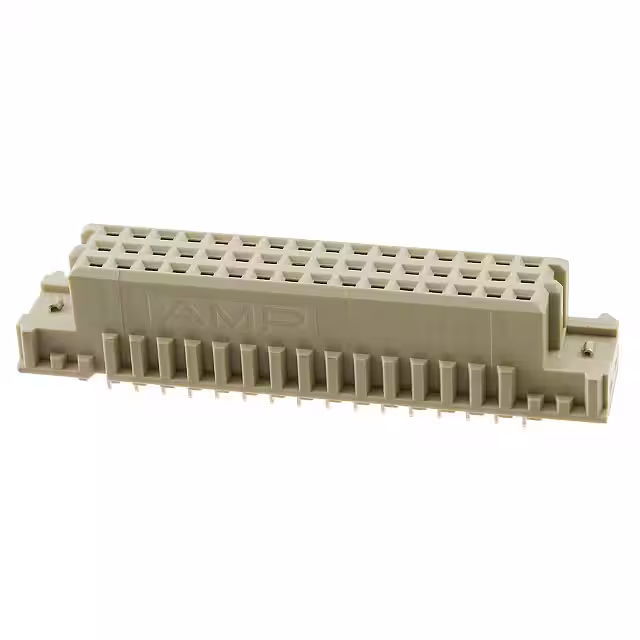

	536397-5 CONN DIN RCPT 48POS PCB GOLD TE Connectivity AMP Connectors	9,757	-	立即询价	规格书	Eurocard	Bulk	Active	Receptacle, Female Sockets	48	All	0.100" (2.54mm)	3	C/2 (1/2 C)	2	Through Hole	Solder	Board Lock	Gold	-

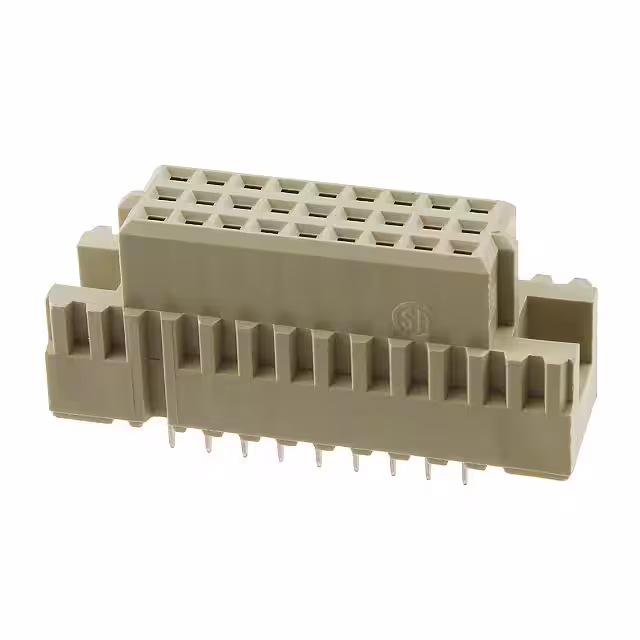

	5-1571437-1 CONN DIN RCPT 27POS PCB GOLD TE Connectivity AMP Connectors	8,287	-	立即询价	规格书	-	Bulk	Active	Receptacle, Female Sockets	27	All	0.100" (2.54mm)	3	C	-	Through Hole	Solder	Board Lock	Gold	30.0µin (0.76µm)
	5148077-3 CONN DIN HDR 96POS PCB RA TE Connectivity AMP Connectors	7,614	-	立即询价	规格书	Eurocard	Bulk	Active	Header, Male Pins	96	7	0.100" (2.54mm)	3	C	2	Through Hole, Right Angle	Solder	-	-	-

共 629 记录«上一页 1... 29 30 31 323334 35 36...63 下一页»
