购物车汽车继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CB1AH-T-R-M-12VCB RELAY HR 1 FORM A 12V |
3,658 |
|
规格书 |
CB | Bulk | Active | Non Latching | 134 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250"/0.375" | -40°C ~ 125°C |
|
|
CB1AHF-T-D-24VCB RELAY HR 1 FORM A 24V |
2,320 |
|
规格书 |
CB | Bulk | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Flux Protection | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
CB1AH-T-D-24VCB RELAY HR 1 FORM A 24V |
3,627 |
|
规格书 |
CB | Bulk | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
CB1-T-D-M-12VCB RELAY (HEAT RESISTANT, DIODE |
2,175 |
|
规格书 |
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPDT (1 Form C) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250"/0.375" | -40°C ~ 125°C |
|
|
CB1AHF-T-R-M-24VCB RELAY HR 1 FORM A 24V |
2,995 |
|
规格书 |
CB | Bulk | Active | Non Latching | 84 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Resistor, Sealed - Flux Protection | Chassis Mount | Quick Connect - 0.250"/0.375" | -40°C ~ 125°C |
|
|
CB1AH-T-D-M-12VCB RELAY HR 1 FORM A 12V |
3,451 |
|
规格书 |
CB | Bulk | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | - | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250"/0.375" | -40°C ~ 125°C |
|
|
CB1AHF-T-D-M-24VCB RELAY HR 1 FORM A 12V |
3,268 |
|
规格书 |
CB | Bulk | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Flux Protection | Chassis Mount | Quick Connect - 0.250"/0.375" | -40°C ~ 125°C |
|
|
CB1AH-T-D-M-24VCB RELAY HR 1 FORM A 24V |
4,988 |
|
规格书 |
CB | Bulk | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Fully | Chassis Mount | Quick Connect - 0.250"/0.375" | -40°C ~ 125°C |
|
|
CB1AH-T-R-M-24VCB RELAY HR 1 FORM A 24V |
2,135 |
|
规格书 |
CB | Bulk | Active | Non Latching | 84 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250"/0.375" | -40°C ~ 125°C |
|
|
CB1AH-T-R-P-12VCB RELAY HR 1 FORM A 12V |
2,714 |
|
规格书 |
CB | Bulk | Active | Non Latching | 134 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
1-1414121-0POWER FA V23136 |
2,166 |
|
规格书 |
F4A | Bulk | Active | Non Latching | 105.3 mA | 12VDC | SPST-NO (1 Form A) | 60 A | 14VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | IP67 - Dust Tight, Waterproof | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
CB1AH-T-D-P-24VCB RELAY HR 1 FORM A 24V |
1,687 |
|
规格书 |
CB | Bulk | Active | Non Latching | 58 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14 VDC | 2.4 VDC | 15 ms | - | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
2-1904020-4V23234A0001X037-EV-100 |
4,936 |
|
规格书 |
- | Box | Obsolete | Non Latching | - | 12VDC | SPDT (1 Form C) | - | - | 8 VDC | 1.5 VDC | 7 ms | 2 ms | - | Socketable | Plug In | -40°C ~ 125°C |
|
|
CA1R-DC24V-NAUTOMOTIVE POWER RELAY |
2,621 |
|
规格书 |
CA | Bulk | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | 10 A | 30VDC - Max | 16 VDC | 1.2 VDC | 10 ms | 10 ms | Resistor | Chassis Mount | Plug In | -30°C ~ 80°C |
|
|
7-1393302-7RELAY GEN PURPOSE SPST 40A 12V |
1,295 |
|
规格书 |
F4 | Bulk | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
1-1393303-0RELAY GEN PURPOSE SPST 20A 24V |
1,616 |
|
规格书 |
F4 | Bulk | Active | Non Latching | 74.1 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | - | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
4-1414992-3RELAY GEN PURPOSE SPST 40A 12V |
3,192 |
|
规格书 |
F4 | Bulk | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | Resistor | Socketable | Plug In, Quick Connect - 0.110" (2.8mm) | -40°C ~ 125°C |
|
|
4-1393303-4RELAY GEN PURPOSE SPST 20A 24V |
2,116 |
|
规格书 |
F4 | Box | Active | Non Latching | 74.1 mA | 24VDC | SPST-NO (1 Form A) | 20 A | 28VDC - Nom | 14.4 VDC | 3.2 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

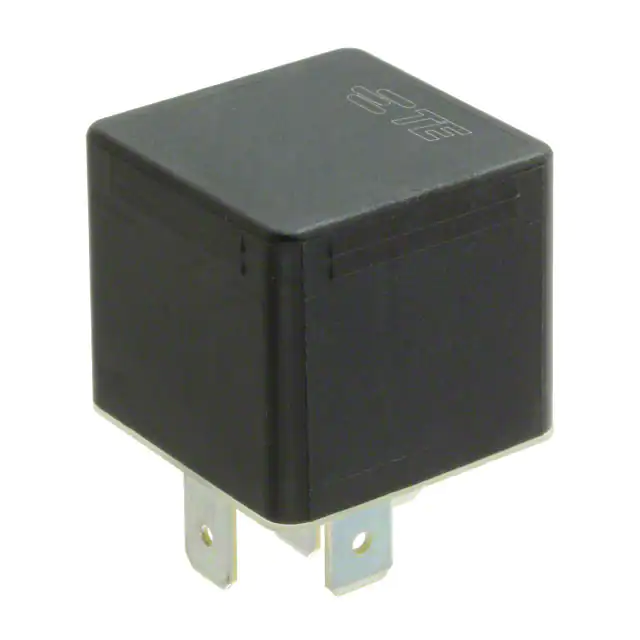

2-1904025-6V23234A0004X055-EV-100 |
4,002 |
|
规格书 |
Power Relay B | Bulk | Obsolete | Non Latching | 94 mA | 24VDC | SPDT (1 Form C) | 50 A | 24VDC - Nom | 16 VDC | 3 VDC | 10 ms | 10 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
3-1393303-9RELAY GEN PURPOSE SPST 40A 12V |
4,661 |
|
规格书 |
F4 | Bulk | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7.2 VDC | 1.6 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
