| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CB1A-12VRELAY AUTOMOTIVE SPST 40A 12V |
733 |
|
规格书 |
CB | Bulk | Active | Non Latching | 117 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 14VDC - Nom | 7 VDC | 1.2 VDC | 15 ms | 15 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 85°C |
|
PC792C-1C-C1-24C-N-XRELAY AUTOMOTIVE SPDT 50A 24V |
353 |
|
规格书 |
- | Box | Active | Non Latching | 75 mA | 24VDC | SPDT (1 Form C) | - | 75VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 2 ms | - | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
1-1414761-0RELAY AUTO SPDT 30A 12V |
1,970 |
|
规格书 |
Micro Relay K | Bulk | Active | Non Latching | 47.2 mA | 12VDC | SPDT (1 Form C) | 30 A | 12VDC - Nom | 6.9 VDC | 1.5 VDC | 3 ms | 1.5 ms | - | Through Hole | PC Pin | -40°C ~ 105°C |
|
A61CS24VDC1.3RRELAY AUTOMOTIVE SPDT 30A 24V |
869 |
|
规格书 |
A6 | Tray | Active | Non Latching | 55 mA | 24VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 2 ms | Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A2M1CSQ6VDC1.6RELAY AUTOMOTIVE SPDT 40A 6V |
378 |
|
规格书 |
A2 | Tray | Active | Non Latching | 266.7 mA | 6VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 4.2 VDC | 0.6 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
EP1-3N1SAUTO RELAY SINGLE FORM C 12V |
936 |
|
规格书 |
EP1 | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 25 A | 16VDC - Max | 6.5 VDC | 0.9 VDC | 5 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A102CS12VDCRELAY AUTOMOTIVE DPDT 30A 12V |
508 |
|
规格书 |
A10 | Tube | Active | Non Latching | 47.2 mA | 12VDC | DPDT (2 Form C) | 30 A | 28VDC - Max | 8.4 VDC | 1.2 VDC | 4 ms | 1.5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 105°C |
|
A3F1CSQ12VDC2RELAY AUTOMOTIVE SPDT 80A 12V |
221 |
|
规格书 |
A3F | Tray | Active | Non Latching | 150 mA | 12VDC | SPDT (1 Form C) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A2S1CSQ12VDC1.6RELAY AUTOMOTIVE SPDT 40A 12V |
203 |
|
规格书 |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2S1CSQ12VDC1.6RRELAY AUTOMOTIVE SPDT 40A 12V |
1,048 |
|
规格书 |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

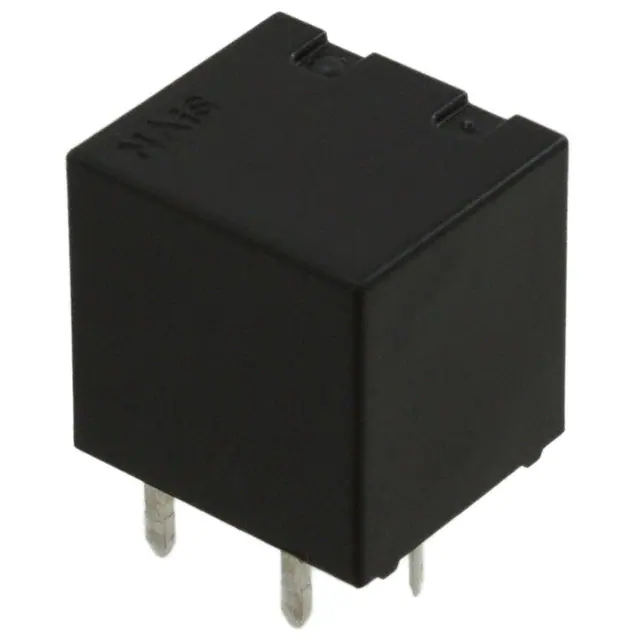

ACJ2212RELAY AUTOMOTIVE SPDTX2 20A 12V |
435 |
|
规格书 |
ACJ | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) x 2 | 20 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
PC792A-1C-C3-12S-N-XRELAY AUTOMOTIVE SPDT 40A 12V |
625 |
|
规格书 |
- | Bag | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
A2S1CSQ24VDC1.6RELAY AUTOMOTIVE SPDT 40A 24V |
146 |
|
规格书 |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

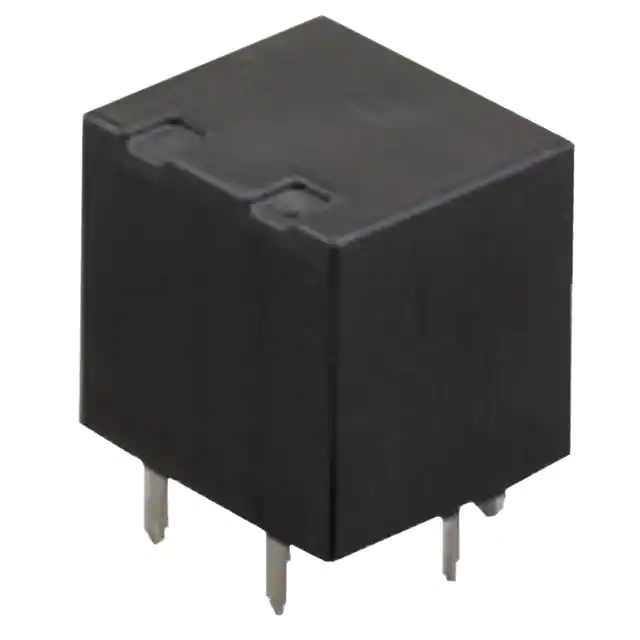

ACJ2112RELAY AUTOMOTIVE SPDTX2 20A 12V |
479 |
|
规格书 |
ACJ | Tube | Active | Non Latching | 66.7 mA | 12VDC | SPDT (1 Form C) x 2 | 20 A | 14VDC - Nom | 6.5 VDC | 0.8 VDC | 10 ms | 10 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

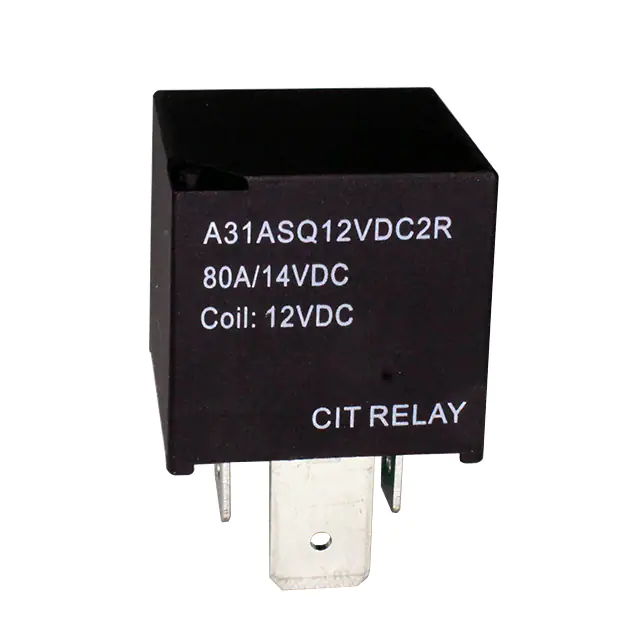

A31ASQ12VDC2RRELAY AUTOMOTIVE SPST 80A 12V |
709 |
|
规格书 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Socketable | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|

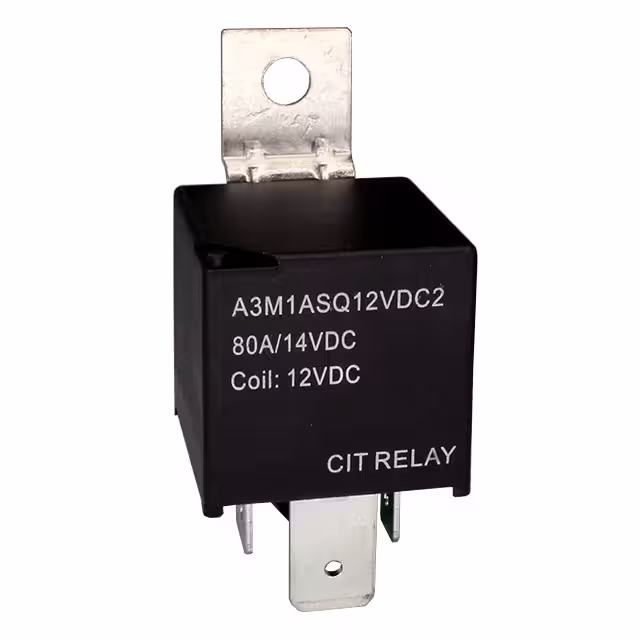

A3M1ASQ12VDC2RELAY AUTOMOTIVE SPST 80A 12V |
322 |
|
规格书 |
A3 | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|

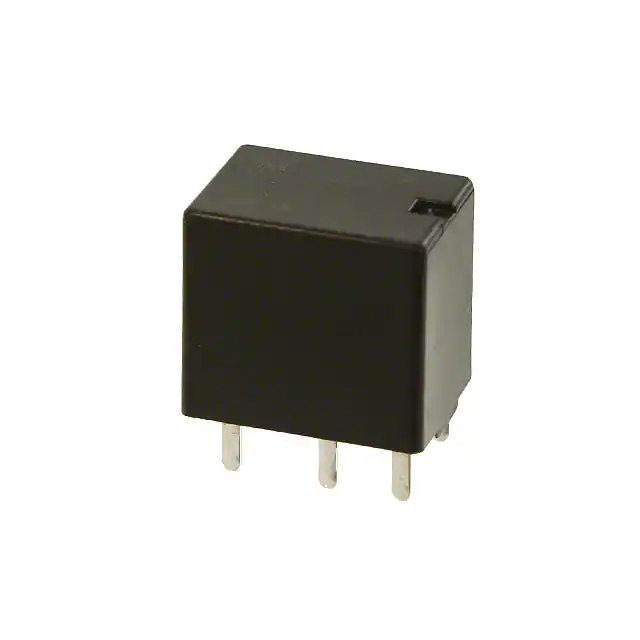

ACNM1112RELAY AUTOMOTIVE SPDT 30A 12V |
1,548 |
|
规格书 |
ACNM | Tube | Active | Non Latching | 53.3 mA | 12VDC | SPDT (1 Form C) | 30 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Through Hole | PC Pin | -40°C ~ 85°C |
|
A3F1ASQ12VDC2RRELAY AUTOMOTIVE SPST 80A 12V |
975 |
|
规格书 |
A3F | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
A31ASP24VDC2RELAY AUTOMOTIVE SPST 80A 24V |
657 |
|
规格书 |
A3 | Tray | Active | Non Latching | 75 mA | 24VDC | SPST-NO (1 Form A) | 80 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
ACNM7112SAXRELAY AUTOMOTIVE SPST 30A 12V |
25,582 |
|
规格书 |
ACNM | Tape & Reel (TR) | Active | Non Latching | 53.3 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 14VDC - Nom | 7.2 VDC | 1 VDC | 10 ms | 10 ms | - | Surface Mount | Gull Wing | -40°C ~ 110°C |
