购物车汽车继电器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A41AS12VDCRELAY AUTOMOTIVE SPST 20A 12V CIT Relay and Switch |
561 |
|
规格书 |
A4 | Tube | Active | Non Latching | 82.8 mA | 12VDC | SPST-NO (1 Form A) | 20 A | 380VAC, 75VDC - Max | 8.4 VDC | 1.2 VDC | 15 ms | 5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A101AS24VDCRELAY AUTOMOTIVE SPST 30A 24V CIT Relay and Switch |
474 |
|
规格书 |
A10 | Tube | Active | Non Latching | 20.8 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 28VDC - Max | 16.8 VDC | 2.4 VDC | 4 ms | 1.5 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 105°C |
|

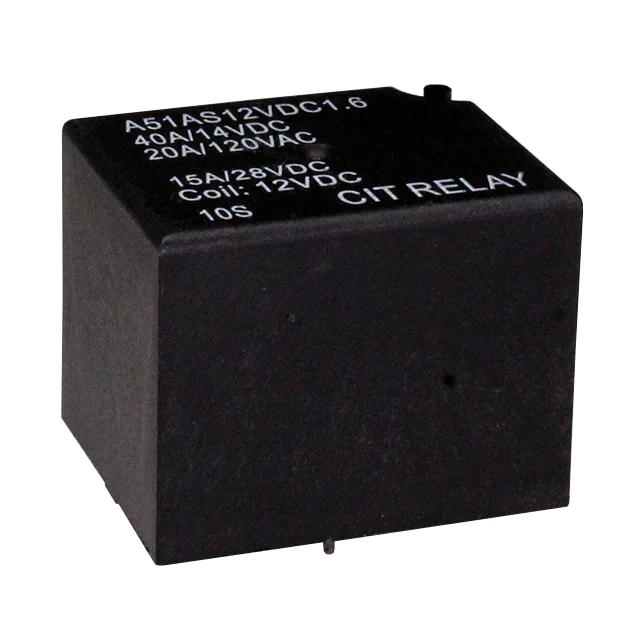

A51AS12VDC1.6RELAY AUTOMOTIVE SPST 40A 12V CIT Relay and Switch |
666 |
|
规格书 |
A5 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 380VAC, 75VDC - Max | 8.4 VDC | 1.2 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|

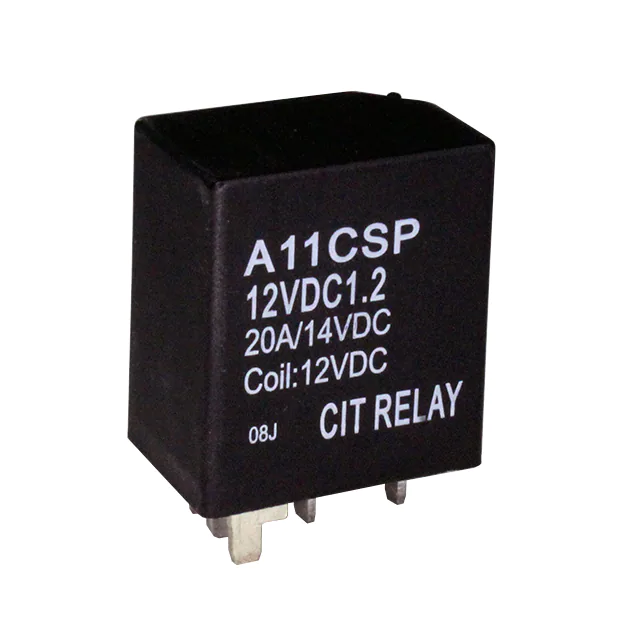

A11CSP12VDC1.2DRELAY AUTOMOTIVE SPDT 30A 12V CIT Relay and Switch |
350 |
|
规格书 |
A1 | Tube | Active | Non Latching | 100 mA | 12VDC | SPDT (1 Form C) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Diode, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A1M1CSQ12VDCDRELAY AUTOMOTIVE SPST 40A 12V CIT Relay and Switch |
334 |
|
规格书 |
A1M | Tube | Active | Non Latching | 125 mA | 12VDC | SPDT (1 Form C) | 40 A | 28VDC - Max | 7.2 VDC | 1.2 VDC | 10 ms | 10 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 85°C |
|
A21ASQ12VDC1.6RRELAY AUTOMOTIVE SPST 40A 12V CIT Relay and Switch |
391 |
|
规格书 |
A2 | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 7 ms | 5 ms | Resistor, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|

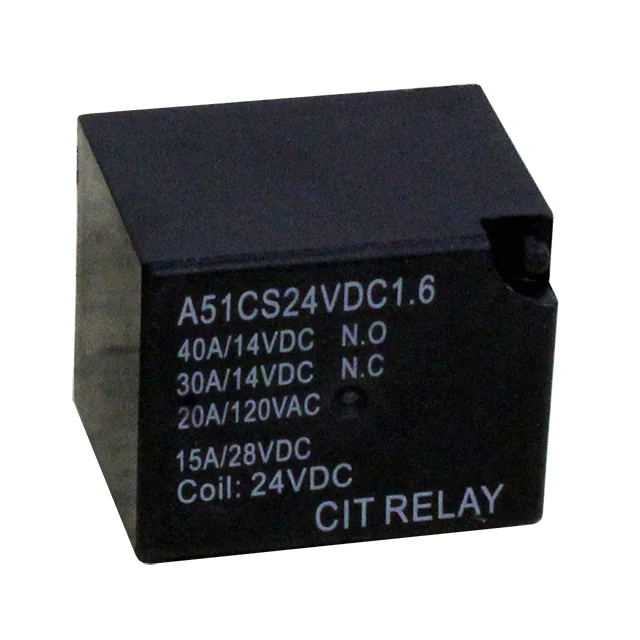

A51CS24VDC1.6RELAY AUTOMOTIVE SPDT 40A 24V CIT Relay and Switch |
1,075 |
|
规格书 |
A5 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 40 A | 380VAC, 75VDC - Max | 16.8 VDC | 2.4 VDC | 5 ms | 3 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 85°C |
|
A11ASQ12VDC1.2RELAY AUTOMOTIVE SPST 30A 12V CIT Relay and Switch |
487 |
|
规格书 |
A1 | Tube | Active | Non Latching | 100 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 8.4 VDC | 1.2 VDC | 10 ms | 7 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C |
|

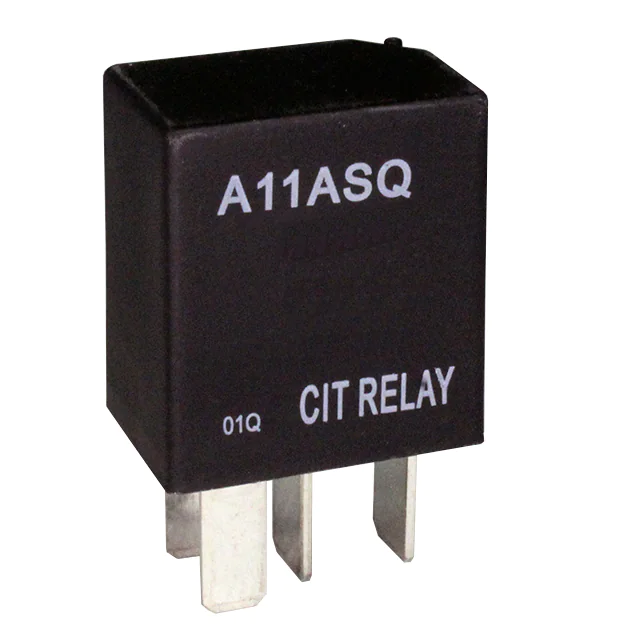

A11ASQ24VDC1.2RELAY AUTOMOTIVE SPST 30A 24V CIT Relay and Switch |
908 |
|
规格书 |
A1 | Tube | Active | Non Latching | 50 mA | 24VDC | SPST-NO (1 Form A) | 30 A | 75VDC - Max | 18 VDC | 2.4 VDC | 10 ms | 7 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - 0.187" (4.7mm) | -40°C ~ 85°C |
|

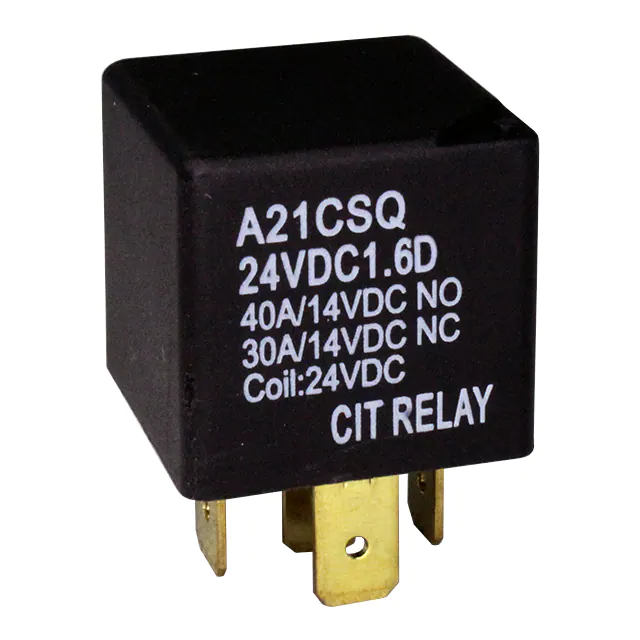

A21CSQ24VDC1.6DRELAY AUTOMOTIVE SPDT 40A 24V CIT Relay and Switch |
124 |
|
规格书 |
A2 | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 16.8 VDC | 2.4 VDC | 7 ms | 5 ms | Diode, Sealed - Fully | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
