| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 线圈类型 | 线圈电流 | 线圈电压 | 触点形式 | 触点额定值（电流） | 切换电压 | 必须动作电压 | 必须释放电压 | 动作时间 | 释放时间 | 特性 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A3K1CSQ12VDC1.6RELAY AUTOMOTIVE SPDT 150A 12V |
318 |
|
规格书 |
A3K | Tray | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 7.8 VDC | 1.2 VDC | 15 ms | 15 ms | Magnetic Blowout, Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
|
A3K1CSP24VDC1.6RRELAY AUTOMOTIVE SPDT 150A 24V |
320 |
|
规格书 |
A3K | Tray | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | 80 A | 145VDC - Max | 15.6 VDC | 2.4 VDC | 15 ms | 15 ms | Magnetic Blowout, Resistor, Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|

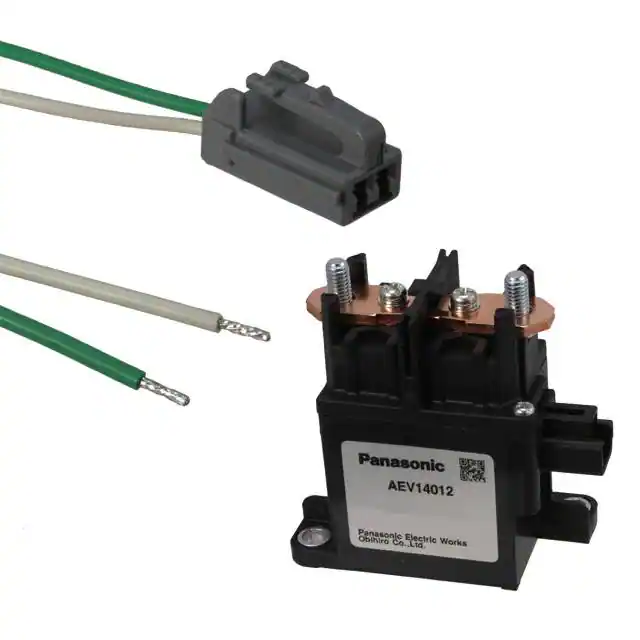

AEV14012WRELAY AUTOMOTIVE SPST 120A 12V |
4,904 |
|
规格书 |
AEV | Tray | Active | Non Latching | 353 mA | 12VDC | SPST-NO (1 Form A) | 120 A | 450VDC - Nom | 9 VDC | 1 VDC | 50 ms | 30 ms | - | Chassis Mount | Stud | -40°C ~ 80°C |
|
AZ9731-1A-12DC3ERELAY AUTOMOTIVE SPST 40A 12V |
299 |
|
规格书 |
AZ9731 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | MINI-ISO, Sealed - Epoxy | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
AZ9731-1C-12DC2RELAY AUTOMOTIVE SPDT 40A 12V |
383 |
|
规格书 |
AZ9731 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | MINI-ISO w/ Plastic mounting bracket | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
PC792A-1AA-C-12S-N-XRELAY AUTOMOTIVE SPST 40A 12V |
167 |
|
规格书 |
- | Bag | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Sealed - Fully | Socketable | Plug In, Quick Connect - Multiple Sizes | -40°C ~ 125°C |
|
PC792A-1C-P-12S-XRELAY AUTOMOTIVE SPDT 40A 12V |
193 |
|
规格书 |
- | Bag | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 2 ms | Sealed - Fully | Through Hole | PC Pin | -40°C ~ 125°C |
|
|
AZ9731-1A-12DC2D1RELAY AUTOMOTIVE SPST 40A 12V |
358 |
|
规格书 |
AZ9731 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | Diode, MINI-ISO w/ Plastic mounting bracket | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
PC792A-1C-C-24C-N-XRELAY AUTOMOTIVE SPDT 40A 24V |
356 |
|
规格书 |
- | Box | Active | Non Latching | 66.7 mA | 24VDC | SPDT (1 Form C) | - | 75VDC - Max | 15.6 VDC | 2.4 VDC | 7 ms | 2 ms | - | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
AZ9731-1A-12DC3ER1RELAY AUTOMOTIVE SPST 40A 12V |
368 |
|
规格书 |
AZ9731 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPST-NO (1 Form A) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | MINI-ISO, Resistor, Sealed - Epoxy | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
AZ9731-1C-12DC3ERELAY AUTOMOTIVE SPDT 40A 12V |
997 |
|
规格书 |
AZ9731 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | MINI-ISO, Sealed - Epoxy | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
AZ9731-1C-12DC3D2RELAY AUTOMOTIVE SPDT 40A 12V |
1,041 |
|
规格书 |
AZ9731 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | Diode, MINI-ISO | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
AZ9731-1C-12DC2D1RELAY AUTOMOTIVE SPDT 40A 12V |
398 |
|
规格书 |
AZ9731 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | Diode, MINI-ISO w/ Plastic mounting bracket | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
AZ9731-1C-12DC2D2RELAY AUTOMOTIVE SPDT 40A 12V |
390 |
|
规格书 |
AZ9731 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | Diode, MINI-ISO w/ Plastic mounting bracket | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
AZ9731-1C-12DC1D2RELAY AUTOMOTIVE SPDT 40A 12V |
380 |
|
规格书 |
AZ9731 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | Diode, MINI-ISO w/ Steel Mounting Bracket | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
AZ9731-1C-12DC2ED2RELAY AUTOMOTIVE SPDT 40A 12V |
1,132 |
|
规格书 |
AZ9731 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | Diode, MINI-ISO w/ Plastic mounting bracket, Sealed - Epoxy | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
PC792C-1C-C1-12C-RN-XRELAY AUTOMOTIVE SPDT 50A 12V |
907 |
|
规格书 |
- | Box | Active | Non Latching | 168 mA | 12VDC | SPDT (1 Form C) | - | 75VDC - Max | 7.8 VDC | 1.2 VDC | 7 ms | 2 ms | Resistor, Sealed - Fully | Chassis Mount | Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
AZ9731-1C-12DC3ED2RELAY AUTOMOTIVE SPDT 40A 12V |
386 |
|
规格书 |
AZ9731 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | Diode, MINI-ISO, Sealed - Epoxy | Socketable | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
AZ9731-1C-12DC1ED2RELAY AUTOMOTIVE SPDT 40A 12V |
366 |
|
规格书 |
AZ9731 | Box | Active | Non Latching | 133.3 mA | 12VDC | SPDT (1 Form C) | 40 A | 75VDC - Max | 7.8 VDC | 1.8 VDC | 7 ms | 5 ms | Diode, MINI-ISO w/ Steel Mounting Bracket, Sealed - Epoxy | Chassis Mount | Plug In, Quick Connect - 0.250" (6.3mm) | -40°C ~ 125°C |
|
|
CA1AR-12V-N-5CA AUTOMOTIVE RELAY |
200 |
|
规格书 |
CA | Tray | Active | Non Latching | 150 mA | 12VDC | SPST-NO (1 Form A) | 30 A | 16VDC - Max | 8 VDC | 0.6 VDC | 10 ms | 10 ms | Resistor, Sealed - Fully | Socketable | Plug In | -30°C ~ 80°C |
