音频变压器

型号	库存	价格	数量	规格书	系列	包装	产品状态	初级：次级匝比	阻抗 - 初级（欧姆）	阻抗 - 次级（欧姆）	直流电阻 (DCR) - 初级	直流电阻 (DCR) - 次级	变压器类型	频率范围	频率响应	电压 - 隔离	插入损耗	回波损耗	功率水平	工作温度	认证机构	安装类型	尺寸 / 尺寸	高度 - 安装后（最大值）	端接样式
PL3183NLT POWER iNRCORE, LLC	3,763	-	立即询价	规格书	-	Tape & Reel (TR)	Active	1:1	150	-	12Ohm	14Ohm	General Purpose	-	-	1250V	1.5dB	-	-	-40°C ~ 130°C	-	Surface Mount	-	-	Gull Wing
PL3183T POWER iNRCORE, LLC	2,345	-	立即询价	规格书	-	Tape & Reel (TR)	Active	1:1	150	-	12Ohm	14Ohm	General Purpose	-	-	1250V	1.5dB	-	-	-40°C ~ 130°C	-	Surface Mount	-	-	Gull Wing
PL3141NLT POWER iNRCORE, LLC	3,437	-	立即询价	规格书	-	Tape & Reel (TR)	Active	1:1	600	-	55Ohm	67Ohm	General Purpose	300Hz ~ 3.5kHz	±0.5dB	1000V	1.5dB	-	-	-40°C ~ 85°C	-	Surface Mount	0.709" L x 0.551" W (18.01mm x 14.00mm)	0.413" (10.49mm)	Gull Wing
PL3183NL POWER iNRCORE, LLC	1,151	-	立即询价	规格书	-	Tube	Active	1:1	150	-	12Ohm	14Ohm	General Purpose	-	-	1250V	1.5dB	-	-	-40°C ~ 130°C	-	Surface Mount	-	-	Gull Wing
PL3183 POWER iNRCORE, LLC	2,443	-	立即询价	规格书	-	Tube	Active	1:1	150	-	12Ohm	14Ohm	General Purpose	-	-	1250V	1.5dB	-	-	-40°C ~ 130°C	-	Surface Mount	-	-	Gull Wing

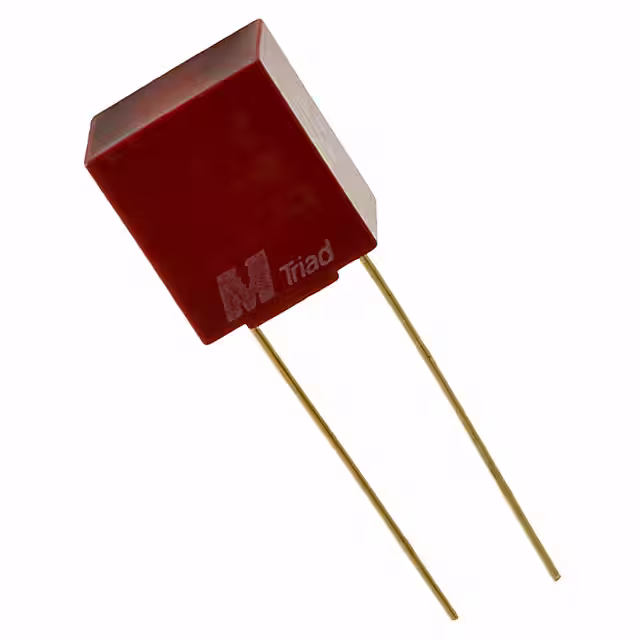

SP-128 AUDIO XFMR TH Triad Magnetics	3,762	-	立即询价	规格书	Red-Spec	Bulk	Active	-	-	-	15Ohm	-	-	-	-	1000VRMS @ 1 Second	-	-	-	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-42-B AUDIO XFMR 150CT / 12 TH Triad Magnetics	2,481	-	立即询价	规格书	Red-Spec	Bulk	Active	3.54:1	150CT	12	18Ohm	2.7Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-33-B AUDIO XFMR 1K / 50 TH Triad Magnetics	4,121	-	立即询价	规格书	Red-Spec	Bulk	Active	4.4:1	1k	50	145Ohm	8Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-20 AUDIO XFMR 10KCT / 1.2KCT TH Triad Magnetics	4,164	-	立即询价	规格书	Red-Spec	Bulk	Active	2.88:1	10kCT	1.2kCT	1.05kOhm	200Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-128-B AUDIO XFMR TH Triad Magnetics	3,454	-	立即询价	规格书	Red-Spec	Bulk	Active	-	-	-	15Ohm	-	-	-	-	1000VRMS @ 1 Second	-	-	-	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-20-B AUDIO XFMR 10KCT / 1.2KCT TH Triad Magnetics	3,782	-	立即询价	规格书	Red-Spec	Bulk	Active	2.88:1	10kCT	1.2kCT	1.05kOhm	200Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-21-B AUDIO XFMR 10KCT / 2KCT TH Triad Magnetics	3,546	-	立即询价	规格书	Red-Spec	Bulk	Active	2.24:1	10kCT	2kCT	1.05kOhm	330Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-22-B AUDIO XFMR 10K / 2K 500/500 TH Triad Magnetics	1,384	-	立即询价	规格书	Red-Spec	Bulk	Active	4.48:1:1	10k	2k, 500/500	1.05kOhm	146/168Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-29-B AUDIO XFMR 10KCT / 500CT TH Triad Magnetics	3,285	-	立即询价	规格书	Red-Spec	Bulk	Active	4.47:1	10kCT	500CT	1.05kOhm	80Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-48-B AUDIO XFMR 7.5KCT / 12 TH Triad Magnetics	3,274	-	立即询价	规格书	Red-Spec	Bulk	Active	25:1	7.5kCT	12	796Ohm	2.9Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-68-B XFMR 10K / 10K 2.5K/2.5K TH Triad Magnetics	1,513	-	立即询价	规格书	Red-Spec	Bulk	Active	2.1:1	10k	10k, 2.5k/2.5k	1kOhm	565/650Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
PL3141T POWER iNRCORE, LLC	4,743	-	立即询价	规格书	-	Tape & Reel (TR)	Active	1:1	600	-	55Ohm	67Ohm	General Purpose	300Hz ~ 3.5kHz	±0.5dB	1000V	1.5dB	-	-	-40°C ~ 85°C	-	Surface Mount	0.709" L x 0.551" W (18.01mm x 14.00mm)	0.413" (10.49mm)	Gull Wing
SP-52-B AUDIO XFMR 1.5KCT / 600 TH Triad Magnetics	2,176	-	立即询价	规格书	Red-Spec	Bulk	Active	1.58:1	1.5kCT	600	168Ohm	92Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-32 AUDIO XFMR 500 / 50 TH Triad Magnetics	3,652	-	立即询价	规格书	Red-Spec	Bulk	Active	3.16:1	500	50	60Ohm	8Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-49-B AUDIO XFMR 300CT / 600 TH Triad Magnetics	2,731	-	立即询价	规格书	Red-Spec	Bulk	Active	1:1.42	300CT	600	41Ohm	98Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin

共 938 记录«上一页 1... 30 31 32 333435 36 37...47 下一页»
