音频变压器

型号	库存	价格	数量	规格书	系列	包装	产品状态	初级：次级匝比	阻抗 - 初级（欧姆）	阻抗 - 次级（欧姆）	直流电阻 (DCR) - 初级	直流电阻 (DCR) - 次级	变压器类型	频率范围	频率响应	电压 - 隔离	插入损耗	回波损耗	功率水平	工作温度	认证机构	安装类型	尺寸 / 尺寸	高度 - 安装后（最大值）	端接样式
MET-42 AUDIO XFMR 150 / 12 TH Tamura	469	-	立即询价	规格书	MET	Tube	Active	3.54:1	150	12	20Ohm	2.5Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	500VRMS @ 30 Seconds	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin

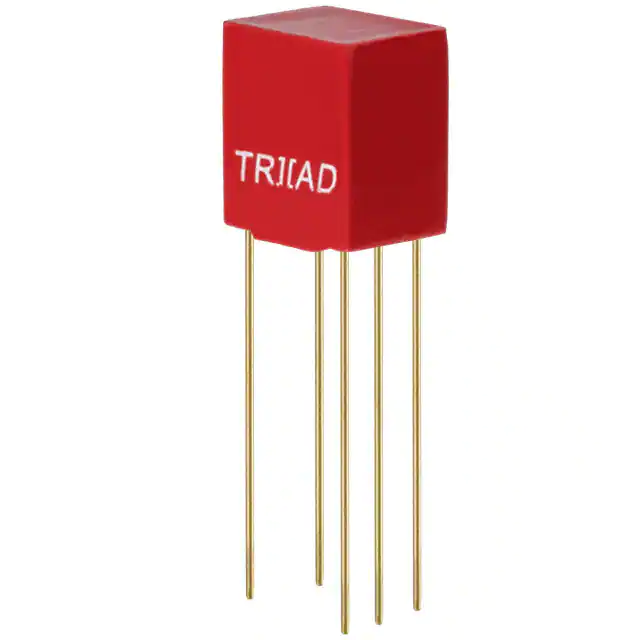

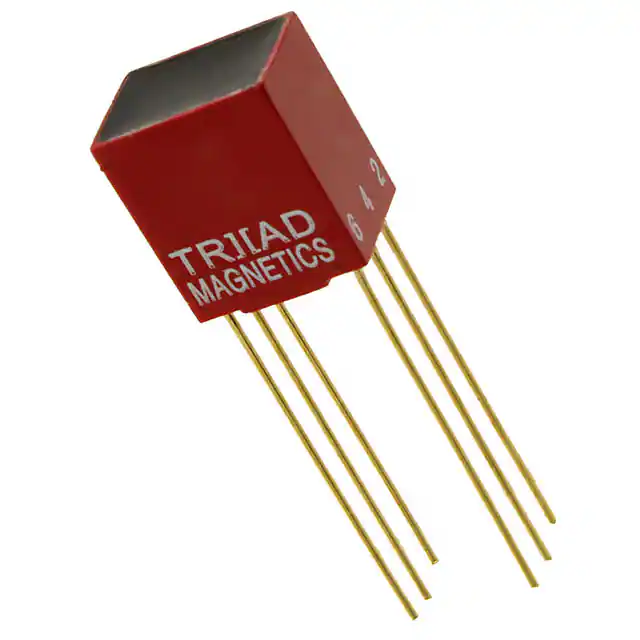

SP-48 AUDIO XFMR 7.5KCT / 12 TH Triad Magnetics	6,821	-	立即询价	规格书	Red-Spec	Bulk	Active	25:1	7.5kCT	12	796Ohm	2.9Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin

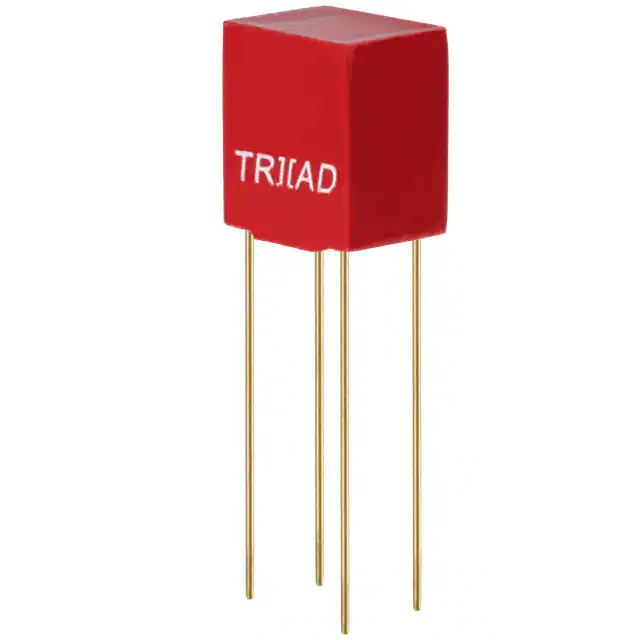

SP-33 AUDIO XFMR 1K / 50 TH Triad Magnetics	2,779	-	立即询价	规格书	Red-Spec	Bulk	Active	4.4:1	1k	50	145Ohm	8Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin

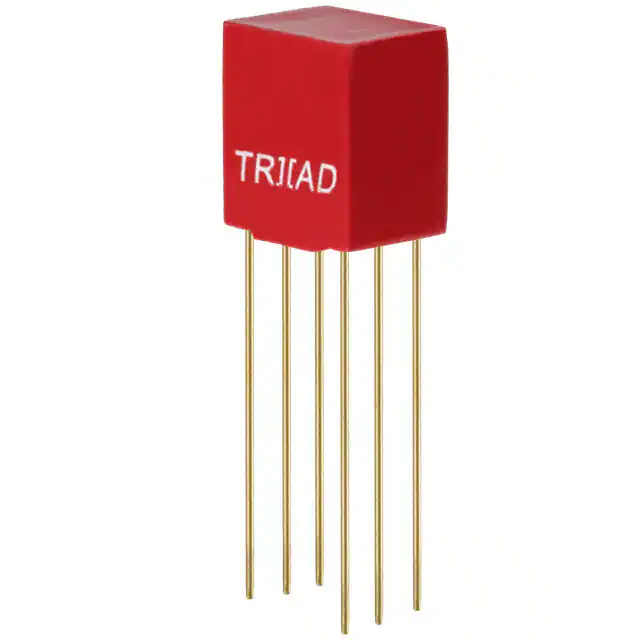

SP-66 AUDIO XFMR 10KCT / 10KCT TH Triad Magnetics	1,196	-	立即询价	规格书	Red-Spec	Bulk	Active	1:1	10kCT	10kCT	1kOhm	1.3kOhm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-67 AUDIO XFMR 600CT / 600CT TH Triad Magnetics	5,798	-	立即询价	规格书	Red-Spec	Bulk	Active	1:1	600CT	600CT	72Ohm	92Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-69 AUDIO XFMR 600 / 600 150/150 TH Triad Magnetics	1,675	-	立即询价	规格书	Red-Spec	Bulk	Active	2:1:1	600	600, 150/150	72Ohm	40Ohm, 45Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-70 AUDIO XFMR 600 / 600 TH Triad Magnetics	1,267	-	立即询价	规格书	Red-Spec	Bulk	Active	1:1	600	600	72Ohm	92Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-50 AUDIO XFMR 500CT / 600 TH Triad Magnetics	574	-	立即询价	规格书	Red-Spec	Bulk	Active	1:1.1	500CT	600	67Ohm	98Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
SP-5 AUDIO XFMR 50KCT / 1KCT TH Triad Magnetics	168	-	立即询价	规格书	Red-Spec	Bulk	Active	7.1:1	50kCT	1kCT	3.8kOhm	75Ohm	Audio Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	25mW	-40°C ~ 85°C	-	Through Hole	0.410" L x 0.310" W (10.41mm x 7.87mm)	0.465" (11.80mm)	PC Pin
101F AUDIO XFMR 600CT / 600CT TH Hammond Manufacturing	287	-	立即询价	规格书	101	Bulk	Active	1:1	600CT	600CT	44Ohm	52Ohm	Miniature Epoxy Potted	200Hz ~ 100kHz	±0.5dB	100VRMS	-	-	100mW	-40°C ~ 85°C	-	Through Hole	0.450" L x 0.450" W (11.43mm x 11.43mm)	0.480" (12.19mm)	PC Pin

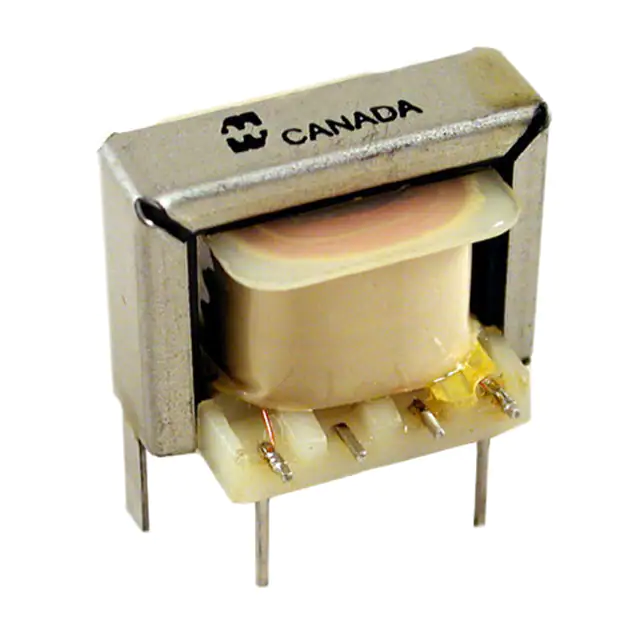

149U AUDIO XFMR 600 150/150 / 8 TH Hammond Manufacturing	101	-	立即询价	规格书	149	Bulk	Active	-	600, 150/150	8	53Ohm	95Ohm	Economical Open Type	200Hz ~ 15kHz	±1dB	-	0.5dB	-	1000mW	-	-	Through Hole	1.060" L x 0.820" W (26.92mm x 20.83mm)	0.820" (20.83mm)	PC Pin
TTC-5036 AUDIO XFMR 600 / 287 SMD Tamura	1,598	-	立即询价	规格书	TTC	Tape & Reel (TR)	Active	1:1	600	287	175Ohm	175Ohm	Data/Voice Coupling	200Hz ~ 4kHz	±0.2dB	1875VRMS @ 1 Second	4dB Max @ 2kHz	14dB Min @ 200Hz ~ 4kHz	-	-20°C ~ 85°C	UL60950, EN60950	Surface Mount	0.378" L x 0.492" W (9.60mm x 12.50mm)	0.299" (7.60mm)	Flat Lead
ESMIT-4180/C AUDIO XFMR SMD Sumida America Components Inc.	13,363	-	立即询价	规格书	ESMIT	Tape & Reel (TR)	Active	-	-	-	250mOhm	250mOhm	-	-	-	3750Vrms	-	-	-	-40°C ~ 125°C	-	Surface Mount	0.280" L x 0.205" W (7.10mm x 5.20mm)	0.138" (3.50mm)	Gull Wing

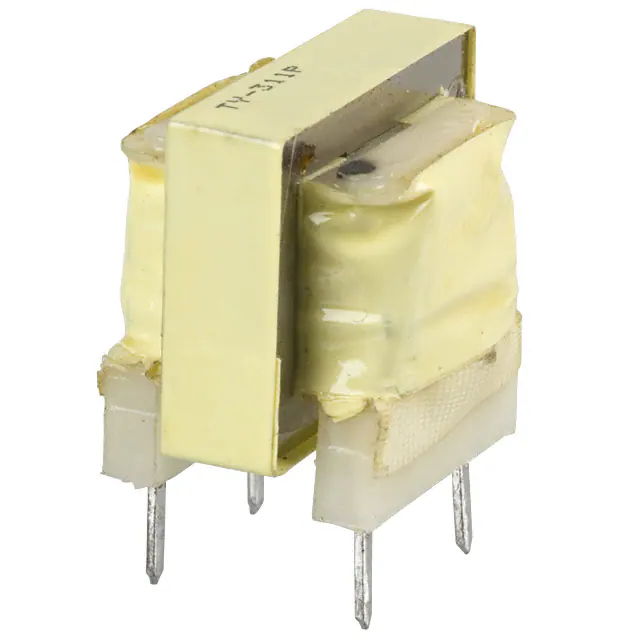

TY-311P AUDIO XFMR 600 / 600 TH Triad Magnetics	3,861	-	立即询价	规格书	TY	Bulk	Active	1:1.05	600	600	38Ohm	53Ohm	Data/Voice Coupling	300Hz ~ 3.5kHz	±0.5dB	1500VAC	1dB Typ	26dB Typ	-45dB ~ 7dB	-20°C ~ 85°C	-	Through Hole	0.812" L x 0.715" W (20.62mm x 18.16mm)	0.740" (18.80mm)	PC Pin

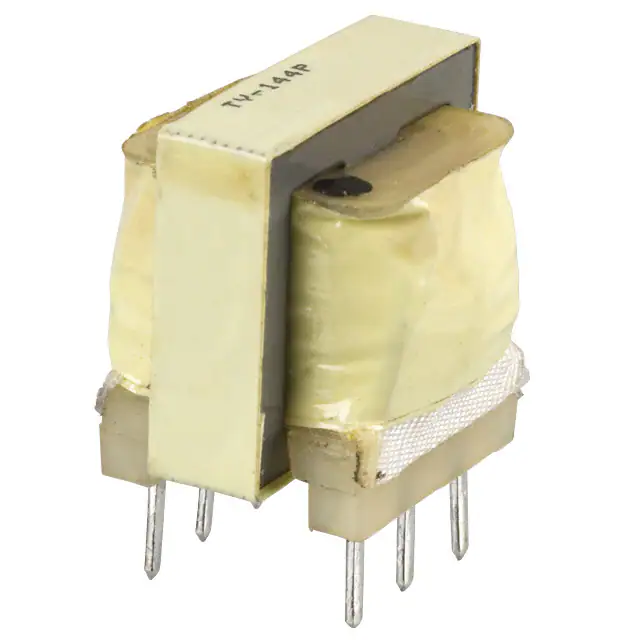

TY-144P AUDIO XFMR 15KCT / 15KCT TH Triad Magnetics	269	-	立即询价	规格书	TY	Bulk	Active	1:1	15kCT	15kCT	1.18kOhm	1.6kOhm	Data/Voice Coupling	200Hz ~ 15kHz	±2dB	1500V	1.5dB	26dB	100mW	-20°C ~ 85°C	-	Through Hole	0.812" L x 0.700" W (20.62mm x 17.78mm)	0.740" (18.80mm)	PC Pin
TTC-105 AUDIO XFMR 600 / 600 TH Tamura	143	-	立即询价	规格书	TTC	Bulk	Active	1:1	600	600	71Ohm	117Ohm	Data/Voice Coupling	660Hz ~ 3.5kHz	-1dB ~ 0.7dB	1500VRMS @ 1 Minute	3dB Max @ 660Hz ~ 800Hz, 2.5dB Max @ 800Hz @ 3.5kHz	-	-45dB ~ 10dB	-	CSA-C22.2 No. 66-M1988, UL1459	Through Hole	0.839" L x 0.630" W (21.30mm x 16.00mm)	0.748" (19.00mm)	PC Pin

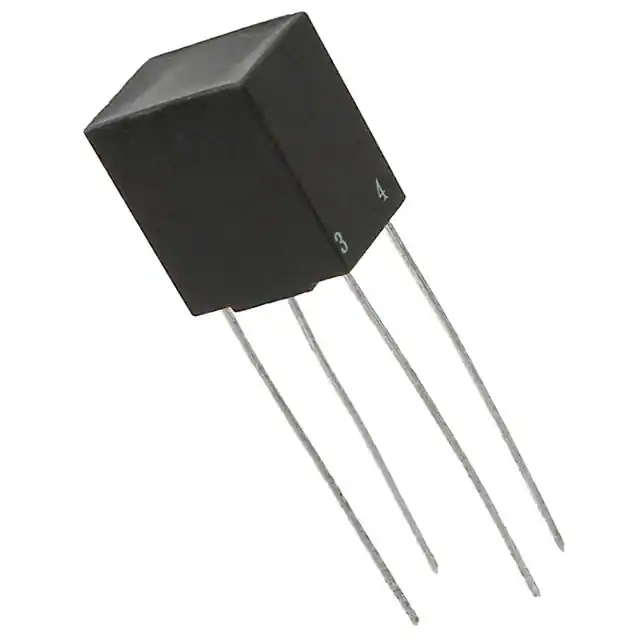

MET-39-T AUDIO XFMR 500 / 50 TH Triad Magnetics	707	-	立即询价	规格书	MET	Bulk	Active	3.16:1	500	50	55Ohm	8Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin
TY-146P XFMR 600 150/150 / 600 150/150 Triad Magnetics	2,675	-	立即询价	规格书	TY	Bulk	Active	1:1	600, 150/150	600, 150/150	17Ohm, 19Ohm	14.5Ohm, 22Ohm	Data/Voice Coupling	200Hz ~ 15kHz	±2dB	1500V	1.5dB	26dB	1W	-20°C ~ 85°C	-	Through Hole	1.375" L x 1.187" W (34.93mm x 30.15mm)	1.187" (30.15mm)	PC Pin
MET-23-T AUDIO XFMR 1.6KCT / 3.2 TH Triad Magnetics	265	-	立即询价	规格书	MET	Bulk	Active	22.4:1	1.6kCT	3.2	230Ohm	1Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	65mW	-20°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin
MET-35-T AUDIO XFMR 600CT / 8 TH Triad Magnetics	175	-	立即询价	规格书	MET	Bulk	Active	8.66:1	600CT	8	60Ohm	1.5Ohm	Data/Voice Coupling	300Hz ~ 100kHz	±2dB	1000VRMS @ 1 Second	-	-	50mW	-20°C ~ 85°C	-	Through Hole	0.409" L x 0.310" W (10.40mm x 7.87mm)	0.465" (11.80mm)	PC Pin

共 938 记录«上一页 123 4 5...47 下一页»
