购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEH-ZT1E331VCAP ALUMHYB 330UF 20% 25V SMD |
2,193 |
|
规格书 |
ZT | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 25 V | 16mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 525 mA @ 100 Hz | 3.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
RPS1C331MCN1GSCAP ALUM POLY 330UF 20% 16V SMD |
919 |
|
规格书 |
FPCAP, RPS | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 16 V | 16mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 480 mA @ 120 Hz | 4.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.488" (12.40mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
25PHV330M10X10.5CAP ALUMHYB 330UF 20% 25V SMD |
2,295 |
|
规格书 |
PHV | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 25 V | 20mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 180 mA @ 120 Hz | 3.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

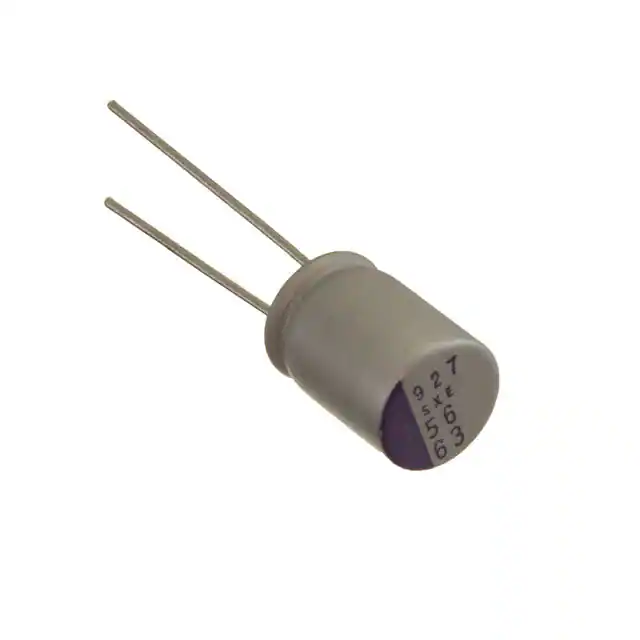

63SXE56MCAP ALUM POLY 56UF 20% 63V TH |
1,094 |
|
规格书 |
OS-CON™, SXE | Bulk | Active | Polymer | 56 µF | ±20% | 63 V | 25mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 147.5 mA @ 120 Hz | 2.95 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
RNS1E101MDN1PHCAP ALUM POLY 100UF 20% 25V TH |
622 |
|
规格书 |
FPCAP, RNS | Cut Tape (CT) | Active | Polymer | 100 µF | ±20% | 25 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 450 mA @ 120 Hz | 4.5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
PCV1J270MCL7GSCAP ALUM POLY 27UF 20% 63V SMD |
11,212 |
|
规格书 |
PCV | Tape & Reel (TR) | Active | Polymer | 27 µF | ±20% | 63 V | 30mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
100SXE18MCAP ALUM POLY 18UF 20% 100V TH |
1,085 |
|
规格书 |
OS-CON™, SXE | Bulk | Active | Polymer | 18 µF | ±20% | 100 V | 30mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 150 mA @ 120 Hz | 3 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
B40940A8826M000CAP ALUM HYBRID 82UF 20% 63V SMD |
5,497 |
|
规格书 |
B40940 | Tape & Reel (TR) | Active | Hybrid | 82 µF | ±20% | 63 V | 30mOhm | 4000 Hrs @ 145°C | -40°C ~ 145°C | AEC-Q200 | Automotive | - | - | 2.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCV1V820MCL1GSCAP ALUM POLY 82UF 20% 35V SMD |
540 |
|
规格书 |
PCV | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 35 V | 29mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 2.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
687AVG025MGBJCAP ALUM POLY 680UF 20% 25V TH |
37,668 |
|
规格书 |
AVG | Bulk | Active | Polymer | 680 µF | ±20% | 25 V | 16mOhm | 1500 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 235 mA @ 120 Hz | 4.7 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.532" (13.50mm) | - | Through Hole |
|
870056175005CAP ALUM POLY 33UF 20% 80V TH |
602 |
|
规格书 |
WCAP-PTHR | Cut Tape (CT) | Active | Polymer | 33 µF | ±20% | 80 V | 35mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 140 mA @ 120 Hz | 2.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
APXA100ARA561MJC0GCAP ALUM POLY 560UF 20% 10V SMD |
404 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 10 V | 12mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.480" (12.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
APXJ100ARA471MH70GCAP ALUM POLY 470UF 20% 10V SMD |
829 |
|
规格书 |
NPCAP™-PXJ | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 10 V | 15mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 200 mA @ 120 Hz | 4 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
25PJV820M10X16.5CAP ALUMHYB 820UF 20% 25V SMD |
548 |
|
规格书 |
PJV | Tape & Reel (TR) | Active | Hybrid | 820 µF | ±20% | 25 V | 11mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 200 mA @ 100 Hz | 4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.661" (16.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
63SXE39MXCAP ALUM POLY 39UF 20% 63V TH |
219 |
|
规格书 |
OS-CON™, SXE | Bulk | Active | Polymer | 39 µF | ±20% | 63 V | 25mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 34.5 mA @ 120 Hz | 690 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
|
35PHV470M10X16.5CAP ALUMHYB 470UF 20% 35V SMD |
737 |
|
规格书 |
PHV | Tape & Reel (TR) | Active | Hybrid | 470 µF | ±20% | 35 V | 11mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 240 mA @ 100 Hz | 4.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.661" (16.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCX1H220MCL6GSCAP ALUM POLY 22UF 20% 50V SMD |
265 |
|
规格书 |
PCX | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 50 V | 37mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | General Purpose | - | - | 1.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.394" (10.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
EEF-KX0E331RECAP ALUM POLY 330UF 20% 2.5V SMD |
6,770 |
|
规格书 |
SP-Cap KX | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2.5 V | 9mOhm | 5500 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 6.3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
63PJV150M10X16.5CAP ALUMHYB 150UF 20% 63V SMD |
1,574 |
|
规格书 |
PJV | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 63 V | 15mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 165 mA @ 100 Hz | 3.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.661" (16.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
870055874002CAP ALUM POLY 22UF 20% 63V TH |
669 |
|
规格书 |
WCAP-PTHR | Cut Tape (CT) | Active | Polymer | 22 µF | ±20% | 63 V | 55mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 70 mA @ 120 Hz | 1.4 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.512" (13.00mm) | - | Through Hole |
