购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
25SVF180MCAP ALUM POLY 180UF 20% 25V SMD |
459 |
|
规格书 |
OS-CON™, SVF | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 25 V | 16mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 73.5 mA @ 120 Hz | 1.47 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

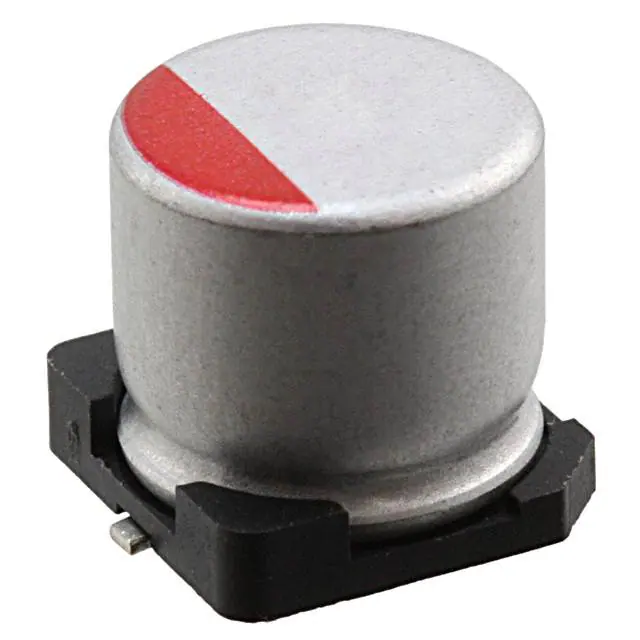

RHS1A331MCN1GSCAP ALUM POLY 330UF 20% 10V SMD |
3,065 |
|
规格书 |
FPCAP, RHS | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 10 V | 19mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 339 mA @ 120 Hz | 3.39 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
25SVT100MCAP ALUM POLY 100UF 20% 25V SMD |
2,229 |
|
规格书 |
OS-CON™, SVT | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 25 V | 24mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 160 mA @ 120 Hz | 3.2 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

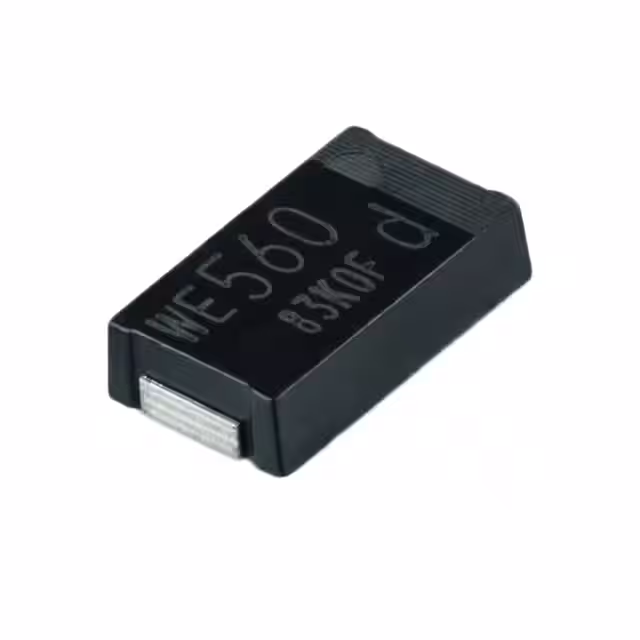

875015019005CAP ALUM POLY 330UF 20% 4V SMD |
3,989 |
|
规格书 |
WCAP-PHGP | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 4 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
35PJV180MVB8X10.5CAP ALUMHYB 180UF 20% 35V SMD |
3,136 |
|
规格书 |
PJV | Tape & Reel (TR) | Active | Hybrid | 180 µF | ±20% | 35 V | 25mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | High Vibration | 96 mA @ 120 Hz | 1.92 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
16SVF560MCAP ALUM POLY 560UF 20% 16V SMD |
1,535 |
|
规格书 |
OS-CON™, SVF | Tape & Reel (TR) | Active | Polymer | 560 µF | ±20% | 16 V | 14mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 78 mA @ 120 Hz | 1.56 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
25PFV220M8X10.5CAP ALUMHYB 220UF 20% 25V SMD |
1,354 |
|
规格书 |
PFV | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 25 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 80 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
PCF1C221MCL9GSCAP ALUM POLY 220UF 20% 16V SMD |
1,153 |
|
规格书 |
PCF | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 16 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 5.05 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCJ0J471MCL1GSCAP ALUM POLY 470UF 20% 6.3V SMD |
3,278 |
|
规格书 |
PCJ | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 6.3 V | 13mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.95 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCJ1A331MCL1GSCAP ALUM POLY 330UF 20% 10V SMD |
3,030 |
|
规格书 |
PCJ | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 10 V | 19mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.39 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.315" (8.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

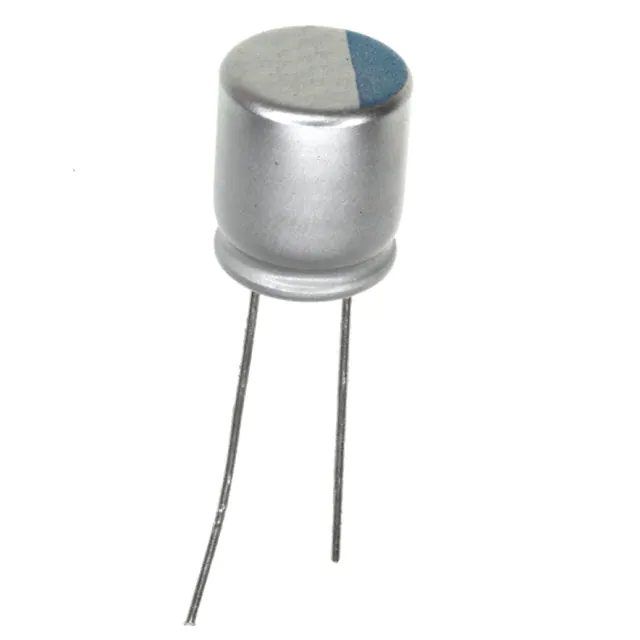

APSC160ELL471MJB5SCAP ALUM POLY 470UF 20% 16V TH |
1,547 |
|
规格书 |
NPCAP™-PSC | Bulk | Active | Polymer | 470 µF | ±20% | 16 V | 10mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.453" (11.50mm) | - | Through Hole |
-Photo-Taped-Size-G.jpg)
|

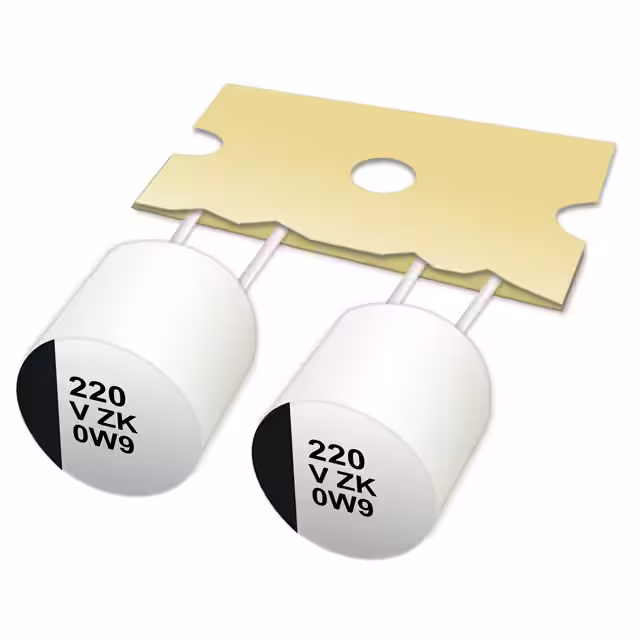

EEH-AZK1E471BCAP ALUM HYBRID 470UF 20% 25V TH |
1,248 |
|
规格书 |
ZK | Cut Tape (CT) | Active | Hybrid | 470 µF | ±20% | 25 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 420 mA @ 100 Hz | 2.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole |
-Series-(THT-Tape-And-Box)-Photo-Taped-Size-G.jpg)
|
EEH-AZKE561UBCAP ALUM HYBRID 560UF 20% 25V TH |
659 |
|
规格书 |
ZKU | Cut Tape (CT) | Active | Hybrid | 560 µF | ±20% | 25 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 420 mA @ 100 Hz | 2.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
25SEPF330M+TCAP ALUM POLY 330UF 20% 25V TH |
655 |
|
规格书 |
OS-CON™, SEPF | Cut Tape (CT) | Active | Polymer | 330 µF | ±20% | 25 V | 14mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 250 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
63PZH56M10X9CAP ALUM HYBRID 56UF 20% 63V TH |
286 |
|
规格书 |
PZH | Bulk | Active | Hybrid | 56 µF | ±20% | 63 V | 30mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 130 mA @ 100 Hz | 2.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
|
EEH-AZKV391UBCAP ALUM HYBRID 390UF 20% 35V TH |
247 |
|
规格书 |
ZKU | Cut Tape (CT) | Active | Hybrid | 390 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 420 mA @ 100 Hz | 2.8 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
EEF-CX1A680RCAP ALUM POLY 68UF 20% 10V SMD |
6,964 |
|
规格书 |
SP-Cap CX | Tape & Reel (TR) | Not For New Designs | Polymer | 68 µF | ±20% | 10 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | - | Surface Mount |
|
RL81V101MDN1CAP ALUM POLY 100UF 20% 35V TH |
800 |
|
规格书 |
FPCAP, RL8 | Bulk | Active | Polymer | 100 µF | ±20% | 35 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 300 mA @ 120 Hz | 3 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
16SVPG680MCAP ALUM POLY 680UF 20% 16V SMD |
481 |
|
规格书 |
OS-CON™, SVPG | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 16 V | 8mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 325 mA @ 120 Hz | 6.5 A @ 100 kHz | - | - | - | - | - | Surface Mount |
|
EEH-ZC1J220XVCAP ALUM HYBRID 22UF 20% 63V SMD |
3,958 |
|
规格书 |
ZC, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 63 V | 80mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | Anti-Vibration | 90 mA @ 100 Hz | 900 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.327" (8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
