购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HTK-35V271MH10E-R2CAP ALUMHYB 270UF 20% 35V SMD Elna America |
1,080 |
|
- |
HTK | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 35 V | 20mOhm | 6000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 200 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount |
|
HTK-50V101MH10E-R2CAP ALUMHYB 100UF 20% 50V SMD Elna America |
4,951 |
|
- |
HTK | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 50 V | 28mOhm | 6000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 160 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount |
|
PVH-10V151MG70E-R2CAP ALUM POLY 150UF 20% 10V SMD Elna America |
3,434 |
|
- |
PVH | Cut Tape (CT) | Obsolete | Polymer | 150 µF | ±20% | 10 V | 27mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount |
|

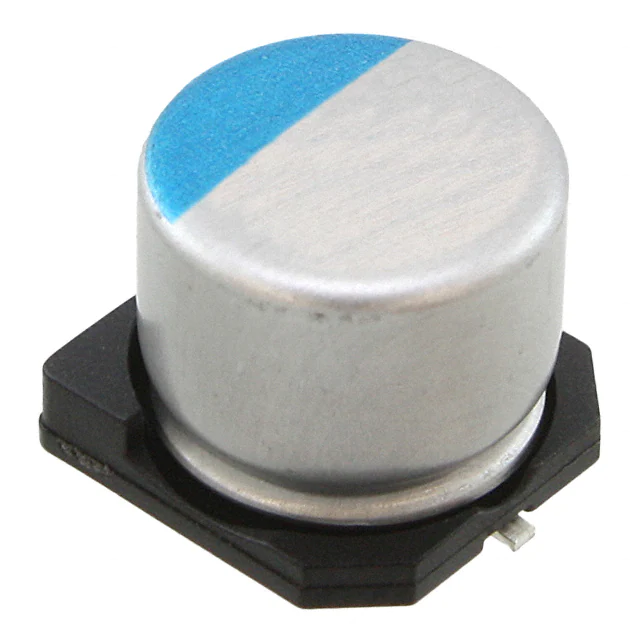

PVM-10V221MG70E-R2CAP ALUM POLY 220UF 20% 10V SMD Elna America |
4,186 |
|
规格书 |
PVM | Tape & Reel (TR) | Obsolete | Polymer | 220 µF | ±20% | 10 V | 21mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.22 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount |
|
|
PVM-10V271MG70E-R2CAP ALUM POLY 270UF 20% 10V SMD Elna America |
2,024 |
|
规格书 |
PVM | Tape & Reel (TR) | Obsolete | Polymer | 270 µF | ±20% | 10 V | 21mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.22 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount |
|
|
PVM-16V101MG70E-R2CAP ALUM POLY 100UF 20% 16V SMD Elna America |
4,517 |
|
规格书 |
PVM | Tape & Reel (TR) | Obsolete | Polymer | 100 µF | ±20% | 16 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.01 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount |
|
|
PVM-16V121MG70E-R2CAP ALUM POLY 120UF 20% 16V SMD Elna America |
2,437 |
|
规格书 |
PVM | Cut Tape (CT) | Obsolete | Polymer | 120 µF | ±20% | 16 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.01 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.331" L x 0.331" W (8.40mm x 8.40mm) | Surface Mount |
|

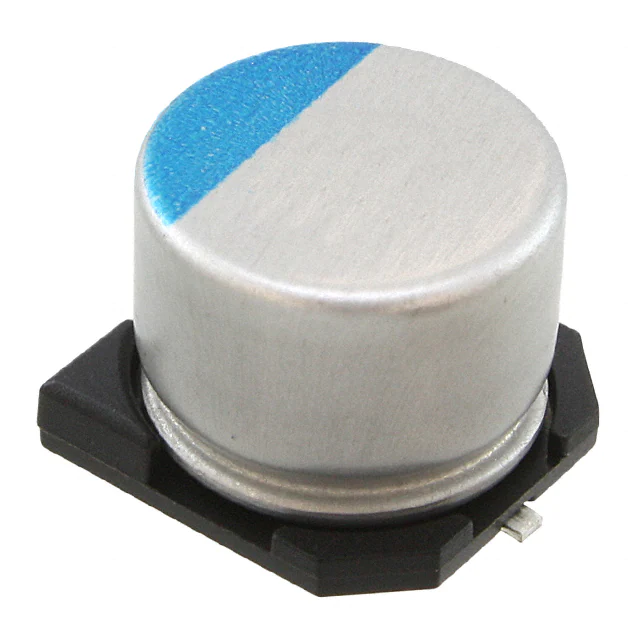

PVH-16V151MH80E-R2CAP ALUM POLY 150UF 20% 16V SMD Elna America |
1,685 |
|
- |
PVH | Cut Tape (CT) | Obsolete | Polymer | 150 µF | ±20% | 16 V | 26mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.43 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount |
|
|
PVH-20V820MH80E-R2CAP ALUM POLY 82UF 20% 20V SMD Elna America |
3,662 |
|
- |
PVH | Cut Tape (CT) | Obsolete | Polymer | 82 µF | ±20% | 20 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.409" L x 0.409" W (10.40mm x 10.40mm) | Surface Mount |
