购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
20SEP150M+TCAP ALUM POLY 150UF 20% 20V TH |
971 |
|
规格书 |
OS-CON™, SEP | Cut Tape (CT) | Active | Polymer | 150 µF | ±20% | 20 V | 20mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 216 mA @ 120 Hz | 4.32 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
APXA160ARA820MH70GCAP ALUM POLY 82UF 20% 16V SMD |
908 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 16 V | 30mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
A765MU108M1CLAE018CAP ALUM POLY 1000UF 20% 16V SMD |
2,747 |
|
规格书 |
A765 | Tape & Reel (TR) | Active | Polymer | 1000 µF | ±20% | 16 V | 18mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 215 mA @ 120 Hz | 4.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.508" (12.90mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
APXA100ARA121MH70GCAP ALUM POLY 120UF 20% 10V SMD |
1,515 |
|
规格书 |
NPCAP™-PXA | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 10 V | 27mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.8 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.264" (6.70mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
16SVPD82MCAP ALUM POLY 82UF 20% 16V SMD |
1,172 |
|
规格书 |
OS-CON™, SVPD | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 16 V | 40mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 33.5 mA @ 120 Hz | 670 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
50SVPK33MCAP ALUM POLY 33UF 20% 50V SMD |
550 |
|
规格书 |
OS-CON™, SVPK | Tape & Reel (TR) | Active | Polymer | 33 µF | ±20% | 50 V | 35mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 42.5 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
6SVPT820MCAP ALUM POLY 820UF 20% 6.3V SMD |
208 |
|
规格书 |
OS-CON™, SVPT | Tape & Reel (TR) | Active | Polymer | 820 µF | ±20% | 6.3 V | 12mOhm | 20000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 235 mA @ 120 Hz | 4.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
EEF-HX0E331R4CAP ALUM POLY 330UF 20% 2.5V SMD |
2,781 |
|
规格书 |
SP-Cap HX | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2.5 V | 4.5mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 8.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
PCG0J151MCL1GSCAP ALUM POLY 150UF 20% 6.3V SMD |
1,996 |
|
规格书 |
PCG | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 6.3 V | 33mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.8 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
63SXV39MXCAP ALUM POLY 39UF 20% 63V SMD |
1,076 |
|
规格书 |
OS-CON™, SXV | Tape & Reel (TR) | Active | Polymer | 39 µF | ±20% | 63 V | 50mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 34.5 mA @ 120 Hz | 690 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
PCV1C820MCL2GSCAP ALUM POLY 82UF 20% 16V SMD |
672 |
|
规格书 |
PCV | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 16 V | 47mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 1.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
35SEPF120M+TCAP ALUM POLY 120UF 20% 35V TH |
629 |
|
规格书 |
OS-CON™, SEPF | Cut Tape (CT) | Active | Polymer | 120 µF | ±20% | 35 V | 18mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 220 mA @ 120 Hz | 4.4 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
50PJV82M8X10.5CAP ALUM HYBRID 82UF 20% 50V SMD |
1,618 |
|
规格书 |
PJV | Tape & Reel (TR) | Active | Hybrid | 82 µF | ±20% | 50 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 85 mA @ 100 Hz | 1.7 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
RNE1C102MDNASQCAP ALUM POLY 1000UF 20% 16V TH |
1,484 |
|
规格书 |
FPCAP, RNE | Bulk | Active | Polymer | 1000 µF | ±20% | 16 V | 10mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 610 mA @ 120 Hz | 6.1 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
35PZE150M8X9CAP ALUM HYBRID 150UF 20% 35V TH |
1,234 |
|
规格书 |
PZE | Bulk | Active | Hybrid | 150 µF | ±20% | 35 V | 27mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 115 mA @ 120 Hz | 2.3 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.433" (11.00mm) | - | Through Hole |
|

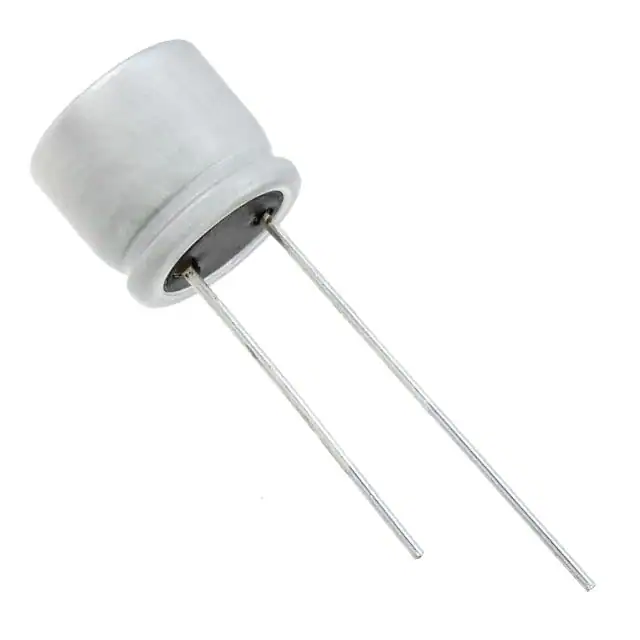

PLF1D680MCL2TDCAP ALUM POLY 68UF 20% 20V TH |
964 |
|
规格书 |
PLF | Cut Tape (CT) | Active | Polymer | 68 µF | ±20% | 20 V | 40mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 2.6 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | - | Through Hole |
|
PLF1D101MDO2CAP ALUM POLY 100UF 20% 20V TH |
609 |
|
规格书 |
PLF | Bulk | Active | Polymer | 100 µF | ±20% | 20 V | 22mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3.32 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
|
6SEP820MCAP ALUM POLY 820UF 20% 6.3V TH |
151 |
|
规格书 |
OS-CON™, SEP | Bulk | Active | Polymer | 820 µF | ±20% | 6.3 V | 12mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 272 mA @ 120 Hz | 5.44 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
GYA1E331MCW1GSCAP ALUMHYB 330UF 20% 25V SMD |
5,532 |
|
规格书 |
GYA | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 25 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 300 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
GYB1E331MCW1GSCAP ALUMHYB 330UF 20% 25V SMD |
4,963 |
|
规格书 |
GYB | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 25 V | 20mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | 375 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.433" (11.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
