购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

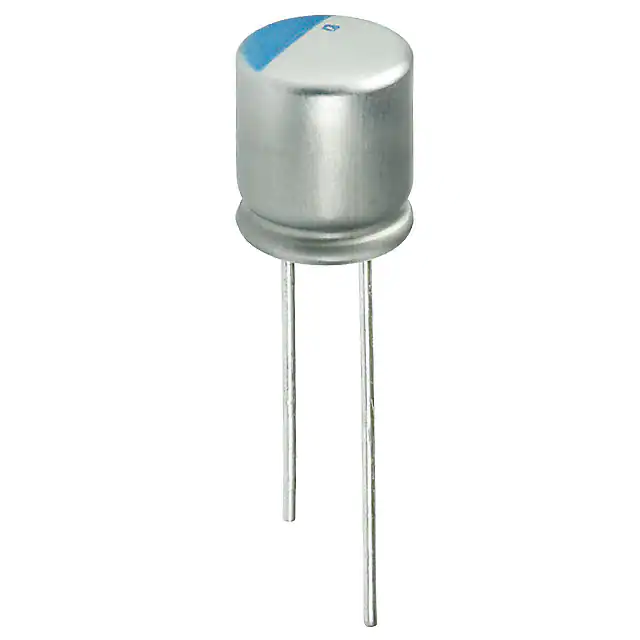

APSA6R3ELL681MJB5SCAP ALUM POLY 680UF 20% 6.3V TH |
255 |
|
规格书 |
NPCAP™-PSA | Bulk | Active | Polymer | 680 µF | ±20% | 6.3 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.86 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.453" (11.50mm) | - | Through Hole |
|
4SVP680MCAP ALUM POLY 680UF 20% 4V SMD |
907 |
|
规格书 |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 680 µF | ±20% | 4 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 185 mA @ 120 Hz | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
GYA1J560MCQ1GSCAP ALUM HYBRID 56UF 20% 63V SMD |
750 |
|
规格书 |
GYA | Tape & Reel (TR) | Active | Hybrid | 56 µF | ±20% | 63 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEH-ZT1E221VCAP ALUMHYB 220UF 20% 25V SMD |
373 |
|
规格书 |
ZT | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 25 V | 22mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 435 mA @ 120 Hz | 2.9 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
A784MS477M1ELAS018CAP ALUMHYB 470UF 20% 25V SMD |
2,122 |
|
规格书 |
A784 | Tape & Reel (TR) | Active | Hybrid | 470 µF | ±20% | 25 V | 18mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 1.28 A @ 100 Hz | 3.2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
HHXD630ARA220MHA0GCAP ALUM HYBRID 22UF 20% 63V SMD |
1,288 |
|
规格书 |
HXD | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 63 V | 40mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 112 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
25SVF47MCAP ALUM POLY 47UF 20% 25V SMD |
890 |
|
规格书 |
OS-CON™, SVF | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 25 V | 30mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 44 mA @ 120 Hz | 880 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
A755MS277M1EAAE015CAP ALUM POLY 270UF 20% 25V TH |
320 |
|
规格书 |
A755 | Bulk | Active | Polymer | 270 µF | ±20% | 25 V | 15mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 242.5 mA @ 120 Hz | 4.85 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
PCV1V180MCL1GSCAP ALUM POLY 18UF 20% 35V SMD |
175 |
|
规格书 |
PCV | Tape & Reel (TR) | Active | Polymer | 18 µF | ±20% | 35 V | 64mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 900 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
-Photo-Taped-Size-F.jpg)
|
EEH-AZA1E221BCAP ALUM HYBRID 220UF 20% 25V TH |
2,843 |
|
规格书 |
ZA-A | Cut Tape (CT) | Active | Hybrid | 220 µF | ±20% | 25 V | 27mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 345 mA @ 100 Hz | 2.3 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
|
EEH-AZA1E151BCAP ALUM HYBRID 150UF 20% 25V TH |
2,303 |
|
规格书 |
ZA-A | Cut Tape (CT) | Active | Hybrid | 150 µF | ±20% | 25 V | 27mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 345 mA @ 100 Hz | 2.3 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
PCF1A121MCL1GSCAP ALUM POLY 120UF 20% 10V SMD |
1,285 |
|
规格书 |
PCF | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 10 V | 23mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
GYA1H101MCQ1GSCAP ALUMHYB 100UF 20% 50V SMD |
1,280 |
|
规格书 |
GYA | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 50 V | 28mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 1.6 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
16SEPC270M+TSSCAP ALUM POLY 270UF 20% 16V TH |
1,131 |
|
规格书 |
OS-CON™, SEPC | Cut Tape (CT) | Active | Polymer | 270 µF | ±20% | 16 V | 11mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 250 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
|
APSA100ELL471MJB5SCAP ALUM POLY 470UF 20% 10V TH |
990 |
|
规格书 |
NPCAP™-PSA | Bulk | Active | Polymer | 470 µF | ±20% | 10 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.65 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.453" (11.50mm) | - | Through Hole |
|
RSS1E100MCN1GSCAP ALUM POLY 10UF 20% 25V SMD |
851 |
|
规格书 |
FPCAP, RSS | Tape & Reel (TR) | Active | Polymer | 10 µF | ±20% | 25 V | 60mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 170 mA @ 120 Hz | 1.7 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|
35SEK180MCAP ALUM POLY 180UF 20% 35V TH |
272 |
|
规格书 |
OS-CON™, SEK | Bulk | Active | Polymer | 180 µF | ±20% | 35 V | 20mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 63 mA @ 120 Hz | 1.26 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | - | Through Hole |
|
875115560004CAP ALUM POLY 100UF 20% 25V SMD |
264 |
|
规格书 |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 25 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 155 mA @ 120 Hz | 3.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.343" (8.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
16SEPC180MCAP ALUM POLY 180UF 20% 16V TH |
238 |
|
规格书 |
OS-CON™, SEPC | Bulk | Active | Polymer | 180 µF | ±20% | 16 V | 16mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 218 mA @ 120 Hz | 4.36 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
25SEP22M+TCAP ALUM POLY 22UF 20% 25V TH |
120 |
|
规格书 |
OS-CON™, SEP | Cut Tape (CT) | Active | Polymer | 22 µF | ±20% | 25 V | 50mOhm | 3000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 100 mA @ 120 Hz | 2 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | - | Through Hole |
