购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
870025575008CAP ALUM POLY 270UF 20% 25V TH Würth Elektronik |
445 |
|
规格书 |
WCAP-PTG5 | Cut Tape (CT) | Active | Polymer | 270 µF | ±20% | 25 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 245 mA @ 120 Hz | 4.9 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
870135175007CAP ALUM POLY 1200UF 20% 6.3V TH Würth Elektronik |
340 |
|
规格书 |
WCAP-PTHT | Cut Tape (CT) | Active | Polymer | 1200 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 332 mA @ 120 Hz | 6.64 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
875075161011CAP ALUM POLY 1200UF 20% 6.3V Würth Elektronik |
356 |
|
规格书 |
WCAP-PSLC | Tape & Reel (TR) | Active | Polymer | 1200 µF | ±20% | 6.3 V | 8mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 275 mA @ 120 Hz | 5.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.488" (12.40mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
875115457008CAP ALUM POLY 270UF 20% 20V SMD Würth Elektronik |
450 |
|
规格书 |
WCAP-PSHP | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 20 V | 20mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 185 mA @ 120 Hz | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
870235175007CAP ALUM POLY 1200UF 20% 6.3V TH Würth Elektronik |
598 |
|
规格书 |
WCAP-PT5H | Cut Tape (CT) | Active | Polymer | 1200 µF | ±20% | 6.3 V | 7mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 332 mA @ 120 Hz | 6.64 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|
875015119004CAP ALUM POLY 150UF 20% 6.3V SMD Würth Elektronik |
3,255 |
|
规格书 |
WCAP-PHGP | Tape & Reel (TR) | Active | Polymer | 150 µF | ±20% | 6.3 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
875075561007CAP ALUM POLY 180UF 20% 25V SMD Würth Elektronik |
447 |
|
规格书 |
WCAP-PSLC | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 25 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 240 mA @ 120 Hz | 4.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.488" (12.40mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
870135175008CAP ALUM POLY 1500UF 20% 6.3V TH Würth Elektronik |
198 |
|
规格书 |
WCAP-PTHT | Cut Tape (CT) | Active | Polymer | 1500 µF | ±20% | 6.3 V | 9mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 332 mA @ 120 Hz | 6.64 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.551" (14.00mm) | - | Through Hole |
|

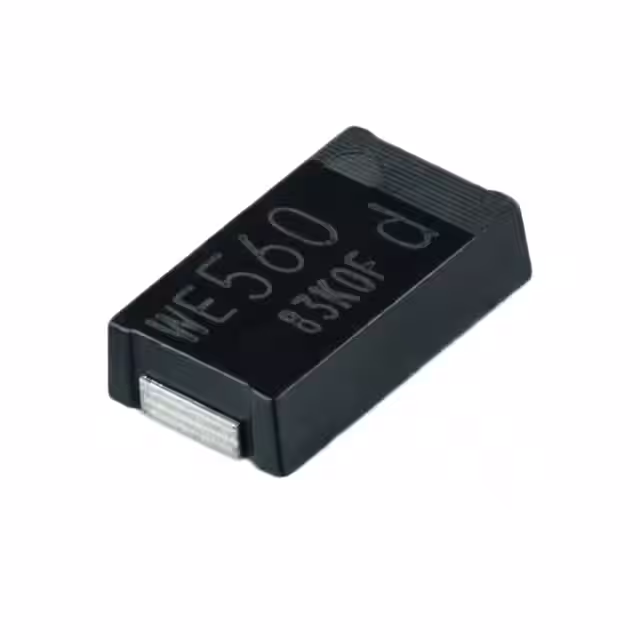

875015119005CAP ALUM POLY 180UF 20% 6.3V SMD Würth Elektronik |
381 |
|
规格书 |
WCAP-PHGP | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 6.3 V | 12mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
875036219012CAP ALUM POLY 330UF 20% 2V SMD Würth Elektronik |
400 |
|
规格书 |
WCAP-PHLE | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2 V | 4.5mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 8.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
