购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APD1012471M035RCAP ALUM POLY 470UF 20% 35V SMD |
500 |
|
规格书 |
APD | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 35 V | 27mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 155 mA @ 120 Hz | 3.1 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEH-ZA1E220RCAP ALUM HYBRID 22UF 20% 25V SMD |
1,029 |
|
规格书 |
ZA | Tape & Reel (TR) | Active | Hybrid | 22 µF | ±20% | 25 V | 80mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 90 mA @ 100 Hz | 900 mA @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.240" (6.10mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
A769MS107M1JLAS018CAP ALUM POLY 100UF 20% 63V SMD |
464 |
|
规格书 |
A769 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 63 V | 18mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 135 mA @ 120 Hz | 2.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEH-ZA1V101PCAP ALUMHYB 100UF 20% 35V SMD |
3,317 |
|
规格书 |
ZA | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 35 V | 27mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 345 mA @ 100 Hz | 2.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
A755MS108M1CAAE012CAP ALUM POLY 1000UF 20% 16V TH |
4,214 |
|
规格书 |
A755 | Bulk | Active | Polymer | 1000 µF | ±20% | 16 V | 12mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 262.5 mA @ 120 Hz | 5.25 A @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | - | Through Hole |
|
16SVPK330MCAP ALUM POLY 330UF 20% 16V SMD |
1,061 |
|
规格书 |
OS-CON™, SVPK | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 16 V | 22mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 52 mA @ 120 Hz | 1.04 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|

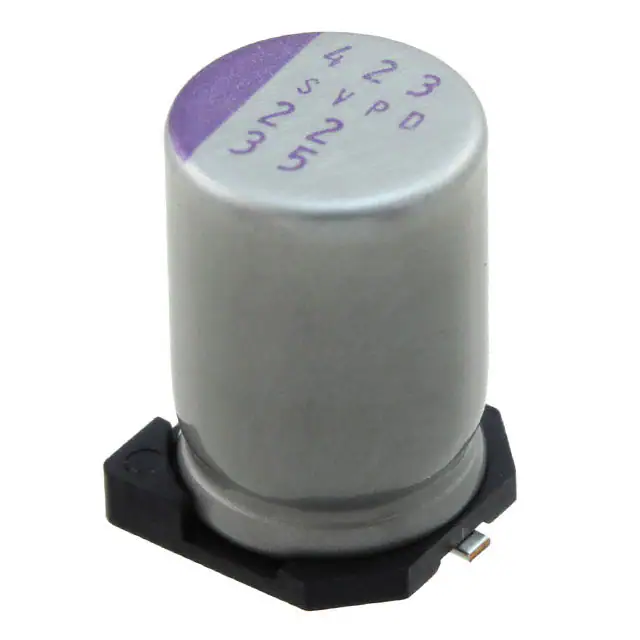

35SVPD22MCAP ALUM POLY 22UF 20% 35V SMD |
2,176 |
|
规格书 |
OS-CON™, SVPD | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 35 V | 50mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 35 mA @ 120 Hz | 700 mA @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.472" (12.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
RSS1E470MCN1GSCAP ALUM POLY 47UF 20% 25V SMD |
1,000 |
|
规格书 |
FPCAP, RSS | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 25 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 280 mA @ 120 Hz | 2.8 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|
EEH-ZA1E221PCAP ALUMHYB 220UF 20% 25V SMD |
1,480 |
|
规格书 |
ZA | Tape & Reel (TR) | Active | Hybrid | 220 µF | ±20% | 25 V | 27mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 345 mA @ 100 Hz | 2.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
EEH-ZC1J680VCAP ALUM HYBRID 68UF 20% 63V SMD |
1,000 |
|
规格书 |
ZC, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 68 µF | ±20% | 63 V | 30mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | Anti-Vibration | 210 mA @ 100 Hz | 1.4 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.425" (10.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEH-AZF1J560BCAP ALUM HYBRID 56UF 20% 63V TH |
1,000 |
|
规格书 |
ZF | Cut Tape (CT) | Active | Hybrid | 56 µF | ±20% | 63 V | 30mOhm | 1000 Hrs @ 150°C | -55°C ~ 150°C | AEC-Q200 | Automotive | - | 126 mA @ 100 Hz | 840 mA @ 100 kHz | - | 0.197" (5.00mm) | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | - | Through Hole |
|
16SVPG220MCAP ALUM POLY 220UF 20% 16V SMD |
1,005 |
|
规格书 |
OS-CON™, SVPG | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 16 V | 14mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 205 mA @ 120 Hz | 4.1 A @ 100 kHz | - | - | - | - | - | Surface Mount |
|
GYC1V331MCQ1GSCAP ALUMHYB 330UF 20% 35V SMD |
4,448 |
|
规格书 |
GYC | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 35 V | 16mOhm | 4000 Hrs @ 135°C | -55°C ~ 135°C | AEC-Q200 | Automotive | - | 525 mA @ 120 Hz | 3.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.512" (13.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
A767MU107M1VLAE029CAP ALUM POLY 100UF 20% 35V SMD |
249 |
|
规格书 |
A767 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 35 V | 29mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 125 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.508" (12.90mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|

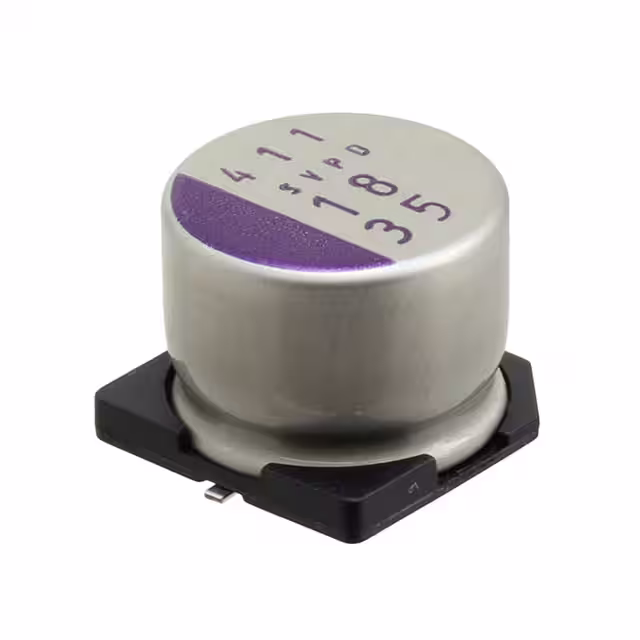

35SVPD18MCAP ALUM POLY 18UF 20% 35V SMD |
500 |
|
规格书 |
OS-CON™, SVPD | Tape & Reel (TR) | Active | Polymer | 18 µF | ±20% | 35 V | 60mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 27.5 mA @ 120 Hz | 550 mA @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
EEH-ZA1V101VCAP ALUMHYB 100UF 20% 35V SMD |
500 |
|
规格书 |
ZA, Anti-Vibration | Tape & Reel (TR) | Active | Hybrid | 100 µF | ±20% | 35 V | 27mOhm | 10000 Hrs @ 105°C | -55°C ~ 105°C | AEC-Q200 | Automotive | - | 345 mA @ 100 Hz | 2.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.425" (10.80mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
PCM1K120MCL1GSCAP ALUM POLY 12UF 20% 80V SMD |
914 |
|
规格书 |
PCM | Tape & Reel (TR) | Active | Polymer | 12 µF | ±20% | 80 V | 50mOhm | 6000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 50 mA @ 120 Hz | 1 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.327" (8.30mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
EEH-ZS1E471PCAP ALUMHYB 470UF 20% 25V SMD |
843 |
|
规格书 |
ZS | Tape & Reel (TR) | Active | Hybrid | 470 µF | ±20% | 25 V | 14mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 525 mA @ 100 Hz | 3.5 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.504" (12.80mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
APXH100ARA331MJ80GCAP ALUM POLY 330UF 20% 10V SMD |
1,064 |
|
规格书 |
NPCAP™-PXH | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 10 V | 30mOhm | 1000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3.7 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
APXE100ARA471MJ80GCAP ALUM POLY 470UF 20% 10V SMD |
1,199 |
|
规格书 |
NPCAP™-PXE | Tape & Reel (TR) | Active | Polymer | 470 µF | ±20% | 10 V | 19mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.303" (7.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
