购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
875585961005CAP ALUMHYB 33UF 20% 100V SMD |
1,087 |
|
规格书 |
WCAP-HSAH | Tape & Reel (TR) | Active | Hybrid | 33 µF | ±20% | 100 V | 40mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 136 mA @ 100 Hz | 1.36 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
A700X226M035ATE025CAP ALUM POLY 22UF 20% 35V SMD |
201 |
|
规格书 |
AO-Cap A700 | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 35 V | 25mOhm | 2000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | - | 3 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.169" (4.30mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
PCM1C102MCL1GSCAP ALUM POLY 1000UF 20% 16V SMD |
788 |
|
规格书 |
PCM | Tape & Reel (TR) | Active | Polymer | 1000 µF | ±20% | 16 V | 13mOhm | 8000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | 140 mA @ 120 Hz | 2.8 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.520" (13.20mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
875076161003CAP ALUM POLY 22UF 20% 80V SMD |
320 |
|
规格书 |
WCAP-PSLC | Tape & Reel (TR) | Active | Polymer | 22 µF | ±20% | 80 V | 38mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 115 mA @ 120 Hz | 2.3 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.500" (12.70mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
-V.jpg)
|
HZC277M035G24VT-FCAP ALUMHYB 270UF 20% 35V SMD |
1,000 |
|
规格书 |
HZC_V | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 200 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
HZC157M035F24T-FCAP ALUMHYB 150UF 20% 35V SMD |
500 |
|
规格书 |
HZC | Tape & Reel (TR) | Active | Hybrid | 150 µF | ±20% | 35 V | 27mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 160 mA @ 120 Hz | 1.6 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.413" (10.50mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
|
B40620A7118M001CAP ALUM HYBRID 1.1MF 20% 35V TH |
3,199 |
|
规格书 |
B40620 | Bulk | Active | Hybrid | 1.1 mF | ±20% | 35 V | 5.3mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 9 A @ 20 kHz | - | - | 0.551" Dia x 0.984" L (14.00mm x 25.00mm) | - | - | Through Hole |
|
|
HZC337M025G24T-FCAP ALUMHYB 330UF 20% 25V SMD |
500 |
|
规格书 |
HZC | Tape & Reel (TR) | Active | Hybrid | 330 µF | ±20% | 25 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 200 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
HZC277M035G24T-FCAP ALUMHYB 270UF 20% 35V SMD |
464 |
|
规格书 |
HZC | Tape & Reel (TR) | Active | Hybrid | 270 µF | ±20% | 35 V | 20mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive, Bypass, Decoupling | - | 200 mA @ 120 Hz | 2 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.413" (10.50mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
|
B40620A5168M001CAP ALUM HYBRID 1.6MF 20% 25V TH |
3,183 |
|
规格书 |
B40620 | Bulk | Active | Hybrid | 1.6 mF | ±20% | 25 V | 5.3mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 9 A @ 20 kHz | - | - | 0.551" Dia x 0.984" L (14.00mm x 25.00mm) | - | - | Through Hole |
|
|
B40620A5218M001CAP ALUM HYBRID 2.1MF 20% 25V TH |
2,849 |
|
规格书 |
B40620 | Bulk | Active | Hybrid | 2.1 mF | ±20% | 25 V | 4.6mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 10.5 A @ 20 kHz | - | - | 0.551" Dia x 1.181" L (14.00mm x 30.00mm) | - | - | Through Hole |
|
|
B40620B7148M001CAP ALUM HYBRID 1.4MF 20% 35V TH |
3,580 |
|
规格书 |
B40620 | Bulk | Active | Hybrid | 1.4 mF | ±20% | 35 V | 4mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 11.8 A @ 20 kHz | - | - | 0.630" Dia x 0.984" L (16.00mm x 25.00mm) | - | - | Through Hole |
|
|
B40620A7188M001CAP ALUM HYBRID 1.8MF 20% 35V TH |
3,359 |
|
规格书 |
B40620 | Bulk | Active | Hybrid | 1.8 mF | ±20% | 35 V | 3.5mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 13.4 A @ 20 kHz | - | - | 0.630" Dia x 1.181" L (16.00mm x 30.00mm) | - | - | Through Hole |
|
|
PHH223JKL4140ME4CAP ALUMHYB 1400UF 20% 35V TH |
1,006 |
|
规格书 |
PHH223 | Tray | Active | Hybrid | 1400 µF | ±20% | 35 V | 112mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | High Vibration | 7.8 A @ 100 Hz | 39 A @ 100 kHz | - | 0.600" (15.24mm) | 0.638" Dia (16.20mm) | 1.130" (28.70mm) | - | Through Hole |
|
|
PHA227JKL4140ME4CAP ALUMHYB 1400UF 20% 35V TH |
1,056 |
|
规格书 |
PHA227 | Tray | Active | Hybrid | 1400 µF | ±20% | 35 V | 112mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | High Vibration | 7.2 A @ 100 Hz | 36 A @ 100 kHz | - | - | 0.638" Dia x 1.051" L (16.20mm x 26.70mm) | - | - | Through Hole |
|
|
PHA227JLL4220ME4CAP ALUMHYB 2200UF 20% 35V TH |
1,277 |
|
规格书 |
PHA227 | Tray | Active | Hybrid | 2200 µF | ±20% | 35 V | 78mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | High Vibration | 7.9 A @ 100 Hz | 39.5 A @ 100 kHz | - | - | 0.717" Dia x 1.051" L (18.20mm x 26.70mm) | - | - | Through Hole |
|
|
PHA223JKL4140ME4CAP ALUMHYB 1400UF 20% 35V TH |
1,047 |
|
规格书 |
PHA223 | Tray | Active | Hybrid | 1400 µF | ±20% | 35 V | 112mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | High Vibration | 7.8 A @ 100 Hz | 39 A @ 100 kHz | - | - | 0.638" Dia x 1.051" L (16.20mm x 26.70mm) | - | - | Through Hole |
|
|
PHA223JLL4220ME4CAP ALUMHYB 2200UF 20% 35V TH |
1,277 |
|
规格书 |
PHA223 | Tray | Active | Hybrid | 2200 µF | ±20% | 35 V | 78mOhm | 8000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | High Vibration | 8.96 A @ 100 Hz | 44.8 A @ 100 kHz | - | - | 0.717" Dia x 1.051" L (18.20mm x 26.70mm) | - | - | Through Hole |
|

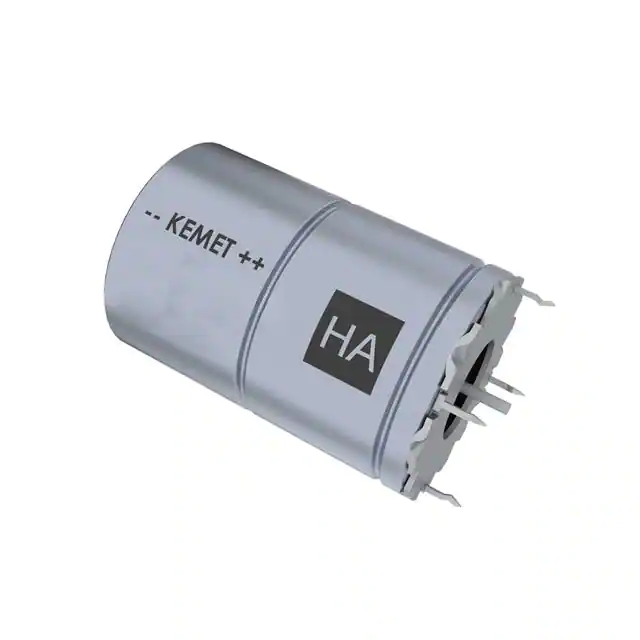

PHH227MKL3540ME4CAP ALUM HYBRID 540UF 20% 63V TH |
684 |
|
规格书 |
PHH227 | Tray | Active | Hybrid | 540 µF | ±20% | 63 V | 150mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | High Vibration | 6.74 A @ 100 Hz | 33.7 A @ 100 kHz | - | 0.600" (15.24mm) | 0.638" Dia (16.20mm) | 1.130" (28.70mm) | - | Through Hole |
|
|
PHH227JKP4210ME4CAP ALUMHYB 2100UF 20% 35V TH |
1,056 |
|
规格书 |
PHH227 | Tray | Active | Hybrid | 2100 µF | ±20% | 35 V | 80mOhm | 3000 Hrs @ 125°C | -40°C ~ 125°C | AEC-Q200 | Automotive | High Vibration | 7.34 A @ 100 Hz | 36.7 A @ 100 kHz | - | 0.600" (15.24mm) | 0.638" Dia (16.20mm) | 1.445" (36.70mm) | - | Through Hole |
