购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDS1C121MCNAFEGSCAP ALUM POLY 120UF 20% 16V SMD Nichicon |
1,168 |
|
规格书 |
FPCAP, RDS | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 16 V | 24mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 375 mA @ 120 Hz | 3.75 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|
|
RDS0J271MCNAFEGSCAP ALUM POLY 270UF 20% 6.3V SMD Nichicon |
2,354 |
|
规格书 |
FPCAP, RDS | Tape & Reel (TR) | Active | Polymer | 270 µF | ±20% | 6.3 V | 25mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 255 mA @ 120 Hz | 2.55 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|
|
RDS0J101MCNAFEGSCAP ALUM POLY 100UF 20% 6.3V SMD Nichicon |
3,267 |
|
规格书 |
FPCAP, RDS | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 6.3 V | 25mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 250 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|
|
RDS1A181MCNAFEGSCAP ALUM POLY 180UF 20% 10V SMD Nichicon |
4,272 |
|
规格书 |
FPCAP, RDS | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 10 V | 25mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 370 mA @ 120 Hz | 3.7 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|
|
RDS1C101MCNAFEGSCAP ALUM POLY 100UF 20% 16V SMD Nichicon |
2,996 |
|
规格书 |
FPCAP, RDS | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 16 V | 24mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 370 mA @ 120 Hz | 3.7 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|

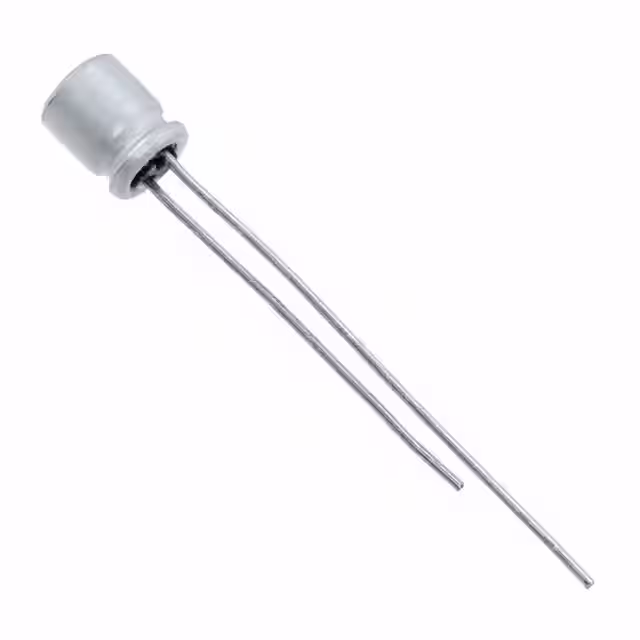

RNU1A100MDSASQCAP ALUM POLY 10UF 20% 10V TH Nichicon |
2,291 |
|
规格书 |
FPCAP, RNU | Bulk | Active | Polymer | 10 µF | ±20% | 10 V | 220mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 70 mA @ 120 Hz | 700 mA @ 100 kHz | - | 0.059" (1.50mm) | 0.157" Dia (4.00mm) | 0.236" (6.00mm) | - | Through Hole |
|
|
RNU1A100MCSASQCAP ALUM Nichicon |
1,470 |
|
规格书 |
- | Tape & Box (TB) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RDS0J331MCNAFEGSCAP ALUM POLY 330UF 20% 6.3V SMD Nichicon |
3,476 |
|
规格书 |
FPCAP, RDS | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 6.3 V | 25mOhm | 3000 Hrs @ 125°C | -55°C ~ 125°C | - | General Purpose | - | 325 mA @ 120 Hz | 3.25 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
|
RS80E471MDN1CAP ALUM POLY 470UF 20% 2.5V TH Nichicon |
3,970 |
|
规格书 |
FPCAP, RS8 | Bulk | Active | Polymer | 470 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 560 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
|
|
RS80E471MDN1PXCAP ALUM POLY 470UF 20% 2.5V TH Nichicon |
4,424 |
|
规格书 |
FPCAP, RS8 | Tape & Box (TB) | Active | Polymer | 470 µF | ±20% | 2.5 V | 7mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 560 mA @ 120 Hz | 5.6 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.354" (9.00mm) | - | Through Hole |
