购物车铝 - 聚合物电容器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 电容 | 容差 | 额定电压 | ESR（等效串联电阻） | 寿命 @ 温度 | 工作温度 | 额定值 | 应用 | 特性 | 纹波电流 @ 低频 | 纹波电流 @ 高频 | 阻抗 | 引线间距 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） | 表面贴装焊盘尺寸 | 安装类型 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
875105242010CAP ALUM POLY 100UF 20% 10V SMD |
10,012 |
|
规格书 |
WCAP-PSLP | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 10 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 98.5 mA @ 120 Hz | 1.97 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.217" (5.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
16SVPF82MCAP ALUM POLY 82UF 20% 16V SMD |
5,331 |
|
规格书 |
OS-CON™, SVPF | Tape & Reel (TR) | Active | Polymer | 82 µF | ±20% | 16 V | 27mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 150 mA @ 120 Hz | 3 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
875105244013CAP ALUM POLY 220UF 20% 10V SMD |
20,050 |
|
规格书 |
WCAP-PSLP | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 10 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 98.5 mA @ 120 Hz | 1.97 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.228" (5.80mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
APXG200ARA121MF61GCAP ALUM POLY 120UF 20% 20V SMD |
15,247 |
|
规格书 |
NPCAP™-PXG | Tape & Reel (TR) | Active | Polymer | 120 µF | ±20% | 20 V | 25mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.2 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
HHXC630ARA100MF61GCAP ALUM HYBRID 10UF 20% 63V SMD |
1,113 |
|
规格书 |
HXC | Tape & Reel (TR) | Active | Hybrid | 10 µF | ±20% | 63 V | 120mOhm | 4000 Hrs @ 125°C | -55°C ~ 125°C | AEC-Q200 | Automotive | - | - | 700 mA @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.240" (6.10mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
APXG160ARA331MH70GCAP ALUM POLY 330UF 20% 16V SMD |
15,010 |
|
规格书 |
NPCAP™-PXG | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 16 V | 22mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.3 A @ 100 kHz | - | - | 0.315" Dia (8.00mm) | 0.276" (7.00mm) | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Surface Mount |
|
16SVP180MXCAP ALUM POLY 180UF 20% 16V SMD |
6,311 |
|
规格书 |
OS-CON™, SVP | Tape & Reel (TR) | Active | Polymer | 180 µF | ±20% | 16 V | 30mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 151 mA @ 120 Hz | 3.02 A @ 100 kHz | - | - | 0.394" Dia (10.00mm) | 0.315" (8.00mm) | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Surface Mount |
|
A765EB107M1CLAE025CAP ALUM POLY 100UF 20% 16V SMD |
5,732 |
|
规格书 |
A765 | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 16 V | 25mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 125 mA @ 120 Hz | 2.5 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
|
APXG160ARA221MF80GCAP ALUM POLY 220UF 20% 16V SMD |
1,532 |
|
规格书 |
NPCAP™-PXG | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 16 V | 22mOhm | 15000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 3.3 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.315" (8.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
16SEPC100M+TSSCAP ALUM POLY 100UF 20% 16V TH |
41,748 |
|
规格书 |
OS-CON™, SEPC | Cut Tape (CT) | Active | Polymer | 100 µF | ±20% | 16 V | 24mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 124.5 mA @ 120 Hz | 2.49 A @ 100 kHz | - | 0.098" (2.50mm) | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | - | Through Hole |
|
EEF-SX0G331XECAP ALUM POLY 330UF 20% 4V SMD |
11,154 |
|
规格书 |
SP-Cap SX | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 4 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 7.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
16SVPC100MCAP ALUM POLY 100UF 20% 16V SMD |
10,255 |
|
规格书 |
OS-CON™, SVPC | Tape & Reel (TR) | Active | Polymer | 100 µF | ±20% | 16 V | 24mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 124.5 mA @ 120 Hz | 2.49 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|
16SVPG47MCAP ALUM POLY 47UF 20% 16V SMD |
9,543 |
|
规格书 |
OS-CON™, SVPG | Tape & Reel (TR) | Active | Polymer | 47 µF | ±20% | 16 V | 25mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 160 mA @ 120 Hz | 3.2 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.177" (4.50mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
25SVPF27MXCAP ALUM POLY 27UF 20% 25V SMD |
3,269 |
|
规格书 |
OS-CON™, SVPF | Tape & Reel (TR) | Active | Polymer | 27 µF | ±20% | 25 V | 40mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 122.5 mA @ 120 Hz | 2.45 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
|
6SVPC330MCAP ALUM POLY 330UF 20% 6.3V SMD |
2,278 |
|
规格书 |
OS-CON™, SVPC | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 6.3 V | 17mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 169.5 mA @ 120 Hz | 3.39 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.260" L x 0.260" W (6.60mm x 6.60mm) | Surface Mount |
|

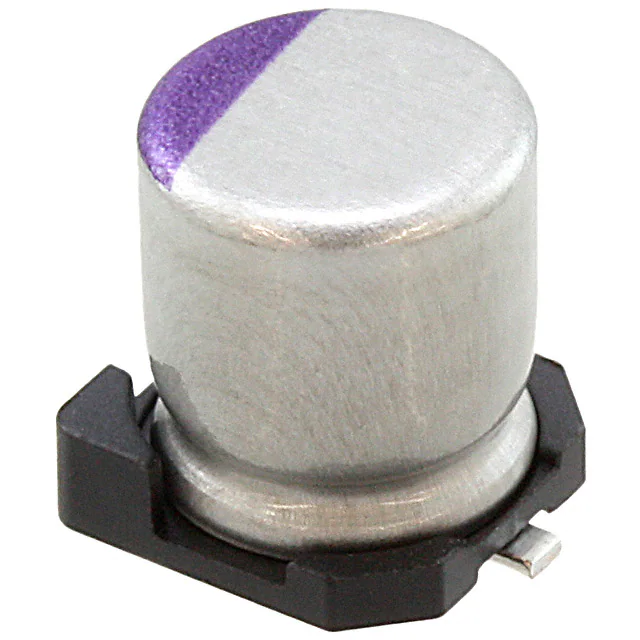

6SVPE220MWCAP ALUM POLY 220UF 20% 6.3V SMD |
9,286 |
|
规格书 |
OS-CON™, SVPE | Tape & Reel (TR) | Active | Polymer | 220 µF | ±20% | 6.3 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 157.5 mA @ 120 Hz | 3.15 A @ 100 kHz | - | - | 0.197" Dia (5.00mm) | 0.236" (6.00mm) | 0.209" L x 0.209" W (5.30mm x 5.30mm) | Surface Mount |
|
EEF-SX0E331XECAP ALUM POLY 330UF 20% 2.5V SMD |
114,237 |
|
规格书 |
SP-Cap SX | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 2.5 V | 6mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 7.5 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.079" (2.00mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
|
16SEPC270MXCAP ALUM POLY 270UF 20% 16V TH |
1,383 |
|
规格书 |
OS-CON™, SEPC | Bulk | Active | Polymer | 270 µF | ±20% | 16 V | 10mOhm | 5000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 250 mA @ 120 Hz | 5 A @ 100 kHz | - | 0.138" (3.50mm) | 0.315" Dia (8.00mm) | 0.354" (9.00mm) | - | Through Hole |
|
EEF-CX0G331RCAP ALUM POLY 330UF 20% 4V SMD |
38,009 |
|
规格书 |
SP-Cap CX | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 4 V | 15mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | - | 5.1 A @ 100 kHz | - | - | 0.287" L x 0.169" W (7.30mm x 4.30mm) | 0.075" (1.90mm) | 0.287" L x 0.169" W (7.30mm x 4.30mm) | Surface Mount |
|
RSA0J331MCN1GSCAP ALUM POLY 330UF 20% 6.3V SMD |
12,010 |
|
规格书 |
FPCAP, RSA | Tape & Reel (TR) | Active | Polymer | 330 µF | ±20% | 6.3 V | 14mOhm | 2000 Hrs @ 105°C | -55°C ~ 105°C | - | General Purpose | - | 316 mA @ 120 Hz | 3.16 A @ 100 kHz | - | - | 0.248" Dia (6.30mm) | 0.236" (6.00mm) | 0.256" L x 0.256" W (6.50mm x 6.50mm) | Surface Mount |
