购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

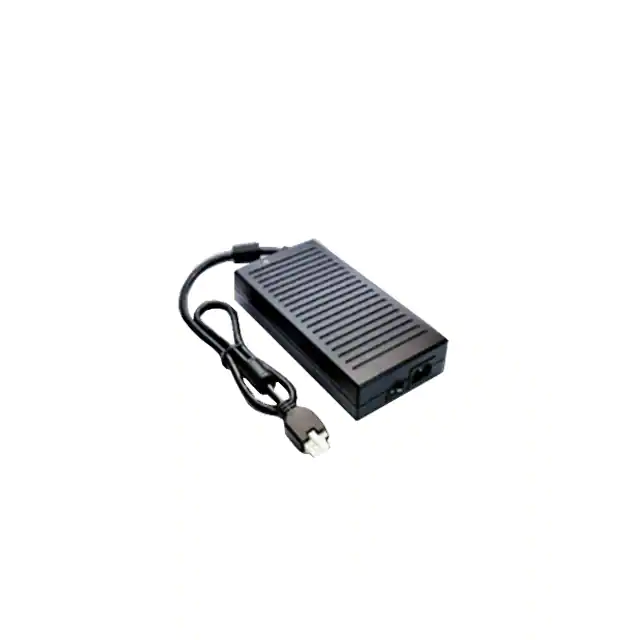

DTMF300-24SX-F-W6AC/DC DESKTOP ADAPTER 24V 300W ETA-USA |
3,314 |
|
规格书 |
- | Bulk | Active | International | Desktop (Class I), Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 12.5A | 300 W | 500mW (Max) | - | ITE (Commercial), Medical | Level VI | 0°C ~ 60°C | Rectangular, 10 Position | 31.5" (0.8m) | IEC 320-C14, IEC 320-C18 | - | 8.74" L x 4.41" W x 1.77" H (222.0mm x 112.0mm x 45.0mm) | CCC, CE, TUV, UL |
|

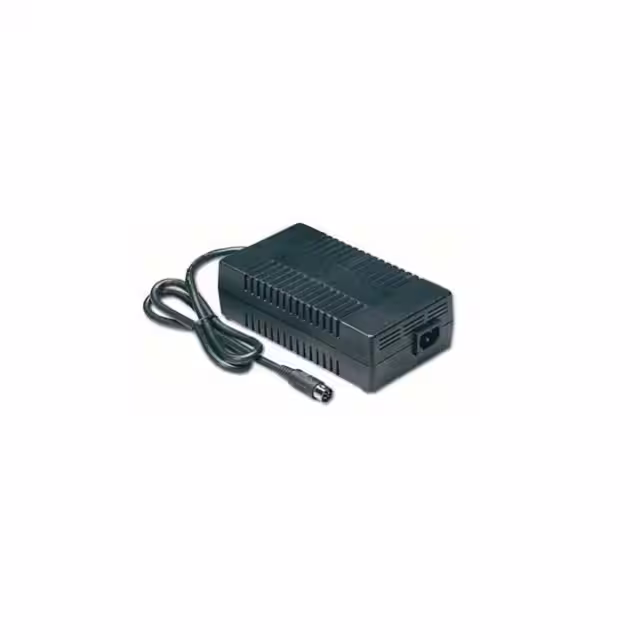

MTE140-12SX-F-W6AC/DC DESKTOP ADAPTER 12V 130W ETA-USA |
4,193 |
|
规格书 |
- | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 10.84A | 130 W | 150mW (Max) | - | Medical | Level VI | -20°C ~ 60°C | Power DIN, 4 Pin | 39.4" (1.00m) | IEC 320-C14 | - | 6.69" L x 2.55" W x 1.52" H (170.0mm x 64.8mm x 38.5mm) | CB, CE, cUL, FCC, TUV, UL |
|
MDL65-05SX-W6AC/DC DESKTOP ADAPTER 5V 40W ETA-USA |
3,356 |
|
规格书 |
MDL65-SX-W6 (65W) | Bag | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 8A | 40 W | 150mW (Max) | Positive Center | Medical | Level VI, CoC Tier 2 | -20°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 10.0mm | 39.4" (1.00m) | IEC 320-C14 | - | 5.20" L x 2.72" W x 1.57" H (132.0mm x 69.0mm x 40.0mm) | CE, FCC |
|

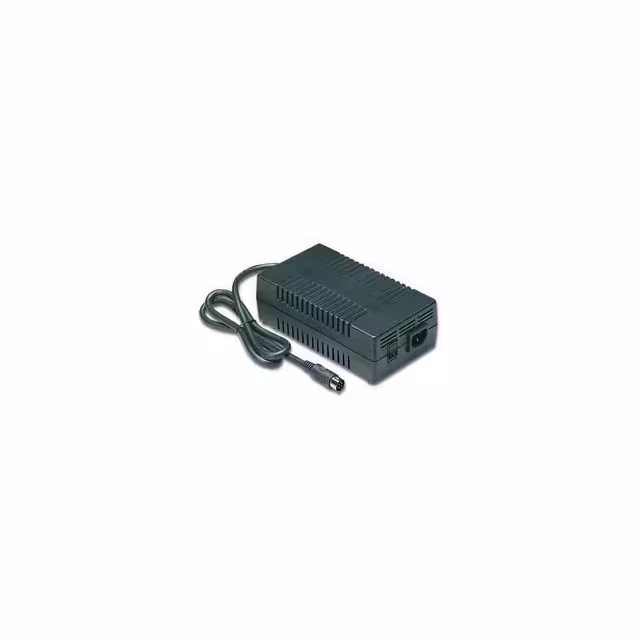

DTC80-24SX-W6AC/DC DESKTOP ADAPTER 24V 80W ETA-USA |
1,481 |
|
规格书 |
- | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 3.34A | 80 W | - | - | ITE (Commercial) | 88% | 0°C ~ 60°C (With Derating) | Barrel Plug, 7.4mm I.D. x 9.4mm O.D. x 14.4mm | 41.34" (1.05m) | IEC 320-C14 | - | 5.20" L x 2.72" W x 1.57" H (132.0mm x 69.0mm x 40.0mm) | CE, CSA, TUV, UL |
