购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

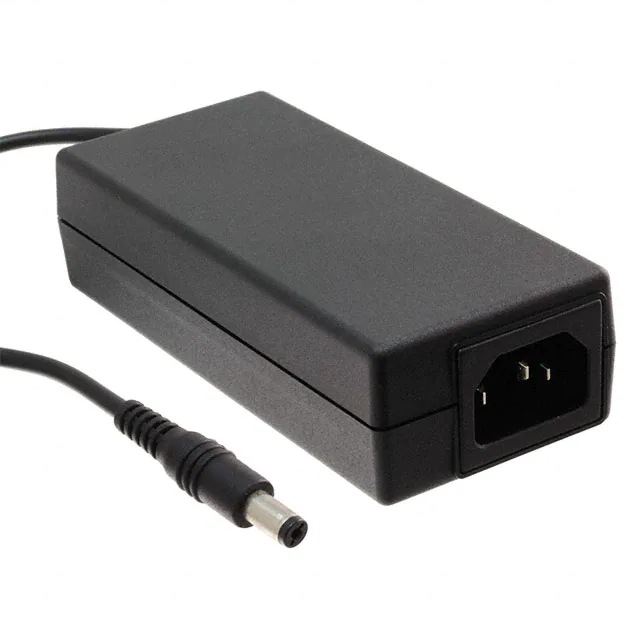

DPS-40AB-11 BAC/DC DESKTOP ADAPTER 12V 40W Delta Electronics |
1,525 |
|
- |
- | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 3.33A | 40 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 47.2" (1.20m) | IEC 320-C14 | - | 4.53" L x 2.03" W x 1.20" H (115.0mm x 51.5mm x 30.5mm) | BSMI, CB, CCC, CE, cULus, GS, KC, NOM, PSE, RCM |
|

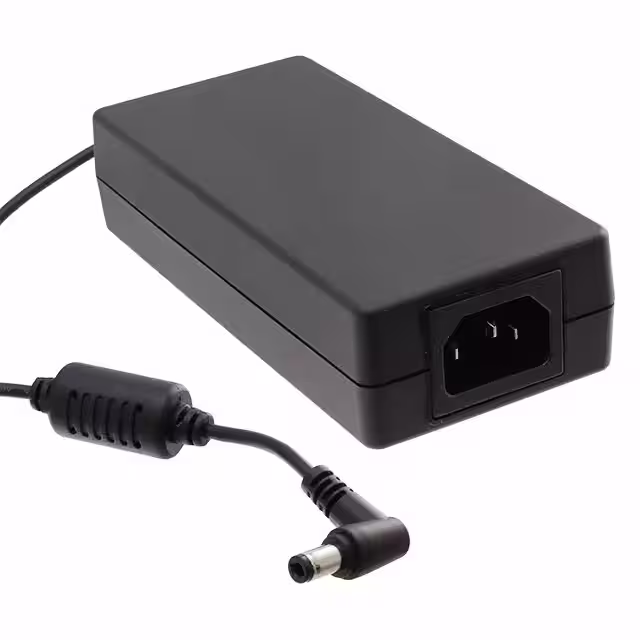

DPS-60AB-6 BAC/DC DESKTOP ADAPTER 24V 60W Delta Electronics |
4,213 |
|
- |
- | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2.5A | 60 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 10.0mm | 47.2" (1.20m) | IEC 320-C14 | - | 9.45" L x 3.84" W x 1.25" H (240.0mm x 97.5mm x 31.7mm) | BSMI, CB, CCC, CE, cULus, GS, KC, NOM, PSE, RCM |
|

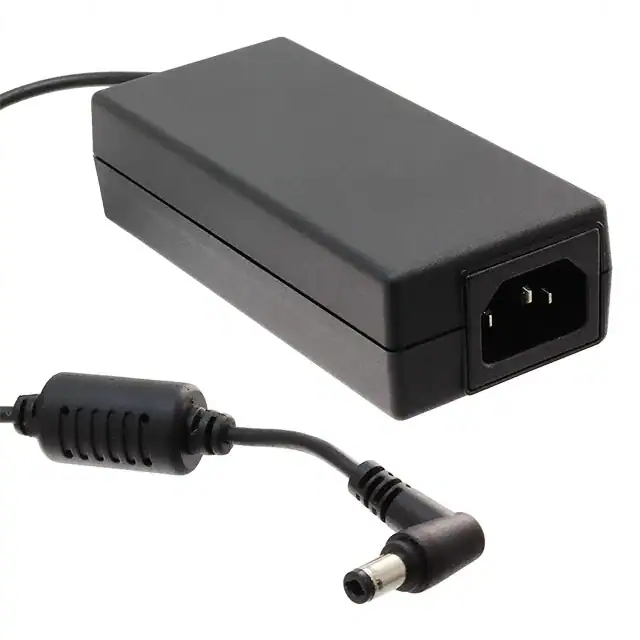

DPS-65VB KAC/DC DESKTOP ADAPTER 12V 65W Delta Electronics |
3,491 |
|
- |
- | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 5.41A | 65 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C14 | - | 4.53" L x 2.03" W x 1.20" H (115.0mm x 51.5mm x 30.5mm) | BSMI, CB, CCC, CE, cULus, GS, KC, NOM, PSE, RCM |
|

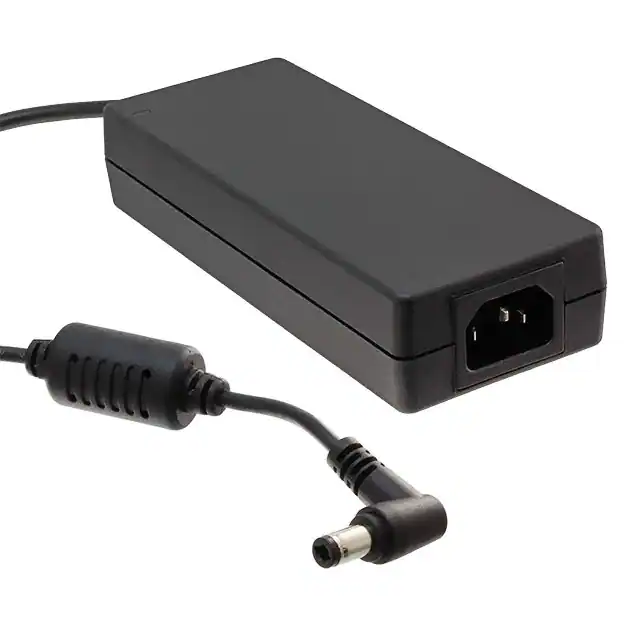

DPS-90AB-3 LAC/DC DESKTOP ADAPTER 12V 90W Delta Electronics |
3,816 |
|
- |
- | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 7.5A | 90 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C14 | - | 5.91" L x 2.36" W x 1.20" H (150.0mm x 60.0mm x 30.5mm) | BSMI, CB, CCC, CE, cULus, GS, KC, NOM, PSE, RCM |
|

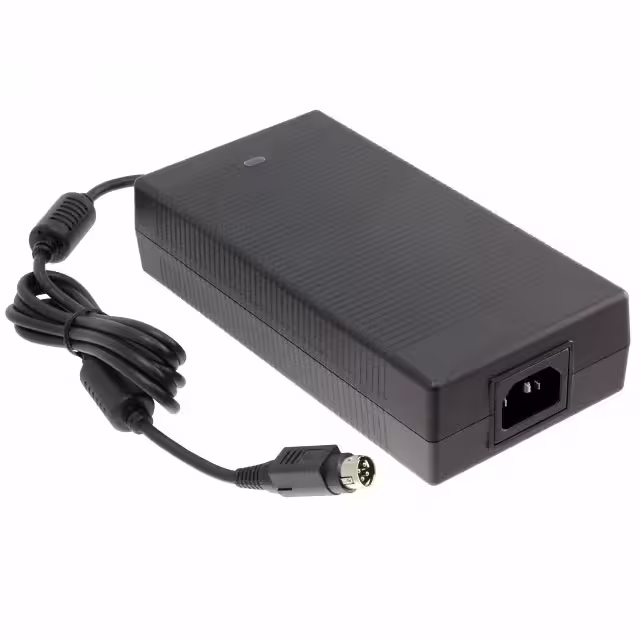

DPS-120AB-3 BAC/DC DESKTOP ADAPTER 24V 120W Delta Electronics |
3,607 |
|
- |
- | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 5A | 120 W | - | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 6.69" L x 3.35" W x 1.57" H (170.0mm x 85.0mm x 40.0mm) | BSMI, CB, CCC, CE, cULus, GS, KC, NOM, PSE, RCM |
|
DPS-150AB-15 CAC/DC DESKTOP ADAPTER 12V 150W Delta Electronics |
1,587 |
|
规格书 |
- | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 12.5A | 150 W | - | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 6.69" L x 3.35" W x 1.57" H (170.0mm x 85.0mm x 40.0mm) | BSMI, BSI, CB, CCC, CE, cULus, EAC, GS, KC, NOM, PSE, RCM |
|
DPS-180AB-21 DAC/DC DESKTOP ADAPTER 24V 180W Delta Electronics |
4,114 |
|
- |
- | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 7.5A | 180 W | - | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 6.69" L x 3.35" W x 1.57" H (170.0mm x 85.0mm x 40.0mm) | CB, CCC, CE, cULus, GS, KC PSE |
|
ADP-65TW AC65W / USB-C ADAPTER - WW PLUGS Delta Electronics |
3,788 |
|
规格书 |
PD | Box | Discontinued at Digi-Key | International | Wall Mount | Multi-Blade (Included) | 90 ~ 264 VAC | 5V, 9V, 15V, 20V | 3A, 3.25A | 65 W | 150mW | - | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 35°C | USB C Power Delivery (PD) | - | Multi-Blade (Included) | - | 1.20" L x 1.20" W x 2.36" H (30.4mm x 30.4mm x 60.0mm) | CE, cULus, PSE |
