购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

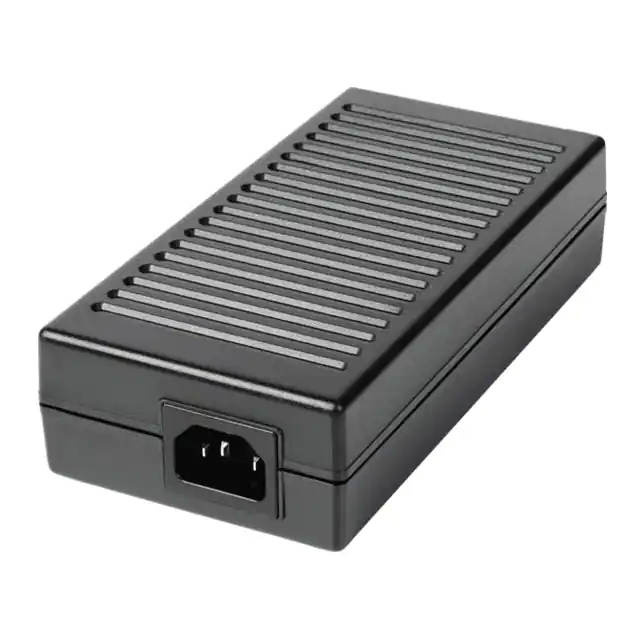

ETSA480209U-P51-WPAC/DC DESKTOP ADAPTER 48V 100W |
1,875 |
|
规格书 |
ETSA-U (100W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 2.09A | 100 W | 500mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 72" (1.83m) | IEC 320-C14 | - | 6.69" L x 3.35" W x 1.73" H (170.0mm x 85.0mm x 44.0mm) | CE, cULus, TUVgs |
|
|
ETSA120834UC-P51-WPAC/DC DESKTOP ADAPTER 12V 100W |
3,922 |
|
规格书 |
ETSA-U (100W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 12V | 8.34A | 100 W | 500mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 72" (1.83m) | IEC 320-C14 | - | 6.69" L x 3.35" W x 1.73" H (170.0mm x 85.0mm x 44.0mm) | CE, cULus, TUVgs |
|
|
ETSA190527UC-P51-WPAC/DC DESKTOP ADAPTER 19V 100W |
4,986 |
|
规格书 |
ETSA-U (100W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 19V | 5.27A | 100 W | 500mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Power DIN, 4 Pin | 72" (1.83m) | IEC 320-C14 | - | 6.69" L x 3.35" W x 1.73" H (170.0mm x 85.0mm x 44.0mm) | CE, cULus, TUVgs |
|

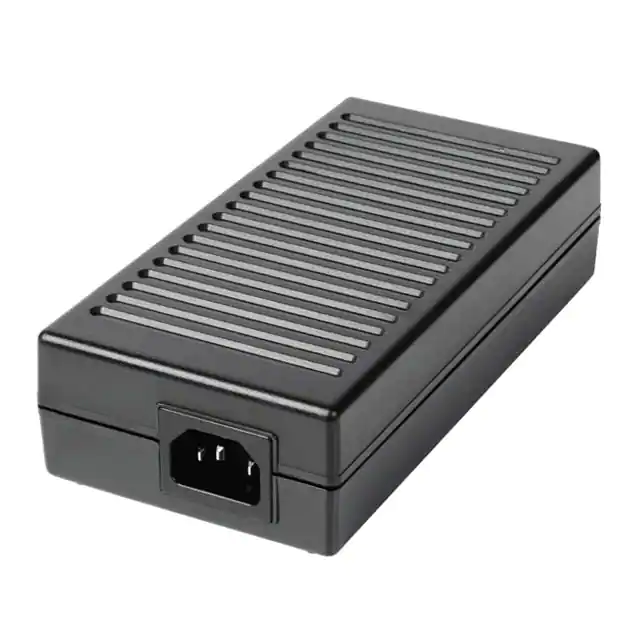

ETSA160938UC-P51-WPAC/DC DESKTOP ADAPTER 16V 150W |
4,162 |
|
规格书 |
ETSA-U (150W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 16V | 9.38A | 150 W | 500mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 60°C | Power DIN, 4 Pin | 39.4" (1.00m) | IEC 320-C14 | - | 6.69" L x 3.35" W x 1.73" H (170.0mm x 85.0mm x 44.0mm) | CE, cULus, TUVgs |
|

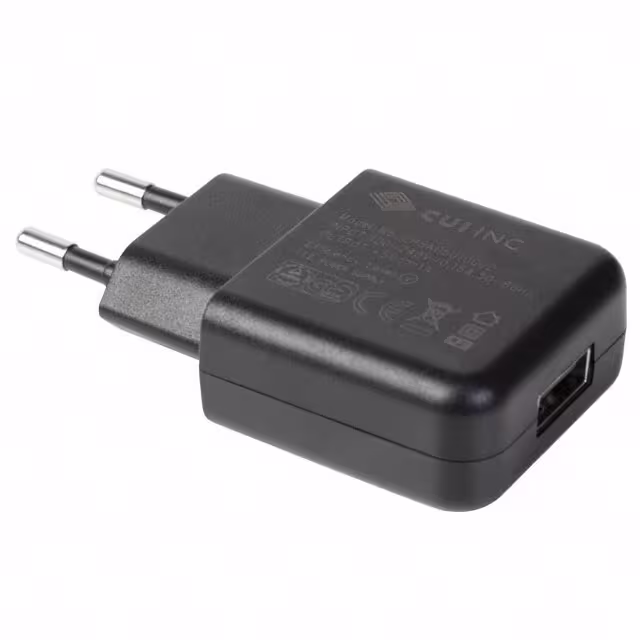

EPSA050100UE-I38-EJAC/DC WALL MOUNT ADAPTER 5V 5W |
4,855 |
|
规格书 |
EPSA (5W) | Box | Obsolete | Europe | Wall Mount | Fixed Blade | 90 ~ 264 VAC | 5V | 1A | 5 W | - | - | ITE (Commercial) | Level V | 0°C ~ 40°C | USB A Receptacle | - | CEE 7/16 | - | 2.35" L x 1.66" W x 0.79" H (59.7mm x 42.1mm x 20.2mm) | CE, GS |
|
PSAA10A-050QAAC/DC WALL MNT ADAPTER 5.1V 10W |
2,788 |
|
规格书 |
PSAA10A (10W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5.1V | 2A | 10 W | 30mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 40°C | USB A Receptacle | - | NEMA 1-15P | - | 1.06" L x 1.77" W x 1.77" H (27.0mm x 45.0mm x 45.0mm) | CB, cULus |
|
PSA30W-190A-R-C2 12MMAC/DC DESKTOP ADAPTER 18V 29W |
2,374 |
|
规格书 |
PSA30W (30W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 1.6A | 29 W | 200mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | IEC 320-C8 | - | 3.14" L x 1.38" W x 0.94" H (80.0mm x 35.0mm x 24.0mm) | CE, cULus, TUVgs |
|
PSAC45W-240AC/DC DESKTOP ADAPTER 24V 45W |
2,508 |
|
规格书 |
PSAC45W (45W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 89 ~ 270 VAC | 24V | 1.88A | 45 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | IEC 320-C8 | - | 4.72" L x 1.98" W x 1.24" H (120.0mm x 50.4mm x 31.4mm) | CE, cULus |
|
|
PSAC45W-480AC/DC DESKTOP ADAPTER 48V 45W |
4,417 |
|
规格书 |
PSAC45W (45W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 89 ~ 270 VAC | 48V | 938mA | 45 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | IEC 320-C8 | - | 4.72" L x 1.98" W x 1.24" H (120.0mm x 50.4mm x 31.4mm) | CE, cULus |
|
|
PSAC45W-560AC/DC DESKTOP ADAPTER 56V 45W |
1,561 |
|
规格书 |
PSAC45W (45W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 89 ~ 270 VAC | 56V | 804mA | 45 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | IEC 320-C8 | - | 4.72" L x 1.98" W x 1.24" H (120.0mm x 50.4mm x 31.4mm) | CE, cULus |
00xxA-10B.jpg)
|
FWE030005A-10BAC/DC DESKTOP ADAPTER 5V 30W |
1,557 |
|
规格书 |
FWE030 (30W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 5V | 6A | 30 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C6 | - | 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm) | CB, CE, cURus, GS, TUV |
|
FWE030005B-10BAC/DC DESKTOP ADAPTER 5V 30W |
2,101 |
|
规格书 |
FWE030 (30W) | Box | Obsolete | North America | Desktop (Class II) | Cord | 85 ~ 264 VAC | 5V | 6A | 30 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C8 | - | 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm) | CB, CE, cURus, GS, TUV |
|
FWE030009A-10BAC/DC DESKTOP ADAPTER 9V 30W |
4,836 |
|
规格书 |
FWE030 (30W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 9V | 3.3A | 30 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C6 | - | 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm) | CB, CE, cURus, GS, TUV |
00xxB-10B.jpg)
|
FWE030009B-10BAC/DC DESKTOP ADAPTER 9V 30W |
4,878 |
|
规格书 |
FWE030 (30W) | Box | Obsolete | North America | Desktop (Class II) | Cord | 85 ~ 264 VAC | 9V | 3.3A | 30 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C8 | - | 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm) | CB, CE, cURus, GS, TUV |
|
|
FWE030012A-10BAC/DC DESKTOP ADAPTER 12V 30W |
4,880 |
|
规格书 |
FWE030 (30W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 12V | 2.5A | 30 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C6 | - | 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm) | CB, CE, cTUVus |
|
|
FWE030012B-10BAC/DC DESKTOP ADAPTER 12V 30W |
4,766 |
|
规格书 |
FWE030 (30W) | Box | Obsolete | North America | Desktop (Class II) | Cord | 85 ~ 264 VAC | 12V | 2.5A | 30 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C6 | - | 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm) | CB, CE, cTUVus |
|
|
FWE030015A-10BAC/DC DESKTOP ADAPTER 15V 30W |
4,193 |
|
规格书 |
FWE030 (30W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 15V | 2A | 30 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C6 | - | 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm) | CB, CE, cTUVus |
|
FWE030015B-10BAC/DC DESKTOP ADAPTER 15V 30W |
1,667 |
|
规格书 |
FWE030 (30W) | Box | Obsolete | North America | Desktop (Class II) | Cord | 85 ~ 264 VAC | 15V | 2A | 30 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C6 | - | 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm) | CB, CE, cTUVus |
|
|
FWE030024A-10BAC/DC DESKTOP ADAPTER 24V 30W |
2,757 |
|
规格书 |
FWE030 (30W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 24V | 1.25A | 30 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C6 | - | 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm) | CB, CE, cTUVus |
|
|
FWE030024B-10BAC/DC DESKTOP ADAPTER 24V 30W |
3,784 |
|
规格书 |
FWE030 (30W) | Box | Obsolete | North America | Desktop (Class II) | Cord | 85 ~ 264 VAC | 24V | 1.25A | 30 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C8 | - | 3.53" L x 1.92" W x 0.99" H (89.6mm x 48.8mm x 25.2mm) | CB, CE, cTUVus |
