购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSB05R-050Q(A)-RPAAC/DC WALL MOUNT ADAPTER 5V 5W |
2,291 |
|
- |
PSB05R (5W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 1A | 5 W | 300mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 45°C | USB A Receptacle | - | Multi-Blade | - | 2.96" L x 1.81" W x 1.25" H (75.3mm x 46.0mm x 31.7mm) | CE, C-Tick, cULus, GS |
|
MWA080015A-12AAC/DC DESKTOP ADAPTER 15V 80W |
4,564 |
|
规格书 |
MWA080 (80W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 15V | 5.3A | 80 W | 500mW (Max) | - | Medical | Level V | 0°C ~ 60°C | DIN, 8 Pin | 72" (1.83m) | IEC 320-C14 | - | 5.19" L x 3.07" W x 1.34" H (132.0mm x 78.0mm x 34.0mm) | CB, CE, cTUVus |
|
FWC080018A-11BAC/DC DESKTOP ADAPTER 18V 79W |
2,950 |
|
规格书 |
FWC080 (80W) | Bulk | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 18V | 4.4A | 79 W | 500mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 60°C | DIN, 5 Pin | 72" (1.83m) | IEC 320-C14 | - | 7.09" L x 2.27" W x 1.52" H (180.2mm x 57.5mm x 38.6mm) | CB, CE, cTUVus |
|
|
FWC080024A-11BAC/DC DESKTOP ADAPTER 24V 79W |
4,060 |
|
规格书 |
FWC080 (80W) | Bulk | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 24V | 3.3A | 79 W | 500mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 60°C | DIN, 5 Pin | 72" (1.83m) | IEC 320-C14 | - | 7.09" L x 2.27" W x 1.52" H (180.2mm x 57.5mm x 38.6mm) | CB, CE, cTUVus |
|
|
FWC080048A-11BAC/DC DESKTOP ADAPTER 48V 82W |
2,448 |
|
规格书 |
FWC080 (80W) | Bulk | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 48V | 1.7A | 82 W | 500mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 60°C | DIN, 5 Pin | 72" (1.83m) | IEC 320-C14 | - | 7.09" L x 2.27" W x 1.52" H (180.2mm x 57.5mm x 38.6mm) | CB, CE, cTUVus |
|
|
MWA080018A-12AAC/DC DESKTOP ADAPTER 18V 79W |
3,062 |
|
规格书 |
MWA080 (80W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 18V | 4.4A | 79 W | 500mW (Max) | - | Medical | Level V | 0°C ~ 60°C | DIN, 8 Pin | 72" (1.83m) | IEC 320-C14 | - | 5.19" L x 3.07" W x 1.34" H (132.0mm x 78.0mm x 34.0mm) | CB, CE, cTUVus |
|
|
MWA080024A-12AAC/DC DESKTOP ADAPTER 24V 79W |
2,967 |
|
规格书 |
MWA080 (80W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 24V | 3.3A | 79 W | 500mW (Max) | - | Medical | Level V | 0°C ~ 60°C | DIN, 8 Pin | 72" (1.83m) | IEC 320-C14 | - | 5.19" L x 3.07" W x 1.34" H (132.0mm x 78.0mm x 34.0mm) | CB, CE, cTUVus |
|
FWA120012A-12BAC/DC DESKTOP ADAPTER 12V 120W |
4,650 |
|
规格书 |
FWA120 (120W) | Bulk | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 12V | 10A | 120 W | 500mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 60°C | DIN, 8 Pin | 48" (1.22m) | IEC 320-C14 | - | 7.56" L x 2.45" W x 1.52" H (192.0mm x 62.2mm x 38.7mm) | CB, CE, cTUVus |
|
FWA120024A-12BAC/DC DESKTOP ADAPTER 24V 120W |
1,348 |
|
规格书 |
FWA120 (120W) | Bulk | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 24V | 5A | 120 W | 500mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 60°C | DIN, 8 Pin | 72" (1.83m) | IEC 320-C14 | - | 7.56" L x 2.45" W x 1.52" H (192.0mm x 62.2mm x 38.7mm) | CB, CE, cTUVus |
|
FWA180012A-13BAC/DC DESKTOP ADAPTER 12V 180W |
3,790 |
|
规格书 |
FWA180 (180W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 12V | 15A | 180 W | 500mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 60°C | Rectangular, 6 Position | 72" (1.83m) | IEC 320-C14 | - | 8.20" L x 2.90" W x 1.60" H (208.0mm x 73.0mm x 39.0mm) | CB, CE, cTUVus |
|
FWA180024A-12BAC/DC DESKTOP ADAPTER 24V 180W |
1,908 |
|
规格书 |
FWA180 (180W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 24V | 7.5A | 180 W | 500mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 60°C | DIN, 8 Pin | 72" (1.83m) | IEC 320-C14 | - | 8.20" L x 2.90" W x 1.60" H (208.0mm x 73.0mm x 39.0mm) | CB, CE, cTUVus |
|
PSM03K-050Q-3W-RAC/DC WALL MOUNT ADAPTER 5V 2.8W |
1,172 |
|
规格书 |
PSM03 (2.75W) | Box | Obsolete | United Kingdom | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 550mA | 2.8 W | 150mW (Max) | - | ITE (Commercial) | Level VI | -10°C ~ 40°C | USB A Receptacle | - | BS 1363 | - | 1.93" L x 1.92" W x 0.87" H (49.0mm x 48.8mm x 21.0mm) | IEC |
|

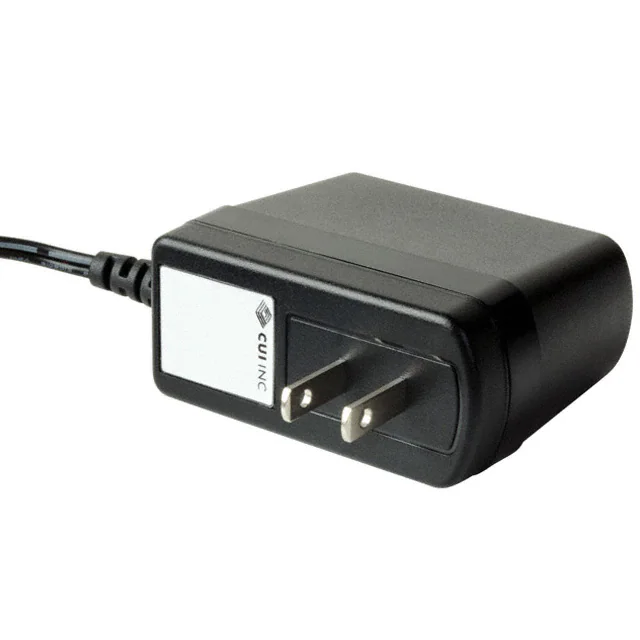

EPSA050120U-P5P-SZAC/DC WALL MOUNT ADAPTER 5V 6W |
3,135 |
|
规格书 |
EPSA (6W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 1.2A | 6 W | - | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | NEMA 1-15P | - | 2.35" L x 1.05" W x 1.82" H (59.8mm x 26.6mm x 46.1mm) | CE, TUVgs |
|
|
EPSA120050U-P5P-SZAC/DC WALL MOUNT ADAPTER 12V 6W |
3,158 |
|
规格书 |
EPSA (6W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 500mA | 6 W | - | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | NEMA 1-15P | - | 2.35" L x 1.05" W x 1.82" H (59.8mm x 26.6mm x 46.1mm) | CE, TUVgs |
|
|
EPSA033180U-P6P-SZAC/DC WALL MOUNT ADAPTER 3.3V 6W |
1,388 |
|
规格书 |
EPSA (6W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 3.3V | 1.8A | 6 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | NEMA 1-15P | - | 2.35" L x 1.05" W x 1.82" H (59.8mm x 26.6mm x 46.1mm) | cULus, PSE |
|
|
EPSA050120U-P6P-SZAC/DC WALL MOUNT ADAPTER 5V 6W |
4,466 |
|
规格书 |
EPSA (6W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 1.2A | 6 W | - | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | NEMA 1-15P | - | 2.35" L x 1.05" W x 1.82" H (59.8mm x 26.6mm x 46.1mm) | CE, TUVgs |
|
|
EPSA120050U-P6P-SZAC/DC WALL MOUNT ADAPTER 12V 6W |
1,164 |
|
规格书 |
EPSA (6W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 500mA | 6 W | - | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | NEMA 1-15P | - | 2.35" L x 1.05" W x 1.82" H (59.8mm x 26.6mm x 46.1mm) | CE, TUVgs |
|
|
EPSA150040U-P6P-SZAC/DC WALL MOUNT ADAPTER 15V 6W |
3,424 |
|
规格书 |
EPSA (6W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 400mA | 6 W | - | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | NEMA 1-15P | - | 2.35" L x 1.05" W x 1.82" H (59.8mm x 26.6mm x 46.1mm) | CE, TUVgs |
|
|
EPSA240025U-P6P-SZAC/DC WALL MOUNT ADAPTER 24V 6W |
4,631 |
|
规格书 |
EPSA (6W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 250mA | 6 W | - | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | NEMA 1-15P | - | 2.35" L x 1.05" W x 1.82" H (59.8mm x 26.6mm x 46.1mm) | CE, TUVgs |
|
|
EPSA090067U-P5P-SZAC/DC WALL MOUNT ADAPTER 9V 6W |
3,880 |
|
规格书 |
EPSA (6W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 9V | 670mA | 6 W | - | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | NEMA 1-15P | - | 2.35" L x 1.05" W x 1.82" H (59.8mm x 26.6mm x 46.1mm) | CE, TUVgs |
