购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DA4-050USAC/DC WALL MNT ADAPTER 5.5V 4.1W ARTESYN / Advanced Energy |
1,775 |
|
规格书 |
DA4 (4W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5.5V | 750mA | 4.1 W | - | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 78.74" (2.0m) | NEMA 1-15P | - | 2.36" L x 1.02" W x 1.80" H (60.0mm x 26.0mm x 45.8mm) | CB, CE |
|
DCH2-050US-0001AC/DC WALL MOUNT ADAPTER 6.5V 2W ARTESYN / Advanced Energy |
4,149 |
|
- |
DCH2 (2W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 6.5V | 300mA | 2 W | - | Positive Center | ITE (Commercial) | - | 0°C ~ 50°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 72.83" (1.85m) | NEMA 1-15P | - | 1.50" L x 1.50" W x 1.75" H (38.1mm x 38.1mm x 44.4mm) | CB, CE |
|
DCH3-050US-0002AC/DC WALL MOUNT ADAPTER 5V 2.8W ARTESYN / Advanced Energy |
2,419 |
|
规格书 |
DCH3 (3W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 5V | 550mA | 2.8 W | - | - | ITE (Commercial) | Level IV | 0°C ~ 50°C | USB Micro | 59" (1.50m) | NEMA 1-15P | - | 2.28" L x 1.03" W x 1.79" H (58.0mm x 26.1mm x 45.4mm) | - |
|

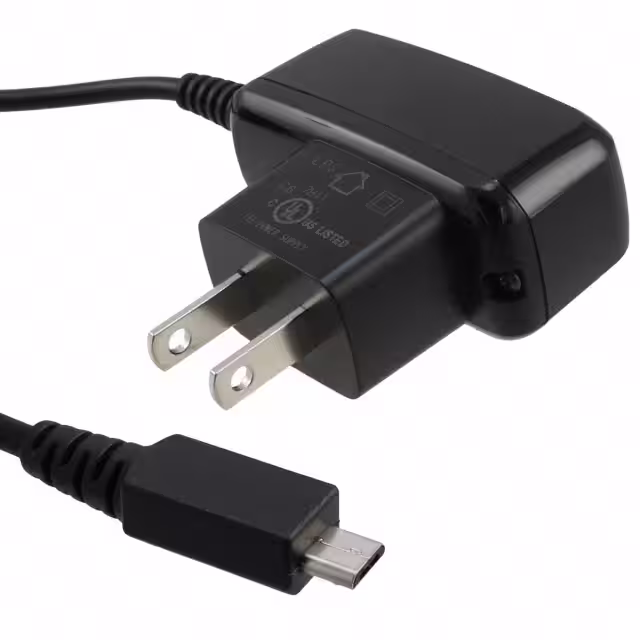

DCH3-050US-0004AC/DC WALL MOUNT ADAPTER 5V 2.8W ARTESYN / Advanced Energy |
2,651 |
|
规格书 |
DCH3 (3W) | Bag | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 5V | 550mA | 2.8 W | - | - | ITE (Commercial) | Level IV | 0°C ~ 50°C | USB A Receptacle | - | NEMA 1-15P | - | 2.28" L x 1.03" W x 1.79" H (58.0mm x 26.1mm x 45.4mm) | - |
|
DP4012N2MAC/DC DESKTOP ADAPTER 12V 40W ARTESYN / Advanced Energy |
4,997 |
|
规格书 |
DP40 (40W) | Bag | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 3.33A | 40 W | 300mW (Max) | Positive Center | ITE (Commercial), Medical | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C8 | - | 4.88" L x 2.40" W x 1.55" H (124.0mm x 61.0mm x 39.5mm) | CB, CE |
|

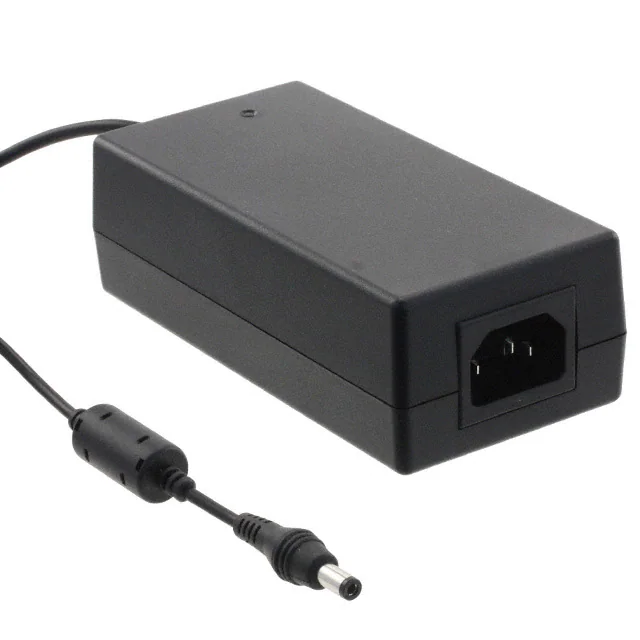

DP4012N3MAC/DC DESKTOP ADAPTER 12V 40W ARTESYN / Advanced Energy |
4,032 |
|
规格书 |
DP40 (40W) | Bag | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 3.33A | 40 W | 300mW (Max) | Positive Center | ITE (Commercial), Medical | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C14 | - | 4.88" L x 2.40" W x 1.55" H (124.0mm x 61.0mm x 39.5mm) | CB, CE |
|
|
DP4018N3MAC/DC DESKTOP ADAPTER 18V 40W ARTESYN / Advanced Energy |
4,169 |
|
规格书 |
DP40 (40W) | Bag | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 2.22A | 40 W | 300mW (Max) | Positive Center | ITE (Commercial), Medical | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C14 | - | 4.88" L x 2.40" W x 1.55" H (124.0mm x 61.0mm x 39.5mm) | CB, CE |
|
|
DP4024N3MAC/DC DESKTOP ADAPTER 24V 40W ARTESYN / Advanced Energy |
3,751 |
|
规格书 |
DP40 (40W) | Bag | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 1.67A | 40 W | 300mW (Max) | Positive Center | ITE (Commercial), Medical | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C14 | - | 4.88" L x 2.40" W x 1.55" H (124.0mm x 61.0mm x 39.5mm) | CB, CE |
|

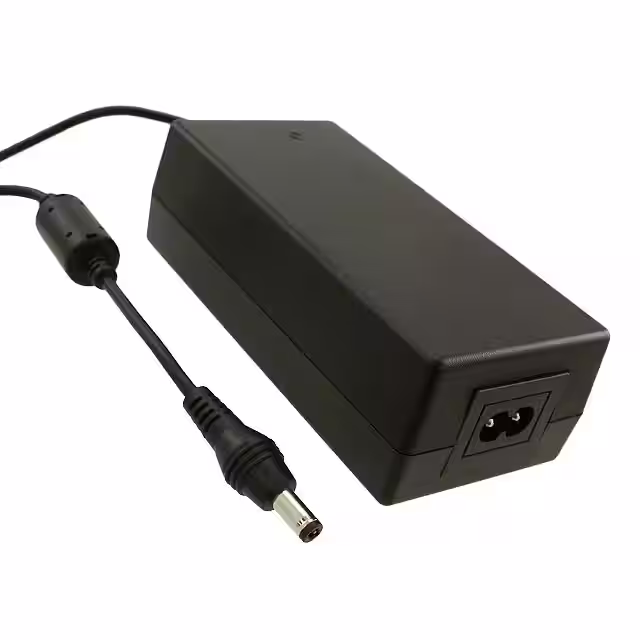

DP4048N2MAC/DC DESKTOP ADAPTER 48V 40W ARTESYN / Advanced Energy |
1,246 |
|
规格书 |
DP40 (40W) | Bag | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 840mA | 40 W | 300mW (Max) | Positive Center | ITE (Commercial), Medical | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C8 | - | 4.88" L x 2.40" W x 1.55" H (124.0mm x 61.0mm x 39.5mm) | CB, CE |
|
|
DP4048N3MAC/DC DESKTOP ADAPTER 48V 40W ARTESYN / Advanced Energy |
1,979 |
|
规格书 |
DP40 (40W) | Bag | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 840mA | 40 W | 300mW (Max) | Positive Center | ITE (Commercial), Medical | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 48" (1.22m) | IEC 320-C14 | - | 4.88" L x 2.40" W x 1.55" H (124.0mm x 61.0mm x 39.5mm) | CB, CE |
