购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TR15RA090-01E03-GY-BK VIAC/DC WALL MOUNT ADAPTER 9V 13W Cincon Electronics Co. LTD |
1,382 |
|
- |
TR15RA (15W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 9V | 1.4A | 13 W | - | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.9" (1.80m) | Multi-Blade (Sold Separately) | - | 3.17" L x 1.89" W x 1.71" H (80.6mm x 47.9mm x 43.3mm) | CE, cULus, GS, PSE |
|
TRG1505-A-11E03 VIAC/DC WALL MOUNT ADAPTER 5V 10W Cincon Electronics Co. LTD |
3,123 |
|
规格书 |
TRG15 (15W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2A | 10 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.9" (1.80m) | NEMA 1-15P | - | 2.84" L x 1.38" W x 2.05" H (72.0mm x 35.0mm x 52.0mm) | CE, cULus, FCC, GS, PSE, TUV |
|

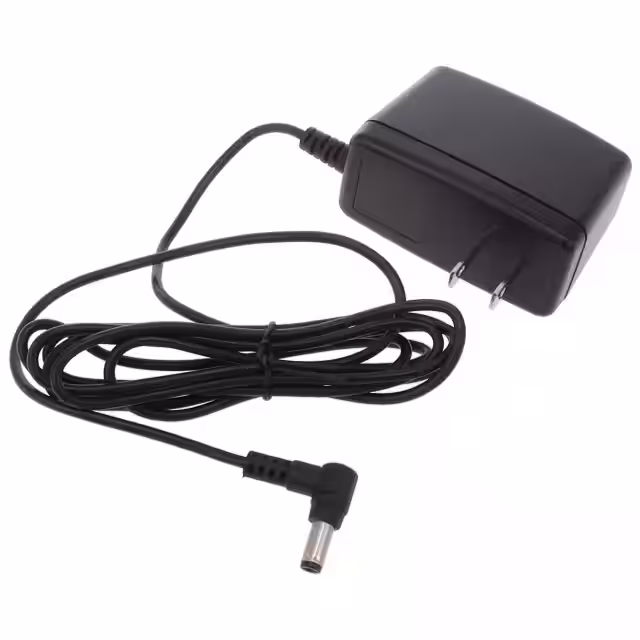

TRG1515-A-01E03 VIAC/DC WALL MOUNT ADAPTER 15V 15W Cincon Electronics Co. LTD |
1,479 |
|
规格书 |
TRG15 (15W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 1A | 15 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | - | 70.9" (1.80m) | NEMA 1-15P | - | 2.84" L x 1.38" W x 2.05" H (72.0mm x 35.0mm x 52.0mm) | CE, cULus, FCC, GS, PSE, TUV |
|
TRH25150-A-11E03 VIAC/DC WALL MOUNT ADAPTER 15V 25W Cincon Electronics Co. LTD |
3,233 |
|
- |
TRH25 (25W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 1.67A | 25 W | 75mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.9" (1.80m) | NEMA 1-15P | - | 2.84" L x 1.38" W x 2.05" H (72.0mm x 35.0mm x 52.0mm) | CE, cULus, GS, TUV |
|
TRH25180-A-01E03 VIAC/DC WALL MOUNT ADAPTER 18V 25W Cincon Electronics Co. LTD |
2,240 |
|
- |
TRH25 (25W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 18V | 1.4A | 25 W | 75mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | - | 70.9" (1.80m) | NEMA 1-15P | - | 2.84" L x 1.38" W x 2.05" H (72.0mm x 35.0mm x 52.0mm) | CE, cULus, GS, TUV |
|
TRH25240-A-01E03 VIAC/DC WALL MOUNT ADAPTER 24V 25W Cincon Electronics Co. LTD |
2,852 |
|
- |
TRH25 (25W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 1.05A | 25 W | 75mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.9" (1.80m) | NEMA 1-15P | - | 2.84" L x 1.38" W x 2.05" H (72.0mm x 35.0mm x 52.0mm) | CE, cULus, GS, TUV |
|
TRH25180-A-11E03 VIAC/DC WALL MOUNT ADAPTER 18V 25W Cincon Electronics Co. LTD |
2,560 |
|
- |
TRH25 (25W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 18V | 1.4A | 25 W | 75mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 70.9" (1.80m) | NEMA 1-15P | - | 2.84" L x 1.38" W x 2.05" H (72.0mm x 35.0mm x 52.0mm) | CE, cULus, GS, TUV |
|
|
TRG10R050-36E03 VIADAPTER AC-DC Cincon Electronics Co. LTD |
2,880 |
|
- |
TRG10R (10W) | Box | Active | International | Wall Mount | Multi-Blade (Sold Separately) | 90 ~ 264 VAC, 120 ~ 370 VDC | 5V | 1.6A | 8 W | 75mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | Barrel Plug R/A, 1.35mm I.D. x 3.5mm O.D. x 9.0mm | 70.8" (1.80m) | Multi-Blade (Sold Separately) | - | 2.86" L x 1.40" W x 1.82" H (72.6mm x 35.6mm x 46.3mm) | CE, cULus, FCC, GS, PSE, TUV, UKCA |
|
|
TRG10R240-12E03 VIADAPTER AC-DC Cincon Electronics Co. LTD |
2,244 |
|
- |
TRG10R (10W) | Box | Active | International | Wall Mount | Multi-Blade (Sold Separately) | 90 ~ 264 VAC, 120 ~ 370 VDC | 24V | 400mA | 9.6 W | 75mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 12mm | 70.8" (1.80m) | Multi-Blade (Sold Separately) | - | 2.86" L x 1.40" W x 1.82" H (72.6mm x 35.6mm x 46.3mm) | CE, cULus, FCC, GS, PSE, TUV, UKCA |
|
|
TRG10R050-40E03 VIADAPTER AC-DC Cincon Electronics Co. LTD |
1,579 |
|
- |
TRG10R (10W) | Box | Active | International | Wall Mount | Multi-Blade (Sold Separately) | 90 ~ 264 VAC, 120 ~ 370 VDC | 5V | 1.6A | 8 W | 75mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 60°C | Barrel Plug R/A, 1.7mm I.D. x 4.0mm O.D. x 9.5mm | 70.8" (1.80m) | Multi-Blade (Sold Separately) | - | 2.86" L x 1.40" W x 1.82" H (72.6mm x 35.6mm x 46.3mm) | CE, cULus, FCC, GS, PSE, TUV, UKCA |
