| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TRH160A560-11E13 VIADAPTER AC-DC TRH160A560-11E13 V |
3,387 |
|
- |
TRH160A (160W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 56V | 2.85A | 144 W | 75mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 47" (1.20m) | IEC 320-C14 | - | 5.91" L x 2.76" W x 1.50" H (150.0mm x 70.0mm x 38.0mm) | CCC, CE, cULus, FCC, GS, PSE, TUV, UKCA |
|
|
TRH160A480-11E13 VIADAPTER AC-DC TRH160A480-11E13 V |
1,458 |
|
- |
TRH160A (160W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 3.33A | 160 W | 75mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 47" (1.20m) | IEC 320-C14 | - | 5.91" L x 2.76" W x 1.50" H (150.0mm x 70.0mm x 38.0mm) | CCC, CE, cULus, FCC, GS, PSE, TUV, UKCA |
|
|
SDI120B-56-T2W-P51AC-DC, 56 VDC, 2.14 A, SW, C6 DE |
4,128 |
|
规格书 |
SDI120B-T (120W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 56V | 2.14A | 120 W | 210mW | - | ITE (Commercial) | Level VI | -20°C ~ 40°C | Power DIN, 4 Pin | 59" (1.50m) | CEE 7/16 | - | 5.53" L x 2.36" W x 1.38" H (140.5mm x 60.0mm x 35.0mm) | CE, cULus, FCC, PSE, UKCA |
|
|
MWA150015B-12AAC/DC DESKTOP ADAPTER 15V 150W |
3,266 |
|
规格书 |
ELPAC MWA150 (150W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 85 ~ 264 VAC | 15V | 10A | 150 W | 500mW (Max) | - | Medical | Level V | 0°C ~ 60°C | DIN, 8 Pin | 48" (1.22m) | IEC 320-C8 | - | 7.56" L x 2.45" W x 1.52" H (192.0mm x 62.2mm x 38.6mm) | CE, cTUVus |
|
|
MWA150018B-12AAC/DC DESKTOP ADAPTER 18V 149W |
2,948 |
|
规格书 |
ELPAC MWA150 (150W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 85 ~ 264 VAC | 18V | 8.3A | 149 W | 500mW (Max) | - | Medical | Level V | 0°C ~ 60°C | DIN, 8 Pin | 72" (1.83m) | IEC 320-C8 | - | 7.56" L x 2.45" W x 1.52" H (192.0mm x 62.2mm x 38.6mm) | CE, cTUVus |
|

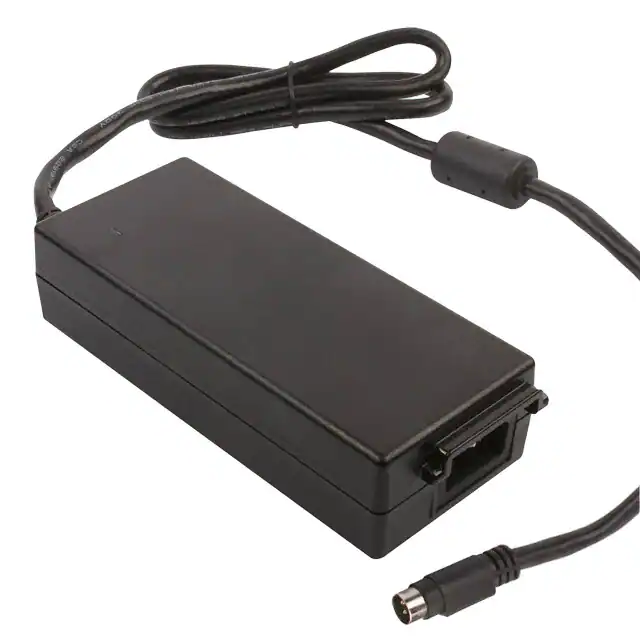

AHM85PS12AC/DC DESKTOP ADAPTER 12V 85W |
3,944 |
|
规格书 |
AHM85 (85W) | Box | Discontinued at Digi-Key | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 12V | 7.08A | 85 W | 500mW (Max) | - | ITE (Commercial), Medical | Level V | 0°C ~ 60°C | Power DIN, 4 Pin | 35.4" (0.9m) | IEC 320-C14 | - | 5.90" L x 2.52" W x 1.45" H (150.0mm x 64.0mm x 37.0mm) | CB, TUV, UL |
|

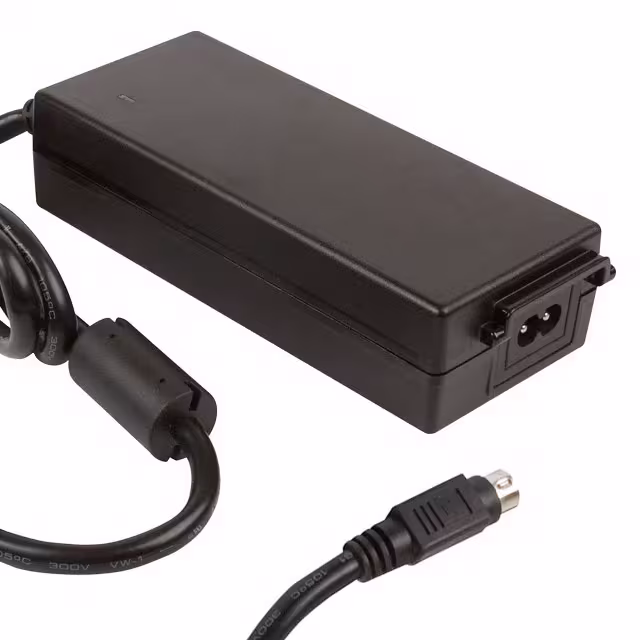

AHM85PS12C2-8AC/DC DESKTOP ADAPTER 12V 85W |
1,876 |
|
规格书 |
AHM85 (85W) | Box | Discontinued at Digi-Key | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 12V | 7.08A | 85 W | 500mW (Max) | - | ITE (Commercial), Medical | Level V | 0°C ~ 60°C | Power DIN, 4 Pin | 35.4" (0.9m) | IEC 320-C8 | - | 5.90" L x 2.52" W x 1.45" H (150.0mm x 64.0mm x 37.0mm) | CB, TUV, UL |
|
|
AHM85PS15AC/DC DESKTOP ADAPTER 15V 85W |
4,547 |
|
规格书 |
AHM85 (85W) | Box | Discontinued at Digi-Key | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 15V | 5.67A | 85 W | 500mW (Max) | - | ITE (Commercial), Medical | Level V | 0°C ~ 60°C | Power DIN, 4 Pin | 35.4" (0.9m) | IEC 320-C14 | - | 5.90" L x 2.52" W x 1.45" H (150.0mm x 64.0mm x 37.0mm) | CB, TUV, UL |
|
|
AHM85PS15C2-8AC/DC DESKTOP ADAPTER 15V 85W |
4,109 |
|
规格书 |
AHM85 (85W) | Box | Discontinued at Digi-Key | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 15V | 5.67A | 85 W | 500mW (Max) | - | ITE (Commercial), Medical | Level V | 0°C ~ 60°C | Power DIN, 4 Pin | 35.4" (0.9m) | IEC 320-C8 | - | 5.90" L x 2.52" W x 1.45" H (150.0mm x 64.0mm x 37.0mm) | CB, TUV, UL |
|
|
AHM85PS19AC/DC DESKTOP ADAPTER 19V 85W |
1,903 |
|
规格书 |
AHM85 (85W) | Box | Discontinued at Digi-Key | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 19V | 4.47A | 85 W | 500mW (Max) | - | ITE (Commercial), Medical | Level V | 0°C ~ 60°C | Power DIN, 4 Pin | 35.4" (0.9m) | IEC 320-C14 | - | 5.90" L x 2.52" W x 1.45" H (150.0mm x 64.0mm x 37.0mm) | CB, TUV, UL |
|
|
AHM85PS19C2-8AC/DC DESKTOP ADAPTER 19V 85W |
4,190 |
|
规格书 |
AHM85 (85W) | Box | Discontinued at Digi-Key | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 19V | 4.47A | 85 W | 500mW (Max) | - | ITE (Commercial), Medical | Level V | 0°C ~ 60°C | Power DIN, 4 Pin | 35.4" (0.9m) | IEC 320-C8 | - | 5.90" L x 2.52" W x 1.45" H (150.0mm x 64.0mm x 37.0mm) | CB, TUV, UL |
|
|
AHM85PS24AC/DC DESKTOP ADAPTER 24V 85W |
2,240 |
|
规格书 |
AHM85 (85W) | Box | Discontinued at Digi-Key | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 24V | 3.54A | 85 W | 500mW (Max) | - | ITE (Commercial), Medical | Level V | 0°C ~ 60°C | Power DIN, 4 Pin | 35.4" (0.9m) | IEC 320-C14 | - | 5.90" L x 2.52" W x 1.45" H (150.0mm x 64.0mm x 37.0mm) | CB, TUV, UL |
|
|
AHM85PS24C2-8AC/DC DESKTOP ADAPTER 24V 85W |
1,633 |
|
规格书 |
AHM85 (85W) | Box | Discontinued at Digi-Key | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 24V | 3.54A | 85 W | 500mW (Max) | - | ITE (Commercial), Medical | Level V | 0°C ~ 60°C | Power DIN, 4 Pin | 35.4" (0.9m) | IEC 320-C8 | - | 5.90" L x 2.52" W x 1.45" H (150.0mm x 64.0mm x 37.0mm) | CB, TUV, UL |
|
|
AHM100PS12-AAC-DC DESKTOP PSU 100W RETENTION |
4,444 |
|
规格书 |
AHM100 (100W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 12V | 8.33A | 100 W | 500mW | - | ITE (Commercial), Medical | Level V | 0°C ~ 60°C | Power DIN, 4 Pin | 35.4" (0.9m) | IEC 320-C14 | - | 6.49" L x 2.52" W x 1.45" H (164.8mm x 64.0mm x 36.8mm) | ANSI/AAMI, CSA, PSE |
|
PSHP-65-180-DINAC/DC DESKTOP ADAPTER 65V 182W |
4,321 |
|
- |
PSHP | Box | Obsolete | International | Desktop (Class I) | Cord | 90 ~ 264 VAC | 65V | 2.8A | 182 W | - | - | ITE (Commercial) | 85% | -20°C ~ 50°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 6.89" L x 2.56" W x 1.69" H (175.0mm x 65.0mm x 43.0mm) | CE, cUL, FCC, TUV |
|
|
L6R65DM-120AC/DC DESKTOP ADAPTER 12V 60W |
3,275 |
|
- |
Tri-Mag®, L6R65DM (65W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 5A | 60 W | 150mW | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 4.69" L x 2.36" W x 1.42" H (119.0mm x 60.0mm x 36.0mm) | - |
|
|
L6R90DM-120AC/DC DESKTOP ADAPTER 12V 84W |
2,411 |
|
- |
Tri-Mag®, L6R90DM (90W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 7A | 84 W | 150mW | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 5.94" L x 2.52" W x 1.38" H (150.9mm x 64.0mm x 35.1mm) | - |
|
|
L6R90DM-150AC/DC DESKTOP ADAPTER 15V 90W |
1,231 |
|
- |
Tri-Mag®, L6R90DM (90W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 6A | 90 W | 150mW | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 5.94" L x 2.52" W x 1.38" H (150.9mm x 64.0mm x 35.1mm) | - |
|
|
L6R65DM-150AC/DC DESKTOP ADAPTER 15V 65W |
1,923 |
|
- |
Tri-Mag®, L6R65DM (65W) | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 4.34A | 65 W | 150mW | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 4.69" L x 2.36" W x 1.42" H (119.0mm x 60.0mm x 36.0mm) | - |
|
|
ALM120PS24-B5AC-DC DESKTOP PSU 120W |
4,922 |
|
规格书 |
ALM120 (120W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 24V | 5A | 120 W | 150mW | - | ITE (Commercial), Medical | Level VI, CoC Tier 2 | 0°C ~ 60°C | Power DIN, 4 Pin | 35.4" (0.9m) | IEC 320-C14 | - | 6.93" L x 2.67" W x 1.49" H (175.9mm x 67.8mm x 37.8mm) | CB, CCC, CE, CSA, KC, PSE, TUV, UKCA, UL |
