购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS36V-2.5AC/DC DESKTOP ADAPTER 36V 90W |
4,468 |
|
规格书 |
PS | Box | Active | International | Desktop (Class II) | Cord | 90 ~ 264 VAC | 36V | 2.5A | 90 W | - | Positive Center | ITE (Commercial) | 80% | -20°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C8 | - | 5.51" L x 2.36" W x 1.34" H (140.0mm x 60.0mm x 34.0mm) | CE, FCC, UL |
|
PS24V-3.75AC/DC DESKTOP ADAPTER 24V 90W |
3,740 |
|
规格书 |
PS | Box | Active | International | Desktop (Class II) | Cord | 90 ~ 264 VAC | 24V | 3.75A | 90 W | - | Positive Center | ITE (Commercial) | 80% | -20°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C8 | - | 5.51" L x 2.36" W x 1.34" H (140.0mm x 60.0mm x 34.0mm) | CE, FCC, UL |
|
SDI90-12-UC-P5AC/DC DESKTOP ADAPTER 12V 84W |
4,295 |
|
规格书 |
SDI90-U (90W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 12V | 7A | 84 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.94" L x 2.52" W x 1.42" H (151.0mm x 64.0mm x 36.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
|
SDI90-12-UC-P5RAC/DC DESKTOP ADAPTER 12V 84W |
1,255 |
|
规格书 |
SDI90-U (90W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 12V | 7A | 84 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.94" L x 2.52" W x 1.42" H (151.0mm x 64.0mm x 36.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
|
SDI90-12-UC-P6RAC/DC DESKTOP ADAPTER 12V 84W |
4,390 |
|
规格书 |
SDI90-U (90W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 12V | 7A | 84 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.94" L x 2.52" W x 1.42" H (151.0mm x 64.0mm x 36.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
|
SDI90-15-UC-P5RAC/DC DESKTOP ADAPTER 15V 90W |
1,186 |
|
规格书 |
SDI90-U (90W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 15V | 6A | 90 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.94" L x 2.52" W x 1.42" H (151.0mm x 64.0mm x 36.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
|
SDI90-15-UC-P6RAC/DC DESKTOP ADAPTER 15V 90W |
3,762 |
|
规格书 |
SDI90-U (90W) | Box | Active | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 15V | 6A | 90 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 5.94" L x 2.52" W x 1.42" H (151.0mm x 64.0mm x 36.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
TR9CE9000LRP-IM(R6B)AC/DC DESKTOP ADAPTER 12V 108W |
2,251 |
|
规格书 |
GTM961200P10812-T3 | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 9A | 108 W | 150mW (Max) | Positive Center | Household Appliances, ITE (Commercial), Medical | Level VI, CoC Tier 2 | -10°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C14 | - | 5.88" L x 2.47" W x 1.34" H (149.3mm x 62.8mm x 34.0mm) | BSMI, CB, CCC, CE, cETLus, EAC, ETL, PSE, S-Mark, UKRSepro, VCCI |
|
AFM60US12AC/DC DESKTOP ADAPTER 12V 60W |
2,971 |
|
规格书 |
AFM60 (60W) | Box | Discontinued at Digi-Key | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 12V | 5A | 60 W | - | Positive Center | ITE (Commercial), Medical | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 37.4" (0.95m) | IEC 320-C14 | - | 4.92" L x 2.44" W x 1.34" H (125.0mm x 62.0mm x 34.0mm) | CB, TUV, UL |
|
|
AFM60US15AC/DC DESKTOP ADAPTER 15V 60W |
3,101 |
|
规格书 |
AFM60 (60W) | Box | Discontinued at Digi-Key | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 15V | 4A | 60 W | - | Positive Center | ITE (Commercial), Medical | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 37.4" (0.95m) | IEC 320-C14 | - | 4.92" L x 2.44" W x 1.34" H (125.0mm x 62.0mm x 34.0mm) | CB, TUV, UL |
|
|
AFM60US18AC/DC DESKTOP ADAPTER 18V 60W |
1,594 |
|
规格书 |
AFM60 (60W) | Box | Discontinued at Digi-Key | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 18V | 3.34A | 60 W | - | Positive Center | ITE (Commercial), Medical | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 37.4" (0.95m) | IEC 320-C14 | - | 4.92" L x 2.44" W x 1.34" H (125.0mm x 62.0mm x 34.0mm) | CB, TUV, UL |
|
|
AFM60US24AC/DC DESKTOP ADAPTER 24V 60W |
1,668 |
|
规格书 |
AFM60 (60W) | Box | Discontinued at Digi-Key | International | Desktop (Class I) | Cord (Sold Separately) | 80 ~ 264 VAC | 24V | 2.5A | 60 W | - | Positive Center | ITE (Commercial), Medical | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 37.4" (0.95m) | IEC 320-C14 | - | 4.92" L x 2.44" W x 1.34" H (125.0mm x 62.0mm x 34.0mm) | CB, TUV, UL |
|

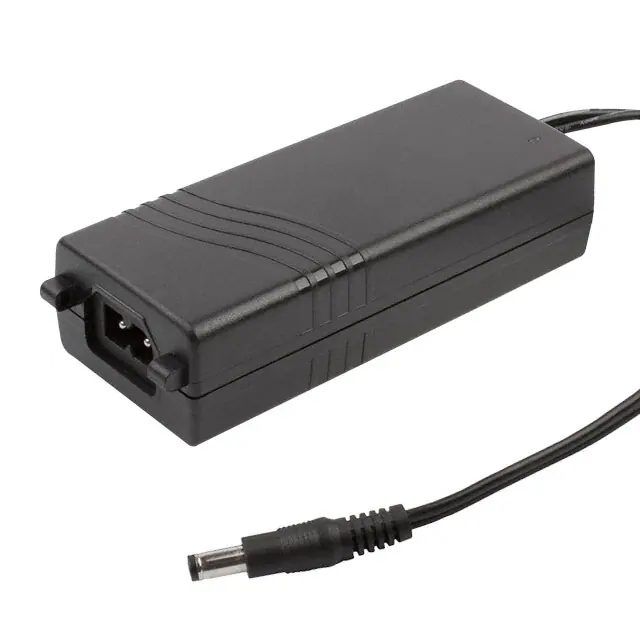

AFM60US12C2AC/DC DESKTOP ADAPTER 12V 60W |
2,559 |
|
规格书 |
AFM60 (60W) | Box | Discontinued at Digi-Key | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 12V | 5A | 60 W | - | Positive Center | ITE (Commercial), Medical | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 37.4" (0.95m) | IEC 320-C8, Polarized | - | 4.92" L x 2.44" W x 1.33" H (125.0mm x 62.0mm x 34.0mm) | CB, TUV, UL |
|
|
AFM60US15C2AC/DC DESKTOP ADAPTER 15V 60W |
2,789 |
|
规格书 |
AFM60 (60W) | Box | Discontinued at Digi-Key | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 15V | 4A | 60 W | - | Positive Center | ITE (Commercial), Medical | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 37.4" (0.95m) | IEC 320-C8, Polarized | - | 4.92" L x 2.44" W x 1.33" H (125.0mm x 62.0mm x 34.0mm) | CB, TUV, UL |
|
|
AFM60US24C2AC/DC DESKTOP ADAPTER 24V 60W |
1,269 |
|
规格书 |
AFM60 (60W) | Box | Discontinued at Digi-Key | International | Desktop (Class II) | Cord (Sold Separately) | 80 ~ 264 VAC | 24V | 2.5A | 60 W | - | Positive Center | ITE (Commercial), Medical | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 37.4" (0.95m) | IEC 320-C8, Polarized | - | 4.92" L x 2.44" W x 1.33" H (125.0mm x 62.0mm x 34.0mm) | CB, TUV, UL |
|
|
SDI90B-16-TC-P5RAC-DC, 16 VDC, 5.63A, SW, C6 DES |
4,981 |
|
规格书 |
SDI90B-T (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 16V | 5.63A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA |
|
|
SDI90B-16-TC-P6AC-DC, 16 VDC, 5.63A, SW, C6 DES |
4,096 |
|
规格书 |
SDI90B-T (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 16V | 5.63A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA |
|
|
SDI90B-15-TC-P11AC-DC, 15 VDC, 6A, SW, C6 DESK-T |
4,539 |
|
规格书 |
SDI90B-T (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 6A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA |
|
|
SDI90B-16-TC-P5AC-DC, 16 VDC, 5.63A, SW, C6 DES |
1,408 |
|
规格书 |
SDI90B-T (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 16V | 5.63A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA |
|
|
SDI90B-15-TC-P5RAC-DC, 15 VDC, 6A, SW, C6 DESK-T |
4,425 |
|
规格书 |
SDI90B-T (90W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 6A | 90 W | 210mW | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47" (1.20m) | NEMA 1-15P | - | 5.26" L x 2.11" W x 1.30" H (133.5mm x 53.5mm x 33.0mm) | CE, cULus, FCC, PSE, UKCA |
