购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

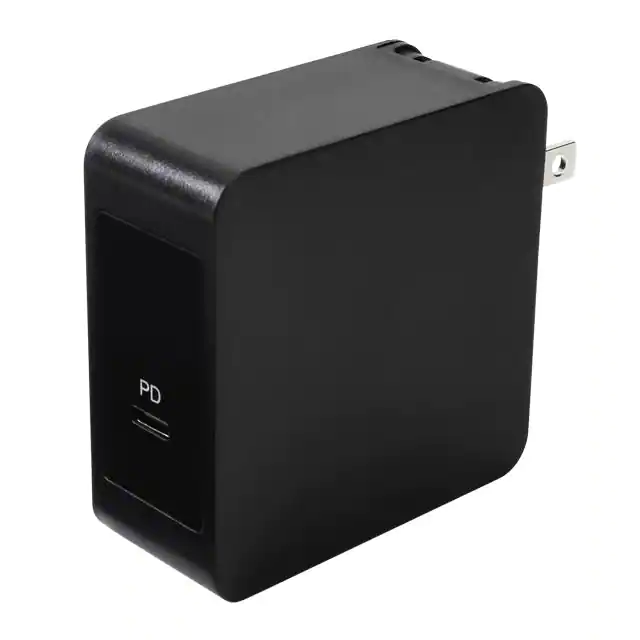

SWI60C-V-NB-I40AC/DC WALL MNT ADAPT 5V-20V 60W |
192 |
|
规格书 |
SWI60C-N (60W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V, 9V, 12V, 15V, 20V | 3A | 60 W | 210mW | - | ITE (Commercial) | Level VI | 0°C ~ 25°C | USB C Power Delivery (PD) | - | NEMA 1-15P | - | 2.56" L x 2.56" W x 1.10" H (65.0mm x 65.0mm x 28.0mm) | cETLus, FCC |
|

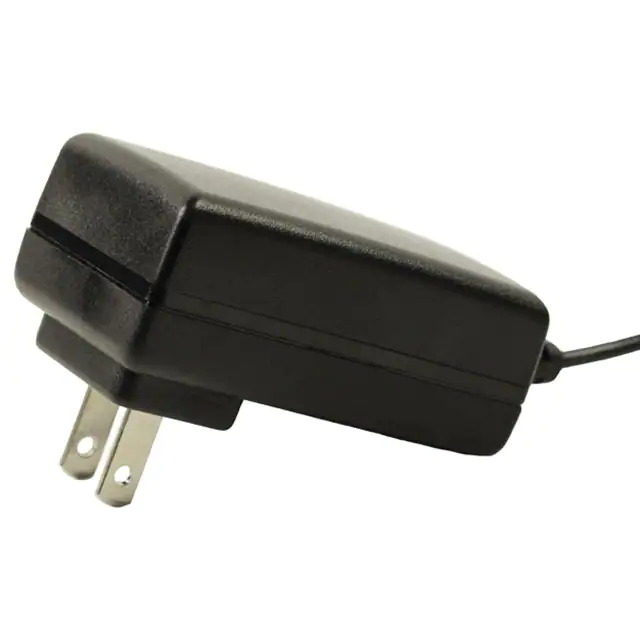

SWM30-12-NV-P5AC/DC WALL MOUNT ADAPTER 12V 36W |
908 |
|
规格书 |
SWM30-N (30W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 3A | 36 W | 100mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | NEMA 1-15P | - | 2.99" L x 1.69" W x 1.16" H (75.9mm x 42.9mm x 29.5mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
SWI25-24-N-P5AC/DC WALL MOUNT ADAPTER 24V 25W |
686 |
|
规格书 |
SWI25-N (25.2W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 1.05A | 25 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 70.9" (1.80m) | NEMA 1-15P | - | 2.80" L x 1.30" W x 1.91" H (71.0mm x 33.0mm x 48.4mm) | EN, FCC, UL |
|
ME10A1203F01AC/DC DESKTOP ADAPTER 12V 12W |
351 |
|
规格书 |
ME10 (10W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 1A | 12 W | 100mW (Max) | Positive Center | Medical | Level VI | -20°C ~ 50°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.31" L x 1.85" W x 1.22" H (84.0mm x 47.0mm x 31.0mm) | CE, cURus, DEMKO |
|
SDM36-5-U-P5AC/DC DESKTOP ADAPTER 5V 25W |
2,406 |
|
规格书 |
SDM36-U (36W) | Box | Active | - | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 5V | 5A | 25 W | 100mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
SMI24-5-V-P6AC/DC WALL MOUNT ADAPTER 5V 20W |
140 |
|
规格书 |
SMI24 (24W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 4A | 20 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 39.4" (1.00m) | Multi-Blade | - | 2.95" L x 1.38" W x 2.58" H (75.0mm x 35.0mm x 65.6mm) | CB Scheme, CCC, CSA, EN, IEC, PSE, RCM, UL |
|
KTPS50-2421DT-3P-VI-C-P1AC/DC DESKTOP ADAPTER 24V 50W |
382 |
|
规格书 |
KTPS50 (50W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 24V | 2.1A | 50 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | IEC |
|
|
KTPS50-1242DT-3P-VI-C-P1AC/DC DESKTOP ADAPTER 12V 50W |
477 |
|
规格书 |
KTPS50 (50W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 100 ~ 240 VAC | 12V | 4.2A | 50 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | IEC |
|
SDI36-24-UD-P6AC/DC DESKTOP ADAPTER 24V 36W |
219 |
|
规格书 |
SDI36-UD (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 1.5A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.90" L x 1.97" W x 1.30" H (99.0mm x 50.0mm x 33.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
15DYS850-120420W-KAC/DC WALL MOUNT ADAPTER 12V 50W |
121 |
|
规格书 |
- | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 12V | 4.2A | 50 W | 210mW (Max) | Positive Center | ITE (Commercial) | 88% | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 47.2" (1.20m) | Multi-Blade (Included) | - | 3.33" L x 2.05" W x 1.38" H (84.5mm x 52.0mm x 35.0mm) | CE, GS, SAA, UL |
|

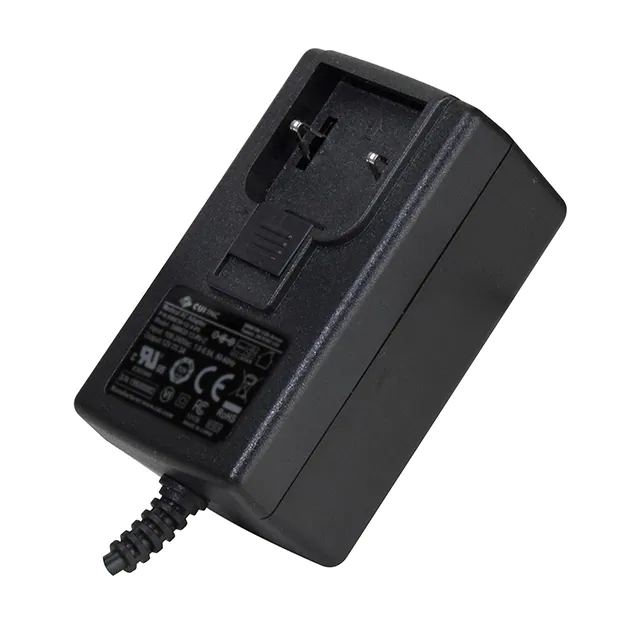

SMM30-12-K-P6AC/DC WALL MOUNT ADAPTER 12V 36W |
153 |
|
规格书 |
SMM30 (36W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 3A | 36 W | 100mW (Max) | Positive Center | Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | Multi-Blade (Sold Separately) | - | 2.90" L x 1.69" W x 1.28" H (73.6mm x 42.8mm x 32.5mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
TRH50A120-11E01 VIAC/DC DESKTOP ADAPTER 12V 50W |
153 |
|
规格书 |
TRH50A (50W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 4.2A | 50 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 70°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 28.35" (720mm) | IEC 320-C14 | - | 4.72" L x 2.05" W x 1.22" H (120.0mm x 52.0mm x 31.0mm) | CE, cULus, FCC, GS, NEMKO, PSE, TUV |
|
PPL65W-120AC/DC DESKTOP ADAPTER 12V 60W |
351 |
|
规格书 |
PPL65W (65W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 5A | 60 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | IEC 320-C8 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | cULus, IEC |
|
SDI12-12-UDC-P5AC/DC DESKTOP ADAPTER 12V 12W |
453 |
|
规格书 |
SDI12-UD (12W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 12V | 1A | 12 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 2.95" L x 1.89" W x 1.18" H (75.0mm x 48.0mm x 30.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|

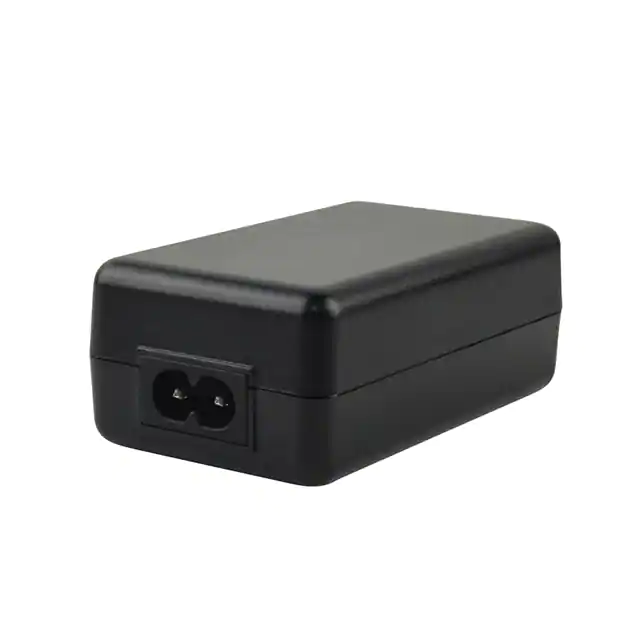

SDI18-15-UDC-P5AC/DC DESKTOP ADAPTER 15V 20W |
373 |
|
规格书 |
SDI18-UD (18W) | Box | Active | North America | Desktop (Class II) | Cord | 90 ~ 264 VAC | 15V | 1.3A | 20 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 3.48" L x 1.97" W x 1.34" H (88.5mm x 50.0mm x 34.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL |
|

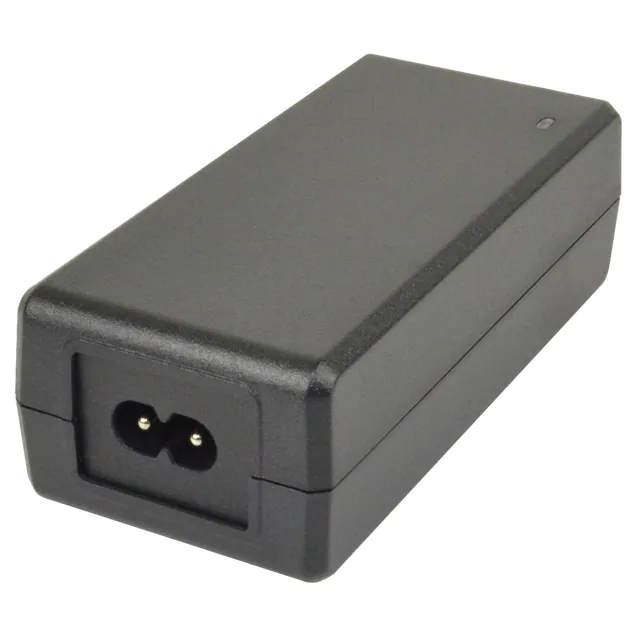

SDI50-12-UD-P5AC/DC DESKTOP ADAPTER 12V 50W |
1,750 |
|
规格书 |
SDI50-UD (50W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 4.2A | 50 W | 150mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C8 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | CB Scheme, CSA, EN, FCC, IEC, PSE, UL |
|
SWI36-12-N-P5AC-DC, 12 VDC, 3 A, SW, WALL-PLU |
448 |
|
规格书 |
SWI36-N (36W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 3A | 36 W | 100mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 3.11" L x 1.34" W x 2.20" H (79.0mm x 34.0mm x 56.0mm) | cULus, PSE |
|
|
SWI36-24-N-P5AC-DC, 24 VDC, 1.5 A, SW, WALL-P |
356 |
|
规格书 |
SWI36-N (36W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 1.5A | 36 W | 100mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | -20°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 3.11" L x 1.34" W x 2.20" H (79.0mm x 34.0mm x 56.0mm) | cULus, PSE |
|
RR9KE5000T00CIMR6BAC/DC DSKTP/WALL MT ADPT 12V 60W |
117 |
|
规格书 |
GTM96600-60VV.V-R2 | Bulk | Active | International | Desktop, Wall Mount (Class II) | Cord, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 5A | 60 W | 150mW (Max) | - | Household Appliances, ITE (Commercial), Medical | Level VI | -20°C ~ 40°C | Barrel Plug Kit, (1.3mm x 3.5mm, 2.1mm x 5.5mm, 2.5mm x 5.5mm) | 47.2" (1.20m) | IEC 320-C8, Multi-Blade (Sold Separately) | - | 4.63" L x 2.11" W x 1.44" H (117.5mm x 53.5mm x 36.6mm) | CB, CCC, CE, cETLus, EAC, LPS, PSE, RCM, S-Mark, UkrSEPRO, VCCI |
|
TE30A4803F01AC/DC DESKTOP ADAPTER 48V 30W |
324 |
|
规格书 |
TE30 (30W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 630mA | 30 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | -20°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 57" (1.45m) | IEC 320-C14 | - | 3.76" L x 2.13" W x 1.22" H (95.5mm x 54.0mm x 31.0mm) | CB, CE, DEMKO, UL |
