购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AMA65UR4-240200YAC/DC WALL MOUNT ADAPTER 24V 48W aimtec |
2,642 |
|
规格书 |
AMA65-Y | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 2A | 48 W | 210mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.50m) | NEMA 1-15P | - | 4.15" L x 1.65" W x 3.41" H (105.4mm x 42.0mm x 86.5mm) | CE, UL |
|
AMA12UR5-050200YAC/DC WALL MOUNT ADAPTER 5V 10W aimtec |
3,971 |
|
规格书 |
AMA12-Y | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2A | 10 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.72" L x 1.18" W x 2.65" H (69.0mm x 30.0mm x 67.3mm) | CE, EN, IEC, UL |
|
|
AMA12UU1-050200YAC/DC WALL MOUNT ADAPTER 5V 10W aimtec |
1,172 |
|
规格书 |
AMA12-Y | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2A | 10 W | 75mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | USB Micro | 59" (1.50m) | NEMA 1-15P | - | 2.72" L x 1.18" W x 2.65" H (69.0mm x 30.0mm x 67.3mm) | CE, EN, IEC, UL |
|
AMA5UR1-033160YAC/DC WALL MNT ADAPT 3.3V 5.28W aimtec |
2,469 |
|
规格书 |
AMA5-Y | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 3.3V | 1.6A | 5.28 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 1.35mm I.D. x 3.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.52" L x 1.03" W x 1.52" H (64.0mm x 26.2mm x 38.7mm) | FCC |
|

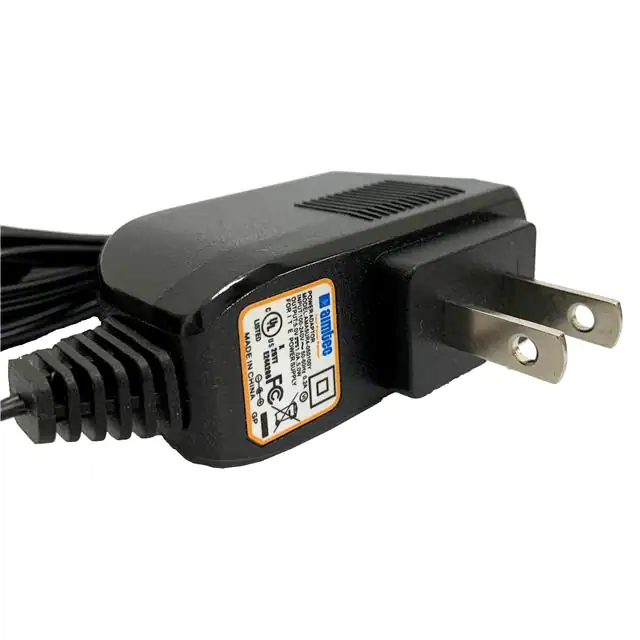

AMA5UU1-050100YAC/DC WALL MOUNT ADAPTER 5V 5W aimtec |
4,228 |
|
规格书 |
AMA5-Y | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 1A | 5 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | USB Micro | 60.2" (1.50m) | NEMA 1-15P | - | 2.52" L x 1.03" W x 2.40" H (64.0mm x 26.2mm x 61.0mm) | CE |
|
|
AMA5UR4-050100YAC/DC WALL MOUNT ADAPTER 5V 5W aimtec |
1,294 |
|
规格书 |
AMA5-Y | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 1A | 5 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.50m) | NEMA 1-15P | - | 2.52" L x 1.03" W x 2.40" H (64.0mm x 26.2mm x 61.0mm) | CE |
|
|
AMA5ER4-050100YAC/DC WALL MOUNT ADAPTER 5V 5W aimtec |
1,544 |
|
规格书 |
AMA5-Y | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 1A | 5 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.50m) | CEE 7/16 | - | 2.52" L x 1.03" W x 2.40" H (64.0mm x 26.2mm x 61.0mm) | CE |
|
|
AMA5UR4-120050YAC/DC WALL MOUNT ADAPTER 12V 6W aimtec |
3,350 |
|
规格书 |
AMA5-Y | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 500mA | 6 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.50m) | NEMA 1-15P | - | 2.52" L x 1.03" W x 2.40" H (64.0mm x 26.2mm x 61.0mm) | CE |
|
AMA12ER4-050200YAC/DC WALL MOUNT ADAPTER 5V 10W aimtec |
1,095 |
|
规格书 |
AMA12-Y | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2A | 10 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.50m) | CEE 7/16 | - | 2.72" L x 1.18" W x 3.28" H (69.0mm x 30.0mm x 83.3mm) | CE, UL |
|
|
AMA12ER5-050200YAC/DC WALL MOUNT ADAPTER 5V 10W aimtec |
2,394 |
|
规格书 |
AMA12-Y | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2A | 10 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.50m) | CEE 7/16 | - | 2.72" L x 1.18" W x 3.28" H (69.0mm x 30.0mm x 83.3mm) | CE, UL |
