购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VEH60US24AC/DC DESKTOP ADAPTER 24V 60W XP Power |
2,881 |
|
规格书 |
VEH60 (60W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2.5A | 60 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 48" (1.22m) | IEC 320-C14 | - | 4.62" L x 2.09" W x 1.26" H (117.4mm x 53.0mm x 32.0mm) | - |
|

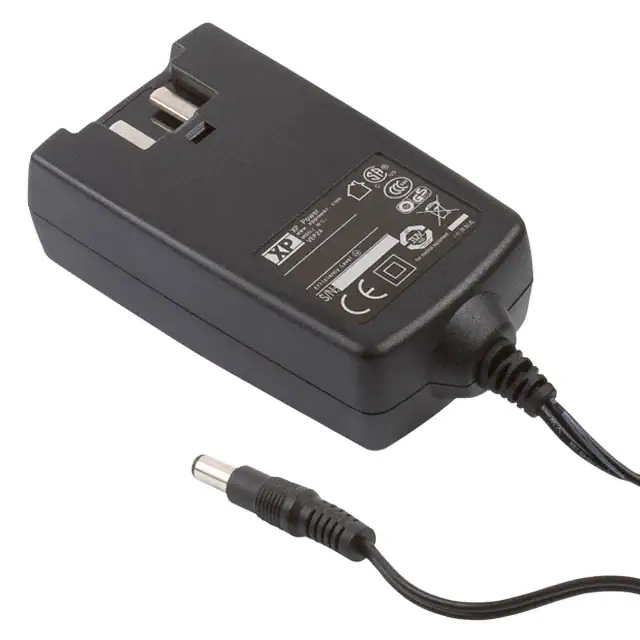

VEP24US05AC/DC WALL MOUNT ADAPTER 5V 13W XP Power |
4,694 |
|
规格书 |
VEP24 (24W) | Box | Discontinued at Digi-Key | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 5V | 2.5A | 13 W | 300mW (Max) | Positive Center | ITE (Commercial), Medical | Level IV | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | Multi-Blade | - | 3.46" L x 1.89" W x 1.14" H (88.0mm x 47.9mm x 29.0mm) | CB, TUV, UL |
|
|
VEP24US24AC/DC WALL MOUNT ADAPTER 24V 24W XP Power |
1,015 |
|
规格书 |
VEP24 (24W) | Box | Discontinued at Digi-Key | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 24V | 1A | 24 W | 300mW (Max) | Positive Center | ITE (Commercial), Medical | Level IV | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | Multi-Blade | - | 3.46" L x 1.89" W x 1.14" H (88.0mm x 47.9mm x 29.0mm) | CB, TUV, UL |
|
VEF65US12AC/DC DESKTOP ADAPTER 12V 65W XP Power |
1,336 |
|
规格书 |
VEF65 (65W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 5.41A | 65 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | -10°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C14 | - | 4.58" L x 2.06" W x 1.23" H (116.3mm x 52.4mm x 31.3mm) | - |
|
|
VEF65US24AC/DC DESKTOP ADAPTER 24V 65W XP Power |
2,064 |
|
规格书 |
VEF65 (65W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2.71A | 65 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | -10°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C14 | - | 4.58" L x 2.06" W x 1.23" H (116.3mm x 52.4mm x 31.3mm) | - |
|

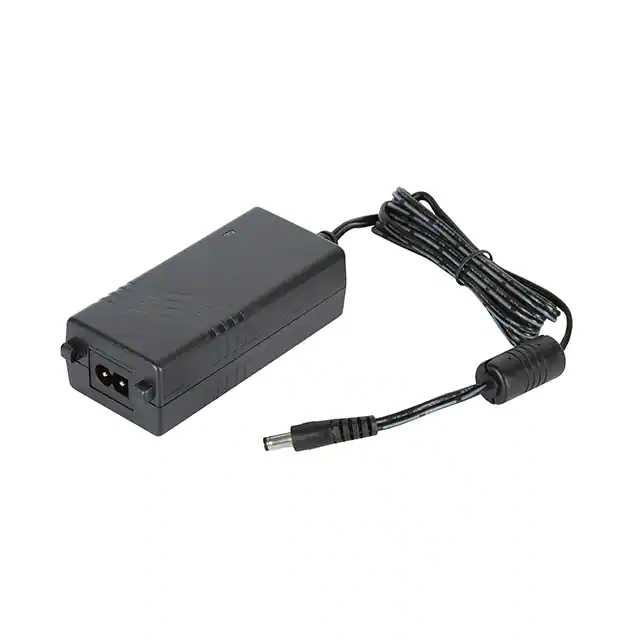

AKM36US09C2AC/DC DESKTOP ADAPTER 9V 36W XP Power |
3,936 |
|
规格书 |
AKM36 (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 9V | 4A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | IEC 320-C8 | - | 4.25" L x 1.96" W x 1.33" H (108.0mm x 50.0mm x 33.8mm) | CB, CE, CSA, TUV, UL |
|
|
AKM36US12C2AC/DC DESKTOP ADAPTER 12V 36W XP Power |
4,526 |
|
规格书 |
AKM36 (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 3A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | IEC 320-C8 | - | 4.25" L x 1.96" W x 1.33" H (108.0mm x 50.0mm x 33.8mm) | CB, CE, CSA, TUV, UL |
|
|
AKM36US15C2AC/DC DESKTOP ADAPTER 15V 36W XP Power |
1,820 |
|
规格书 |
AKM36 (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 2.4A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | IEC 320-C8 | - | 4.25" L x 1.96" W x 1.33" H (108.0mm x 50.0mm x 33.8mm) | CB, CE, CSA, TUV, UL |
|
|
AKM36US18C2AC/DC DESKTOP ADAPTER 18V 36W XP Power |
2,526 |
|
规格书 |
AKM36 (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 2A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | IEC 320-C8 | - | 4.25" L x 1.96" W x 1.33" H (108.0mm x 50.0mm x 33.8mm) | CB, CE, CSA, TUV, UL |
|
|
AKM36US24C2AC/DC DESKTOP ADAPTER 24V 36W XP Power |
2,169 |
|
规格书 |
AKM36 (36W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 1.5A | 36 W | 75mW (Max) | Positive Center | ITE (Commercial), Medical | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | IEC 320-C8 | - | 4.25" L x 1.96" W x 1.33" H (108.0mm x 50.0mm x 33.8mm) | CB, CE, CSA, TUV, UL |
