购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ICM24-240AC/DC WALL MOUNT ADAPTER 24V 24W |
415 |
|
规格书 |
Tri-Mag®, ICM24 (24W) | Box | Active | International | Wall Mount (Class II) | Fixed Blade, Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 24V | 1A | 24 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P, Multi-Blade (Sold Separately) | - | 2.84" L x 1.70" W x 1.20" H (72.1mm x 43.2mm x 30.5mm) | cUL, FCC, UL |
|
SMI6B-5-V-P5AC/DC WALL MOUNT ADAPTER 5V 6W |
141 |
|
规格书 |
SMI6B (6W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 5V | 1.2A | 6 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 60.2" (1.53m) | Multi-Blade (Included) | - | 1.85" L x 1.36" W x 1.04" H (47.0mm x 34.5mm x 26.4mm) | CB Scheme, CCC, CSA, FCC, IEC, PSE, RCM, UL |
|
16-00182AC/DC WALL MOUNT ADAPTER 12V 24W |
308 |
|
规格书 |
- | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 12V | 2A | 24 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 45°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.70" L x 1.69" W x 1.28" H (68.5mm x 43.0mm x 32.5mm) | cULus, FCC |
|
16-00186AC/DC WALL MOUNT ADAPTER 12V 24W |
162 |
|
规格书 |
- | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 12V | 2A | 24 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 45°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.70" L x 1.69" W x 1.28" H (68.5mm x 43.0mm x 32.5mm) | cULus, FCC |
|
PPL18W-120AC/DC DESKTOP ADAPTER 12V 19W |
422 |
|
规格书 |
PPL18W (18W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 1.6A | 19 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | IEC 320-C8 | - | 3.48" L x 1.97" W x 1.34" H (88.5mm x 50.0mm x 34.0mm) | cULus, IEC |
|
PA-013AC/DC WALL MOUNT ADAPTER 12V |
225 |
|
规格书 |
- | Bag | Active | North America | Wall Mount (Class II) | Cord | 100 ~ 240 VAC | 12V | 1A | - | - | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.36" L x 1.73" W x 0.79" H (60.0mm x 44.0mm x 20.0mm) | cULus |
|
PSC15A-060-C4AC/DC WALL MOUNT ADAPTER 6V 15W |
781 |
|
规格书 |
PSC15A (15W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 6V | 2.5A | 15 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 1.35mm I.D. x 3.5mm O.D. x 10.0mm | 59" (1.50m) | NEMA 1-15P | - | 2.81" L x 1.97" W x 1.23" H (71.5mm x 50.0mm x 31.2mm) | CE, cULus |
|

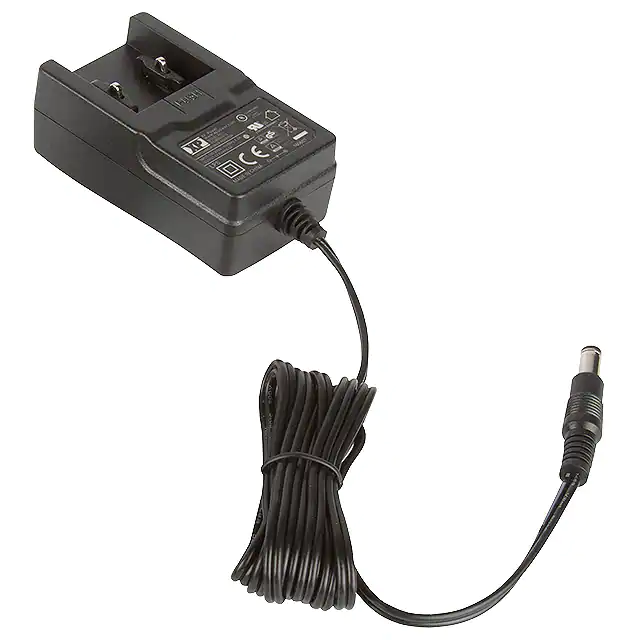

ACM06US05AC/DC WALL MOUNT ADAPTER 5V 5W |
418 |
|
规格书 |
ACM06 (6W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 1A | 5 W | 75mW (Max) | - | ITE (Commercial), Medical | Level VI, CoC Tier 2 | 0°C ~ 60°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | Multi-Blade | - | 2.89" L x 1.67" W x 1.21" H (73.5mm x 42.5mm x 30.7mm) | CB, CE |
|
PSA15A-120P6AC/DC WALL MOUNT ADAPTER 12V 15W |
801 |
|
规格书 |
PSA15A (15W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1.25A | 15 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | NEMA 1-15P | - | 2.81" L x 1.97" W x 1.23" H (71.5mm x 50.0mm x 31.2mm) | cULus |
|
|
PSA15A-480P6AC/DC WALL MOUNT ADAPTER 48V 15W |
189 |
|
规格书 |
PSA15A (15W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 48V | 310mA | 15 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | NEMA 1-15P | - | 2.81" L x 1.97" W x 1.23" H (71.5mm x 50.0mm x 31.2mm) | cULus |
|
SWI12-12-N-P6RAC/DC WALL MOUNT ADAPTER 12V 12W |
453 |
|
规格书 |
SWI12-N (12W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 1A | 12 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.83" L x 1.34" W x 1.65" H (72.0mm x 34.0mm x 42.0mm) | CB Scheme, CSA, FCC, IEC, PSE, UL |
|
SDI18-24-U-P5AC/DC DESKTOP ADAPTER 24V 19W |
191 |
|
规格书 |
SDI18-U (18W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 800mA | 19 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | IEC 320-C14 | - | 3.94" L x 1.97" W x 1.30" H (100.0mm x 50.0mm x 33.0mm) | CB Scheme, CCC, CSA, EN, FCC, IEC, PSE, UL |
|
KTPS36-240150WA-VI-P1AC/DC WALL MOUNT ADAPTER 24V 36W |
223 |
|
规格书 |
KTPS36 (36W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 24V | 1.5A | 36 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.83" L x 1.34" W x 2.05" H (72.0mm x 34.0mm x 52.0mm) | cUL, UL |
|
|
PSC15A-075AC/DC WALL MNT ADAPTER 7.5V 15W |
101 |
|
规格书 |
PSC15A (15W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 7.5V | 2A | 15 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | NEMA 1-15P | - | 2.81" L x 1.97" W x 1.23" H (71.5mm x 50.0mm x 31.2mm) | cULus |
|
KTPS18-05030MP-VI-P1AC/DC WALL MOUNT ADAPTER 5V 18W |
238 |
|
规格书 |
KTPS18 (18W) | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 100 ~ 240 VAC | 5V | 3A | 18 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | Multi-Blade | - | 2.95" L x 1.41" W x 2.58" H (75.0mm x 35.8mm x 65.6mm) | IEC |
|
SWI24-15-N-P5AC/DC WALL MOUNT ADAPTER 15V 24W |
1,844 |
|
规格书 |
SWI24-N (24W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 1.6A | 24 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.83" L x 1.34" W x 2.05" H (72.0mm x 34.0mm x 52.0mm) | CB Scheme, CCC, CSA, FCC, IEC, PSE, UL |
|
KTPS24-24010WA-VI-P1AC/DC WALL MOUNT ADAPTER 24V 24W |
210 |
|
规格书 |
KTPS24 (24W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 24V | 1A | 24 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.83" L x 1.34" W x 2.05" H (72.0mm x 34.0mm x 52.0mm) | IEC |
.jpg)
|
WR95E2000CCP-F(R6B)AC/DC WALL MOUNT ADAPTER 12V 24W |
245 |
|
规格书 |
GT-86240-2412-W2U | Bulk | Active | United Kingdom | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 2A | 24 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | BS 1363 | - | 2.89" L x 1.96" W x 3.45" H (73.5mm x 49.9mm x 87.7mm) | CE, EAC, LPS, UKRSepro |
|
WR9HADE3000USBFR6BEURO PLUGIN QUICK CHARGE ADAPTOR |
585 |
|
规格书 |
GT-86182-1812-W2-USB | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V, 9V, 12V | 3A, 2A, 1.5A | 18 W | 75mW | - | Household Appliances, ITE (Commercial), Medical | Level VI, CoC Tier 2 | 0°C ~ 40°C | USB A Receptacle | - | NEMA 1-15P | - | 2.03" L x 1.52" W x 0.93" H (51.5mm x 38.5mm x 23.5mm) | cULus, EAC, PSE, Ukraine, VCCI, WEEE |
|
|
PSAD65-14-B1AC/DC DESKTOP ADAPTER 24V 65W |
391 |
|
规格书 |
PSAD65 (65W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2.7A | 65 W | 210mW | - | ITE (Commercial) | Level VI | 0°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 47" (1.20m) | IEC 320-C14 | - | 4.72" L x 1.98" W x 1.32" H (119.9mm x 50.3mm x 33.5mm) | CB, CCC, CE, cULus, FCC, PSE |
