购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSAC05A-050L6AC/DC WALL MOUNT ADAPTER 5V 5W |
1,076 |
|
规格书 |
PSAC05A-L6 (5W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 1A | 5 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | NEMA 1-15P | - | 2.62" L x 1.10" W x 1.42" H (66.5mm x 28.0mm x 36.0mm) | CB, cULus |
|
QFWB-30-5-US01AC/DC WALL MOUNT ADAPTER 5V 18W |
320 |
|
规格书 |
QFWB-30 (30W) | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 5V | 3.5A | 18 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | NEMA 1-15P | - | 2.81" L x 1.70" W x 1.13" H (71.3mm x 43.3mm x 28.8mm) | cULus |
|
PSAC05R-050L6MAC/DC WALL MOUNT ADAPTER 5V 5W |
8,801 |
|
规格书 |
PSAC05R-L6 (5W) | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 1A | 5 W | 30mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | USB Micro | 59" (1.50m) | Multi-Blade | - | 2.82" L x 1.77" W x 1.17" H (71.7mm x 45.0mm x 29.8mm) | CB, CE, cULus, TUVgs |
.jpg)
|

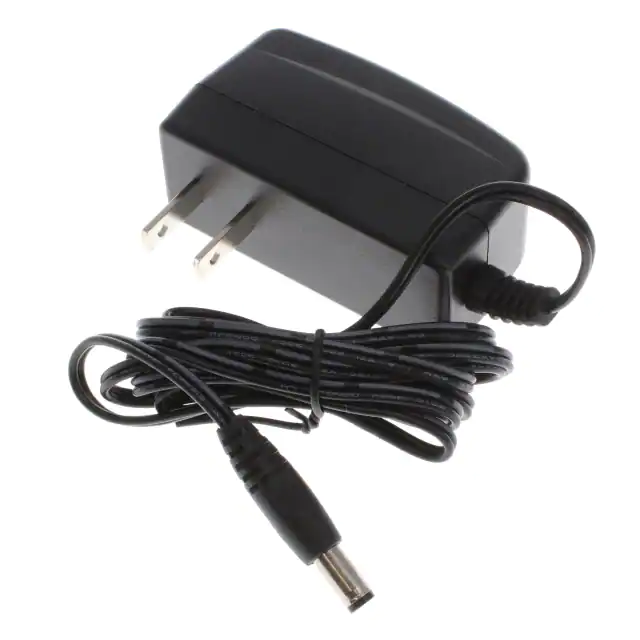

WR9HI500CCP-F(R6B)AC/DC WALL MOUNT ADAPTER 24V 12W |
518 |
|
规格书 |
- | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 500mA | 12 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | NEMA 1-15P | - | 2.72" L x 1.13" W x 2.26" H (69.0mm x 28.8mm x 57.3mm) | CB, cULus, EAC, LPS, PSE, UKRSepro, VCCI |
|
HDP12-MD-BUSB-4AC/DC WALL MOUNT ADAPTER 5V 12W |
514 |
|
规格书 |
HDP-MD | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 5V | 2.4A | 12 W | - | - | ITE (Commercial), Medical | Level VI | 0°C ~ 50°C | USB A Receptacle | - | Multi-Blade (Sold Separately) | - | 2.37" L x 1.64" W x 0.73" H (60.3mm x 41.8mm x 18.5mm) | CB, CE, C-Tick, cULus, SAA |
|
16-00142AC/DC WALL MOUNT ADAPTER 12V 18W |
2,290 |
|
规格书 |
- | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 240 VAC | 12V | 1.5A | 18 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 45°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.50" L x 1.63" W x 1.18" H (63.5mm x 41.5mm x 30.0mm) | cULus, FCC |
|
SWI5-12-E-P5AC/DC WALL MOUNT ADAPTER 12V 6W |
840 |
|
规格书 |
SWI5-E (6W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 500mA | 6 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | CEE 7/16 | - | 0.89" L x 1.42" W x 2.58" H (22.6mm x 36.0mm x 65.6mm) | CB Scheme, IEC |
|

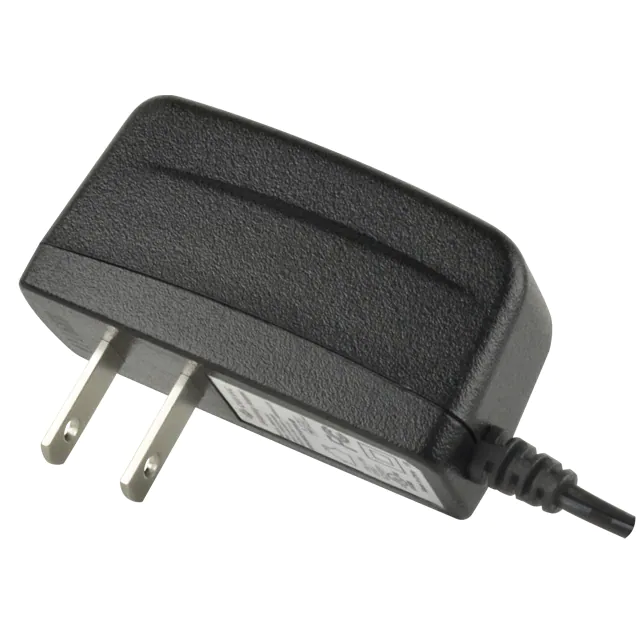

SWI5-12-N-P5AC/DC WALL MOUNT ADAPTER 12V 6W |
753 |
|
规格书 |
SWI5-N (5W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 500mA | 6 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 0.89" L x 1.42" W x 1.88" H (22.6mm x 36.0mm x 47.7mm) | CSA, FCC, PSE, UL |
|
|
SWI5-12-N-P5RAC/DC WALL MOUNT ADAPTER 12V 6W |
386 |
|
规格书 |
SWI5-N (5W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 12V | 500mA | 6 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 0.89" L x 1.42" W x 1.88" H (22.6mm x 36.0mm x 47.7mm) | CSA, FCC, PSE, UL |
|
15DYS818-240075W-2AC/DC WALL MOUNT ADAPTER 24V 18W |
106 |
|
规格书 |
15DYS818 (18W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 750mA | 18 W | - | - | ITE (Commercial) | Level VI | 0°C ~ 45°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | - | CEE 7/16 | - | 2.66" L x 1.79" W x 1.10" H (67.5mm x 45.5mm x 28.0mm) | CE, TUV |
|
313080343AC/DC DSKTP ADPT 4.75V-5.25V 21W |
524 |
|
规格书 |
- | Bulk | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 4.75V ~ 5.25V | 4A | 21 W | - | Positive Center | ITE (Commercial) | 80% | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | IEC 320-C8 | - | 3.80" L x 1.76" W x 1.20" H (96.6mm x 44.6mm x 30.5mm) | CCC, CE, cULus, PSE |
|
L6R30-300AC/DC WALL MOUNT ADAPTER 30V 30W |
787 |
|
规格书 |
Tri-Mag®, L6R30 (30W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 30V | 1A | 30 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.80" L x 1.70" W x 1.30" H (71.1mm x 43.2mm x 33.0mm) | cUL, FCC, UL |
|
AQ10E-050BP-HAC/DC WALL MOUNT ADAPTER 5V 10W |
376 |
|
规格书 |
AQ10E (10W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2A | 10 W | 48mW | - | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | USB A Receptacle | - | CEE 7/16 | - | 2.33" L x 1.50" W x 0.88" H (59.1mm x 38.0mm x 22.3mm) | CE |
|
|
SWI5-5-N-P5AC/DC WALL MOUNT ADAPTER 5V 5W |
363 |
|
规格书 |
SWI5-N (5W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 1A | 5 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 0.89" L x 1.42" W x 1.88" H (22.6mm x 36.0mm x 47.7mm) | CSA, FCC, PSE, UL |
|
SC0624AC/DC WALL MNT ADAPTER 5.1V 13W |
225 |
|
规格书 |
- | Bulk | Active | Europe | Wall Mount (Class II) | Fixed Blade | 96 ~ 264 VAC | 5.1V | 2.5A | 13 W | 75mW | - | ITE (Commercial) | 80.73% | 0°C ~ 40°C | USB Micro | 59" (1.50m) | KSC 8305 | - | 1.89" L x 1.77" W x 1.06" H (48.0mm x 45.0mm x 27.0mm) | - |
|
SC0523AC/DC WALL MNT ADAPTER 5.1V 15W |
144 |
|
- |
- | Bulk | Active | Australia | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5.1V | 3A | 15 W | 75mW (Max) | - | - | - | 0°C ~ 40°C | USB C | 59" (1.50m) | AS 3112 | - | 1.77" L x 1.77" W x 1.40" H (45.0mm x 45.0mm x 35.6mm) | - |
|
|
SC0219AC/DC WALL MNT ADAPTER 5.1V 15W |
124 |
|
- |
- | Bulk | Active | Australia | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5.1V | 3A | 15 W | 75mW (Max) | - | - | - | 0°C ~ 40°C | USB C | 59" (1.50m) | AS 3112 | - | 1.77" L x 1.77" W x 1.40" H (45.0mm x 45.0mm x 35.6mm) | - |
|
WSU050-3000-13AC/DC WALL MOUNT ADAPTER 5V 15W |
1,868 |
|
规格书 |
WSU | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 3A | 15 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | NEMA 1-15P | - | 3.03" L x 1.89" W x 1.22" H (77.0mm x 48.0mm x 31.0mm) | cETLus |
|
WSU180-1000AC/DC WALL MOUNT ADAPTER 18V 18W |
1,578 |
|
规格书 |
WSU | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 18V | 1A | 18 W | 100mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 72" (1.83m) | NEMA 1-15P | - | 3.03" L x 1.89" W x 1.22" H (77.0mm x 48.0mm x 31.0mm) | cETLus |
.JPG)
|

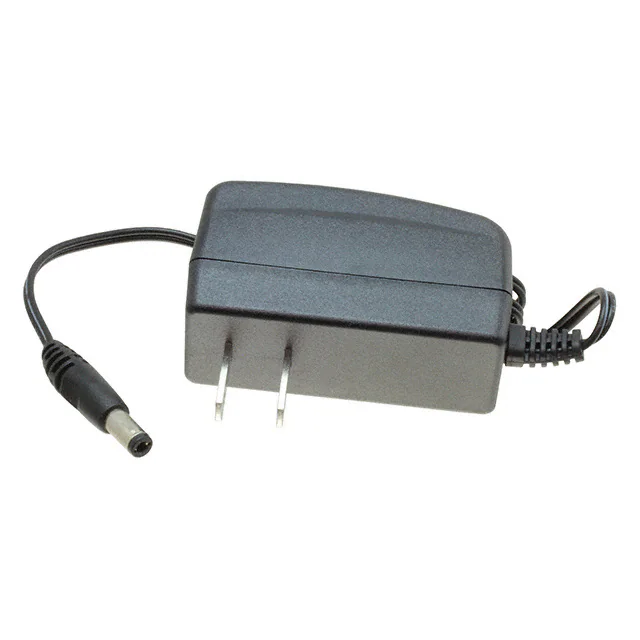

WR9HA2000CCP-F(R6B)AC/DC WALL MOUNT ADAPTER 5V 10W |
454 |
|
规格书 |
GT-86120-WWVV-X.X-W2 | Bulk | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V | 2A | 10 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | NEMA 1-15P | - | 2.72" L x 1.13" W x 1.59" H (69.0mm x 28.8mm x 40.3mm) | CB, cULus, EAC, FCC, LPS, PSE, UKRSepro, VCCI |
