购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PS24V-3.75AC/DC DESKTOP ADAPTER 24V 90W Tycon Systems Inc. |
130 |
|
规格书 |
PS | Retail Package | Active | International | Desktop (Class II) | Cord | 90 ~ 264 VAC | 24V | 3.75A | 90 W | 500mW | Positive Center | ITE (Commercial) | 80% | -20°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47" (1.20m) | IEC 320-C8 | - | 5.50" L x 2.40" W x 1.30" H (139.7mm x 61.0mm x 33.0mm) | CE, FCC, UL |
|

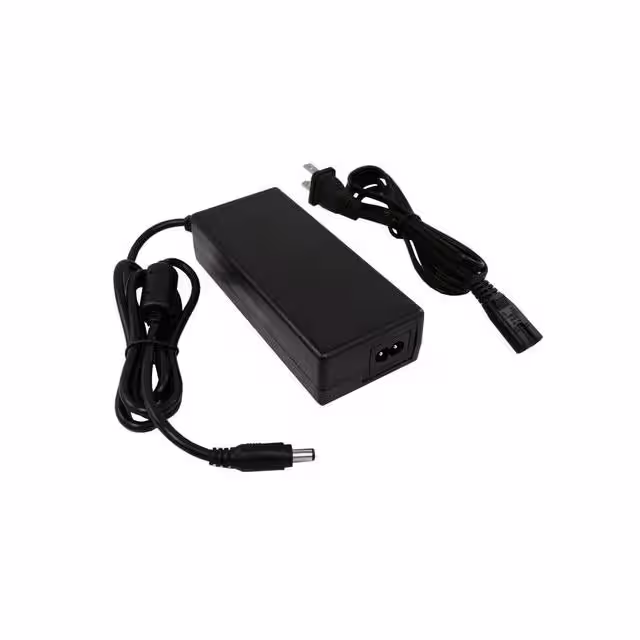

PS36V-2.5AC/DC DESKTOP ADAPTER 36V 90W Tycon Systems Inc. |
4,468 |
|
规格书 |
PS | Box | Active | International | Desktop (Class II) | Cord | 90 ~ 264 VAC | 36V | 2.5A | 90 W | - | Positive Center | ITE (Commercial) | 80% | -20°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C8 | - | 5.51" L x 2.36" W x 1.34" H (140.0mm x 60.0mm x 34.0mm) | CE, FCC, UL |
|
|
PS24V-3.75AC/DC DESKTOP ADAPTER 24V 90W Tycon Systems Inc. |
3,740 |
|
规格书 |
PS | Box | Active | International | Desktop (Class II) | Cord | 90 ~ 264 VAC | 24V | 3.75A | 90 W | - | Positive Center | ITE (Commercial) | 80% | -20°C ~ 60°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | IEC 320-C8 | - | 5.51" L x 2.36" W x 1.34" H (140.0mm x 60.0mm x 34.0mm) | CE, FCC, UL |
|

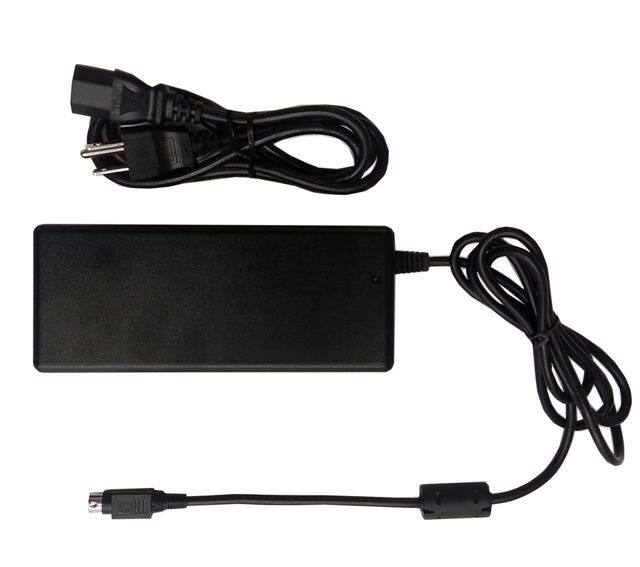

PS48V-2.5AC/DC DESKTOP ADAPTER 48V 120W Tycon Systems Inc. |
3,447 |
|
规格书 |
PS | Box | Obsolete | International | Desktop (Class II) | Cord | 90 ~ 264 VAC | 48V | 2.5A | 120 W | - | - | ITE (Commercial) | 80% | -10°C ~ 40°C | Power DIN, 4 Pin | 47.2" (1.20m) | - | - | 6.60" L x 2.60" W x 1.30" H (167.6mm x 66.0mm x 33.0mm) | - |
|

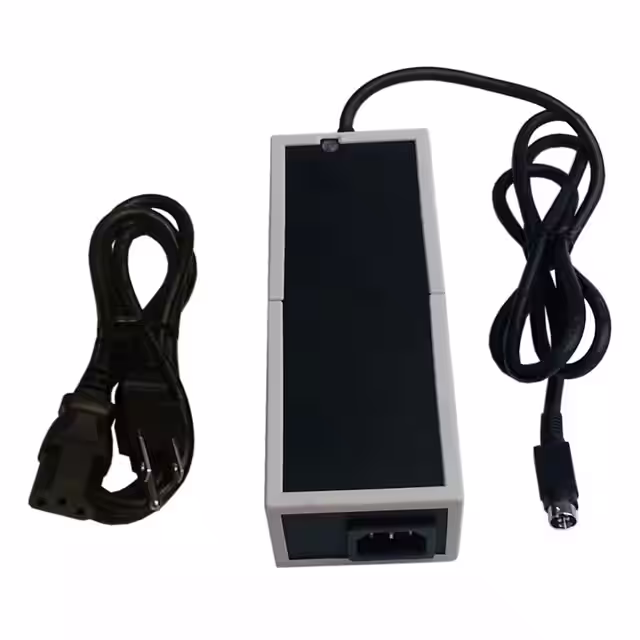

PSHP-65-180-DINAC/DC DESKTOP ADAPTER 65V 182W Tycon Systems Inc. |
4,321 |
|
- |
PSHP | Box | Obsolete | International | Desktop (Class I) | Cord | 90 ~ 264 VAC | 65V | 2.8A | 182 W | - | - | ITE (Commercial) | 85% | -20°C ~ 50°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 6.89" L x 2.56" W x 1.69" H (175.0mm x 65.0mm x 43.0mm) | CE, cUL, FCC, TUV |
|
PSHP-56-180AC/DC DESKTOP ADAPTER 56V 179W Tycon Systems Inc. |
4,718 |
|
- |
PSHP | Box | Obsolete | International | Desktop (Class I) | Cord | 90 ~ 264 VAC | 56V | 3.2A | 179 W | - | - | ITE (Commercial) | 85% | -20°C ~ 50°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C14 | - | 6.89" L x 2.56" W x 1.69" H (175.0mm x 65.0mm x 43.0mm) | CE, cUL, FCC, TUV |
|

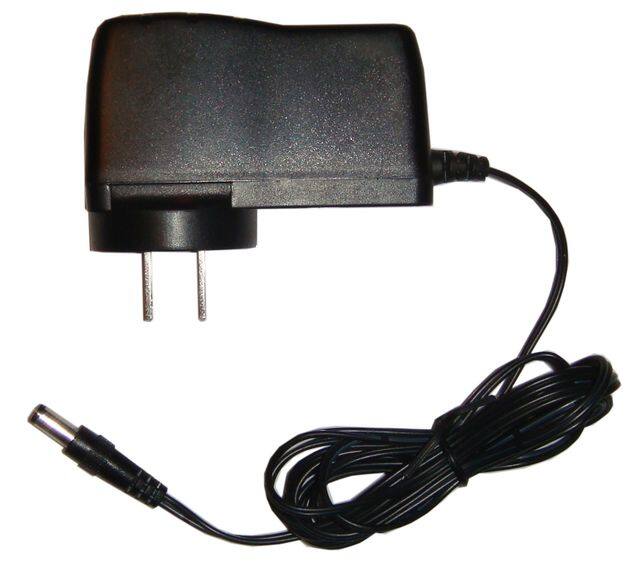

PS18VAC/DC WALL MOUNT ADAPTER 18V 14W Tycon Systems Inc. |
1,226 |
|
- |
PS | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 264 VAC | 18V | 800mA | 14 W | - | Positive Center | ITE (Commercial) | 78% | -10°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | NEMA 1-15P | - | 2.90" L x 1.65" W x 1.20" H (73.7mm x 41.9mm x 30.5mm) | - |
|

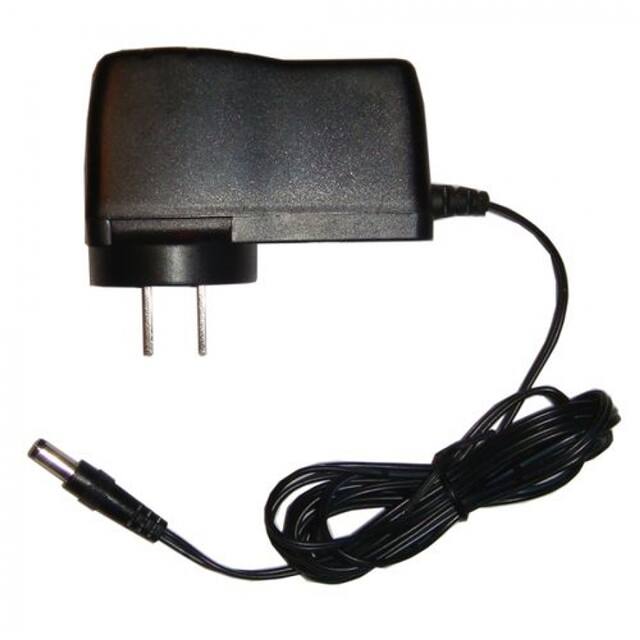

PS15VAC/DC WALL MOUNT ADAPTER 15V 14W Tycon Systems Inc. |
2,973 |
|
- |
PS | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 264 VAC | 15V | 900mA | 14 W | - | Positive Center | ITE (Commercial) | 78% | -10°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | NEMA 1-15P | - | 2.90" L x 1.65" W x 1.20" H (73.7mm x 41.9mm x 30.5mm) | - |
|
|
PS24VAC/DC WALL MOUNT ADAPTER 24V 13W Tycon Systems Inc. |
2,191 |
|
- |
PS | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 264 VAC | 24V | 550mA | 13 W | - | Positive Center | ITE (Commercial) | 78% | -10°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | NEMA 1-15P | - | 2.90" L x 1.65" W x 1.20" H (73.7mm x 41.9mm x 30.5mm) | - |
