购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
L6R300D-120AC/DC DESKTOP ADAPTER 12V 300W Tri-Mag, LLC |
2,342 |
|
规格书 |
Tri-Mag®, L6R300D (300W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 24A | 288 W | 500mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Rectangular, 6 Position | 39.4" (1.00m) | IEC 320-C14 | - | 10.00" L x 4.57" W x 1.85" H (254.0mm x 116.0mm x 47.0mm) | CE, cULus, EN, FCC, TUV |
|
DT200Z-3AC/DC DESKTOP ADAPTER 18V 180W Tri-Mag, LLC |
2,660 |
|
规格书 |
DT200Z (200W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 10A | 180 W | 500mW (Max) | - | ITE (Commercial) | 87% | -20°C ~ 60°C | Rectangular, 6 Position | 72" (1.83m) | IEC 320-C14 | - | 8.27" L x 4.06" W x 2.05" H (210.0mm x 103.0mm x 52.0mm) | - |
|
|
DT200Z-6AC/DC DESKTOP ADAPTER 24V 202W Tri-Mag, LLC |
4,728 |
|
规格书 |
DT200Z (200W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 8.4A | 202 W | 500mW (Max) | - | ITE (Commercial) | 87% | -20°C ~ 60°C | Rectangular, 6 Position | 72" (1.83m) | IEC 320-C14 | - | 8.27" L x 4.06" W x 2.05" H (210.0mm x 103.0mm x 52.0mm) | - |
|
|
DT200Z-8AC/DC DESKTOP ADAPTER 15V 180W Tri-Mag, LLC |
2,659 |
|
规格书 |
DT200Z (200W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 15V | 12A | 180 W | 500mW (Max) | - | ITE (Commercial) | 87% | -20°C ~ 60°C | Rectangular, 6 Position | 72" (1.83m) | IEC 320-C14 | - | 8.27" L x 4.06" W x 2.05" H (210.0mm x 103.0mm x 52.0mm) | - |
|
|
DT200Z-14AC/DC DESKTOP ADAPTER 48V 202W Tri-Mag, LLC |
3,839 |
|
规格书 |
DT200Z (200W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 48V | 4.2A | 202 W | 500mW (Max) | - | ITE (Commercial) | 87% | -20°C ~ 60°C | Rectangular, 6 Position | 72" (1.83m) | IEC 320-C14 | - | 8.27" L x 4.06" W x 2.05" H (210.0mm x 103.0mm x 52.0mm) | - |
|
|
L6R120DM-240AC/DC DESKTOP ADAPTER 24V 120W Tri-Mag, LLC |
2,751 |
|
- |
Tri-Mag®, L6R120DM (120W) | Bulk | Active | International | Desktop | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 5A | 120 W | 150mW | Positive Center | ITE (Commercial), Medical | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | - | - | 4.72" L x 2.01" W x 1.34" H (120.0mm x 51.0mm x 34.0mm) | CE, cUL, FCC, UL |
|
|
DT200Z-5AC/DC DESKTOP ADAPTER 12V 180W Tri-Mag, LLC |
4,882 |
|
规格书 |
DT200Z (200W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 15A | 180 W | 500mW (Max) | - | ITE (Commercial) | 87% | -20°C ~ 60°C | Rectangular, 6 Position | 72" (1.83m) | IEC 320-C14 | - | 8.27" L x 4.06" W x 2.05" H (210.0mm x 103.0mm x 52.0mm) | - |
|
|
DT099Z-5AC/DC DESKTOP ADAPTER 12V 90W Tri-Mag, LLC |
1,239 |
|
规格书 |
Tri-Mag®, DT-Z (100W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 7.5A | 90 W | - | - | ITE (Commercial) | - | -20°C ~ 60°C | Power DIN, 4 Pin | 72" (1.83m) | IEC 320-C14 | - | 6.57" L x 3.03" W x 1.85" H (167.0mm x 77.0mm x 47.0mm) | - |
|
|
DT100Z-6AC/DC DESKTOP ADAPTER 24V 120W Tri-Mag, LLC |
1,414 |
|
- |
DT100Z (120W) | Box | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 5A | 120 W | - | - | ITE (Commercial) | 85% | 0°C ~ 40°C | Rectangular, 6 Position | 72" (1.83m) | IEC 320-C14 | - | 7.09" L x 3.74" W x 1.97" H (180.0mm x 95.0mm x 50.0mm) | - |
|

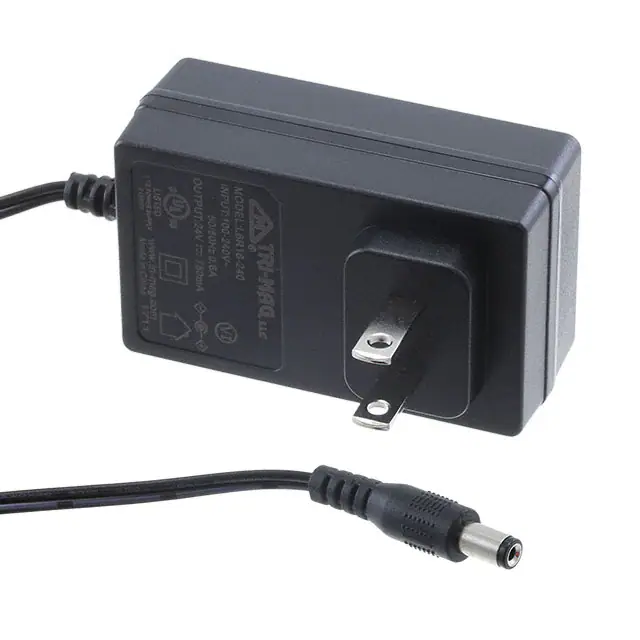

L6R18-300AC/DC WALL MOUNT ADAPTER 30V 18W Tri-Mag, LLC |
2,966 |
|
规格书 |
Tri-Mag®, L6R18 (18W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 30V | 600mA | 18 W | 100mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 59" (1.50m) | NEMA 1-15P | - | 2.80" L x 1.70" W x 1.30" H (71.1mm x 43.2mm x 33.0mm) | CE, cUL, UL |
