购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSAC45W-180AC/DC DESKTOP ADAPTER 18V 45W Phihong USA |
3,961 |
|
规格书 |
PSAC45W (45W) | Box | Not For New Designs | International | Desktop (Class II) | Cord (Sold Separately) | 89 ~ 270 VAC | 18V | 2.5A | 45 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | IEC 320-C8 | - | 4.72" L x 1.98" W x 1.24" H (120.0mm x 50.4mm x 31.4mm) | CE, cULus |
|
PSAA30R-560AC/DC WALL MOUNT ADAPTER 56V 30W Phihong USA |
2,034 |
|
规格书 |
PSAA30R (30W) | Box | Not For New Designs | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 56V | 540mA | 30 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | Multi-Blade | - | 3.26" L x 2.17" W x 1.54" H (82.7mm x 55.0mm x 39.1mm) | CE, cULus |
|
PSAC60W-120AC/DC DESKTOP ADAPTER 12V 60W Phihong USA |
1,074 |
|
规格书 |
PSAC60W (60W) | Box | Obsolete | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 5A | 60 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C8 | - | 5.12" L x 2.36" W x 1.30" H (130.0mm x 60.0mm x 32.0mm) | CE, cULus |
|
PSAC60M-560AC/DC DESKTOP ADAPTER 56V 60W Phihong USA |
3,054 |
|
规格书 |
PSAC60M (60W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 56V | 1.08A | 60 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 47.2" (1.20m) | IEC 320-C6 | - | 5.12" L x 2.36" W x 1.30" H (130.0mm x 60.0mm x 32.0mm) | CE, cULus |
|
PSA15R-240PV-R-CR4AC/DC WALL MOUNT ADAPTER 24V 15W Phihong USA |
2,720 |
|
规格书 |
PSA15R (15W) | Bulk | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 24V | 625mA | 15 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug R/A, 1.35mm I.D. x 3.5mm O.D. x 10.0mm | 59" (1.50m) | Multi-Blade | - | 2.82" L x 1.97" W x 1.31" H (71.7mm x 50.0mm x 33.2mm) | CE, C-Tick, cULus, GS |
|
PPL65M-120 (TC1)AC/DC DSKTP/WALL MT ADPT 12V 60W Phihong USA |
3,476 |
|
- |
PPL65M (65W) | Box | Active | International | Desktop, Wall Mount (Class I) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 5A | 60 W | 34mW | Positive Center | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | IEC 320-C6 | - | 4.53" L x 2.09" W x 1.50" H (115.0mm x 53.0mm x 38.0mm) | CE, cULus, IEC |
|

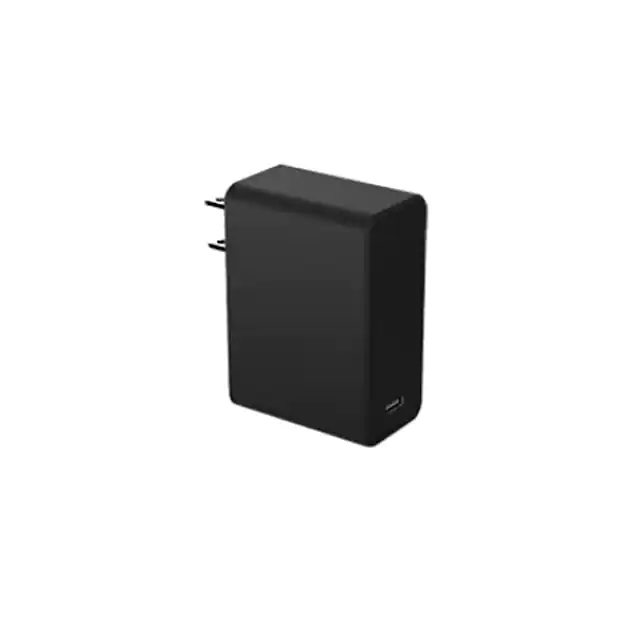

AQ45A-5CKA-HACDC WALL MNT ADP 5V/12V/20V 45W Phihong USA |
2,995 |
|
规格书 |
AQ45 (45W) | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V/12V/20V | 3A, 3A, 2.25A | 45 W | 75mW (Max) | - | ITE (Commercial) | Level VI | 0°C ~ 45°C | USB C Power Delivery (PD) | - | NEMA 1-15P | - | 2.64" L x 1.14" W x 1.89" H (67.0mm x 29.0mm x 48.0mm) | cULus |
|
AA20R-120A-RAC/DC WALL MOUNT ADAPTER 12V 20W Phihong USA |
1,921 |
|
规格书 |
AA20R (20W) | Bulk | Active | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 90 ~ 264 VAC | 12V | 1.67A | 20 W | 63mW (Max) | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 10.0mm | 59" (1.50m) | Multi-Blade (Sold Separately) | - | 2.85" L x 2.00" W x 1.31" H (72.5mm x 50.8mm x 33.3mm) | CE, cULus, RCM |
|

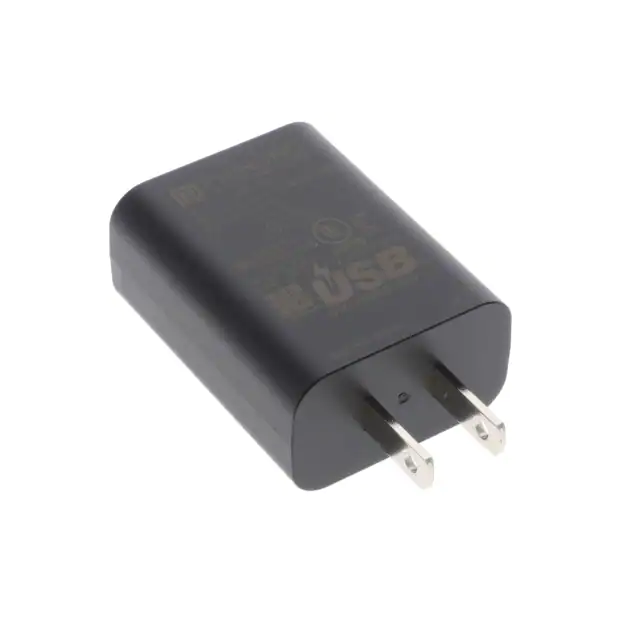

AQ18A-59CFA-HAC/DC WALL ADP 5V/9V/12V/15V 18W Phihong USA |
2,802 |
|
规格书 |
AQ18 (18W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 5V, 9V, 12V, 15V | 3A, 2A, 1.5A, 1.2A | 18 W | 75mW (Max) | - | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | USB C Power Delivery (PD) | - | NEMA 1-15P | - | 1.57" L x 0.92" W x 2.05" H (40.0mm x 23.3mm x 52.0mm) | CE, cULus |
|
|
AN18V-59CFAA-H18W INTERCHANGEABLE USB-C ADPTR Phihong USA |
4,066 |
|
规格书 |
AN18 (18W) | Bulk | Active | International | Wall Mount | Multi-Blade (Included) | 90 ~ 264 VAC | 5V, 9V, 12V, 15V | 3A, 2A, 1.5A, 1.2A | 18 W | 29.1mW | - | ITE (Commercial) | Level VI, CoC Tier 2 | 0°C ~ 40°C | USB C Power Delivery (PD) | - | Multi-Blade (Included) | - | 2.20" L x 1.59" W x 1.33" H (55.9mm x 40.4mm x 33.8mm) | CCC, CE, cUL, cULus, KC, PSE, UKCA |
