购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GST25A12-P1MAC/DC DESKTOP ADAPTER 12V 25W MEAN WELL USA Inc. |
4,031 |
|
规格书 |
GST25A (25W) | Box | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 12V | 2.08A | 25 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 39.4" (1.00m) | IEC 320-C14 | - | 3.66" L x 2.13" W x 1.42" H (93.0mm x 54.0mm x 36.0mm) | BIS, BSMI, CB, CCC, CE, cULus, EAC, GS, KC, PSE, RCM, SIRIM |
|
GST18U12-P1MAC/DC WALL MOUNT ADAPTER 12V 18W MEAN WELL USA Inc. |
3,287 |
|
规格书 |
GST18U (18W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 85 ~ 264 VAC | 12V | 1.5A | 18 W | 75mW (Max) | Positive Center | ITE (Commercial) | Level VI | -30°C ~ 70°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | NEMA 1-15P | - | 3.11" L x 2.13" W x 1.30" H (79.0mm x 54.0mm x 33.0mm) | BSMI, CB, cULus, EAC |
|
GEM06I09-P1JAC/DC WALL MOUNT ADAPTER 9V 5.9W MEAN WELL USA Inc. |
4,671 |
|
规格书 |
GEM06I (6W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 9V | 660mA | 5.9 W | 300mW (Max) | Positive Center | Medical | Level V | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | Multi-Blade (Sold Separately) | - | 2.91" L x 1.54" W x 1.91" H (73.9mm x 39.0mm x 48.5mm) | CE, cURus, EAC, FCC, TUV |
|
|
GEM06I12-P1JAC/DC WALL MOUNT ADAPTER 12V 6W MEAN WELL USA Inc. |
4,239 |
|
规格书 |
GEM06I (6W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 12V | 500mA | 6 W | 300mW (Max) | Positive Center | Medical | Level V | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | Multi-Blade (Sold Separately) | - | 2.91" L x 1.54" W x 1.91" H (73.9mm x 39.0mm x 48.5mm) | CE, cURus, EAC, FCC, TUV |
|
|
GEM06I15-P1JAC/DC WALL MOUNT ADAPTER 15V 6W MEAN WELL USA Inc. |
2,186 |
|
规格书 |
GEM06I (6W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 15V | 400mA | 6 W | 300mW (Max) | Positive Center | Medical | Level V | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | Multi-Blade (Sold Separately) | - | 2.91" L x 1.54" W x 1.91" H (73.9mm x 39.0mm x 48.5mm) | CE, cURus, EAC, FCC, TUV |
|

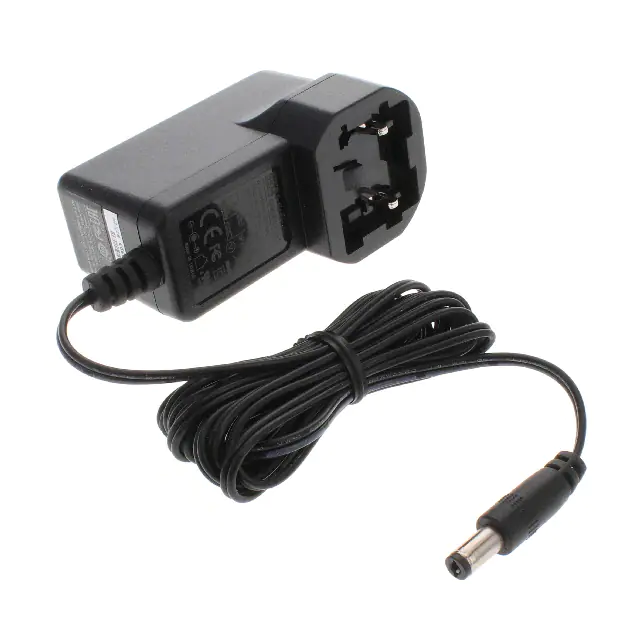

GEM06I24-P1JAC/DC WALL MOUNT ADAPTER 24V 6W MEAN WELL USA Inc. |
1,210 |
|
规格书 |
GEM06I (6W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 24V | 250mA | 6 W | 300mW (Max) | Positive Center | Medical | Level V | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | Multi-Blade (Sold Separately) | - | 2.91" L x 1.54" W x 1.91" H (73.9mm x 39.0mm x 48.5mm) | CE, cURus, EAC, FCC, TUV |
|
|
GEM06I18-P1JAC/DC WALL MNT ADAPTER 18V 5.9W MEAN WELL USA Inc. |
2,495 |
|
规格书 |
GEM06I (6W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 18V | 330mA | 5.9 W | 300mW (Max) | Positive Center | Medical | Level V | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 70.9" (1.80m) | Multi-Blade (Sold Separately) | - | 2.91" L x 1.54" W x 1.91" H (73.9mm x 39.0mm x 48.5mm) | CE, cURus, EAC, FCC, TUV |
|
|
GEM06I06-P1JAC/DC WALL MOUNT ADAPTER 6V 6W MEAN WELL USA Inc. |
3,844 |
|
规格书 |
GEM06I (6W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 6V | 1A | 6 W | 300mW (Max) | Positive Center | Medical | Level V | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | Multi-Blade (Sold Separately) | - | 2.91" L x 1.54" W x 1.91" H (73.9mm x 39.0mm x 48.5mm) | CE, cURus, EAC, FCC, TUV |
|
|
GEM06I07-P1JAC/DC WALL MOUNT ADAPTER 7.5V 6W MEAN WELL USA Inc. |
2,737 |
|
规格书 |
GEM06I (6W) | Box | Obsolete | International | Wall Mount (Class II) | Multi-Blade (Sold Separately) | 80 ~ 264 VAC | 7.5V | 800mA | 6 W | 300mW (Max) | Positive Center | Medical | Level V | -20°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 47.2" (1.20m) | Multi-Blade (Sold Separately) | - | 2.91" L x 1.54" W x 1.91" H (73.9mm x 39.0mm x 48.5mm) | CE, cURus, EAC, FCC, TUV |
|
|
NGE12E12-P1J+12V1A;20AWG/150CM MEAN WELL USA Inc. |
2,806 |
|
- |
NGE12 (12W) | Bulk | Active | Europe | Wall Mount (Class II) | Fixed Blade | 80 ~ 264 VAC, 113 ~ 370 VDC | 12V | 1A | 12 W | 75mW | Positive Center | Household Appliances, ITE (Commercial), Medical | Level VI | -30°C ~ 70°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 11.0mm | 59" (1.50m) | CEE 7/16 | - | 2.17" L x 1.89" W x 1.10" H (55.0mm x 48.0mm x 28.0mm) | CB, CE, EAC |
