购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FWC080015A-12BAC/DC DESKTOP ADAPTER 15V 80W Inventus Power |
1,583 |
|
规格书 |
FWC080 (80W) | Bulk | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 15V | 5.3A | 80 W | 500mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 60°C | DIN, 8 Pin | 72" (1.83m) | IEC 320-C14 | - | 7.09" L x 2.27" W x 1.52" H (180.2mm x 57.5mm x 38.6mm) | CB, CE, cTUVus |
|
|
FWC080012A-12BAC/DC DESKTOP ADAPTER 12V 79W Inventus Power |
1,976 |
|
规格书 |
FWC080 (80W) | Bulk | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 12V | 6.6A | 79 W | 500mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 60°C | DIN, 8 Pin | 72" (1.83m) | IEC 320-C14 | - | 7.09" L x 2.27" W x 1.52" H (180.2mm x 57.5mm x 38.6mm) | CB, CE, cTUVus |
|

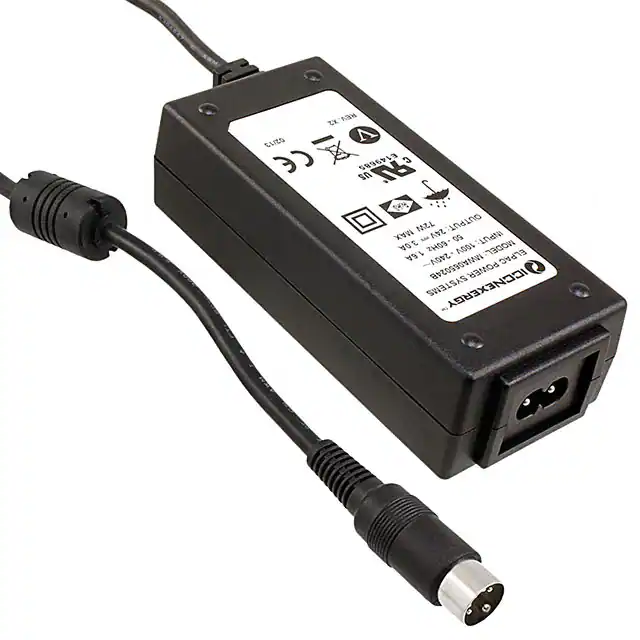

MWA065024B-11AAC/DC DESKTOP ADAPTER 24V 72W Inventus Power |
2,338 |
|
规格书 |
MWA065 (65W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 85 ~ 264 VAC | 24V | 3A | 72 W | 500mW (Max) | - | Medical | Level V | 0°C ~ 60°C | DIN, 5 Pin | 48" (1.22m) | IEC 320-C8 | - | 5.02" L x 2.20" W x 1.37" H (127.6mm x 55.9mm x 34.8mm) | CB, CE, cTUVus |
|
MWA080012A-12AAC/DC DESKTOP ADAPTER 12V 80W Inventus Power |
1,474 |
|
规格书 |
MWA080 (80W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 12V | 6.7A | 80 W | 500mW (Max) | - | Medical | Level V | 0°C ~ 60°C | DIN, 8 Pin | 48" (1.22m) | IEC 320-C14 | - | 5.19" L x 3.07" W x 1.34" H (132.0mm x 78.0mm x 34.0mm) | CB, CE, cTUVus |
|
MWB100018A-12AAC/DC DESKTOP ADAPTER 18V 101W Inventus Power |
4,706 |
|
规格书 |
MWB100 (100W) | Bulk | Obsolete | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 18V | 5.6A | 101 W | 500mW (Max) | - | Medical | 89% | 0°C ~ 60°C | DIN, 8 Pin | 72" (1.83m) | IEC 320-C18 | - | 5.19" L x 3.07" W x 1.34" H (132.0mm x 78.0mm x 34.0mm) | CB, CE, cTUVus |
|

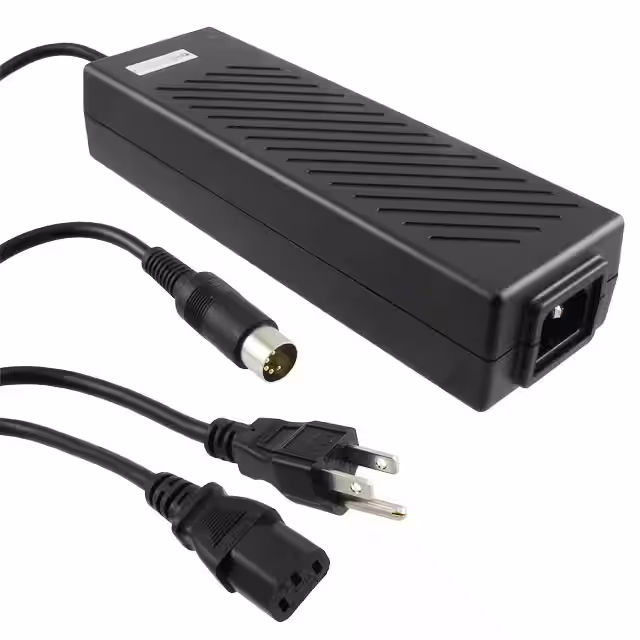

FWA120048A-11BAC/DC DESKTOP ADAPTER 48V 120W Inventus Power |
4,143 |
|
规格书 |
FWA120 (120W) | Bulk | Obsolete | North America | Desktop (Class I) | Cord | 85 ~ 264 VAC | 48V | 2.5A | 120 W | 500mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 60°C | DIN, 5 Pin | 72" (1.83m) | IEC 320-C14 | - | 7.56" L x 2.45" W x 1.52" H (192.0mm x 62.2mm x 38.7mm) | CB, CE, cTUVus |
|
MWA065012A-11AAC/DC DESKTOP ADAPTER 12V 72W Inventus Power |
1,380 |
|
规格书 |
MWA065 (65W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 12V | 6A | 72 W | 500mW (Max) | - | Medical | Level V | 0°C ~ 60°C | DIN, 5 Pin | 72" (1.83m) | IEC 320-C14 | - | 5.02" L x 2.20" W x 1.37" H (127.6mm x 55.9mm x 34.8mm) | CB, CE, cTUVus |
|
MWA150018A-12AAC/DC DESKTOP ADAPTER 18V 149W Inventus Power |
2,880 |
|
规格书 |
ELPAC MWA150 (150W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 18V | 8.3A | 149 W | 500mW (Max) | - | Medical | Level V | 0°C ~ 60°C | DIN, 8 Pin | 72" (1.83m) | IEC 320-C14 | - | 7.56" L x 2.45" W x 1.52" H (192.0mm x 62.2mm x 38.7mm) | CB, CE, cTUVus |
|
MWA220012A-13AAC/DC DESKTOP ADAPTER 12V 220W Inventus Power |
2,505 |
|
规格书 |
MWA220 (220W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 12V | 18.3A | 220 W | 500mW (Max) | - | Medical | Level V | 0°C ~ 60°C | Rectangular, 6 Position | 48" (1.22m) | IEC 320-C14 | - | 8.20" L x 2.90" W x 1.60" H (208.0mm x 73.0mm x 39.0mm) | CB, CE, cTUVus |
|
MWA020024A-10AAC/DC DESKTOP ADAPTER 24V 20W Inventus Power |
4,175 |
|
规格书 |
MWA020 (20W) | Bulk | Active | International | Desktop (Class I) | Cord (Sold Separately) | 85 ~ 264 VAC | 24V | 840mA | 20 W | 300mW (Max) | Positive Center | Medical | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C14 | - | 3.45" L x 2.04" W x 1.30" H (87.7mm x 51.8mm x 33.0mm) | CB, CE, cTUVus |
