购物车交流直流桌面、墙式电源适配器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 使用区域 | 形式 | 输入类型 | 电压 - 输入 | 电压 - 输出 | 电流 - 输出（最大值） | 功率（瓦特） | 空载功耗 | 极化 | 应用 | 效率 | 工作温度 | 输出连接器 | 电线长度 | 输入连接器 | 特性 | 尺寸 / 尺寸 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
15DYS836-240166W-2.5AC/DC DESKTOP ADAPTER 24V 40W Ideal Power Ltd. |
1,511 |
|
规格书 |
15DYS836 (40W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 1.66A | 40 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | - | IEC 320-C8 | - | 3.84" L x 2.07" W x 1.27" H (97.5mm x 52.5mm x 32.3mm) | CE, cULus, RCM, TUV |
|
|
15DYS836-180222W-2.5AC/DC DESKTOP ADAPTER 18V 40W Ideal Power Ltd. |
2,557 |
|
规格书 |
15DYS836 (40W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 18V | 2.22A | 40 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm | - | IEC 320-C8 | - | 3.84" L x 2.07" W x 1.27" H (97.5mm x 52.5mm x 32.3mm) | CE, cULus, RCM, TUV |
|
15DYS818-180100W-KAC/DC WALL MOUNT ADAPTER 18V 18W Ideal Power Ltd. |
3,249 |
|
规格书 |
- | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 18V | 1A | 18 W | 100mW (Max) | Positive Center | ITE (Commercial) | 85% | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | Multi-Blade (Included) | - | 2.58" L x 1.71" W x 1.43" H (65.5mm x 43.5mm x 36.2mm) | CE, GS, SAA, UL |
|
15DYS830-150200W-1-2.5AC/DC WALL MOUNT ADAPTER 15V 30W Ideal Power Ltd. |
1,079 |
|
规格书 |
15DYS830 (30W) | Box | Active | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 2A | 30 W | - | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 12.0mm | - | NEMA 1-15P | - | 3.02" L x 1.89" W x 1.22" H (76.8mm x 48.0mm x 31.0mm) | cULus |
|
15DYS830-150200W-2-2.5AC/DC WALL MOUNT ADAPTER 15V 30W Ideal Power Ltd. |
2,603 |
|
规格书 |
15DYS830 (30W) | Box | Active | Europe | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 2A | 30 W | - | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | - | - | CEE 7/16 | - | 3.02" L x 1.89" W x 1.22" H (76.8mm x 48.0mm x 31.0mm) | CE, TUV |
|

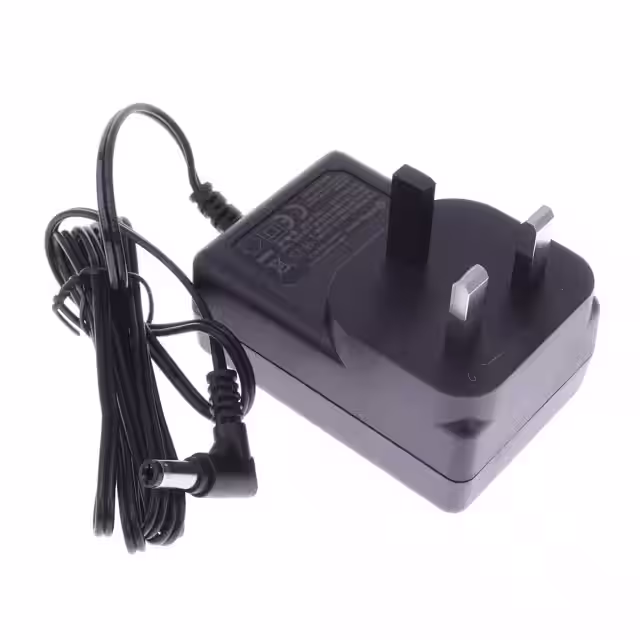

15DYS830-240125W-3-2.5AC/DC WALL MOUNT ADAPTER 24V 30W Ideal Power Ltd. |
2,993 |
|
规格书 |
15DYS830 (30W) | Box | Active | United Kingdom | Wall Mount (Class I) | Fixed Blade | 90 ~ 264 VAC | 24V | 1.25A | 30 W | - | - | ITE (Commercial) | Level VI | 0°C ~ 40°C | - | - | BS 1363 | - | 3.02" L x 1.96" W x 1.22" H (76.8mm x 50.0mm x 31.0mm) | CE |
|
15DYS850-300168WAC/DC DESKTOP ADAPTER 30V 50W Ideal Power Ltd. |
1,641 |
|
规格书 |
15DYS850-xyW (50W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 30V | 1.68A | 50 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | IEC 320-C8 | - | 3.84" L x 2.07" W x 1.27" H (97.5mm x 52.5mm x 32.3mm) | CE, cULus, RCM, TUV |
|
|
15DYS850-120420WAC/DC DESKTOP ADAPTER 12V 50W Ideal Power Ltd. |
3,783 |
|
规格书 |
15DYS850-xyW (50W) | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 12V | 4.2A | 50 W | - | Positive Center | ITE (Commercial) | Level VI | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 47.2" (1.20m) | IEC 320-C8 | - | 3.84" L x 2.07" W x 1.27" H (97.5mm x 52.5mm x 32.3mm) | CE, cULus, RCM, TUV |
|
|
15DYS865-240270WAC/DC DESKTOP ADAPTER 24V 65W Ideal Power Ltd. |
2,944 |
|
规格书 |
- | Box | Active | International | Desktop (Class II) | Cord (Sold Separately) | 90 ~ 264 VAC | 24V | 2.7A | 65 W | 210mW (Max) | Positive Center | ITE (Commercial) | 88% | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 59" (1.50m) | IEC 320-C8 | - | 4.72" L x 2.09" W x 1.26" H (120.0mm x 53.0mm x 32.0mm) | CB, CCC, CE, FCC, GS, PSE, RCM, TUV |
|
15DYS850-150336W-KAC/DC WALL MOUNT ADAPTER 15V 50W Ideal Power Ltd. |
1,678 |
|
规格书 |
- | Box | Active | International | Wall Mount (Class II) | Multi-Blade (Included) | 90 ~ 264 VAC | 15V | 3.36A | 50 W | 210mW (Max) | Positive Center | ITE (Commercial) | 88% | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 47.2" (1.20m) | Multi-Blade (Included) | - | 3.33" L x 2.05" W x 1.38" H (84.5mm x 52.0mm x 35.0mm) | CE, GS, SAA, UL |
