购物车交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

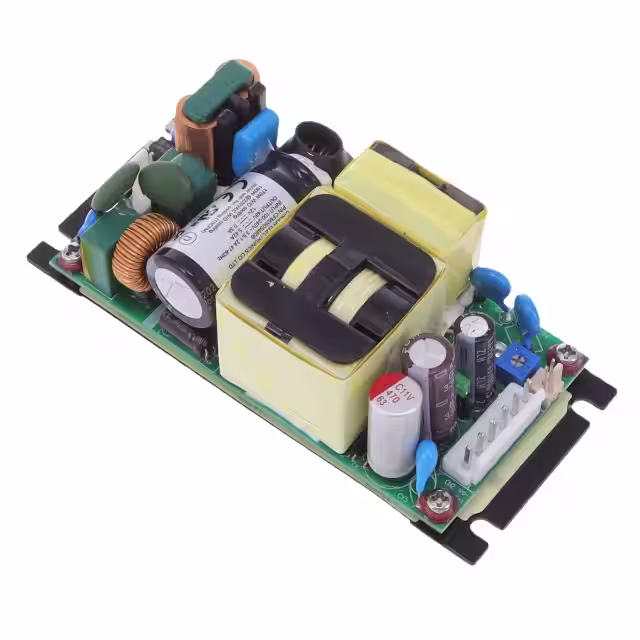

CFM260S480BAC/DC CONVERTER 48V 260W Cincon Electronics Co. LTD |
3,248 |
|
规格书 |
CFM260S (260W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 5.42 A | - | - | - | - | - | 260W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 80°C (With Derating) | Baseplate, PFC, Universal Input | Chassis Mount | 4.60" L x 2.00" W x 1.52" H (116.8mm x 50.8mm x 38.6mm) |
|

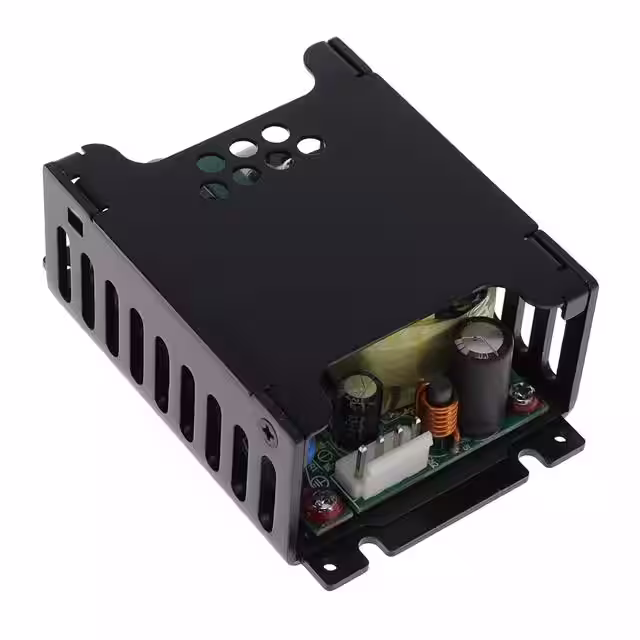

CFM130M480-CAC/DC CONVERTER 48V 101W Cincon Electronics Co. LTD |
4,829 |
|
规格书 |
CFM130M (130W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 101W (130W Forced Air) | Household Appliances, Medical | 4 kV | -30°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 3.60" L x 2.52" W x 1.36" H (91.4mm x 64.0mm x 34.5mm) |
|

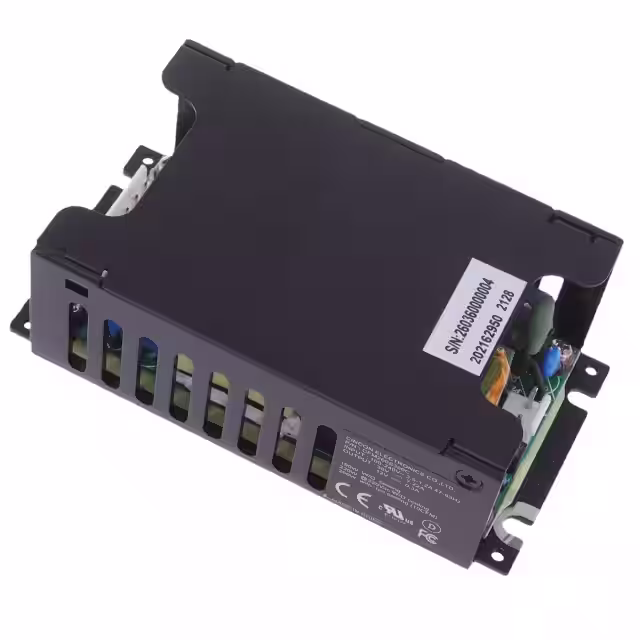

CFM260S360CAC/DC CONVERTER 36V 260W Cincon Electronics Co. LTD |
3,484 |
|
规格书 |
CFM260S (260W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 7.22 A | - | - | - | - | - | 260W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 80°C (With Derating) | PFC, Universal Input | Chassis Mount | 4.60" L x 2.52" W x 1.59" H (116.8mm x 64.0mm x 40.5mm) |
|
CFM300S360AC/DC CONVERTER 36V 300W Cincon Electronics Co. LTD |
1,722 |
|
规格书 |
CFM300S (300W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 36V | - | - | - | - | - | 8.34 A | - | - | - | - | - | 300W | ITE (Commercial) | 3 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.1mm) |
|

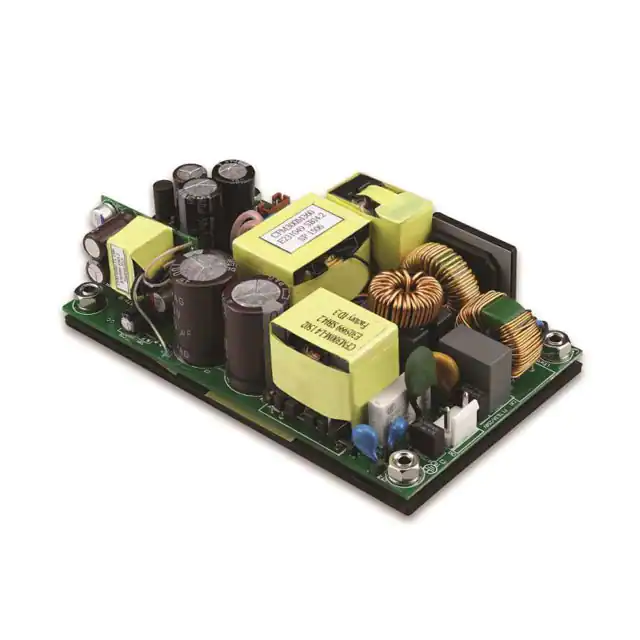

CFM300M120AC/DC CONVERTER 12V 300W Cincon Electronics Co. LTD |
122 |
|
规格书 |
CFM300M (300W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 25 A | - | - | - | - | - | 300W | ITE (Commercial), Medical | 4 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.1mm) |
|
|
CFM300M480AC/DC CONVERTER 48V 300W Cincon Electronics Co. LTD |
3,729 |
|
规格书 |
CFM300M (300W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 6.25 A | - | - | - | - | - | 300W | ITE (Commercial), Medical | 4 kV | -40°C ~ 80°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.42" H (127.0mm x 76.2mm x 36.1mm) |
|
CFM500S360AC/DC CONVERTER 36V 380W Cincon Electronics Co. LTD |
1,990 |
|
规格书 |
CFM500S (500W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 36V | - | - | - | - | - | 10.56 A | - | - | - | - | - | 380W (500W Forced Air) | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Baseplate, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.54" H (127.0mm x 76.2mm x 39.1mm) |
|

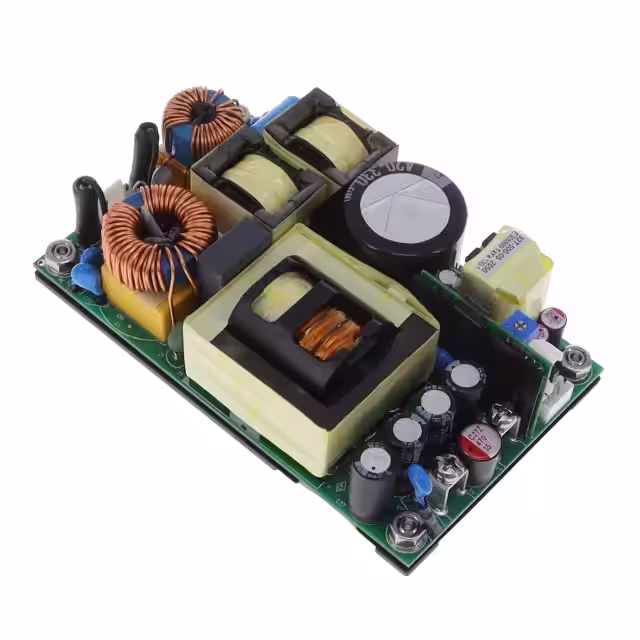

CFM500S180AC/DC CONVERTER 18V 300W Cincon Electronics Co. LTD |
2,594 |
|
规格书 |
CFM500S (500W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 18V | - | - | - | - | - | 16.67 A | - | - | - | - | - | 300W (500W Forced Air) | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Baseplate, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.54" H (127.0mm x 76.2mm x 39.1mm) |
|

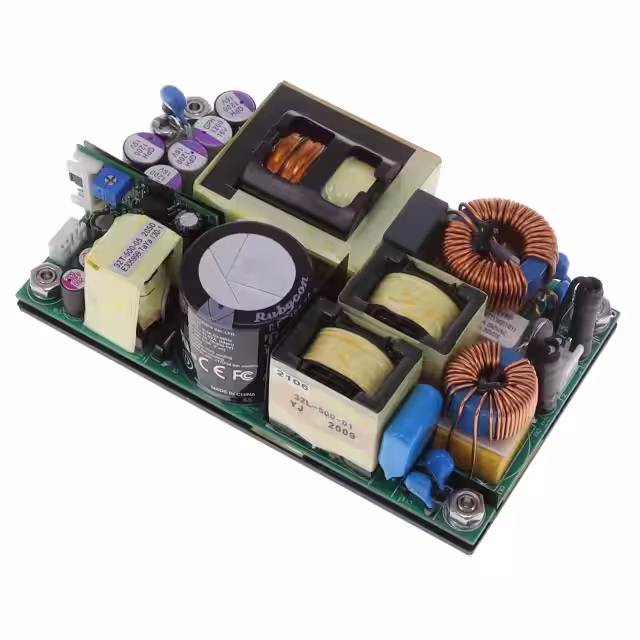

CFM500S120AC/DC CONVERTER 12V 300W Cincon Electronics Co. LTD |
2,507 |
|
规格书 |
CFM500S (500W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 25 A | - | - | - | - | - | 300W (500W Forced Air) | Household Appliances, ITE (Commercial) | 4 kV | -40°C ~ 85°C (With Derating) | Adjustable Output, Baseplate, PFC, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.54" H (127.0mm x 76.2mm x 39.1mm) |
|

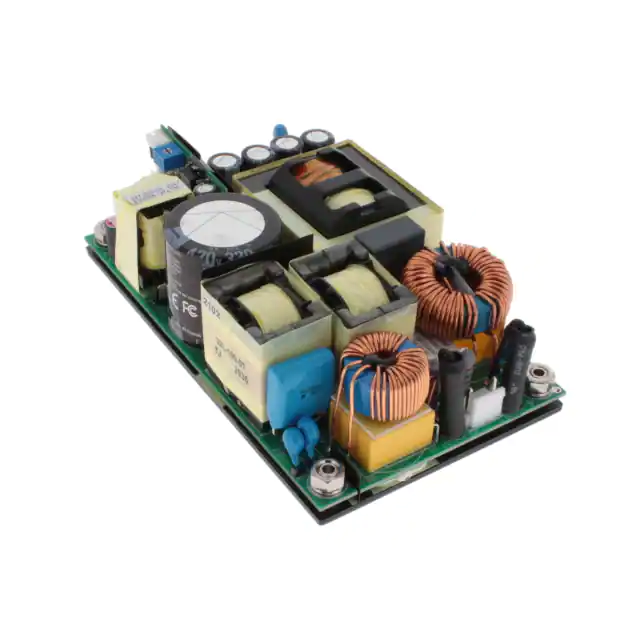

CFM500M240AC/DC CONVERTER 24V 320W Cincon Electronics Co. LTD |
1,822 |
|
规格书 |
CFM500M (500W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 13.33 A | - | - | - | - | - | 320W (500W Forced Air) | Household Appliances, Medical | 4 kV | -30°C ~ 85°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.54" H (127.0mm x 76.2mm x 39.1mm) |
