购物车交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

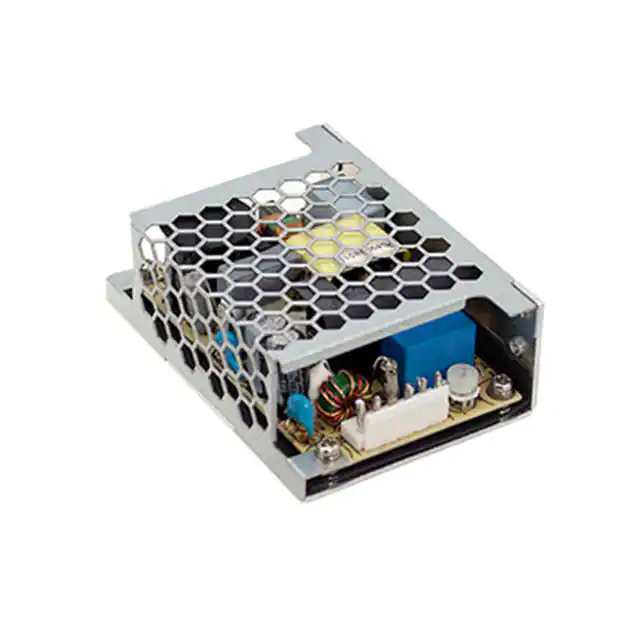

PSC-35A-CAC/DC CONVERTER 13.8V 13.8V 36W |
210 |
|
规格书 |
PSC-35 (35W) | Box | Active | Enclosed | 2 | 90 ~ 264 VAC, 127 ~ 370 VDC | 13.8V | 13.8V | - | - | - | - | 1.7 A | 900 mA | - | - | - | - | 36W | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.40" L x 2.32" W x 1.18" H (86.4mm x 59.0mm x 30.0mm) |
|

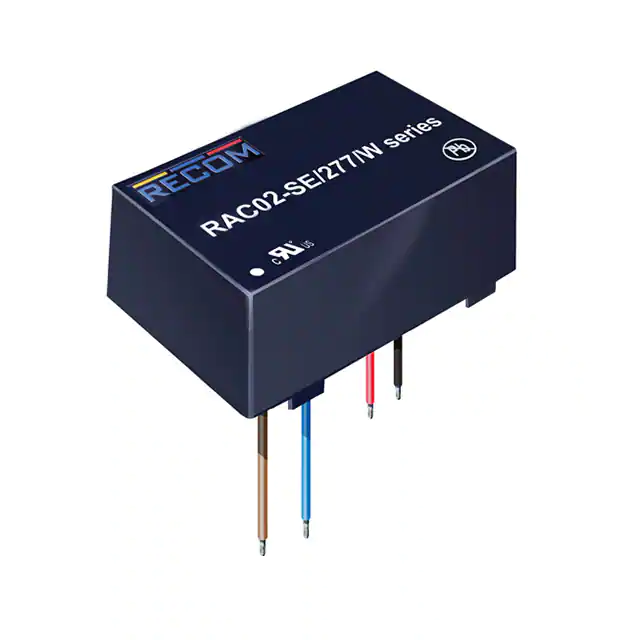

RAC02-12SE/277/WAC/DC CONVERTER 12V 2W |
4,410 |
|
规格书 |
POWERLINE RAC02-SE/277/W (2W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC | 12V | - | - | - | - | - | 167 mA | - | - | - | - | - | 2W | Household Appliances, ITE (Commercial) | 3 kV | -40°C ~ 85°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 1.33" L x 0.96" W x 0.70" H (33.7mm x 24.4mm x 17.8mm) |
|
LS25-12AC/DC CONVERTER 12V 25W |
4,706 |
|
规格书 |
LS (25W) | Bulk | Active | Enclosed | 1 | 88 ~ 264 VAC | 12V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 25W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.10" L x 2.00" W x 1.10" H (78.7mm x 50.8mm x 27.9mm) |
|
|
LS25-24AC/DC CONVERTER 24V 25W |
1,090 |
|
规格书 |
LS (25W) | Bulk | Active | Enclosed | 1 | 88 ~ 264 VAC | 24V | - | - | - | - | - | 1.1 A | - | - | - | - | - | 25W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.10" L x 2.00" W x 1.10" H (78.7mm x 50.8mm x 27.9mm) |
|
|
RAC02-24SE/277/WAC/DC CONVERTER 24V 2W |
826 |
|
规格书 |
POWERLINE RAC02-SE/277/W (2W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC | 24V | - | - | - | - | - | 83 mA | - | - | - | - | - | 2W | Household Appliances, ITE (Commercial) | 3 kV | -40°C ~ 85°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 1.33" L x 0.96" W x 0.70" H (33.7mm x 24.4mm x 17.8mm) |
|
|
LS25-5AC/DC CONVERTER 5V 25W |
671 |
|
规格书 |
LS (25W) | Bulk | Active | Enclosed | 1 | 88 ~ 264 VAC | 5V | - | - | - | - | - | 5 A | - | - | - | - | - | 25W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.10" L x 2.00" W x 1.10" H (78.7mm x 50.8mm x 27.9mm) |
|

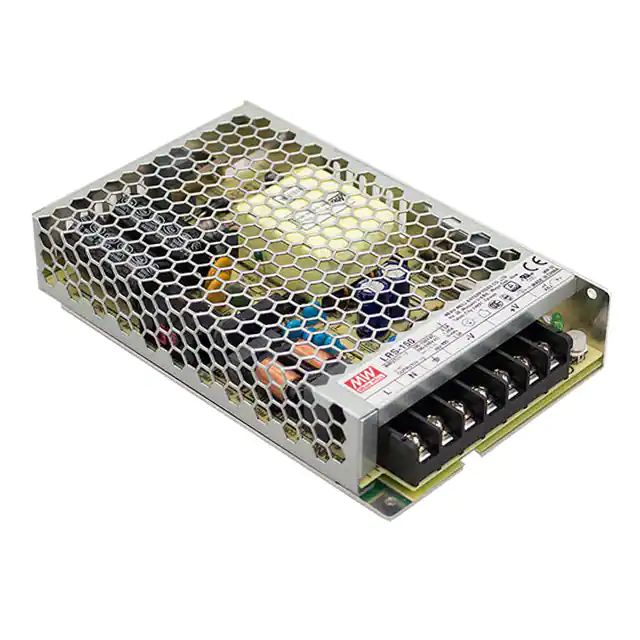

LRS-150-36AC/DC CONVERTER 36V 155W |
1,233 |
|
规格书 |
LRS-150 (150W) | Box | Active | Enclosed | 1 | 85 ~ 132 VAC, 170 ~ 264 VAC, 240 ~ 370 VDC | 36V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 155W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
|
|
LRS-150-48AC/DC CONVERTER 48V 158W |
1,135 |
|
规格书 |
LRS-150 (150W) | Box | Active | Enclosed | 1 | 85 ~ 132 VAC, 170 ~ 264 VAC, 240 ~ 370 VDC | 48V | - | - | - | - | - | 3.3 A | - | - | - | - | - | 158W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
|
|
LRS-150-12AC/DC CONVERTER 12V 150W |
615 |
|
规格书 |
LRS-150 (150W) | Box | Active | Enclosed | 1 | 85 ~ 132 VAC, 170 ~ 264 VAC, 240 ~ 370 VDC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
|

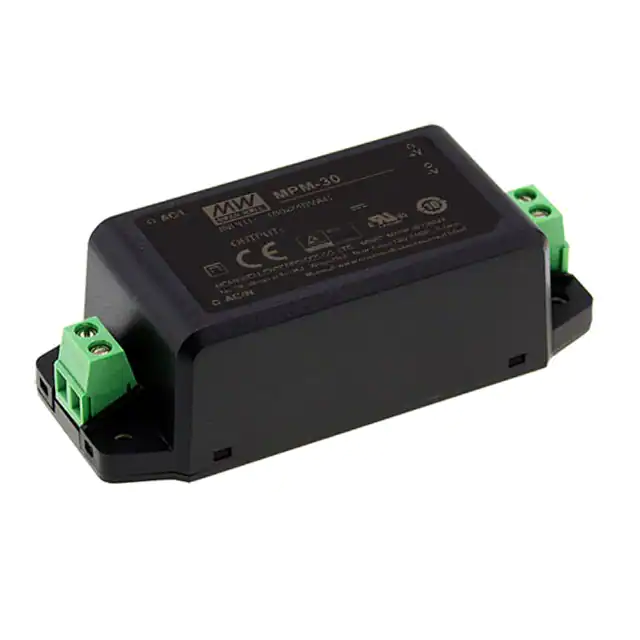

MPM-30-24STAC/DC CONVERTER 24V 31W |
415 |
|
规格书 |
MPM-30 (30W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 24V | - | - | - | - | - | 1.3 A | - | - | - | - | - | 31W | Household Appliances, Medical | 4 kV | -40°C ~ 85°C (With Derating) | - | Chassis Mount | 3.58" L x 1.55" W x 1.12" H (90.9mm x 39.4mm x 28.4mm) |
|
|
MPM-30-12STAC/DC CONVERTER 12V 30W |
158 |
|
规格书 |
MPM-30 (30W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 30W | Household Appliances, Medical | 4 kV | -40°C ~ 85°C (With Derating) | - | Chassis Mount | 3.58" L x 1.55" W x 1.12" H (90.9mm x 39.4mm x 28.4mm) |
|

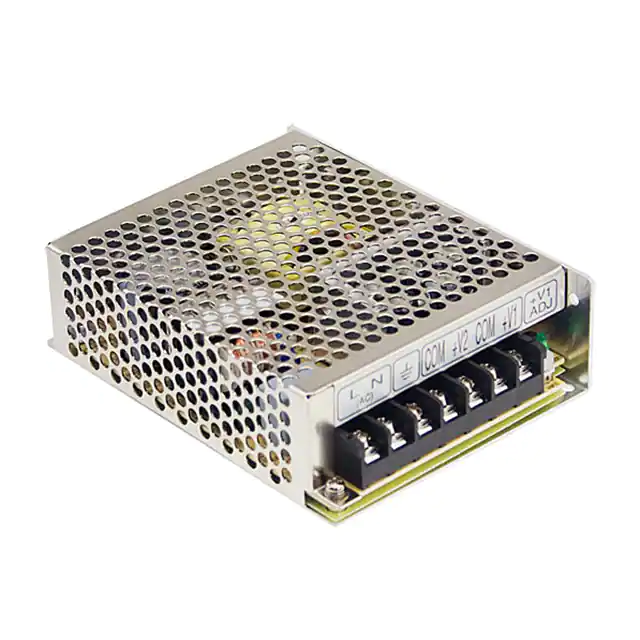

RD-65BAC/DC CONVERTER 5V 24V 68W |
211 |
|
规格书 |
RD-65 (65W) | Box | Active | Enclosed | 2 | 88 ~ 264 VAC, 125 ~ 373 VDC | 5V | 24V | - | - | - | - | 4 A | 2 A | - | - | - | - | 68W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.86" W x 1.50" H (129.0mm x 98.0mm x 38.0mm) |
|
|
RD-65AAC/DC CONVERTER 5V 12V 66W |
142 |
|
规格书 |
RD-65 (65W) | Box | Active | Enclosed | 2 | 88 ~ 264 VAC, 125 ~ 373 VDC | 5V | 12V | - | - | - | - | 6 A | 3 A | - | - | - | - | 66W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.86" W x 1.50" H (129.0mm x 98.0mm x 38.0mm) |
|

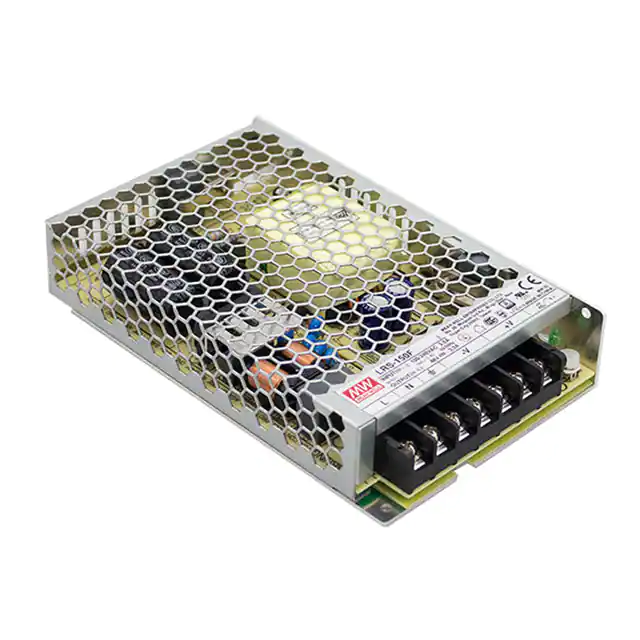

LRS-150F-24AC/DC CONVERTER 24V 156W |
1,303 |
|
规格书 |
LRS-150F (150W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 6.5 A | - | - | - | - | - | 156W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
|

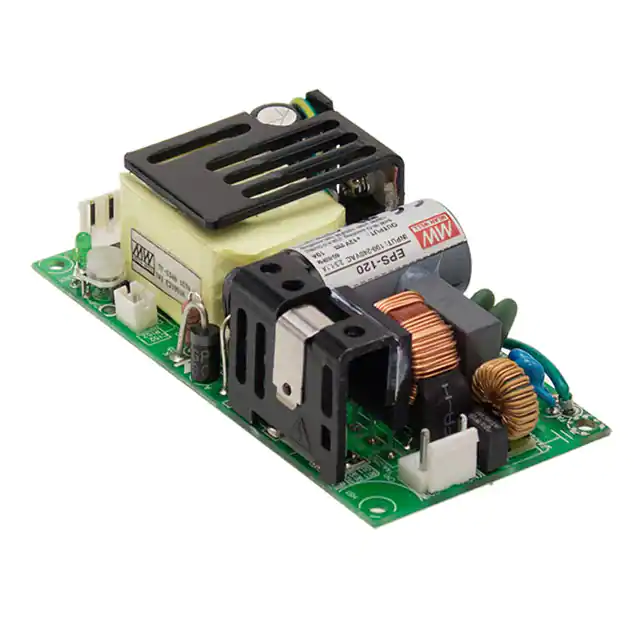

EPS-120-12AC/DC CONVERTER 12V 84W |
513 |
|
规格书 |
EPS-120 (120W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 12V | - | - | - | - | - | 7 A | - | - | - | - | - | 84W (120W Forced Air) | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) |
|
|
EPS-120-27AC/DC CONVERTER 27V 85W |
322 |
|
规格书 |
EPS-120 (120W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 27V | - | - | - | - | - | 3.15 A | - | - | - | - | - | 85W (122W Forced Air) | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) |
|
|
EPS-120-24AC/DC CONVERTER 24V 84W |
187 |
|
规格书 |
EPS-120 (120W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC, 113 ~ 370 VDC | 24V | - | - | - | - | - | 3.5 A | - | - | - | - | - | 84W (120W Forced Air) | ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.14" H (101.6mm x 50.8mm x 29.0mm) |
|
LS35-12AC/DC CONVERTER 12V 35W |
2,072 |
|
规格书 |
LS (35W) | Bulk | Active | Enclosed | 1 | 88 ~ 264 VAC | 12V | - | - | - | - | - | 3 A | - | - | - | - | - | 35W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.20" W x 1.40" H (99.1mm x 81.3mm x 35.6mm) |
|
|
LS35-24AC/DC CONVERTER 24V 35W |
490 |
|
规格书 |
LS (35W) | Bulk | Active | Enclosed | 1 | 88 ~ 264 VAC | 24V | - | - | - | - | - | 1.5 A | - | - | - | - | - | 35W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.90" L x 3.20" W x 1.40" H (99.1mm x 81.3mm x 35.6mm) |
|

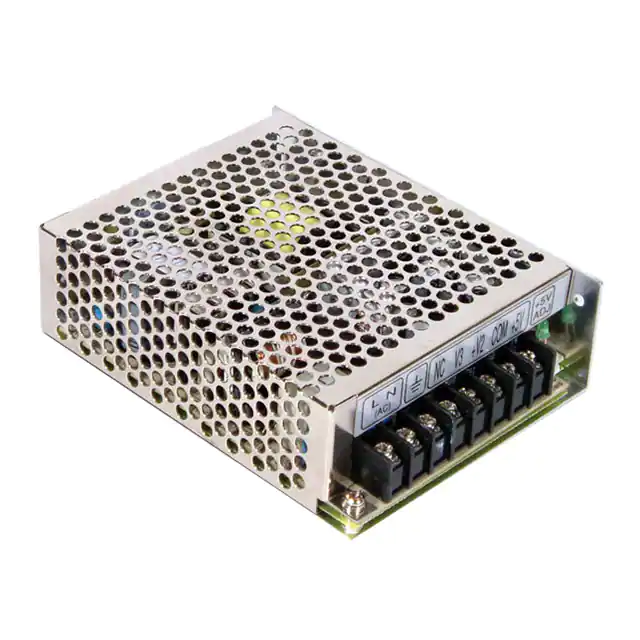

RT-65BAC/DC CONVERTER 5V +/-12V 65W |
133 |
|
规格书 |
RT-65 (65W) | Box | Active | Enclosed | 3 | 88 ~ 264 VAC, 125 ~ 373 VDC | 5V | 12V | -12V | - | - | - | 5 A | 2.8 A | 500 mA | - | - | - | 65W | ITE (Commercial) | 3 kV | -25°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.86" W x 1.50" H (129.0mm x 98.0mm x 38.0mm) |
