购物车交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RPS8-500ATX-GBAC/DC CNVT 3.3V 5V 12V 5V -12V |
3,793 |
|
规格书 |
80 Plus | Box | Active | Enclosed | 5 | 90 ~ 264 VAC | 3.3V | 5V | 12V | 5V | -12V | - | 20 A | 20 A | 40 A | 300 mA | 500 mA | - | 500W | ITE (Commercial) | - | - | 80 Plus® Gold, PMBus™, Standby Output, Universal Input | Rack Mount | 7.48" L x 5.90" W x 3.30" H (190.0mm x 150.0mm x 84.0mm) |
|
|
96PSR-A800WCRPAC/DC CONVERTER 800W |
4,852 |
|
- |
- | Box | Active | - | - | 100 ~ 240 VAC | - | - | - | - | - | - | - | - | - | - | - | - | 800W | - | - | - | - | - | - |
|
|
PS8-350FATX-GBAC/DC CNVRTR 3.3V 5V +/-12V 350W |
3,884 |
|
规格书 |
80 Plus | Box | Active | Enclosed | 4 | 90 ~ 264 VAC | 3.3V | 5V | 12V | -12V | - | - | 14 A | 16 A | 29 A | 300 mA | - | - | 350W | ITE (Commercial) | - | 0°C ~ 50°C | 80 Plus® Gold, Standby Output, Universal Input | Rack Mount | 5.90" L x 3.20" W x 1.59" H (150.0mm x 81.5mm x 40.5mm) |
|
|
PS8-250FATX-BBAC/DC CNVT 3.3V 5V 2X12V -12V |
3,863 |
|
规格书 |
80 Plus | Box | Active | Enclosed | 5 | 90 ~ 264 VAC | 3.3V | 5V | 12V | 12V | -12V | - | 13 A | 5 A | 17 A | 17 A | 300 mA | - | 250W | ITE (Commercial) | - | 0°C ~ 50°C | 80 Plus® Bronze, Standby Output, Universal Input | Rack Mount | 5.90" L x 3.20" W x 1.59" H (150.0mm x 81.5mm x 40.5mm) |
|
|
96PS-A1K2WPS2AC/DC CNVRTR 5V +/-12V 5V 1200W |
2,666 |
|
规格书 |
- | Box | Obsolete | Enclosed | 4 | 90 ~ 264 VAC | 5V | 12V | -12V | 5V | - | - | 30 A | 100 A | 800 mA | 4 A | - | - | 1200W | ITE (Commercial) | - | 0°C ~ 50°C | PFC, Standby Output, Universal Input | Rack Mount | 7.48" L x 5.91" W x 3.39" H (190.0mm x 150.0mm x 86.0mm) |
|
|
PS8-500FATX-GBAC/DC CNVRTR 3.3V 5V +/-12V 500W |
4,739 |
|
规格书 |
80 Plus | Box | Active | Enclosed | 4 | 90 ~ 264 VAC | 3.3V | 5V | 12V | -12V | - | - | 14 A | 16 A | 41 A | 300 mA | - | - | 500W | ITE (Commercial) | - | 0°C ~ 50°C | 80 Plus® Gold, Standby Output, Universal Input | Rack Mount | 5.90" L x 3.20" W x 1.59" H (150.0mm x 81.5mm x 40.5mm) |
|
EPM30-120-BC-0F0AC/DC CONVERTER 12V 30W |
2,698 |
|
规格书 |
EPM30 (30W) | Box | Active | Enclosed | 1 | 80 ~ 275 VAC | 12V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 30W | Medical | 4 kV | -40°C ~ 85°C (With Derating) | Universal Input | Chassis Mount | 3.77" L x 2.16" W x 1.00" H (95.8mm x 54.9mm x 25.4mm) |
|
ASM201-180-BNH-PF1AC/DC CONVERTER 18V 139W |
2,272 |
|
规格书 |
ASM201 (200W) | Box | Active | Open Frame | 1 | 80 ~ 240 VAC | 18V | - | - | - | - | - | 7.7 A | - | - | - | - | - | 139W (200W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.11" H (101.6mm x 50.8mm x 28.2mm) |
|

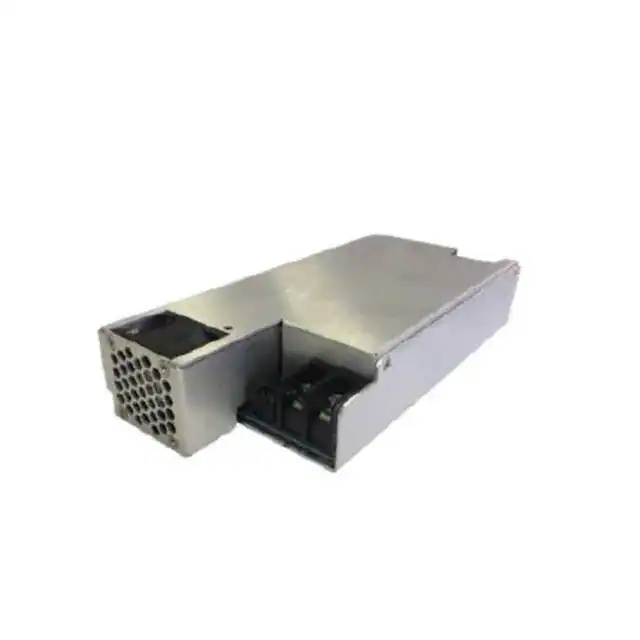

ASM550-360-BET-S00AC/DC CONVERTER 36V 551W |
2,269 |
|
规格书 |
ASM550 (550W) | Box | Active | Enclosed | 1 | 80 ~ 275 VAC, 110 ~ 380 VDC | 36V | - | - | - | - | - | 15.3 A | - | - | - | - | - | 551W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.36" W x 1.58" H (177.8mm x 110.7mm x 40.1mm) |
|
ASM400S-24AC/DC CONVERTER 24V 199W |
3,530 |
|
规格书 |
ASM400S (400W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 8.3 A | - | - | - | - | - | 199W (401W Forced Air) | Medical | 4 kV | -20°C ~ 40°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.5mm) |
|
ASM201-540-BEH-PF1AC/DC CONVERTER 54V 140W |
1,844 |
|
规格书 |
ASM201 (200W) | Box | Active | Enclosed | 1 | 80 ~ 240 VAC | 54V | - | - | - | - | - | 2.6 A | - | - | - | - | - | 140W (200W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.17" L x 2.68" W x 1.57" H (105.9mm x 68.1mm x 39.9mm) |
|
|
ASM201-280-BNH-PF1AC/DC CONVERTER 28V 140W |
1,631 |
|
规格书 |
ASM201 (200W) | Box | Active | Open Frame | 1 | 80 ~ 240 VAC | 28V | - | - | - | - | - | 5 A | - | - | - | - | - | 140W (199W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.11" H (101.6mm x 50.8mm x 28.2mm) |
|
|
ASM201-180-BEH-PF1AC/DC CONVERTER 18V 139W |
1,624 |
|
规格书 |
ASM201 (200W) | Box | Active | Enclosed | 1 | 80 ~ 240 VAC | 18V | - | - | - | - | - | 7.7 A | - | - | - | - | - | 139W (200W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.17" L x 2.68" W x 1.57" H (105.9mm x 68.1mm x 39.9mm) |
|
|
EPM30-050-BC-0F0AC/DC CONVERTER 5V 30W |
2,227 |
|
规格书 |
EPM30 (30W) | Box | Active | Enclosed | 1 | 80 ~ 275 VAC | 5V | - | - | - | - | - | 6 A | - | - | - | - | - | 30W | Medical | 4 kV | -40°C ~ 85°C (With Derating) | Universal Input | Chassis Mount | 3.77" L x 2.16" W x 1.00" H (95.8mm x 54.9mm x 25.4mm) |
|
|
ASM201-540-BNH-PF1AC/DC CONVERTER 54V 140W |
1,263 |
|
规格书 |
ASM201 (200W) | Box | Active | Open Frame | 1 | 80 ~ 240 VAC | 54V | - | - | - | - | - | 2.6 A | - | - | - | - | - | 140W (200W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.11" H (101.6mm x 50.8mm x 28.2mm) |
|
EPM15-120-BC-0F0AC/DC CONVERTER 12V 15W |
2,633 |
|
规格书 |
EPM15 (15W) | Box | Active | Enclosed | 1 | 80 ~ 275 VAC | 12V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 15W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.77" L x 2.16" W x 1.00" H (95.8mm x 54.9mm x 25.4mm) |
|
|
ASM201-300-BNH-PF1AC/DC CONVERTER 30V 141W |
4,376 |
|
规格书 |
ASM201 (200W) | Box | Active | Open Frame | 1 | 80 ~ 240 VAC | 30V | - | - | - | - | - | 4.7 A | - | - | - | - | - | 141W (201W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.11" H (101.6mm x 50.8mm x 28.2mm) |
|
|
ASM201-240-BEH-PF1AC/DC CONVERTER 24V 142W |
4,981 |
|
规格书 |
ASM201 (200W) | Box | Active | Enclosed | 1 | 80 ~ 240 VAC | 24V | - | - | - | - | - | 5.9 A | - | - | - | - | - | 142W (202W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.17" L x 2.68" W x 1.57" H (105.9mm x 68.1mm x 39.9mm) |
|
|
EPM15-050-BC-0F0AC/DC CONVERTER 5V 15W |
2,779 |
|
规格书 |
EPM15 (15W) | Box | Active | Enclosed | 1 | 80 ~ 275 VAC | 5V | - | - | - | - | - | 3 A | - | - | - | - | - | 15W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.77" L x 2.16" W x 1.00" H (95.8mm x 54.9mm x 25.4mm) |
|
|
ASM201-150-BNH-PF1AC/DC CONVERTER 15V 141W |
1,954 |
|
规格书 |
ASM201 (200W) | Box | Active | Open Frame | 1 | 80 ~ 240 VAC | 15V | - | - | - | - | - | 9.4 A | - | - | - | - | - | 141W (201W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.11" H (101.6mm x 50.8mm x 28.2mm) |
