购物车交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GSP500PS12P-EFAC DC CHASSIS MOUNT PSU 500W END XP Power |
2,793 |
|
规格书 |
GSP500 (500W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 15 A | - | - | - | - | - | 180W (500W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 6.71" L x 4.00" W x 1.65" H (170.4mm x 101.6mm x 41.9mm) |
|
|
SDR250AS24-F24V AC-DC PSU COVER FITTED, 250W XP Power |
2,697 |
|
规格书 |
SDR (250W) | Box | Active | Enclosed | 1 | 90 ~ 132 VAC, 180 ~ 264 VAC | 24V | - | - | - | - | - | 10.42 A | - | - | - | - | - | 250W | ITE (Commercial) | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.20" W x 2.25" H (127.0mm x 81.3mm x 57.2mm) |
|

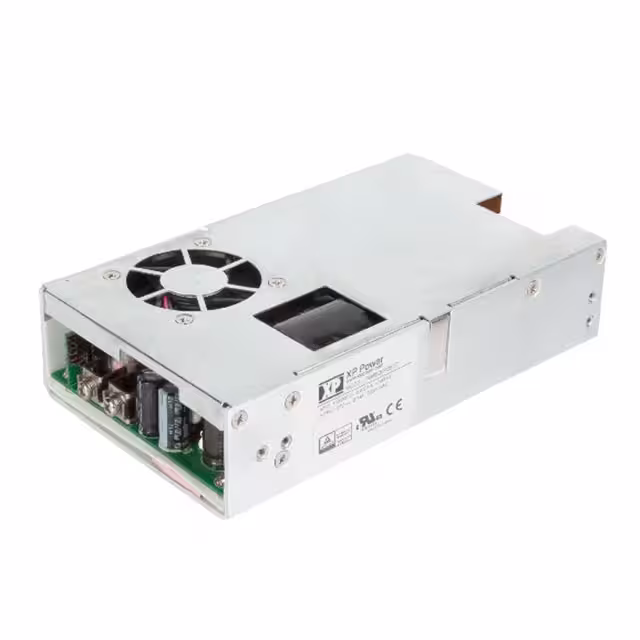

PBR500PS48CAC/DC CONVERTER 48V 400W XP Power |
1,467 |
|
规格书 |
PBR500 (500W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 8.34 A | - | - | - | - | - | 400W (500W Forced Air) | ITE (Commercial), Medical | 4 kV | -10°C ~ 70°C (With Derating) | Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.70" H (177.8mm x 101.6mm x 43.2mm) |
|
PBR500PS12BAC/DC CONVERTER 12V 350W XP Power |
3,036 |
|
规格书 |
PBR500 (500W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 29.17 A | - | - | - | - | - | 350W (450W Forced Air) | ITE (Commercial), Medical | 4 kV | -10°C ~ 70°C (With Derating) | Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.68" H (177.8mm x 101.6mm x 42.7mm) |
|
SHP650PS15-EFAC/DC CONVERTER 15V 650W XP Power |
1,240 |
|
规格书 |
SHP (650W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 40 A | - | - | - | - | - | 650W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | Adjustable Output, Load Sharing, Remote On/Off, Standby Output, Universal Input | Chassis Mount | 9.18" L x 4.00" W x 2.50" H (233.2mm x 101.6mm x 63.5mm) |
|
|
SHP650PS24-TFAC/DC CONVERTER 24V 350-1200W XP Power |
1,699 |
|
规格书 |
SHP (650W) | Bulk | Active | Enclosed | 1 | 80 ~ 264 VAC | 24V | - | - | - | - | - | 27 A | - | - | - | - | - | - | ITE (Commercial) | 3000 V | -20°C ~ 70°C (With Derating) | - | Chassis Mount | - |
|
|
PBR500PS12CAC/DC CONVERTER 12V 350W XP Power |
1,768 |
|
规格书 |
PBR500 (500W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 29.17 A | - | - | - | - | - | 350W (450W Forced Air) | ITE (Commercial), Medical | 4 kV | -10°C ~ 70°C (With Derating) | Remote Sense, Standby Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.70" H (177.8mm x 101.6mm x 43.2mm) |
|
|
SDC320AD1224-EDUAL O/P AC-DC PSU COVER FITTED, XP Power |
3,225 |
|
规格书 |
SDC (320W) | Box | Active | Enclosed | 2 | 90 ~ 132 VAC, 180 ~ 264 VAC | 12V | 24V | - | - | - | - | 12.5 A | 6.25 A | - | - | - | - | 150W (300W Forced Air) | ITE (Commercial) | 3 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.00" L x 4.00" W x 1.60" H (177.8mm x 101.6mm x 40.6mm) |
|
CCB250PS24AC/DC CONVERTER 24V 250W XP Power |
4,773 |
|
规格书 |
CCB250 (250W) | Box | Active | Open Frame | 1 | 80 ~ 275 VAC | 24V | - | - | - | - | - | 10.4 A | - | - | - | - | - | 250W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input | Chassis Mount | 6.00" L x 4.00" W x 1.50" H (152.4mm x 101.6mm x 38.1mm) |
|

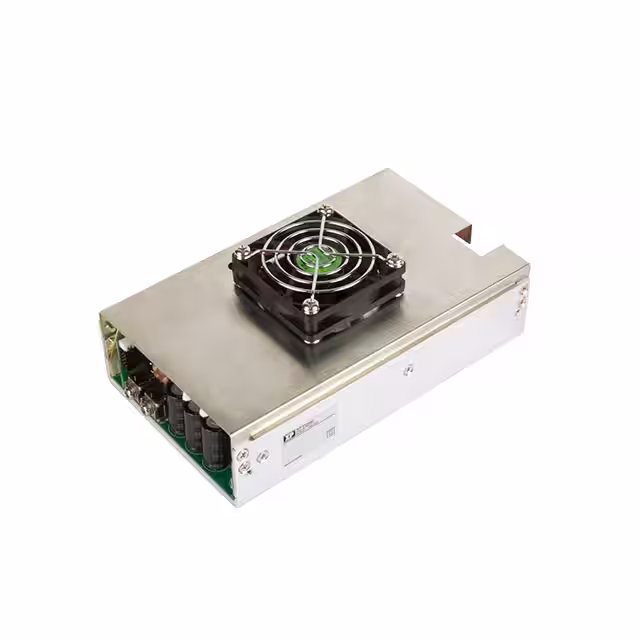

PBL500PS12CAC/DC CONVERTER 12V 250W XP Power |
4,715 |
|
规格书 |
PBL500 (500W) | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 12V | - | - | - | - | - | 20.83 A | - | - | - | - | - | 250W (450W Forced Air) | Medical | 4 kV | -10°C ~ 70°C (With Derating) | PFC, Remote On/Off, Remote Sense, Standby Output | Chassis Mount | 7.10" L x 4.00" W x 2.64" H (180.3mm x 101.6mm x 67.1mm) |
