购物车交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
X4-2P5E1D1JAC/DC CONFG PWR 24/15/5/12V 400W XP Power |
2,971 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ECL15US24-TAC/DC CONVERTER 24V 15W XP Power |
1,912 |
|
规格书 |
ECL (15W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 630 mA | - | - | - | - | - | 15W | ITE (Commercial) | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.10" L x 1.25" W x 0.78" H (78.7mm x 31.7mm x 20.0mm) |
|
ECS65US15AC/DC CONVERTER 15V 65W XP Power |
4,050 |
|
规格书 |
ECS (65W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 15V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 65W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.05" H (101.6mm x 50.8mm x 26.7mm) |
|
ECL15US24-SAC/DC CONVERTER 24V 15W XP Power |
2,120 |
|
规格书 |
ECL (15W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 630 mA | - | - | - | - | - | 15W | ITE (Commercial) | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.30" L x 1.36" W x 1.04" H (84.0mm x 34.5mm x 26.4mm) |
|
|
ECL15US05-SAC/DC CONVERTER 5V 15W XP Power |
3,048 |
|
规格书 |
ECL (15W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 3 A | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.30" L x 1.36" W x 1.04" H (84.0mm x 34.5mm x 26.4mm) |
|
ECP60UD01AC/DC CONVERTER 5V 12V 60W XP Power |
4,046 |
|
规格书 |
ECP (60W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC | 5V | 12V | - | - | - | - | 7 A | 3 A | - | - | - | - | 60W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) |
|
ECM60US15AC/DC CONVERTER 15V 60W XP Power |
1,276 |
|
规格书 |
ECM (60W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 15V | - | - | - | - | - | 4 A | - | - | - | - | - | 60W | ITE (Commercial), Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) |
|
|
ECM60UT33AC/DC CONVERTER 5V +/-15V 60W XP Power |
2,015 |
|
规格书 |
ECM (60W) | Box | Active | Open Frame | 3 | 90 ~ 264 VAC | 5V | 15V | -15V | - | - | - | 8 A | 2.5 A | 500 mA | - | - | - | 60W | ITE (Commercial), Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) |
|
ECL30UD03-SAC/DC CONVERTER 5V 12V 30W XP Power |
2,851 |
|
规格书 |
ECL (30W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 5V | 12V | - | - | - | - | 3 A | 1.3 A | - | - | - | - | 30W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.78" L x 1.57" W x 1.12" H (96.0mm x 40.0mm x 28.5mm) |
|

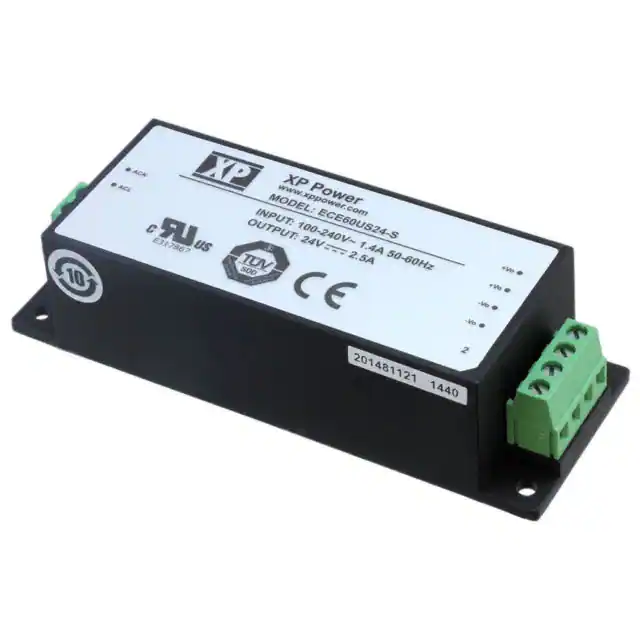

ECE60US24-SAC/DC CONVERTER 24V 60W XP Power |
1,385 |
|
规格书 |
ECE60 (60W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 60W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.09" L x 1.57" W x 1.12" H (104.0mm x 40.0mm x 28.5mm) |
