购物车交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECS65US48AC/DC CONVERTER 48V 65W XP Power |
3,899 |
|
规格书 |
ECS (65W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 1.4 A | - | - | - | - | - | 65W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.05" H (101.6mm x 50.8mm x 26.7mm) |
|
ECL30UD02-TAC/DC CONVERTER +/-15V 30W XP Power |
1,802 |
|
规格书 |
ECL (30W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 1 A | 1 A | - | - | - | - | 30W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, DC Input Capable, Universal Input | Chassis Mount | 3.46" L x 1.36" W x 0.88" H (87.9mm x 34.6mm x 22.4mm) |
|
ECM40US09AC/DC CONVERTER 9V 40W XP Power |
4,659 |
|
规格书 |
ECM (40W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 9V | - | - | - | - | - | 4.4 A | - | - | - | - | - | 40W | ITE (Commercial), Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) |
|
ECP40UT01AC/DC CONVERTER 5V +/-12V 40W XP Power |
1,482 |
|
规格书 |
ECP (40W) | Box | Active | Open Frame | 3 | 85 ~ 264 VAC | 5V | 12V | -12V | - | - | - | 5 A | 2 A | 500 mA | - | - | - | 40W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 3.50" L x 2.00" W x 1.01" H (88.9mm x 50.8mm x 26.0mm) |
|
EPL150PS48AC/DC CONVERTER 48V 100W XP Power |
2,063 |
|
规格书 |
EPL150 (150W) | Box | Active | Open Frame | 1 | 80 ~ 264 VAC | 48V | - | - | - | - | - | 2.08 A | - | - | - | - | - | 100W (149W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.99" H (101.6mm x 50.8mm x 25.2mm) |
|

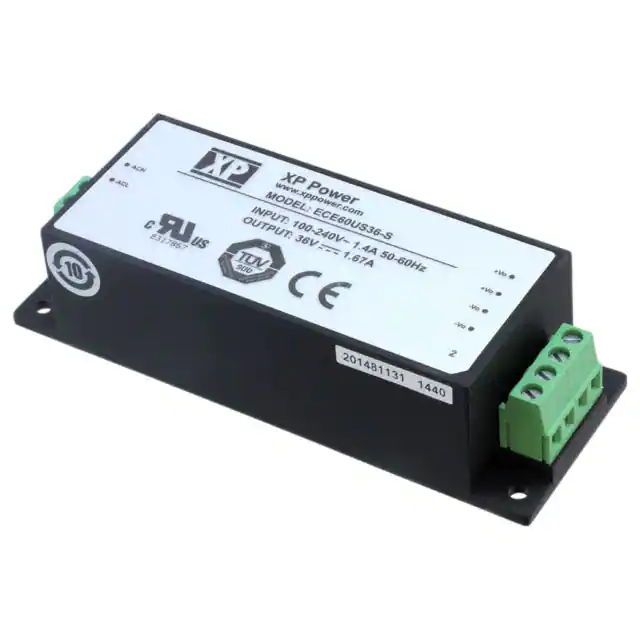

ECE60US36-SAC/DC CONVERTER 36V 60W XP Power |
2,452 |
|
规格书 |
ECE60 (60W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 1.67 A | - | - | - | - | - | 60W | ITE (Commercial) | 3 kV | -40°C ~ 70°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 4.09" L x 1.57" W x 1.12" H (104.0mm x 40.0mm x 28.5mm) |
|
ECP180PS28AC/DC CONVERTER 28V 120W XP Power |
4,543 |
|
规格书 |
ECP180 (180W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 28V | - | - | - | - | - | 6.43 A | - | - | - | - | - | 120W (180W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 0.84" H (101.6mm x 50.8mm x 21.6mm) |
|
ECM100US09AC/DC CONVERTER 9V 100W XP Power |
3,610 |
|
规格书 |
ECM (100W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC, 120 ~ 370 VDC | 9V | - | - | - | - | - | 8.8 A | - | - | - | - | - | 100W | ITE (Commercial), Medical | 4 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.50" L x 2.50" W x 1.20" H (114.3mm x 63.5mm x 30.5mm) |
|
SMP350PS36AC/DC CONVERTER 36V 349W XP Power |
1,925 |
|
规格书 |
SMP350 (350W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 9.7 A | - | - | - | - | - | 349W | ITE (Commercial), Medical | 4 kV | -40°C ~ 70°C (With Derating) | Remote On/Off | Chassis Mount | 7.00" L x 3.60" W x 1.70" H (177.8mm x 91.4mm x 43.2mm) |
|
ECH450PS12AC/DC CONVERTER 12V 250W XP Power |
2,579 |
|
规格书 |
ECH450 (450W) | Bulk | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 20.8 A | - | - | - | - | - | 250W (450W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C (With Derating) | Remote On/Off, Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.26" H (127.0mm x 76.2mm x 32.0mm) |
