购物车交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EPM15-120-BC-0F0AC/DC CONVERTER 12V 15W Astrodyne TDI |
2,633 |
|
规格书 |
EPM15 (15W) | Box | Active | Enclosed | 1 | 80 ~ 275 VAC | 12V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 15W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.77" L x 2.16" W x 1.00" H (95.8mm x 54.9mm x 25.4mm) |
|
ASM201-300-BNH-PF1AC/DC CONVERTER 30V 141W Astrodyne TDI |
4,376 |
|
规格书 |
ASM201 (200W) | Box | Active | Open Frame | 1 | 80 ~ 240 VAC | 30V | - | - | - | - | - | 4.7 A | - | - | - | - | - | 141W (201W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.11" H (101.6mm x 50.8mm x 28.2mm) |
|
ASM201-240-BEH-PF1AC/DC CONVERTER 24V 142W Astrodyne TDI |
4,981 |
|
规格书 |
ASM201 (200W) | Box | Active | Enclosed | 1 | 80 ~ 240 VAC | 24V | - | - | - | - | - | 5.9 A | - | - | - | - | - | 142W (202W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.17" L x 2.68" W x 1.57" H (105.9mm x 68.1mm x 39.9mm) |
|
|
EPM15-050-BC-0F0AC/DC CONVERTER 5V 15W Astrodyne TDI |
2,779 |
|
规格书 |
EPM15 (15W) | Box | Active | Enclosed | 1 | 80 ~ 275 VAC | 5V | - | - | - | - | - | 3 A | - | - | - | - | - | 15W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 3.77" L x 2.16" W x 1.00" H (95.8mm x 54.9mm x 25.4mm) |
|
|
ASM201-150-BNH-PF1AC/DC CONVERTER 15V 141W Astrodyne TDI |
1,954 |
|
规格书 |
ASM201 (200W) | Box | Active | Open Frame | 1 | 80 ~ 240 VAC | 15V | - | - | - | - | - | 9.4 A | - | - | - | - | - | 141W (201W Forced Air) | ITE (Commercial), Medical | 4 kV | -40°C ~ 85°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.11" H (101.6mm x 50.8mm x 28.2mm) |
|

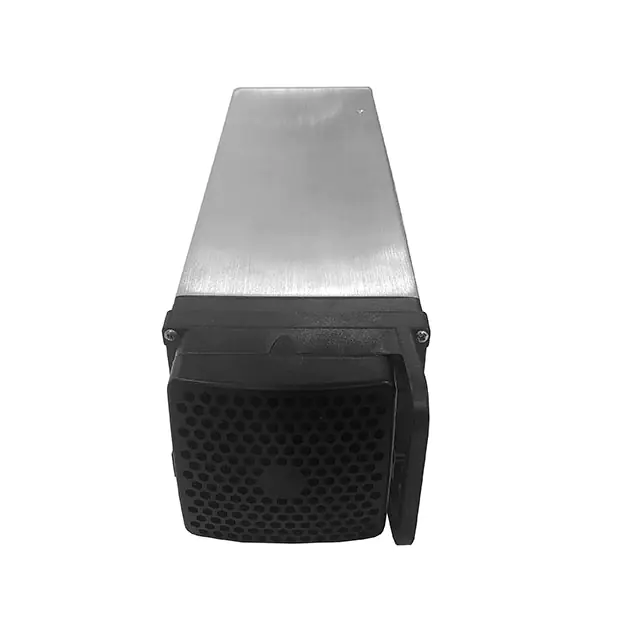

T100106170-F028D00LFMERCURYFLEX RECTIFIER, 3.8KW 2U Astrodyne TDI |
1,539 |
|
规格书 |
MercuryFlex (3800W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 28V | - | - | - | - | - | 160 A | - | - | - | - | - | 3800W | ITE (Commercial) | 3 kV | -30°C ~ 55°C | Adjustable Output, Universal Input, Programmable, CV, CC, CP | Rack Mount | 15.15" L x 4.25" W x 3.42" H (384.7mm x 108.0mm x 86.8mm) |
|
|
T100106170-F450D00LFMERCURYFLEX RECTIFIER, 3.8KW 2U Astrodyne TDI |
2,614 |
|
规格书 |
MercuryFlex (3800W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 450V | - | - | - | - | - | 10.2 A | - | - | - | - | - | 3800W | ITE (Commercial) | 3 kV | -30°C ~ 55°C | Adjustable Output, Universal Input, Programmable, CV, CC, CP | Rack Mount | 15.15" L x 4.25" W x 3.42" H (384.7mm x 108.0mm x 86.8mm) |
|
|
T100106170-F125D00LFMERCURYFLEX RECTIFIER, 3.8KW 2U Astrodyne TDI |
3,455 |
|
规格书 |
MercuryFlex (3800W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 125V | - | - | - | - | - | 34.5 A | - | - | - | - | - | 3800W | ITE (Commercial) | 3 kV | -30°C ~ 55°C | Adjustable Output, Universal Input, Programmable, CV, CC, CP | Rack Mount | 15.15" L x 4.25" W x 3.42" H (384.7mm x 108.0mm x 86.8mm) |
|

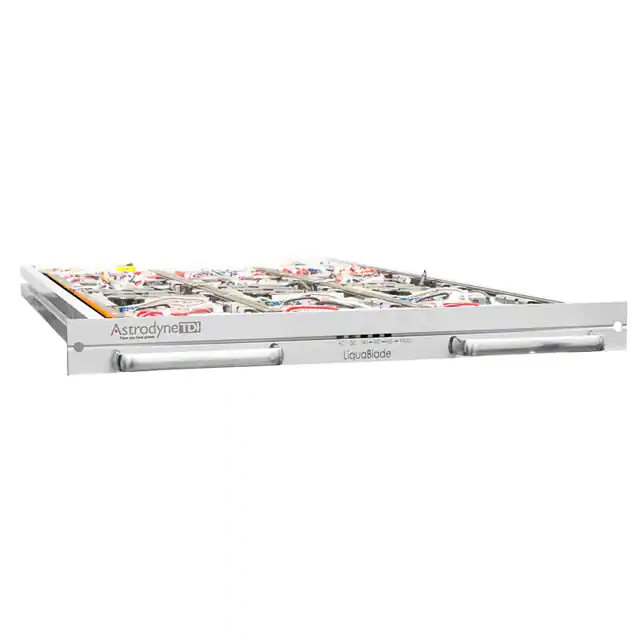

T100103091-1-LF16.5KW LIQUABLADE 1U RECTIFIER, Astrodyne TDI |
4,432 |
|
规格书 |
LiquaBlade (16500W) | Box | Active | Enclosed | 1 | 380 ~ 480 VAC (3 Phase) | 60V | - | - | - | - | - | 360 A | - | - | - | - | - | 16500W | ITE (Commercial) | 4.242 kV | 5°C ~ 50°C | Programmable, Modular, Scalabe, CV, CP, CC, Water Cooled Power Supply, Full Power Factor Correction | Rack Mount | 29.87" L x 19.00" W x 1.72" H (758.0mm x 482.0mm x 43.0mm) |
|
ASM65-280-BET-0F0AC/DC CONVERTER 28V 65W Astrodyne TDI |
2,289 |
|
规格书 |
ASM30 | Box | Active | Enclosed | 1 | 80 ~ 264 VAC | 28V | - | - | - | - | - | 2.32 A | - | - | - | - | - | 65W | ITE (Commercial), Medical | 4 kV | -40°C ~ 80°C | - | - | 3.41" L x 2.48" W x 1.38" H (86.5mm x 63.0mm x 35.0mm) |
