购物车交流直流转换器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 类型 | 输出数量 | 电压 - 输入 | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出 1 | 电流 - 输出 2 | 电流 - 输出 3 | 电流 - 输出 4 | 电流 - 输出 5 | 电流 - 输出 6 | 功率（瓦特） | 应用 | 电压 - 隔离 | 工作温度 | 特性 | 安装类型 | 尺寸 / 尺寸 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ARFS-4501-48RUAC/DC CONVERTER 48V 45W Aras Power Technologies |
537 |
|
规格书 |
ARFS-4501 | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 930 mA | - | - | - | - | - | 45W | ITE (Commercial) | - | 0°C ~ 70°C (With Derating) | - | Chassis Mount | 4.00" L x 2.00" W x 0.98" H (101.6mm x 50.8mm x 25.0mm) |
|
ARFL-2011-12SAC/DC CONVERTER 12V 200W Aras Power Technologies |
1,236 |
|
规格书 |
- | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 200W | ITE (Commercial) | 1.5 kV | 0°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.32" H (127.0mm x 76.2mm x 33.6mm) |
|
ARF-2015-00AC/DC CNVRT 24V 12V 5V 3.3V 200W Aras Power Technologies |
657 |
|
规格书 |
- | Box | Active | Open Frame | 4 | 90 ~ 264 VAC | 24V | 12V | 5V | 3.3V | - | - | 7 A | 2 A | 11 A | 4.5 A | - | - | 200W | ITE (Commercial) | 1.5 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 6.00" L x 3.50" W x 1.57" H (152.4mm x 88.9mm x 40.0mm) |
|
ARFS-3001-24AC/DC CONVERTER 24V 30W Aras Power Technologies |
2,600 |
|
规格书 |
ARFS-3001 | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 30W | ITE (Commercial) | 1.5 kV | 0°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.04" H (101.6mm x 50.8mm x 26.5mm) |
|
ARFS-3001-05AC/DC CONVERTER 5V 30W Aras Power Technologies |
2,832 |
|
规格书 |
ARFS-3001 | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 5V | - | - | - | - | - | 6 A | - | - | - | - | - | 30W | ITE (Commercial) | 1.5 kV | 0°C ~ 70°C (With Derating) | PFC, Standby Output, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.04" H (101.6mm x 50.8mm x 26.5mm) |
|
ARFS-3011M-1205AC/DC CONVERTER 12V 300W Aras Power Technologies |
1,280 |
|
规格书 |
ARFS-3011M (300W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 25 A | - | - | - | - | - | 300W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | Standby Output, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm) |
|
ARFS-3411M-2405AC/DC CONVERTER 24V 336W Aras Power Technologies |
4,688 |
|
规格书 |
ARFS-3411M (336W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 14 A | - | - | - | - | - | 336W | ITE (Commercial), Medical | - | 0°C ~ 70°C (With Derating) | - | Chassis Mount | 5.00" L x 3.00" W x 1.40" H (127.0mm x 76.2mm x 35.6mm) |
|

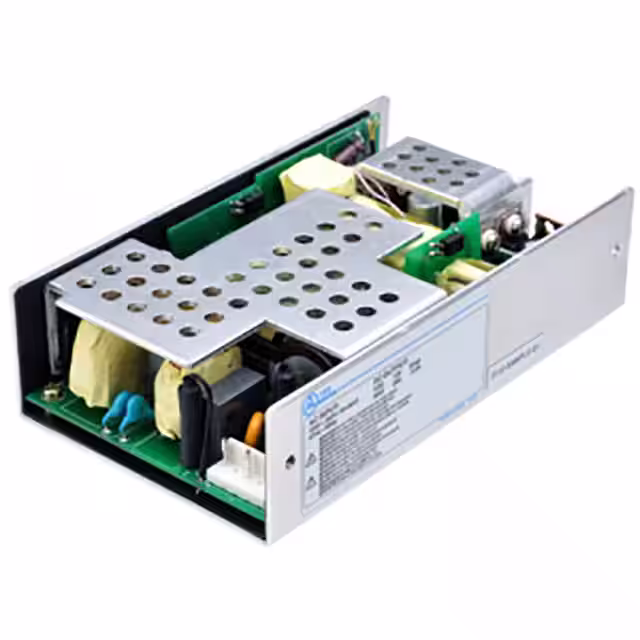

ARFU-3811M-2405AC/DC CONVERTER 380W 24V 12V Mul Aras Power Technologies |
4,071 |
|
规格书 |
- | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 15.8 A | - | - | - | - | - | 380W | Medical | 1.5 kV | 0°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.98" L x 3.50" W x 1.57" H (152.0mm x 88.9mm x 40.0mm) |
|
ARF-2501-10AC/DC CONVERTER 15V 251W Aras Power Technologies |
4,708 |
|
规格书 |
ARF-2501 (250W) | Bag | Active | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 251W | ITE (Commercial) | 1.5 kV | -40°C ~ 50°C | PFC, Remote Sense, Standby Output, Universal Input | Chassis Mount | 8.00" L x 5.00" W x 1.75" H (203.2mm x 127.0mm x 44.5mm) |
|

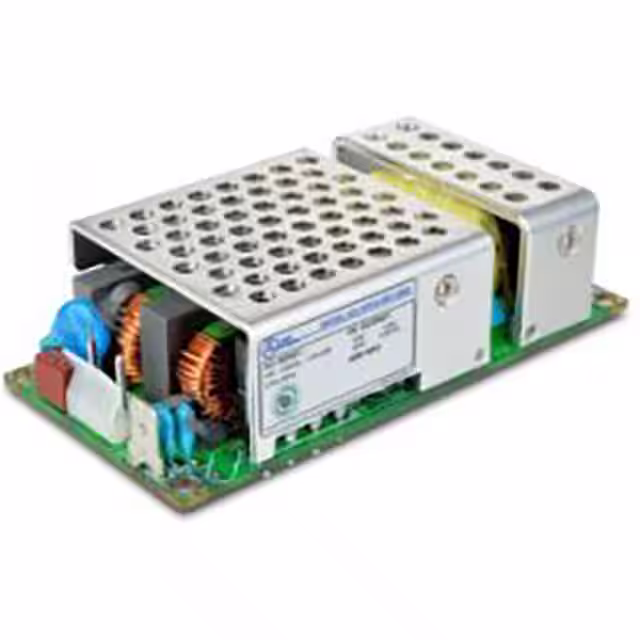

ARFS-6501-12SAC/DC CONVERTER 12V 65W Aras Power Technologies |
2,259 |
|
规格书 |
ARFS-6501 (65W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 5.42 A | - | - | - | - | - | 65W | ITE (Commercial) | 1.5 kV | 0°C ~ 70°C (With Derating) | PFC | Chassis Mount | 4.00" L x 2.00" W x 1.20" H (101.6mm x 50.8mm x 30.5mm) |
